Slim Industrial Table Leg DXF/SVG - CNC Plasma/Laser Files, 27.5" Height
$4.25 USD
Sale price
$4.25 USD
Regular price
$6.88 USD
Skip to product information
Slim Industrial Table Leg DXF/SVG - CNC Plasma/Laser Files, 27.5" Height
$4.25 USD
Sale price
$4.25 USD
Regular price
$6.88 USD
Taxes included.
Shipping calculated at checkout.

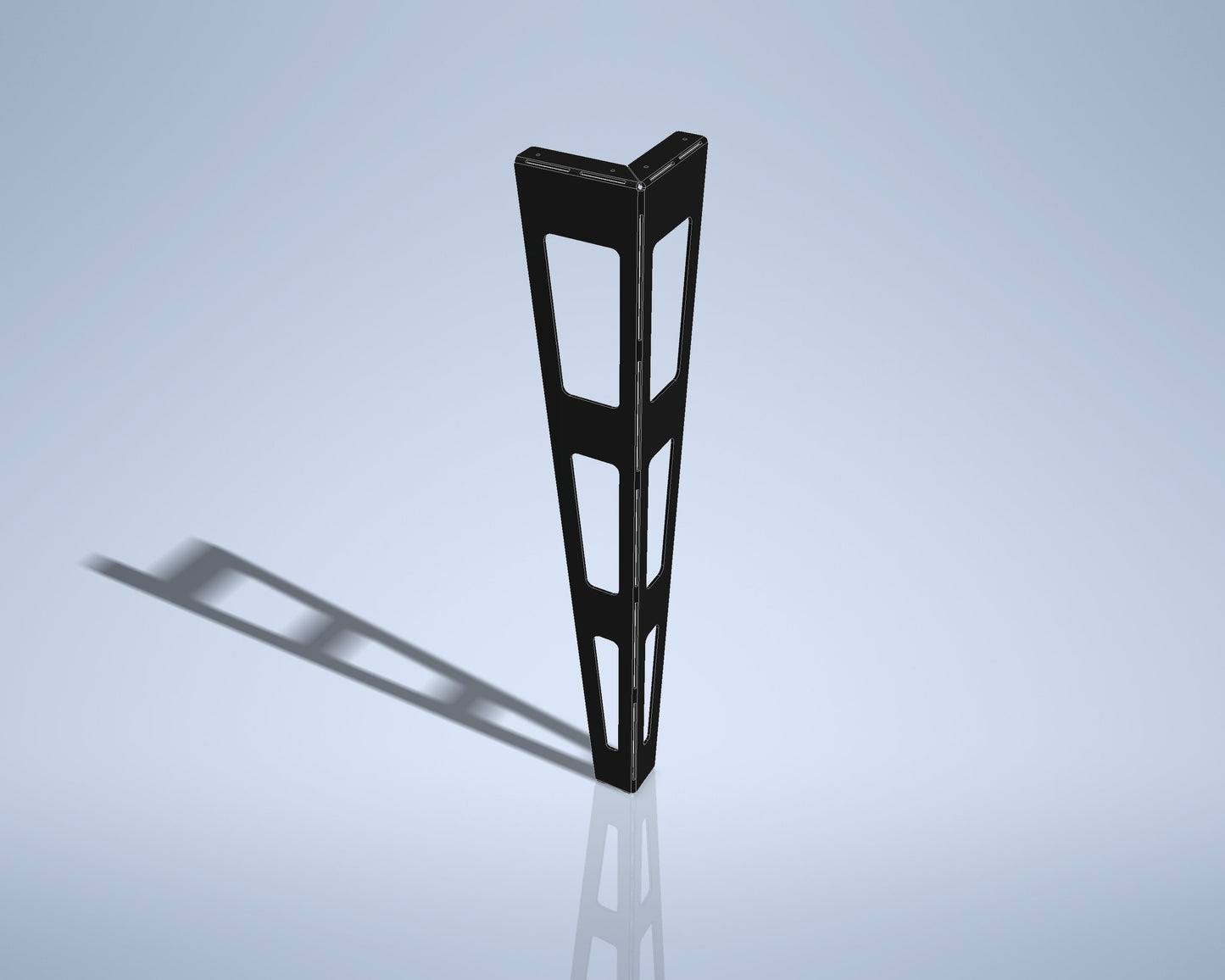

Slim Industrial Table Leg DXF files is a downloadable CNC-ready file package for building slim industrial metal table legs for dining tables, desks, or custom furniture projects. The finished leg design is approximately 27.5 in high, 4.7 in wide, and 4.7 in deep.
What You Get
- DXF, SVG, and PDF files for the slim industrial table leg design.

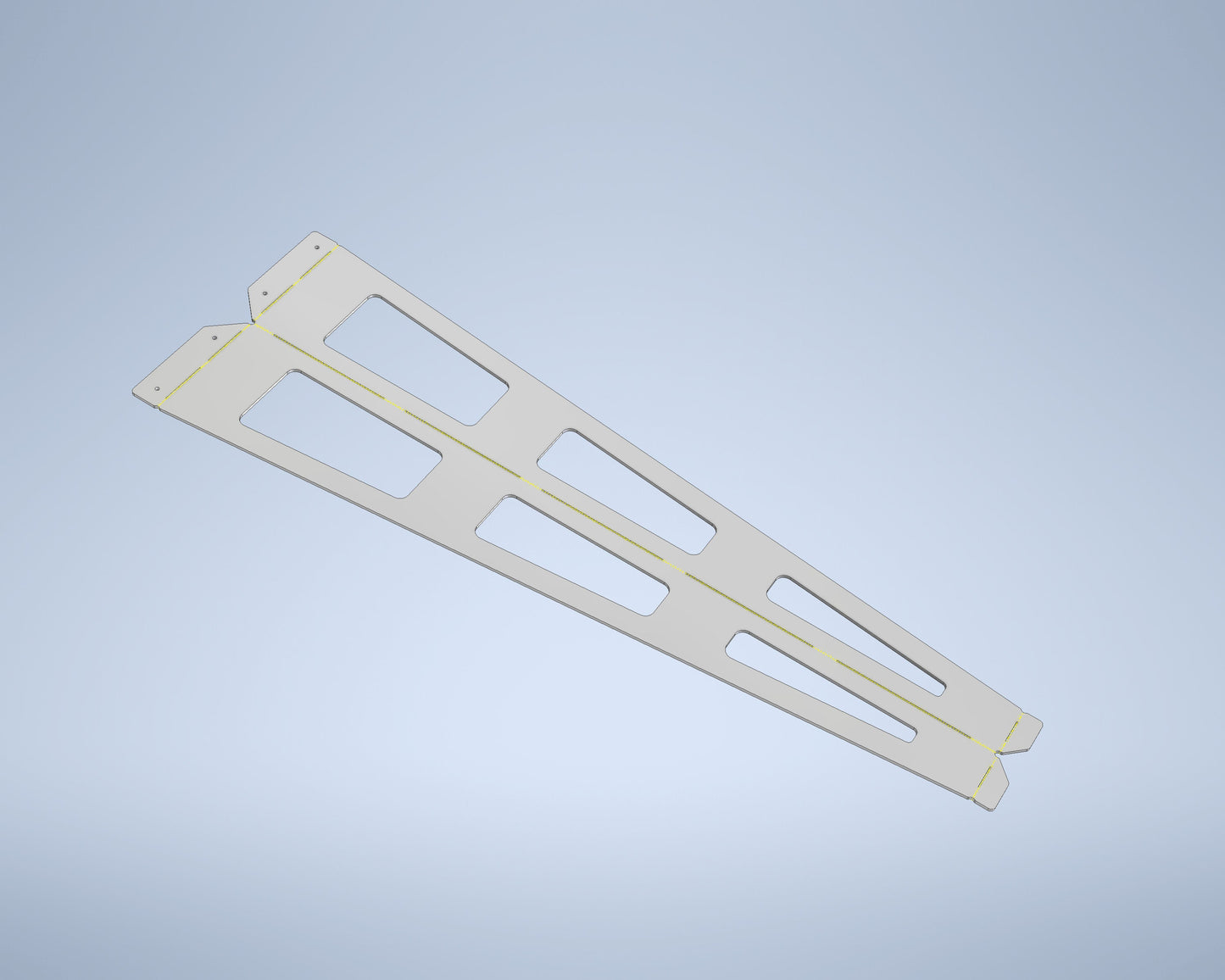

- CNC-ready flat pattern files for plasma, laser, or waterjet cutting workflows.
- PDF drawings for sheet metal bending instructions.
- Pre-cut slot features intended to help form the sheet metal parts.
- No physical table leg, tabletop, steel, hardware, or finished furniture item is shipped.
Project Features
- Slim Avia-style industrial table leg layout for desks, dining tables, and custom furniture builds.
- Designed for CNC cutting, sheet metal bending, and optional welding for reinforcement.
- Slot-cut bend features help guide bending lines and can reduce dependence on a dedicated brake press for suitable material thicknesses.
Finished Size
- Approximate assembled height: 27.5 in / 700 mm.
- Approximate assembled width: 4.7 in / 120 mm.
- Approximate assembled depth: 4.7 in / 120 mm.
Recommended Materials
- 8 gauge / 4.0 mm steel.
- 11 gauge / 3.0 mm steel.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending the DXF files to CAM software.
- Verify kerf, material thickness, bend approach, slot-cut behavior, welding or fastening plan, and machine settings before fabrication.
- Use the bend-assist geometry as a fabrication aid; final bending method still depends on your material thickness, tools, and shop setup.
- Confirm tabletop attachment, load path, edge finishing, and surface treatment for your intended furniture use.
