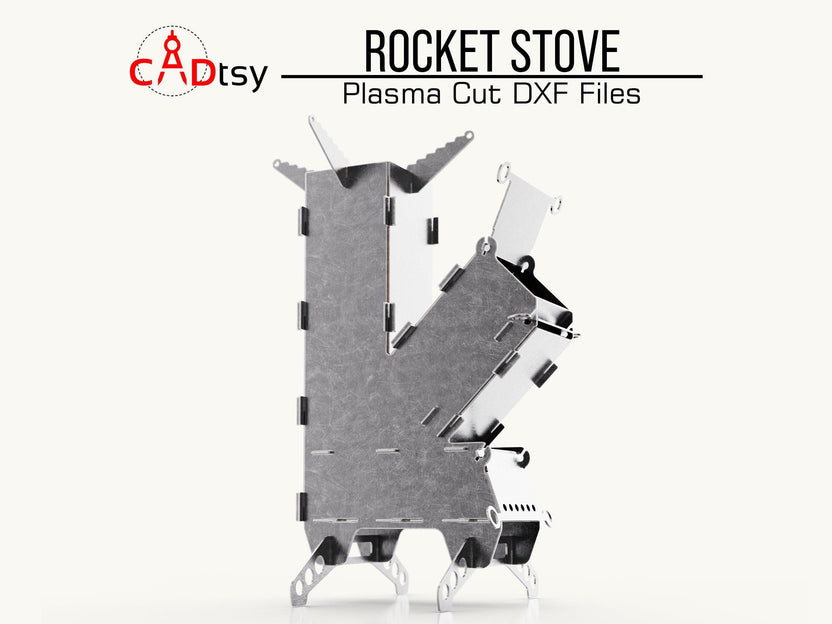

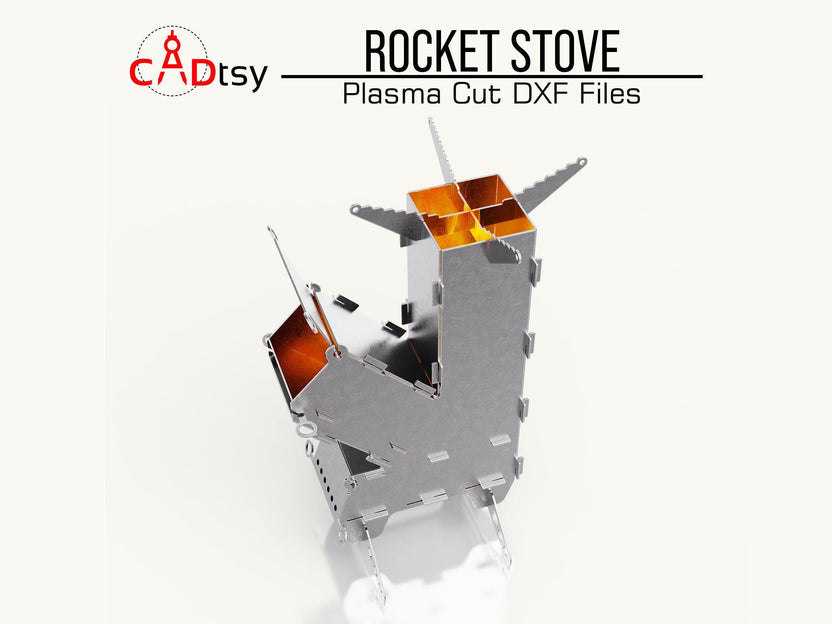

This downloadable rocket stove file package is for fabricating a portable outdoor wood-stove project with CNC cutting equipment. It includes DXF, SVG, and PDF file sets for several sheet-material thicknesses. No physical stove, fuel, material, hardware, or finished item is shipped.
What You Get
- DXF, SVG, and PDF files for the portable rocket stove project.
- File sets for 1.5 mm, 2 mm, 2.5 mm, and 3 mm material thicknesses.
- One portable outdoor stove project.
Finished Size
- Approximate height: 25.5 in / 648 mm.
- Approximate width: 13.0 in / 330 mm.
- Approximate depth: 17.6 in / 448 mm.
Material Thickness Options
- 1.5 mm / 16 gauge sheet material.
- 2.0 mm / 14 gauge sheet material.
- 2.5 mm / 12 gauge sheet material.
- 3.0 mm / 11 gauge sheet material.
Fabrication Notes
- Designed for CNC plasma, laser, or waterjet cutting workflows.
- Select the file set that matches your material thickness and fabrication plan.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending files to your CNC software.
- Verify kerf, material thickness, tooling, machine settings, and fit before producing the final project.
