Perforated Industrial Table Leg DXF/SVG - CNC Plasma/Laser Files, 28" Height
$4.25 USD
Sale price
$4.25 USD
Regular price
$6.88 USD
Taxes included.
Shipping calculated at checkout.

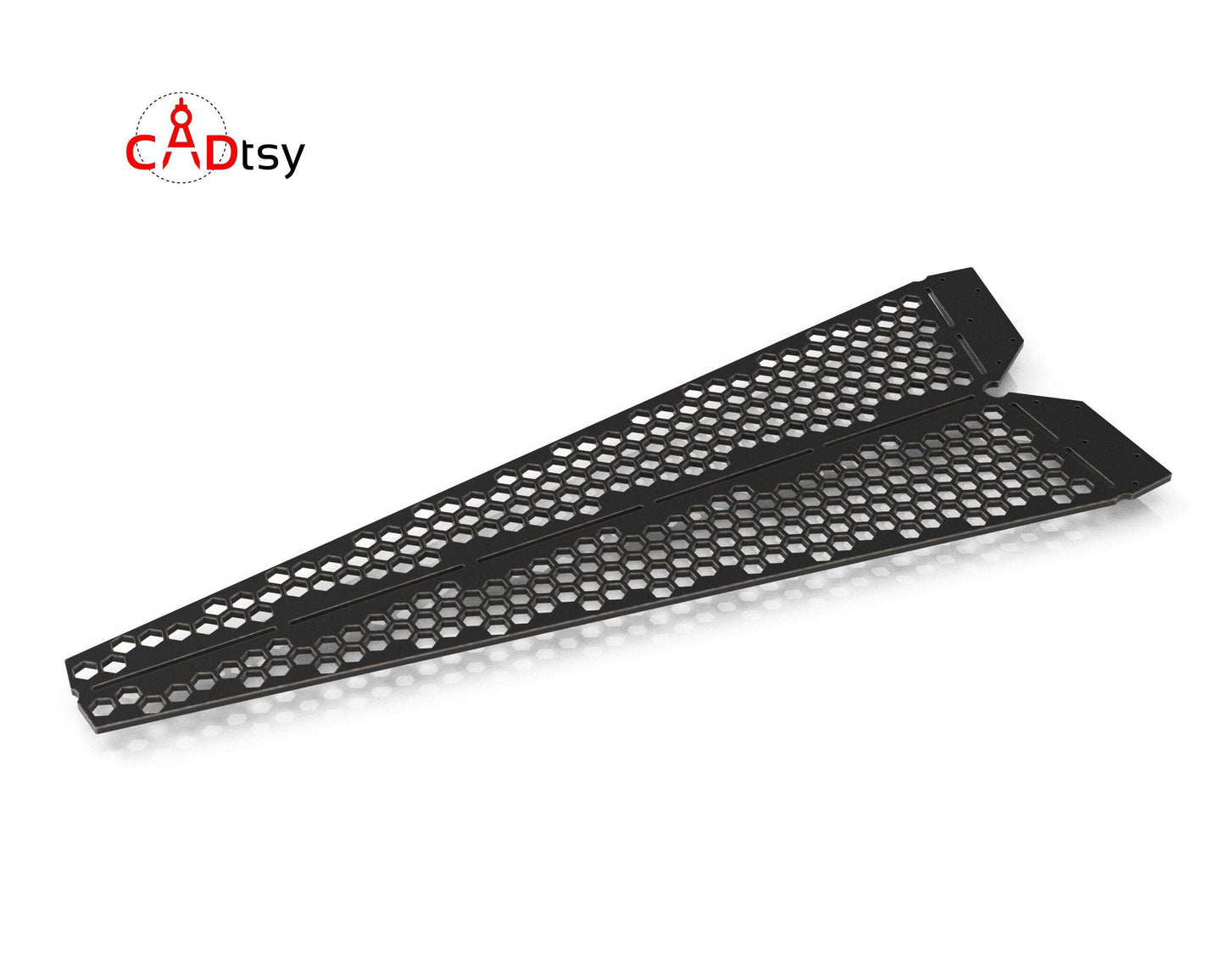

Perforated Industrial Table Leg DXF files is a downloadable CNC-ready file package for building a geometric perforated metal table leg for industrial desks, dining tables, or custom furniture projects. Each finished leg is approximately 28.0 in high, 9.8 in wide, and 9.8 in deep.
What You Get
- DXF, SVG, and PDF files for the perforated industrial table leg design.
- CNC-ready flat pattern files for plasma, laser, or waterjet cutting workflows.
- PDF drawings for sheet metal bending instructions.
- No physical table leg, steel, tabletop, hardware, fasteners, or finished furniture is shipped.
Project Features
- Hexagon perforation pattern for a modern industrial table leg or desk base.
- Designed for CNC cutting and sheet metal bending.
Finished Size

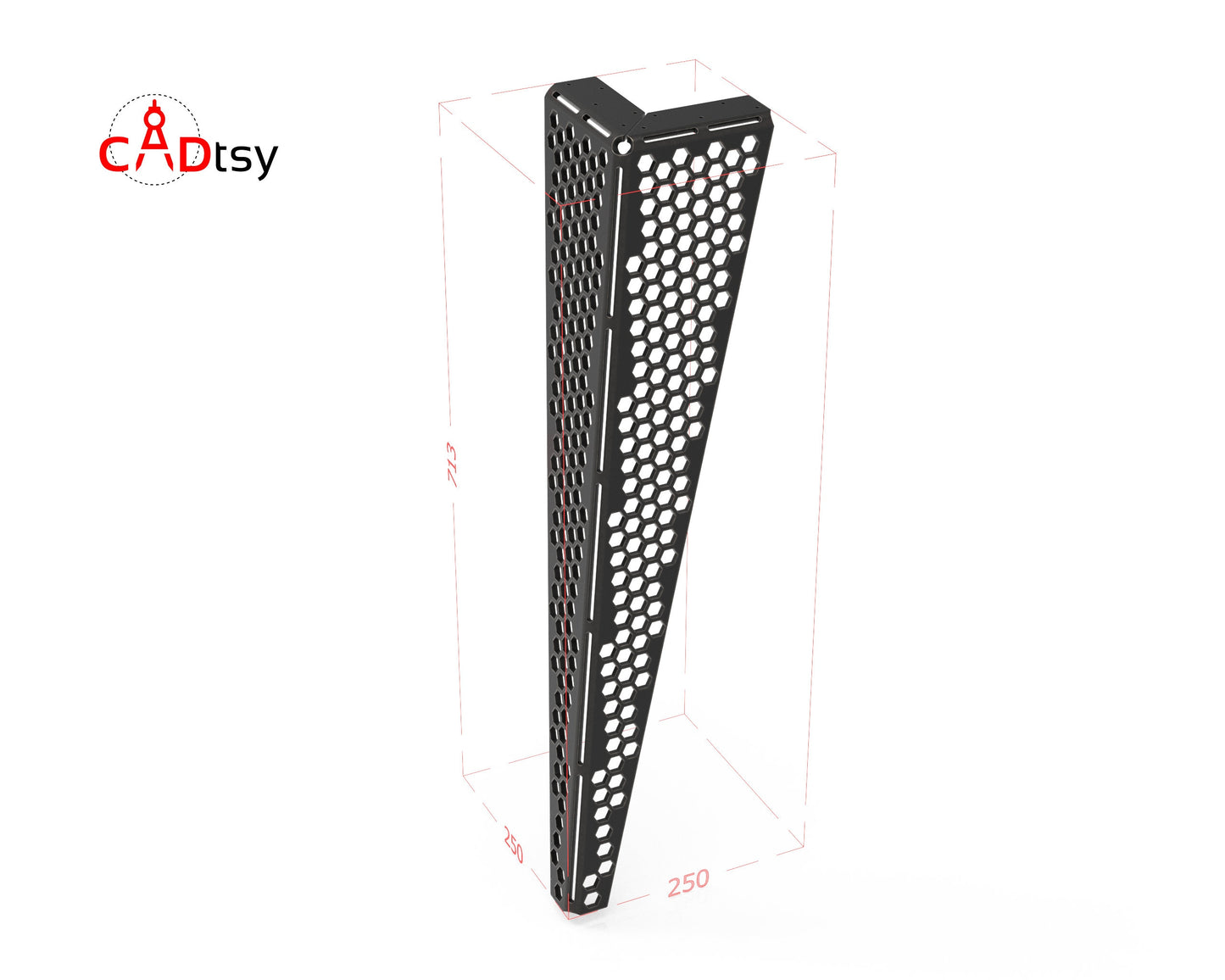

- Approximate assembled height per leg: 28.0 in / 713 mm.
- Approximate assembled width per leg: 9.8 in / 250 mm.
- Approximate assembled depth per leg: 9.8 in / 250 mm.
Recommended Materials
- 3-8 gauge / 4.0-6.0 mm steel.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending the DXF or SVG files to CAM software.
- Verify kerf, bend approach, material thickness, tabletop mounting plan, edge finishing, and machine settings before fabrication.
- Confirm table stability, fastener choice, and load requirements before use.
