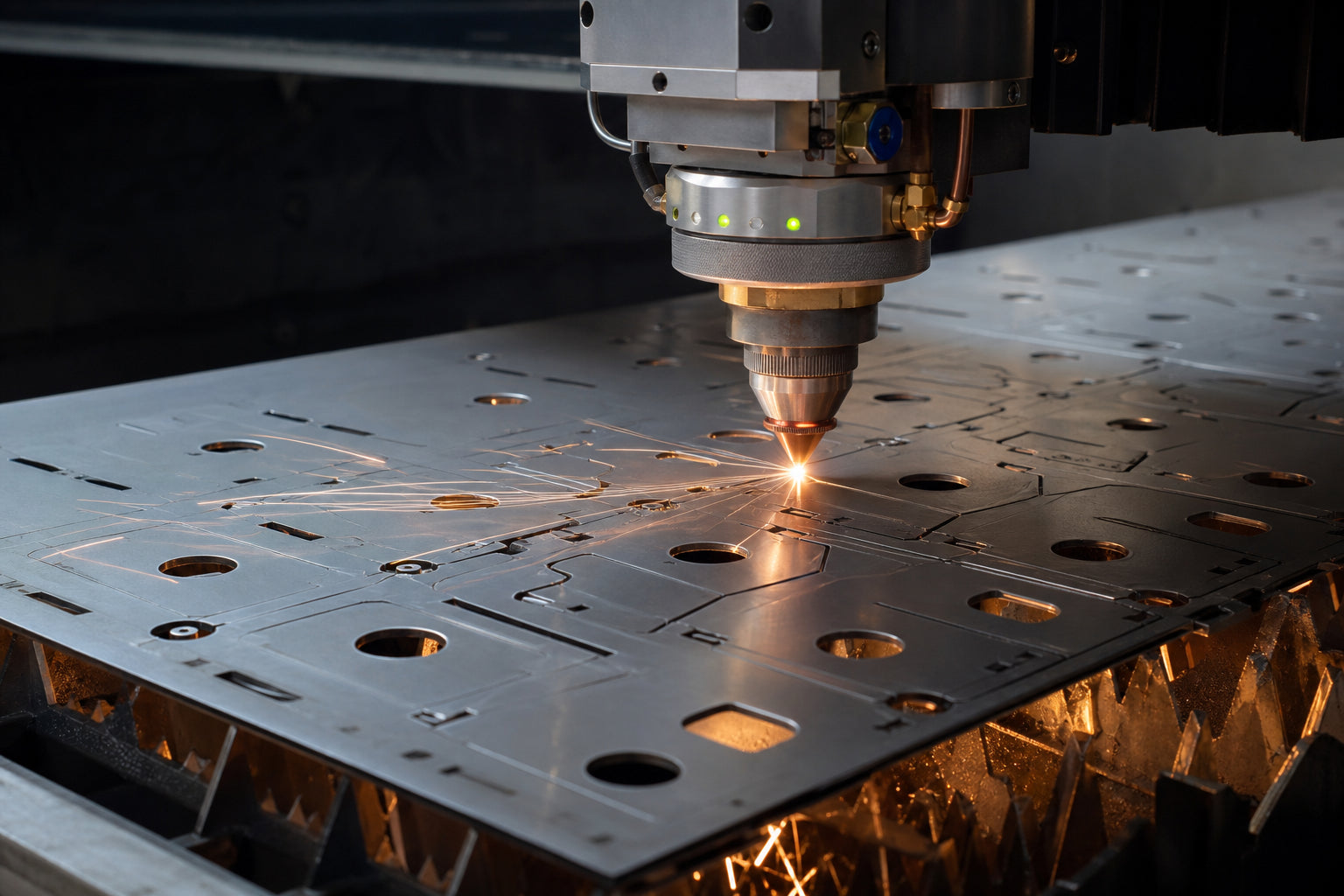

CNC Laser Cutting Tips for Metal Fabrication Beginners

Entering the realm of metalwork with computer numerical control technology opens unprecedented opportunities for precision fabrication. The synergy between laser optics and metal substrates creates possibilities that traditional methods simply cannot match. Yet, mastery requires understanding the nuances that separate mediocre results from exceptional craftsmanship.

For those embarking on their inaugural ventures into CNC laser cutting metal, the learning trajectory can seem daunting. The interplay of power settings, focal distances, and material properties demands both theoretical knowledge and practical experience. This comprehensive guide distills essential wisdom to accelerate your proficiency while avoiding costly mistakes that plague novices.

Understanding Your Laser System's Capabilities

The foundational step in achieving quality cuts involves comprehending the specific parameters of your equipment. CO2 lasers and fiber lasers represent distinct technological approaches, each excelling with particular metal types. CO2 systems demonstrate effectiveness with certain non-ferrous metals when properly configured, while fiber lasers exhibit superior absorption rates across steel, aluminum, and brass substrates.

Wattage capacity directly correlates with cutting thickness potential. A 40-watt laser might handle decorative stainless steel up to 0.5mm, whereas industrial applications demanding 6mm mild steel necessitate 1000-watt systems or beyond. Knowing your machine's threshold prevents frustration and material waste. Consult manufacturer specifications meticulously, as overstating capabilities leads to incomplete cuts, excessive dross, and compromised edge quality.

The beam focal point represents another critical consideration. Maintaining optimal standoff distance—typically between 1mm and 5mm depending on configuration—ensures concentrated energy delivery. Too proximate, and spatter may contaminate your lens assembly. Too distant, and the beam disperses, reducing cutting efficacy. Utilize height sensors or manual gauges to establish consistency across varied workpiece topographies.

Material Selection and Preparation Fundamentals

Different metals respond variably to laser energy absorption. Mild steel cuts cleanly due to favorable thermal properties, making it ideal for learning projects. Stainless steel requires more power and slower feed rates but delivers aesthetically superior edges with minimal oxidation. Aluminum presents challenges due to high reflectivity and thermal conductivity, often demanding specialized equipment or technique modifications.

Surface preparation cannot be overstated in its importance. Oxidation, oil residue, or protective coatings interfere with beam penetration and cutting consistency. Degrease metal sheets using appropriate solvents and remove rust with wire brushing or chemical treatments. Some fabricators apply anti-spatter compounds to minimize cleanup, though this introduces another variable that beginners should approach cautiously.

Sheet flatness directly impacts cutting precision. Warped or bowed material causes focal distance variations that produce inconsistent kerf width and incomplete penetration. Employ magnetic holddowns, vacuum tables, or strategic weight placement to ensure complete contact with your machine bed. For thin gauge materials prone to thermal distortion, consider micro-jointing techniques that maintain positional stability until cooling completes.

Optimal Thickness Ranges for Beginners

Novice operators should initially focus on material thickness within their equipment's comfortable operational envelope. Starting with 1mm to 3mm mild steel allows experimentation without excessive processing time or power demands. This range provides quick feedback loops—you can rapidly test parameter adjustments and observe their effects without waiting extended periods for cuts to complete.

Thinner materials below 1mm risk excessive heat-affected zones and distortion. Thicker substrates above your machine's rated capacity produce frustration through incomplete cuts and edge quality degradation. As proficiency develops, gradually expand into challenging thicknesses while maintaining detailed process documentation.

Mastering Parameter Configuration

The triumvirate of power, speed, and frequency governs cutting outcomes. Power determines penetration capability, speed affects heat input and edge quality, while frequency influences kerf characteristics and material interaction dynamics. These variables interrelate complexly—altering one necessitates compensatory adjustments in others.

Begin with manufacturer recommendations or established parameter libraries as baseline references. Document every modification meticulously. Create test matrices where you systematically vary single parameters while holding others constant. This empirical approach builds intuitive understanding far more effectively than theoretical study alone.

Consider creating a personal parameter database organized by material type, thickness, and desired edge quality. Include notes about environmental conditions, as ambient temperature and humidity subtly influence cutting performance. This reference library becomes invaluable when reproducing past successes or troubleshooting anomalies.

Feed Rate Optimization

Traverse speed represents a delicate balance. Excessively rapid movement prevents complete penetration, leaving dross accumulation on the underside and necessitating secondary finishing operations. Overly conservative speeds introduce excessive heat, widening the heat-affected zone and potentially warping thin materials.

Optimal feed rates produce a characteristic cutting sound—a steady hiss rather than popping or crackling that indicates problematic interaction. Visual observation of the cutting front provides real-time feedback. A properly configured cut exhibits a narrow kerf with sparks ejecting downward at a consistent angle, approximately 15-20 degrees from vertical.

Design File Preparation Best Practices

Quality outcomes begin with properly constructed digital files. Vector paths must be continuous and closed where parts require complete separation. Open vectors waste processing time as the laser traces non-cutting movements. Utilize CAD software cleanup tools to eliminate duplicate lines, micro-segments, and overlapping geometry that confuses machine interpretation.

Strategic nesting maximizes material utilization and minimizes waste. Arrange parts with adequate spacing—typically 3mm to 5mm—preventing heat accumulation between adjacent cuts that might cause distortion. Consider grain direction for directional materials, and orient parts to balance thermal distribution across the sheet.

CADtsy's optimized DXF and SVG files eliminate these preparation headaches for workshop organizers, furniture components, and decorative pieces. Pre-engineered designs account for kerf compensation, appropriate tolerances, and proven cutting sequences. This allows fabricators to focus on execution rather than design troubleshooting.

Lead-In and Lead-Out Strategies

Piercing operations—where the laser initiates cutting—create localized heat concentration that may damage part edges or create unsightly marks. Implementing lead-ins positions this thermal disruption outside the finished part boundary. Linear, arc, or spiral approaches each offer advantages depending on material thickness and aesthetic requirements.

For precision work, position lead-ins strategically in areas that will be hidden during assembly or subjected to secondary machining. Lead-out paths prevent terminal marks and allow the cutting front to stabilize before exiting the material. These small details distinguish professional results from amateur attempts.

Assist Gas Selection and Delivery

Assist gases serve multiple critical functions: they eject molten material from the kerf, protect optical components from vapor contamination, and influence edge oxidation characteristics. Oxygen accelerates mild steel cutting through exothermic reaction, producing faster processing at the expense of oxidized edges. Nitrogen creates inert environments that preserve bright, oxide-free edges on stainless steel and aluminum.

Compressed air represents an economical option for non-critical applications and certain material combinations. Its moisture content and reactive oxygen component limit suitability for precision work or materials sensitive to oxidation. Shop air requires filtration to remove oil, water, and particulates that would contaminate the cutting zone.

Gas pressure significantly impacts cutting quality. Insufficient pressure fails to eject molten material adequately, causing dross adherence. Excessive pressure creates turbulence that disrupts the cutting front and may extinguish the plasma plume in oxygen cutting. Typical pressures range from 0.5 to 2.0 bar for nitrogen cutting and 0.2 to 0.8 bar for oxygen-assisted operations, varying with nozzle diameter and material thickness.

Common Pitfalls and Troubleshooting Approaches

Incomplete penetration manifests as the laser failing to sever material completely. Diagnosis requires systematic evaluation: verify sufficient power output, confirm proper focal position, check assist gas pressure and purity, and reduce feed rate incrementally. Material contamination or unexpected alloy composition occasionally causes this frustration.

Excessive dross accumulation on the underside indicates parameter imbalance. Increase assist gas pressure first, as insufficient melt ejection commonly causes this issue. If persistence occurs, reduce cutting speed to allow more complete material removal. Nozzle condition matters tremendously—damaged or contaminated tips disrupt gas flow patterns and should be inspected regularly.

Heat-Affected Zone Management

The HAZ represents material adjacent to the cut edge where thermal cycling alters metallurgical properties. Minimizing this region preserves material characteristics and reduces distortion risk. Employ faster cutting speeds where equipment capacity permits, utilize higher assist gas pressures to accelerate cooling, and consider pulsed laser modes that reduce average heat input.

Sequential cutting patterns influence thermal distribution. Allowing previously cut areas to cool before processing adjacent features prevents cumulative heat buildup. Skip-cutting strategies—where the machine moves between distant regions rather than cutting continuously—optimize thermal management for distortion-sensitive projects.

Safety Protocols and Workspace Organization

Laser systems demand rigorous safety observance. Class 4 lasers used in metal cutting produce beam intensities capable of causing instant permanent eye damage and igniting flammable materials. Ensure proper enclosure with interlocked access panels that disable beam output when opened. Never bypass safety mechanisms regardless of operational convenience.

Fume extraction represents another critical consideration. Vaporized metals and combustion byproducts create hazardous atmospheres requiring adequate ventilation. Position extraction nozzles close to the cutting zone and maintain filter systems according to manufacturer schedules. Some materials—notably galvanized steel, beryllium copper, and certain coatings—produce particularly toxic fumes demanding enhanced precautions or avoidance entirely.

Organize your workspace to facilitate efficient workflow. Maintain dedicated areas for raw material storage, machine operation, and finished part collection. Implement systematic identification methods for different material grades and thicknesses to prevent costly errors. Keep calibration tools, spare nozzles, and cleaning supplies readily accessible to minimize downtime.

Building Your Skills Progressively

Competency develops through deliberate practice structured around incremental challenges. Begin with simple geometric shapes that build fundamental skills without overwhelming complexity. Progress to designs incorporating varied feature sizes, tight tolerances, and internal cutouts. Each successful project expands your capability envelope while identifying areas requiring focused improvement.

Leverage pre-designed files from resources like CADtsy to study proven approaches. Examine how experienced designers handle tolerances, incorporate assembly features, and optimize cutting sequences. Reverse-engineering successful designs accelerates learning by revealing techniques that might take years to discover independently.

Document failures as thoroughly as successes. Photographs of defective parts, parameter settings that produced them, and hypotheses about causation create valuable troubleshooting references. Over time, pattern recognition develops—you'll instantly identify familiar failure modes and implement corrections efficiently.

When Should You Seek Professional Assistance?

Certain situations warrant expert consultation rather than continued experimentation. Persistent problems despite systematic troubleshooting may indicate equipment malfunction requiring technical service. Unusual materials or mission-critical applications justify investing in professional guidance to avoid expensive mistakes. Many laser system manufacturers offer training programs that compress months of trial-and-error into focused instruction.

Local fabrication communities, online forums, and maker spaces provide valuable peer learning opportunities. Observing experienced operators reveals subtle techniques difficult to communicate through written instruction. Don't hesitate to share your challenges—the fabrication community generally embraces collaborative problem-solving.

Advancing Beyond Basic Competence

Once fundamental proficiency solidifies, explore advanced techniques that distinguish exceptional work. Kerf compensation—adjusting vector paths to account for material removed during cutting—enables precise fitting tolerances for assemblies. This requires understanding how your specific machine and parameter set affect kerf width across various materials and thicknesses.

Multi-pass cutting extends capability to thicker materials beyond single-pass limits. Sequential passes at reduced power incrementally deepen the cut while managing heat input. This technique demands precise path repeatability and careful parameter selection to ensure passes align perfectly.

Combining laser cutting with complementary processes like forming, welding, and finishing unlocks sophisticated project possibilities. Understanding how cutting affects downstream operations—edge condition impacts weldability, heat-affected zones influence forming behavior—enables holistic fabrication planning.

Frequently Asked Questions About CNC Laser Metal Cutting

What metal thickness can entry-level laser systems realistically cut?

Entry-level CO2 lasers typically handle mild steel up to 1.5mm effectively, while budget fiber lasers extend this to approximately 3mm. Advertised maximum capacities often represent edge-case scenarios with compromised quality. Focus on thickness ranges delivering clean edges at reasonable speeds—usually 60-70% of stated maximums.

How do I prevent material warping during cutting operations?

Warping results from thermal expansion and contraction creating internal stresses. Minimize this through adequate material restraint, optimized cutting sequences that distribute heat evenly, and appropriate parameter selection favoring speed over excessive power. Thin materials benefit from leaving micro-tabs connecting parts to the skeleton until cooling completes.

Can I cut reflective metals like aluminum and copper on standard systems?

Reflective metals challenge CO2 lasers due to poor beam absorption, risking damage to optical components from reflected energy. Fiber lasers handle these materials more safely due to wavelength characteristics. If attempting aluminum on CO2 systems, use conservative parameters, ensure pristine optics, and accept reduced efficiency compared to fiber technology.

What maintenance schedule should beginners follow?

Daily operations should include nozzle inspection and cleaning, lens contamination checks, and extraction system verification. Weekly maintenance encompasses motion system lubrication, beam path alignment verification, and thorough cleaning of cutting beds. Monthly tasks include assist gas filter replacement, comprehensive optical inspection, and calibration verification. Adhering to manufacturer-specific schedules prevents premature wear and performance degradation.

The journey toward CNC laser cutting mastery unfolds through patient experimentation, systematic learning, and willingness to analyze both successes and failures. Each cut refines your understanding of the intricate relationship between equipment capabilities, material properties, and parameter selection. By building skills progressively and leveraging quality design resources, beginners can rapidly achieve results that satisfy both functional requirements and aesthetic aspirations. The precision and repeatability inherent to laser technology rewards those who invest effort in understanding its nuances, opening pathways to fabrication projects previously beyond reach.
