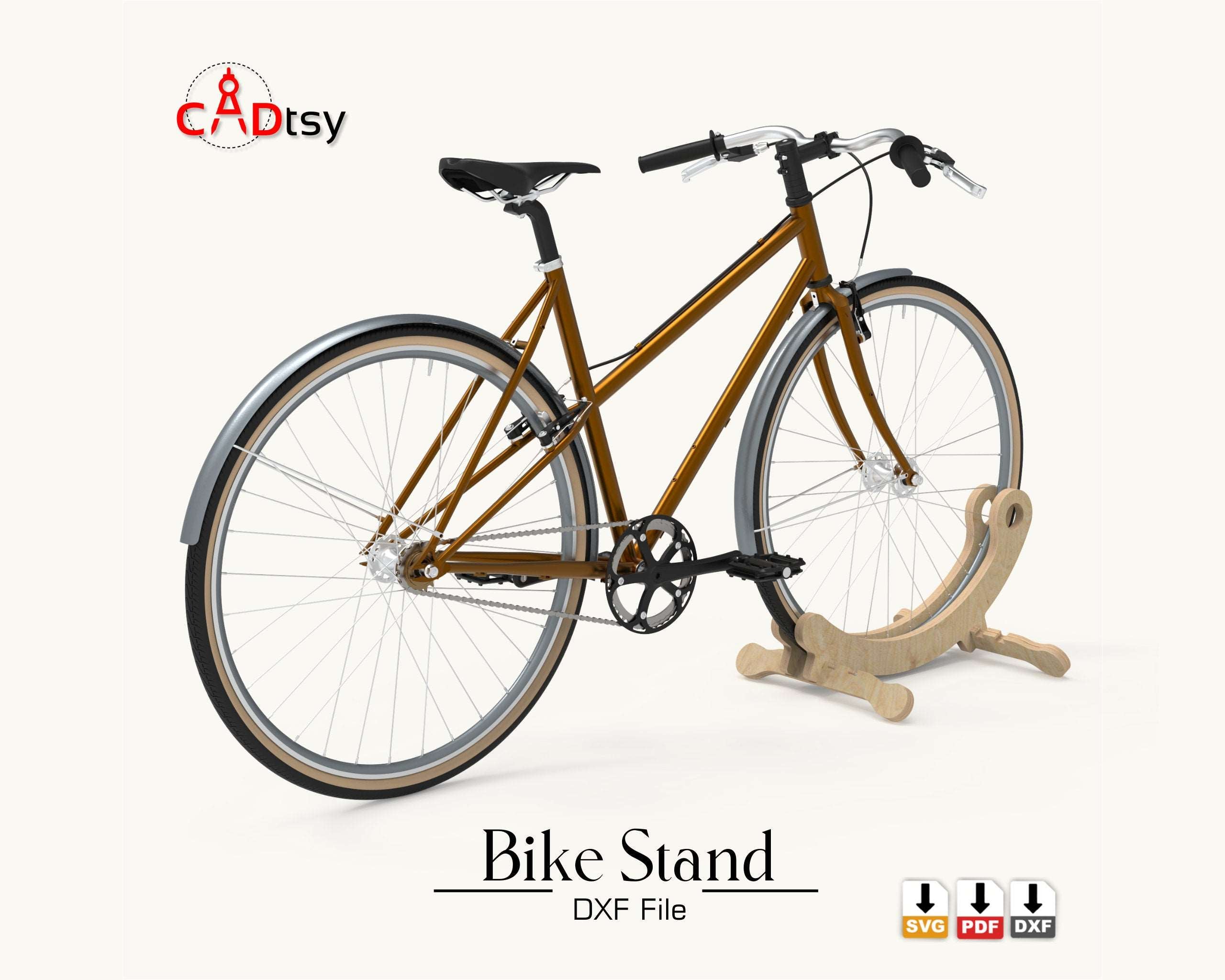

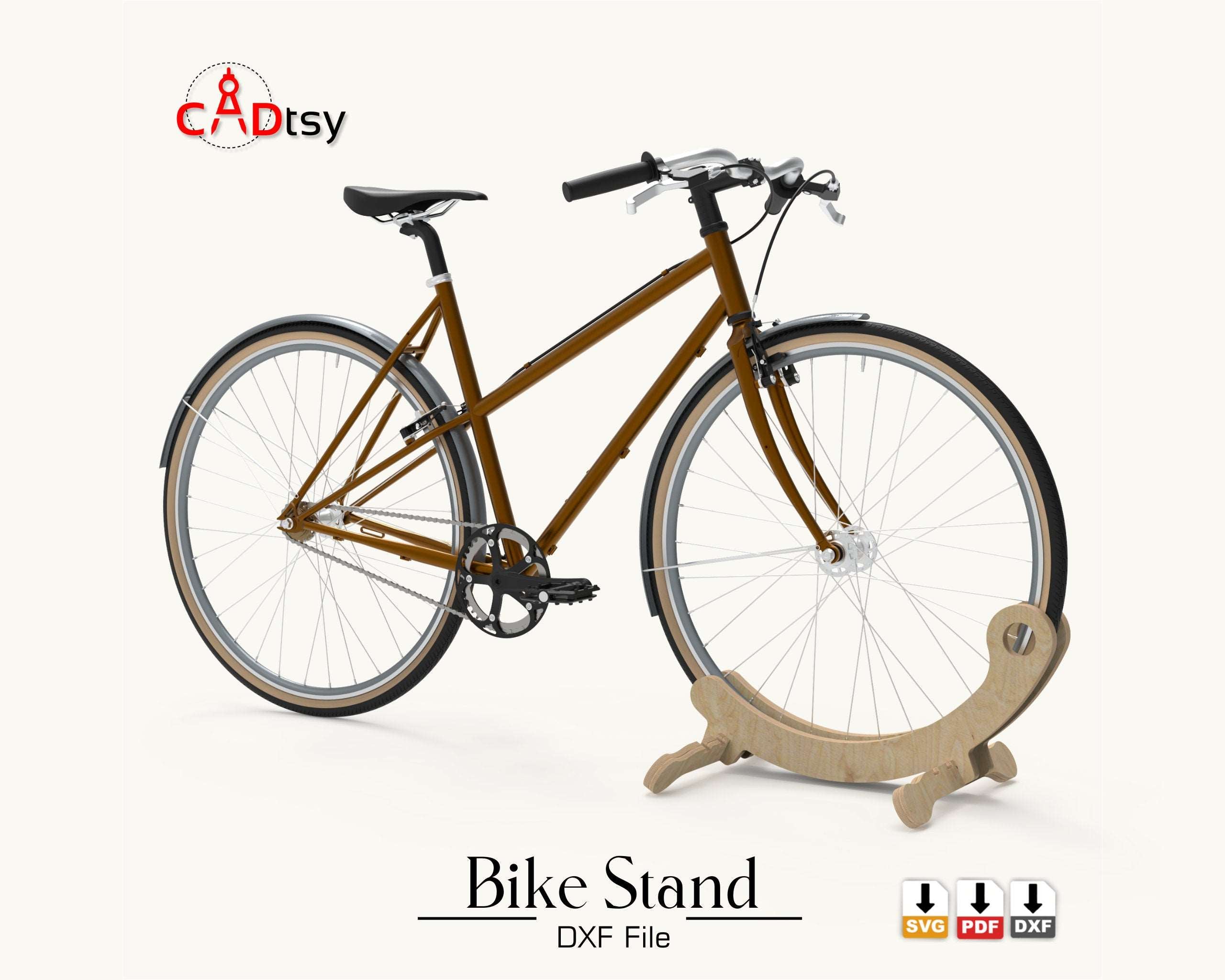

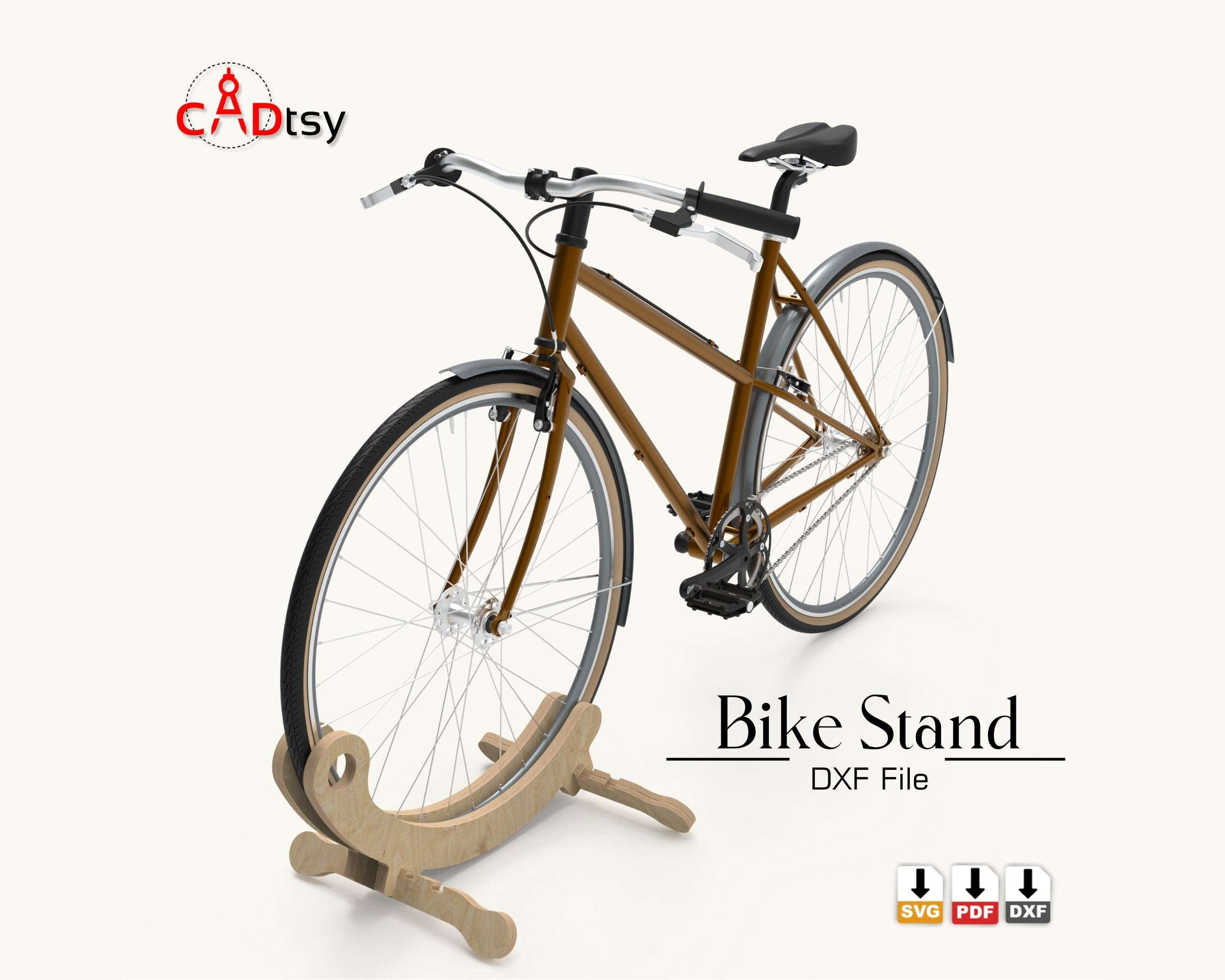

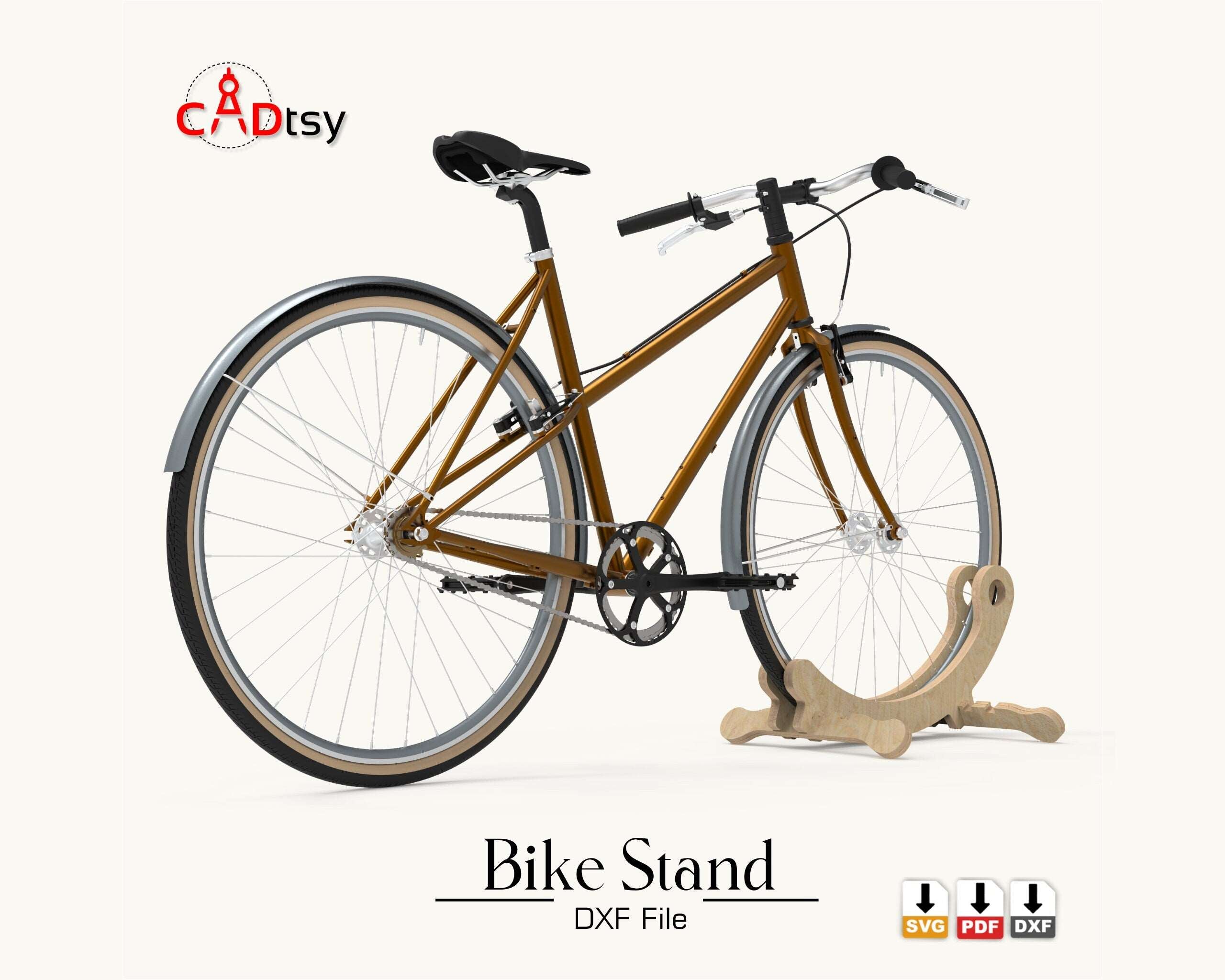

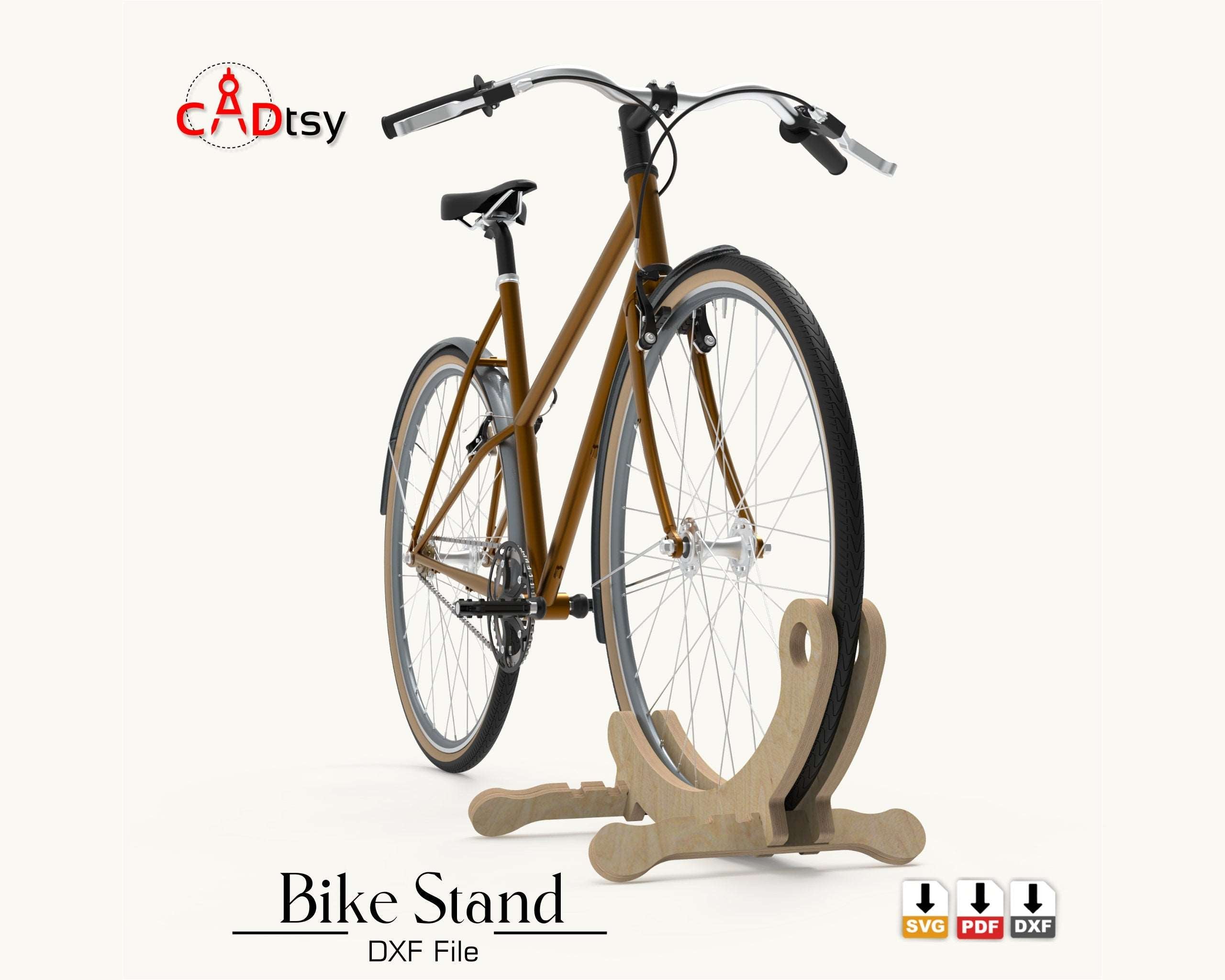

Wooden bike floor stand holding a bicycle

Wooden Bike Floor Stand DXF/SVG - CNC Router Files

$7.08 USD
$7.08 USD $11.47 USD
Skip to product information
Wooden bike floor stand holding a bicycle
Wooden Bike Floor Stand DXF/SVG - CNC Router Files

Wooden Bike Floor Stand DXF/SVG - CNC Router Files

$7.08 USD
$7.08 USD $11.47 USD
Taxes included. Shipping calculated at checkout.

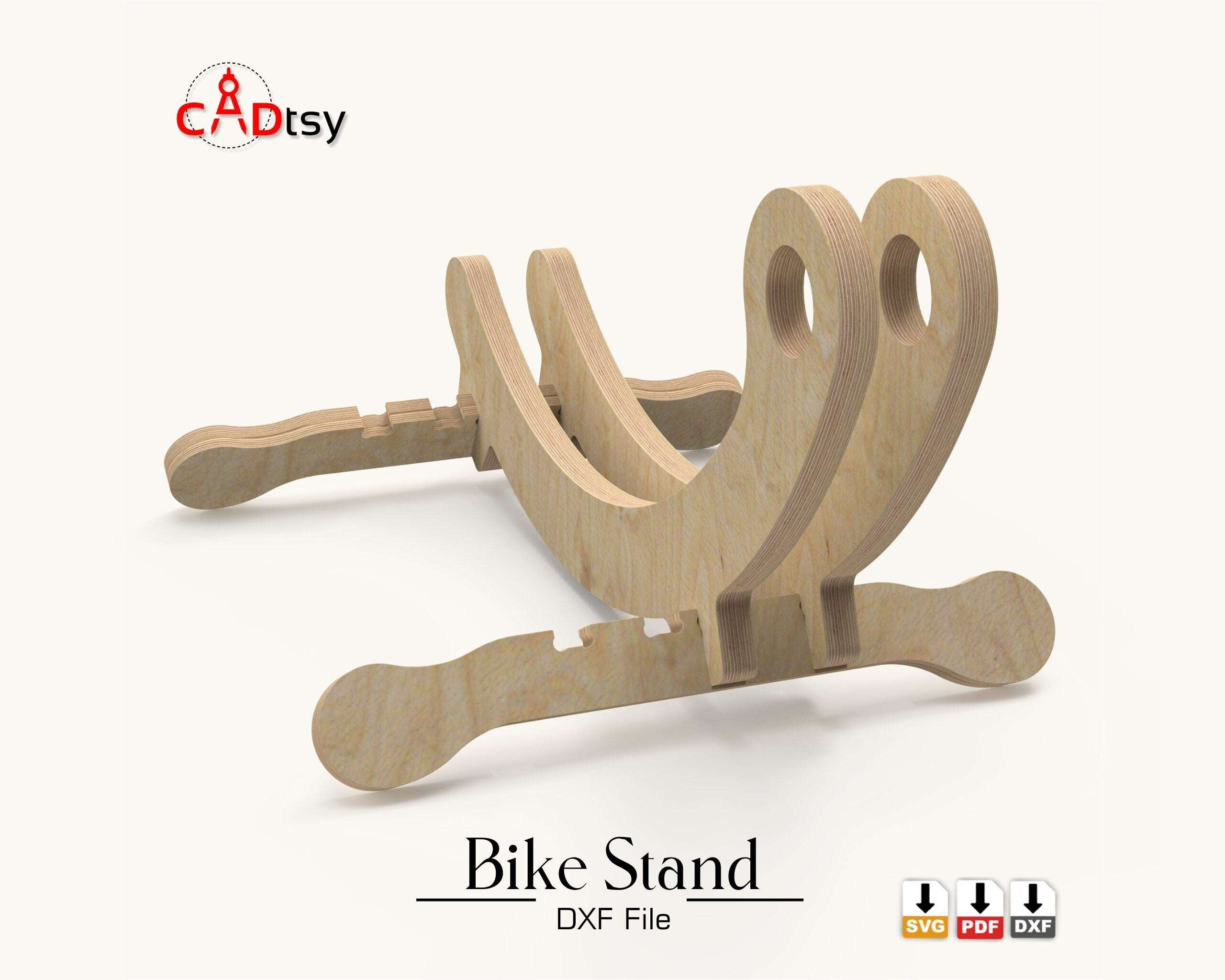

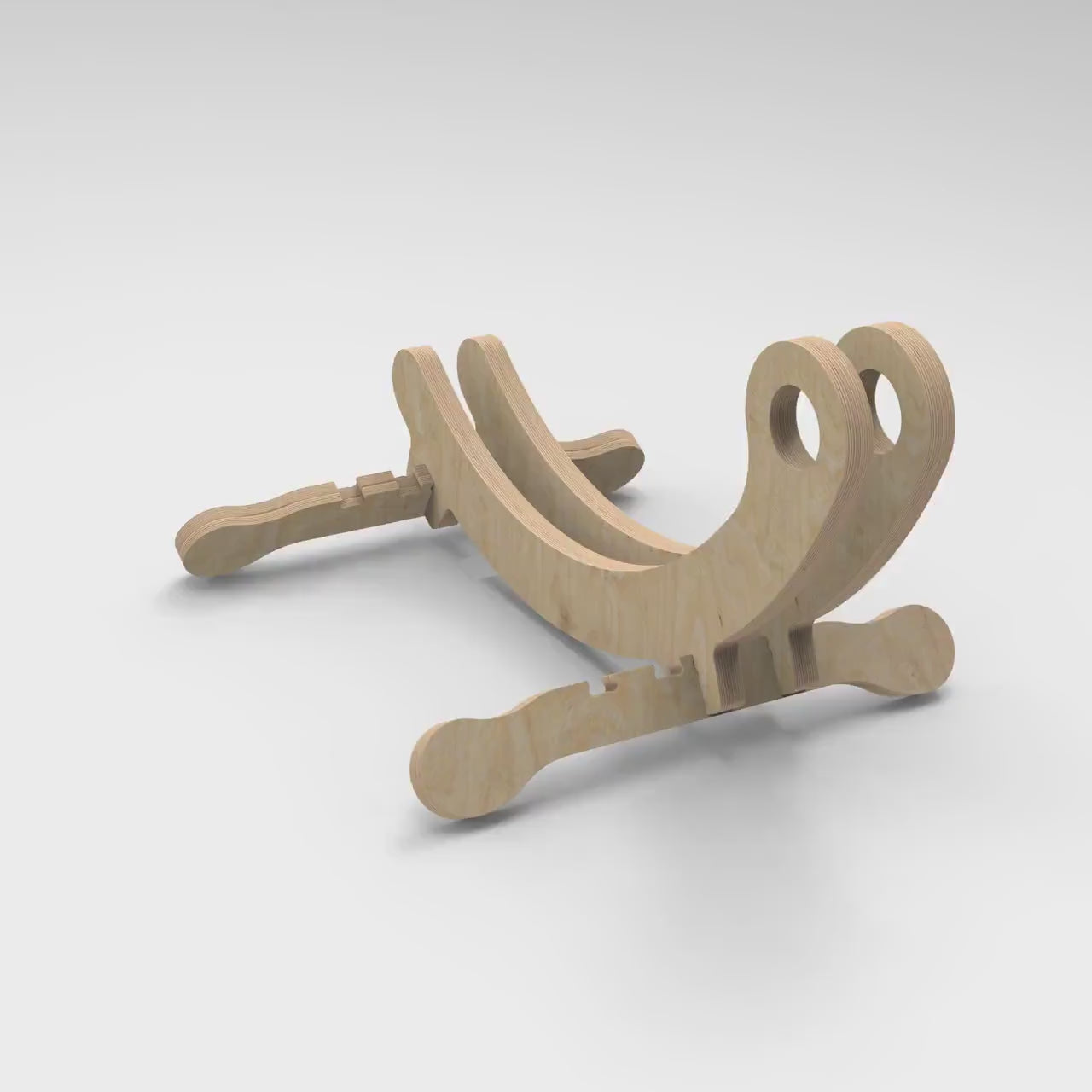

Wooden Bike Floor Stand DXF files is a downloadable CNC-ready file package for building a wooden floor bike stand or bicycle display rack for indoor storage, garages, apartments, and workshops. The assembled stand is approximately 11.8 in high, 23.3 in wide, and 15.7 in deep.

What You Get

  • DXF, SVG, and PDF files for the wooden bike floor stand design.
  • CNC-ready files for CNC router cutting workflows.
  • Separate file versions for 18 mm and 19 mm plywood.
  • No physical bike stand, plywood, bicycle, hardware, or finished rack is shipped.

Project Features

  • Floor-standing wooden bicycle holder layout for MTB, road, and indoor bike display use.
  • Corners are designed with dog-bone fillets for router-bit clearance.

Finished Size

  • Approximate assembled height: 11.8 in / 300 mm.
  • Approximate assembled width: 23.3 in / 591 mm.
  • Approximate assembled depth: 15.7 in / 400 mm.

Recommended Materials

  • 18.0 mm / 23/32 in plywood.
  • 19.0 mm / 3/4 in plywood.

Before Cutting

  • CADtsy designs are created in millimeters; check file scale and units before sending the DXF or SVG files to CAM software.
  • Verify kerf, tire fit, router bit diameter, material thickness, and machine settings before cutting.
  • Use the listed material thickness and tooling assumptions; adjust only if changing material thickness or using a larger router bit.
  • Confirm stand stability, floor contact, edge finishing, and safe bicycle support before use.

Related CADtsy Files

Browse related CADtsy project files, explore similar CNC designs, CADtsy CNC cut files, or review how CADtsy digital CNC files work before purchase.
⚠️ Important Information

• Digital product: This product is a downloadable CNC-ready design file package. No physical item is shipped.
• Delivery: After checkout, download links are sent by automated email and may also be available through your store order account.
• Included files: File formats vary by product and may include DXF, SVG, PDF, AI, project drawings, or instructions. Check the product description for the exact deliverables included with this design.
• Learn more: How CADtsy digital CNC files work.
⚠️ Legal Information

CADtsy digital designs, drawings, templates, and cutting files are protected by copyright and intellectual property laws. Purchasing a file grants a limited license to use the downloaded design according to the current CADtsy license terms; copyright ownership is not transferred.

Do not share, resell, rent, redistribute, or upload the digital files in any format. Commercial use, resale of finished items, and production rights must follow the current CADtsy license terms.

Read the current terms: CADtsy digital CNC file license terms. For licensing questions, contact CADtsy.
⚠️ Technical Support & Scaling

• Unit system: CADtsy designs are generally prepared in millimeters (mm). Check the product description for product-specific sizing details.
• Import scale: If your software is set to inches, a DXF or SVG file may import at the wrong scale. Re-import using millimeters where possible, or confirm the scale before cutting.
• DXF import help: If a DXF opens 25.4 times too large or too small, read why DXF files import at the wrong size before scaling or cutting.
• DXF or SVG: Read DXF vs SVG for CNC cutting before importing or creating toolpaths.
• Before cutting: Verify material thickness, kerf, bit or nozzle size, toolpaths, machine setup, and software compatibility before producing a final part.
• Support: If you are unsure about a file or license question, contact CADtsy.
