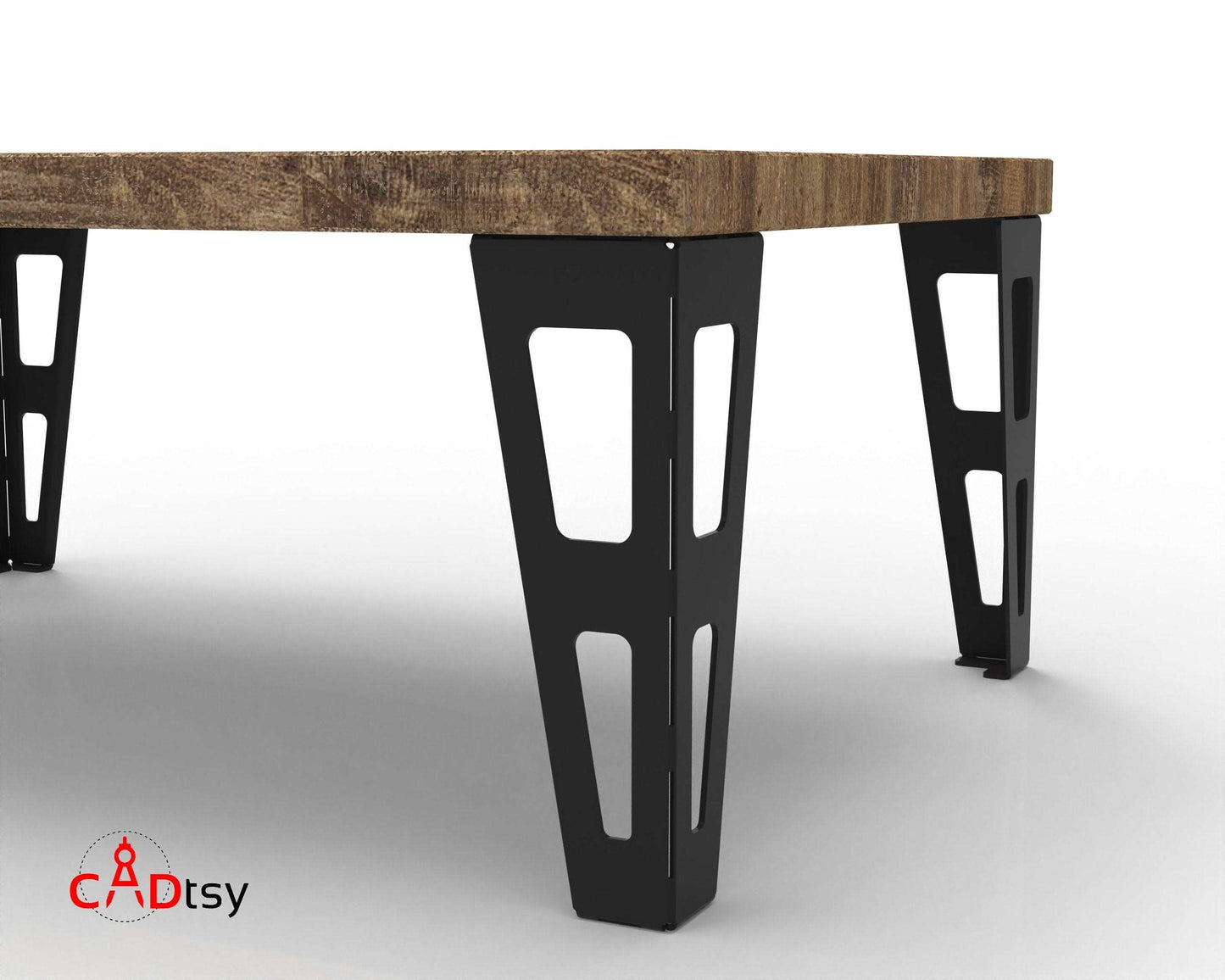

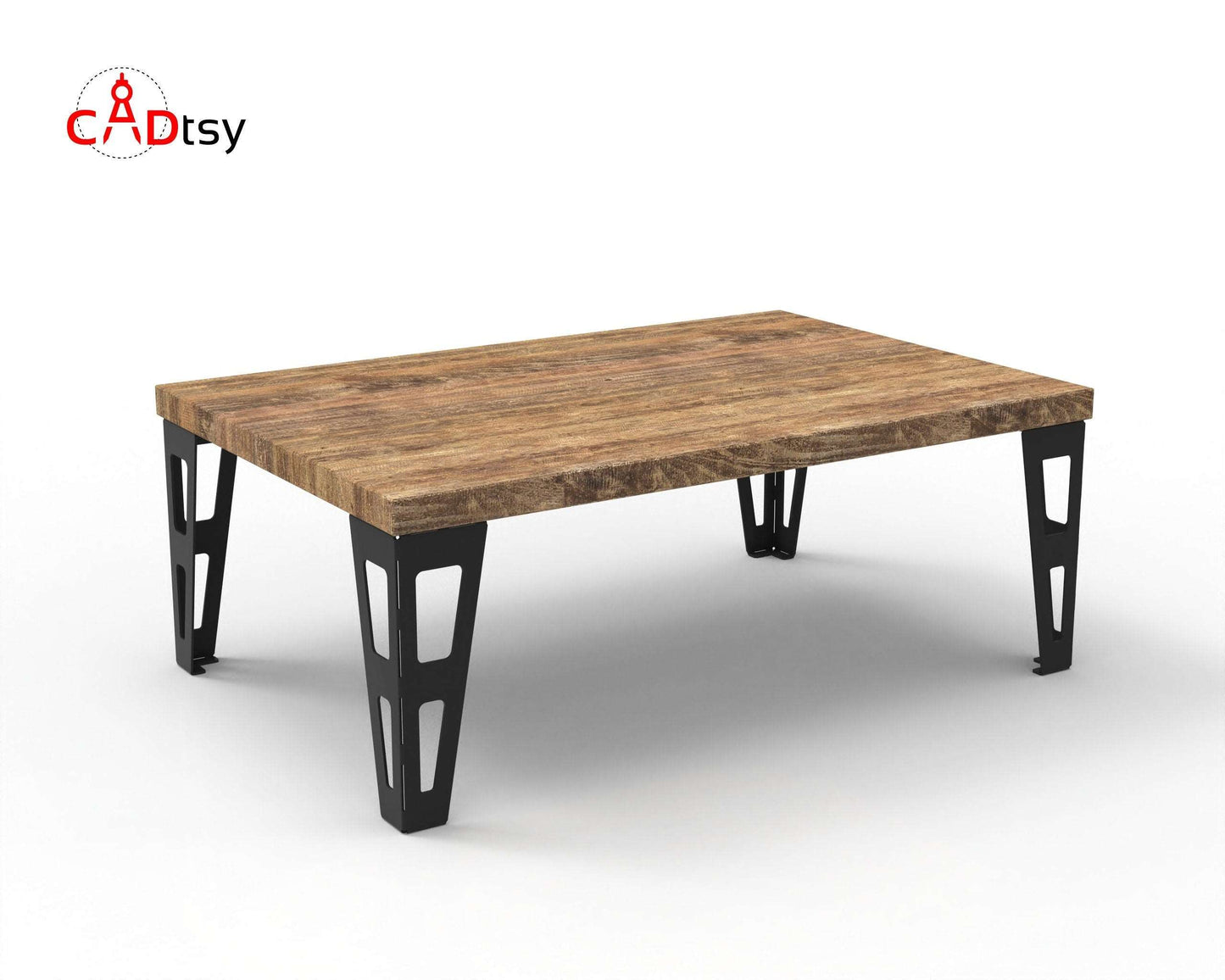

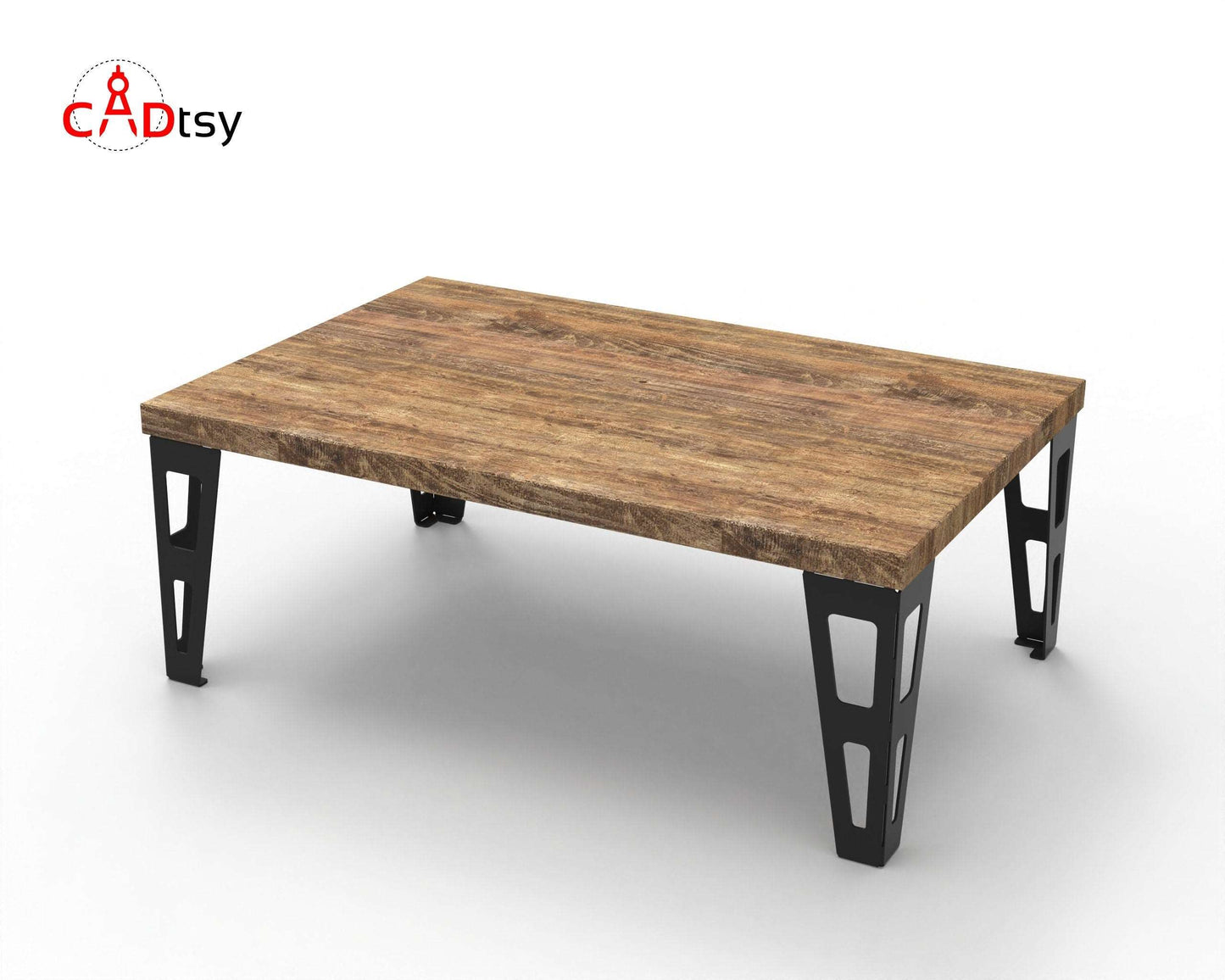

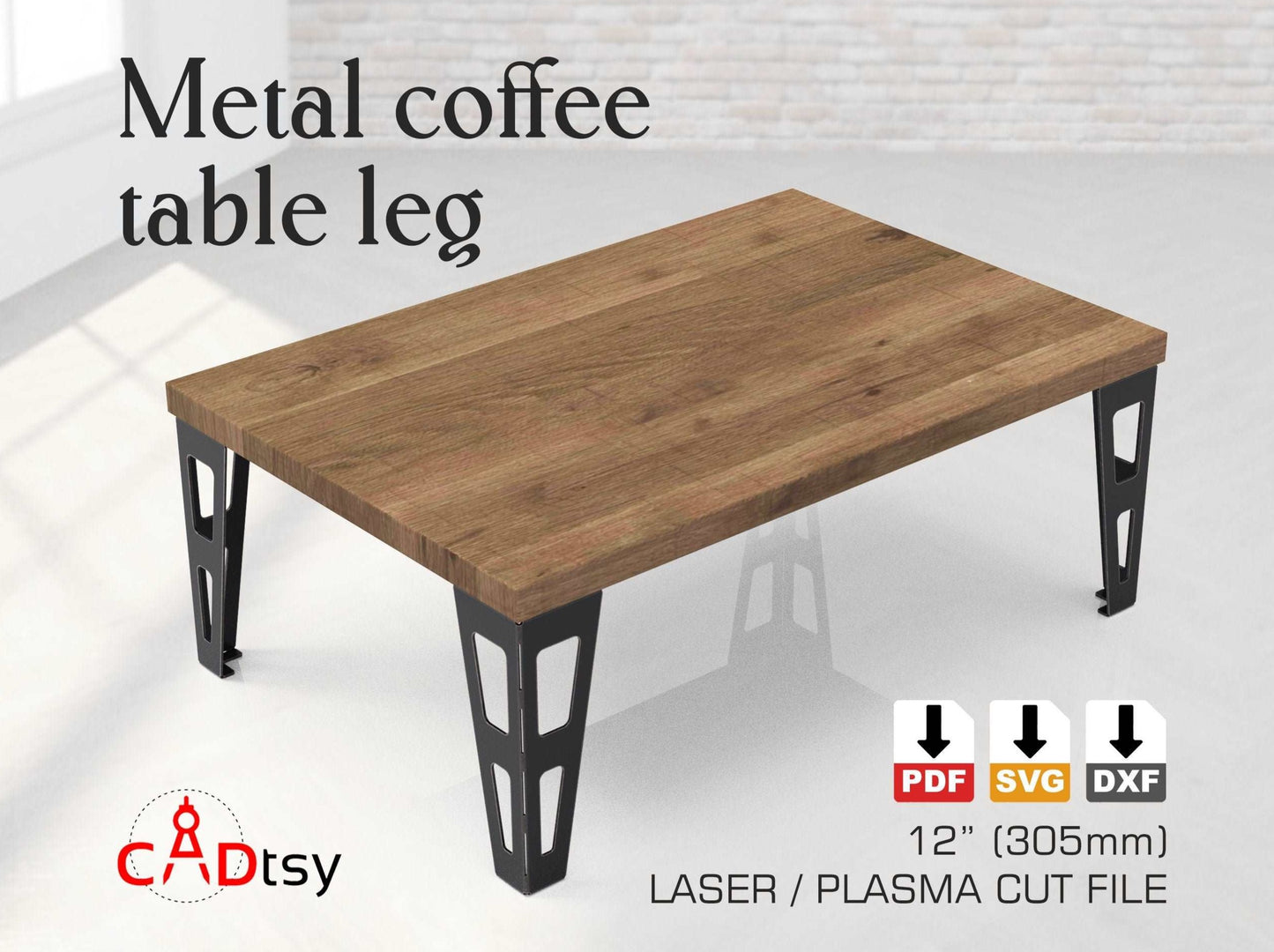

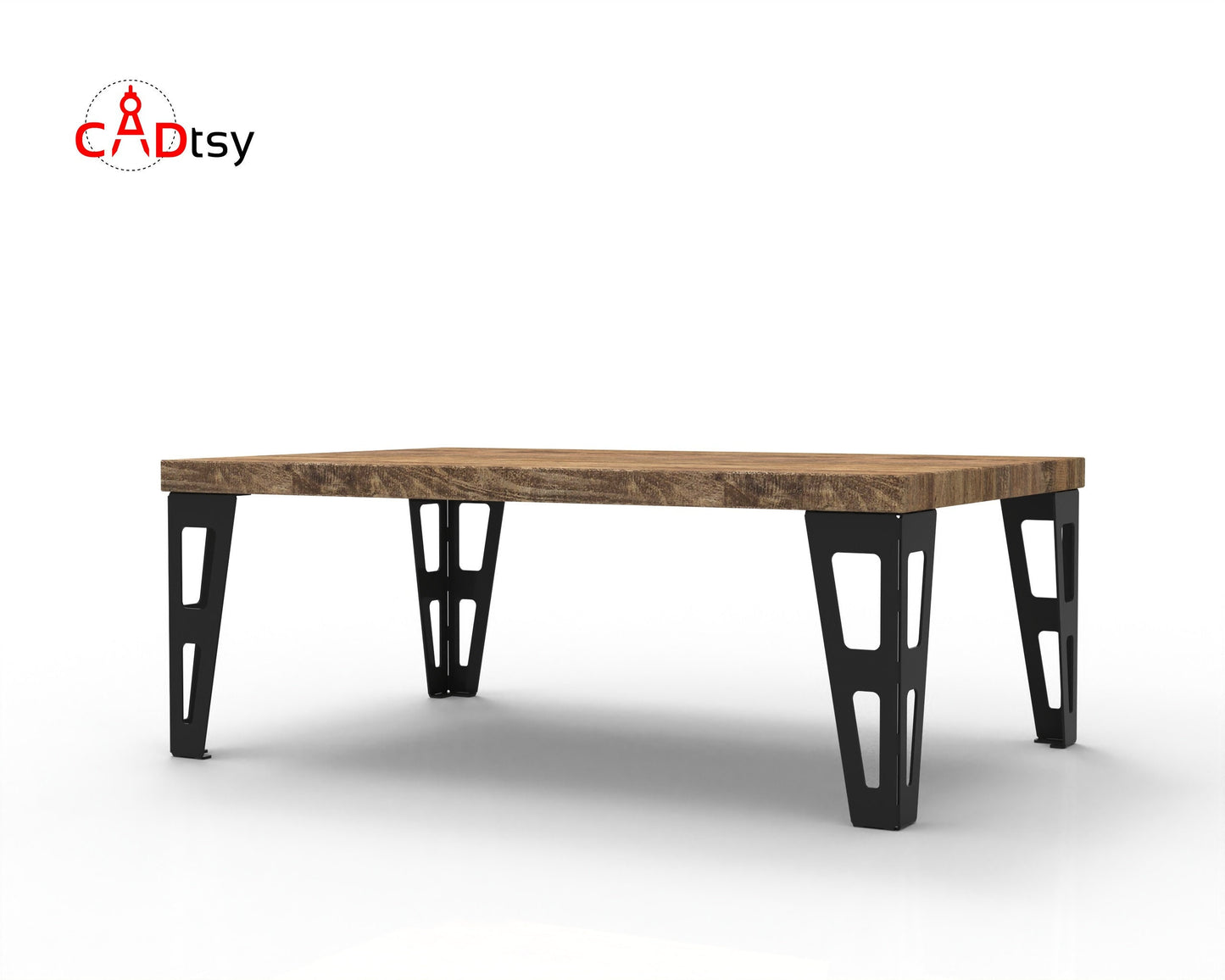

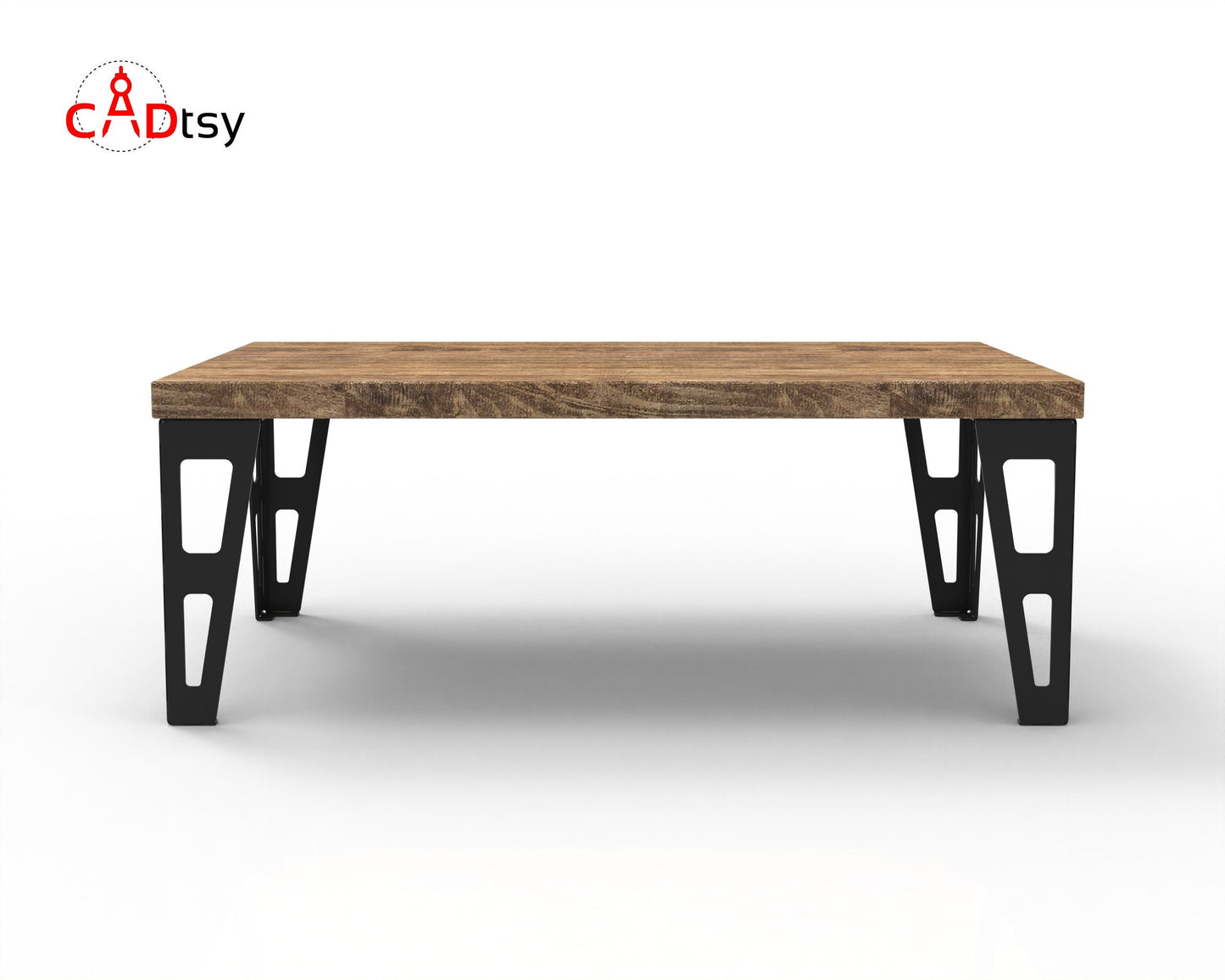

A set of industrial-style metal table legs in two different heights, made from DXF files, shown ready for a furniture project.

Industrial Coffee Table Leg DXF/SVG - Double Cutout Design, 12"/20" Heights

$4.25 USD
$4.25 USD $6.88 USD
Skip to product information
A set of industrial-style metal table legs in two different heights, made from DXF files, shown ready for a furniture project.
Industrial Coffee Table Leg DXF/SVG - Double Cutout Design, 12"/20" Heights

Industrial Coffee Table Leg DXF/SVG - Double Cutout Design, 12"/20" Heights

$4.25 USD
$4.25 USD $6.88 USD
Taxes included. Shipping calculated at checkout.

Double Cutout Coffee Table Leg DXF files is a downloadable CNC-ready file package for building industrial-style double-cutout coffee table legs, side table legs, bench legs, or console table legs from sheet metal. Two leg heights are included: 12.0 in / 305 mm and 20.0 in / 510 mm, with a scalable width in CAD software.

What You Get

  • DXF, SVG, and PDF files for the double cutout coffee table leg design.
  • CNC-ready flat pattern files for plasma, laser, or waterjet cutting workflows.
  • PDF drawings for sheet metal bending instructions.

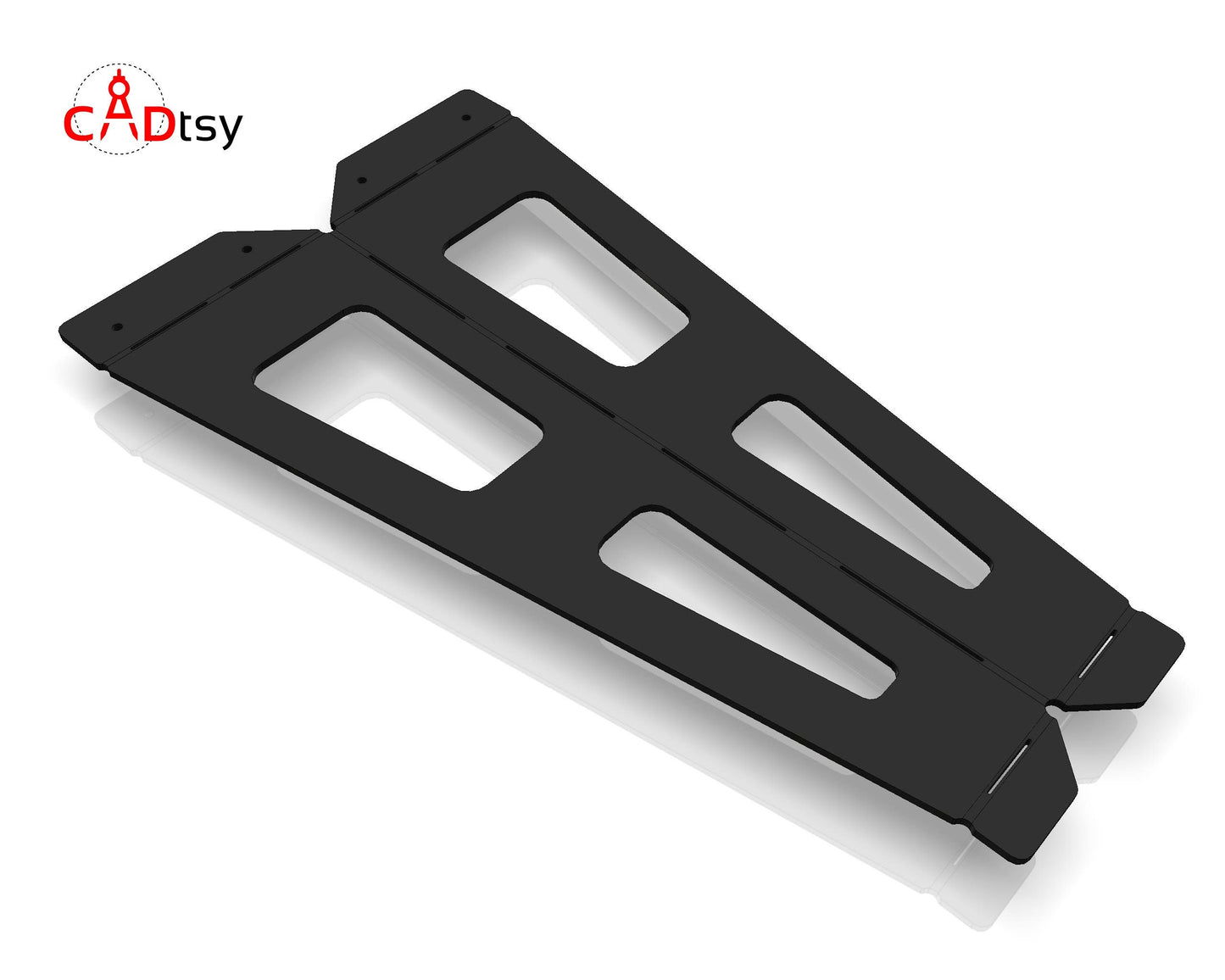

  • Pre-cut slot lines intended to help form the sheet metal parts.
  • No physical table leg, tabletop, steel, hardware, or finished furniture item is shipped.

Project Features

  • Double-cutout Avia-style metal table leg layout for coffee tables, side tables, benches, or custom furniture builds.
  • Designed for CNC cutting and sheet metal bending after cutting.
  • Slot-cut bend features help guide bending lines and can reduce dependence on a dedicated brake press for suitable material thicknesses.

Finished Size

  • Included short leg height: 12.0 in / 305 mm.
  • Included tall leg height: 20.0 in / 510 mm.
  • Width is scalable within suitable CAD software.

Recommended Materials

  • 11 gauge / 3.0 mm steel.
  • 8 gauge / 4.0 mm steel.

Before Cutting

  • CADtsy designs are created in millimeters; check file scale and units before sending the DXF files to CAM software.
  • Verify kerf, material thickness, bend approach, slot-cut behavior, scaling, and machine settings before fabrication.
  • Use the bend-assist geometry as a fabrication aid; final bending method still depends on your material thickness, tools, and shop setup.
  • Confirm tabletop attachment, load path, edge finishing, and surface treatment for your intended furniture use.

Related CADtsy Files

Browse related table legs and bases DXF files, explore CNC furniture plans and CADtsy CNC cut files, or review how CADtsy digital CNC files work before purchase.
⚠️ Important Information

• Digital product: This product is a downloadable CNC-ready design file package. No physical item is shipped.
• Delivery: After checkout, download links are sent by automated email and may also be available through your store order account.
• Included files: File formats vary by product and may include DXF, SVG, PDF, AI, project drawings, or instructions. Check the product description for the exact deliverables included with this design.
• Learn more: How CADtsy digital CNC files work.
⚠️ Legal Information

CADtsy digital designs, drawings, templates, and cutting files are protected by copyright and intellectual property laws. Purchasing a file grants a limited license to use the downloaded design according to the current CADtsy license terms; copyright ownership is not transferred.

Do not share, resell, rent, redistribute, or upload the digital files in any format. Commercial use, resale of finished items, and production rights must follow the current CADtsy license terms.

Read the current terms: CADtsy digital CNC file license terms. For licensing questions, contact CADtsy.
⚠️ Technical Support & Scaling

• Unit system: CADtsy designs are generally prepared in millimeters (mm). Check the product description for product-specific sizing details.
• Import scale: If your software is set to inches, a DXF or SVG file may import at the wrong scale. Re-import using millimeters where possible, or confirm the scale before cutting.
• DXF import help: If a DXF opens 25.4 times too large or too small, read why DXF files import at the wrong size before scaling or cutting.
• DXF or SVG: Read DXF vs SVG for CNC cutting before importing or creating toolpaths.
• Before cutting: Verify material thickness, kerf, bit or nozzle size, toolpaths, machine setup, and software compatibility before producing a final part.
• Support: If you are unsure about a file or license question, contact CADtsy.
