Collapsible Fire Pit DXF/SVG - 3-in-1 Portable Grill & Camping Stove, Flatpack Design
$8.00 USD
Sale price
$8.00 USD
Regular price
$7.69 USD
Skip to product information
Collapsible Fire Pit DXF/SVG - 3-in-1 Portable Grill & Camping Stove, Flatpack Design
$8.00 USD
Sale price
$8.00 USD
Regular price
$7.69 USD
Taxes included.
Shipping calculated at checkout.

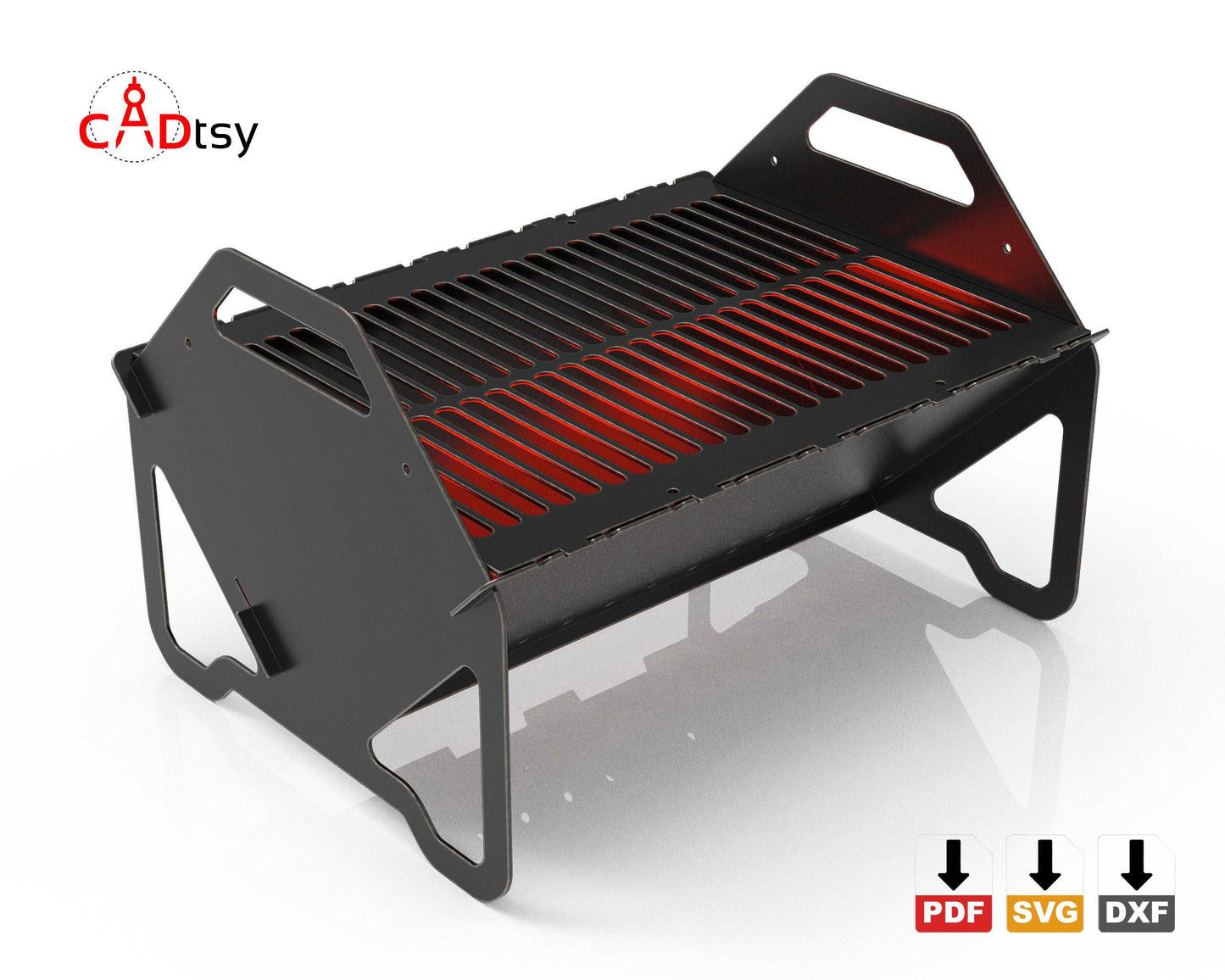

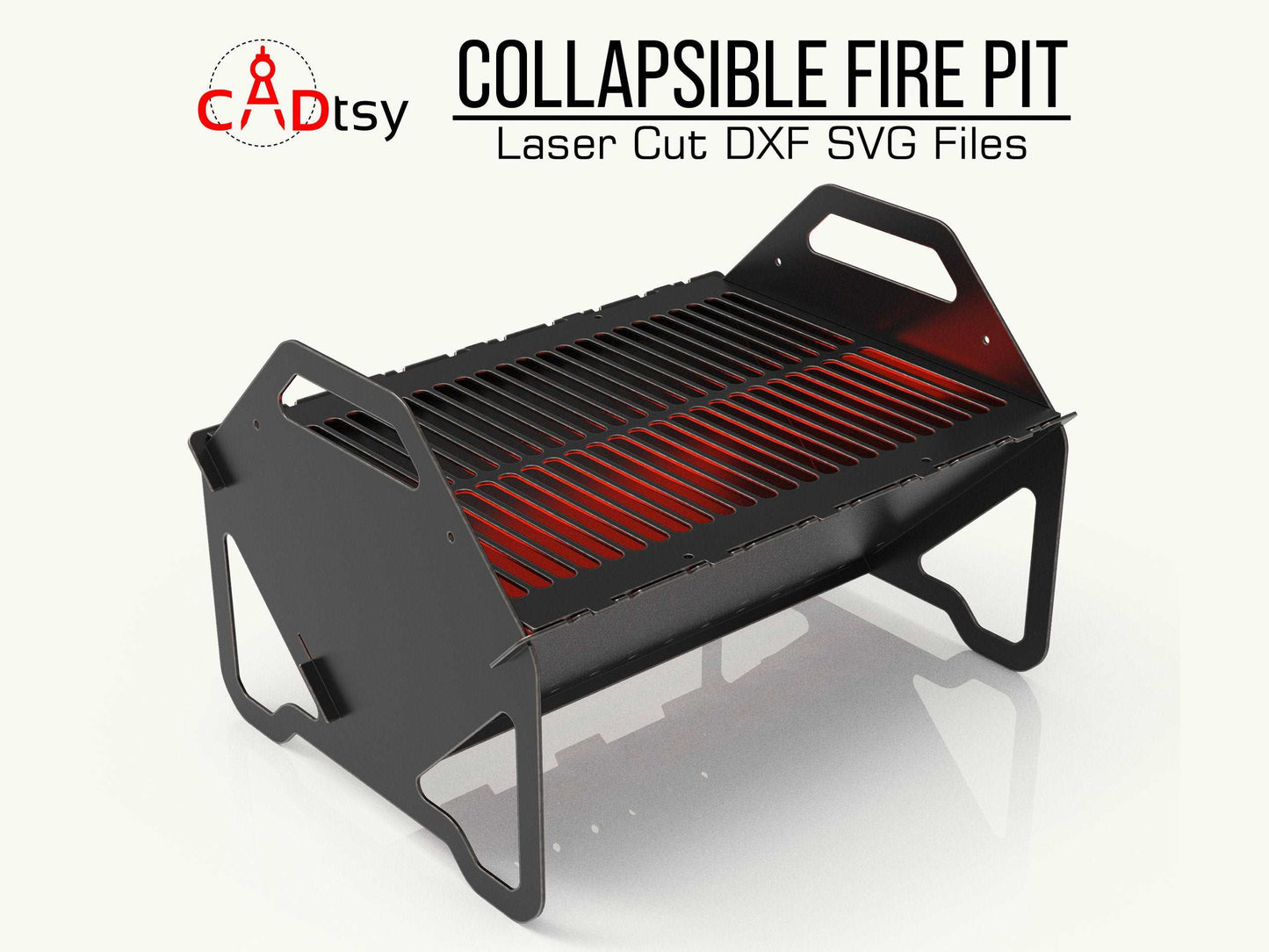

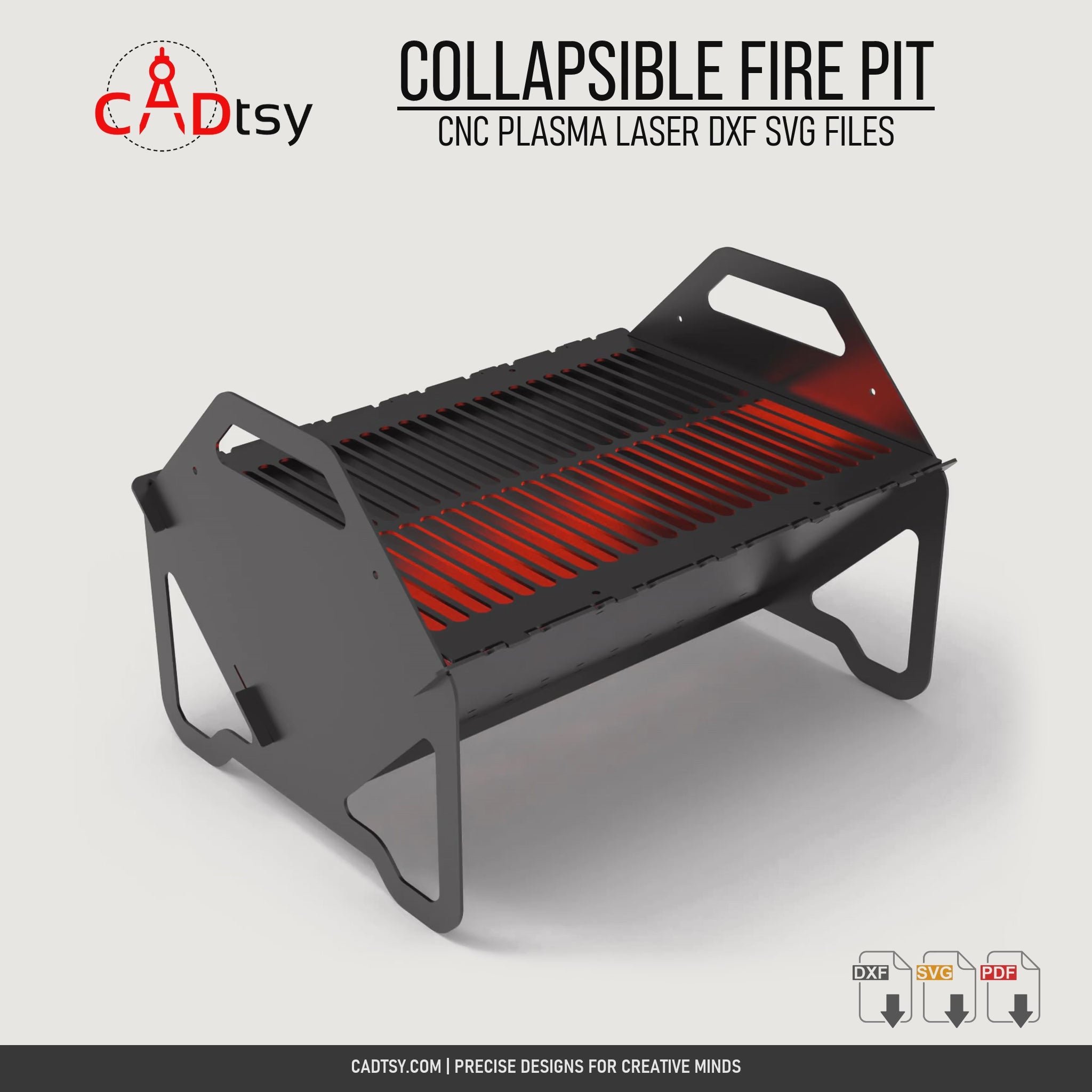

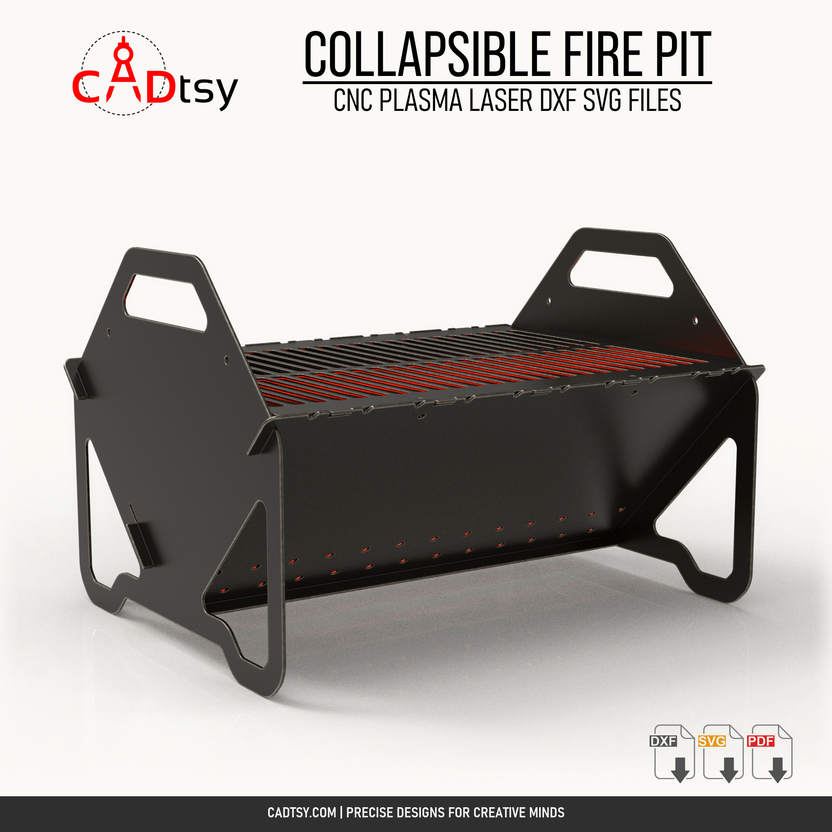

Collapsible Fire Pit DXF files is a downloadable CNC-ready file package for building a portable outdoor fire pit, grill, and flatpack camping stove from sheet metal. The assembled design is approximately 22.0 in wide, 16.5 in deep, and 14.5 in high.
What You Get
- DXF, SVG, and PDF files for the collapsible fire pit design.
- CNC-ready flat pattern files for plasma, laser, or waterjet cutting workflows.
- PDF reference file for the collapsible sheet metal fire pit project.
- No physical fire pit, grill, steel, hardware, or finished outdoor item is shipped.
Project Features

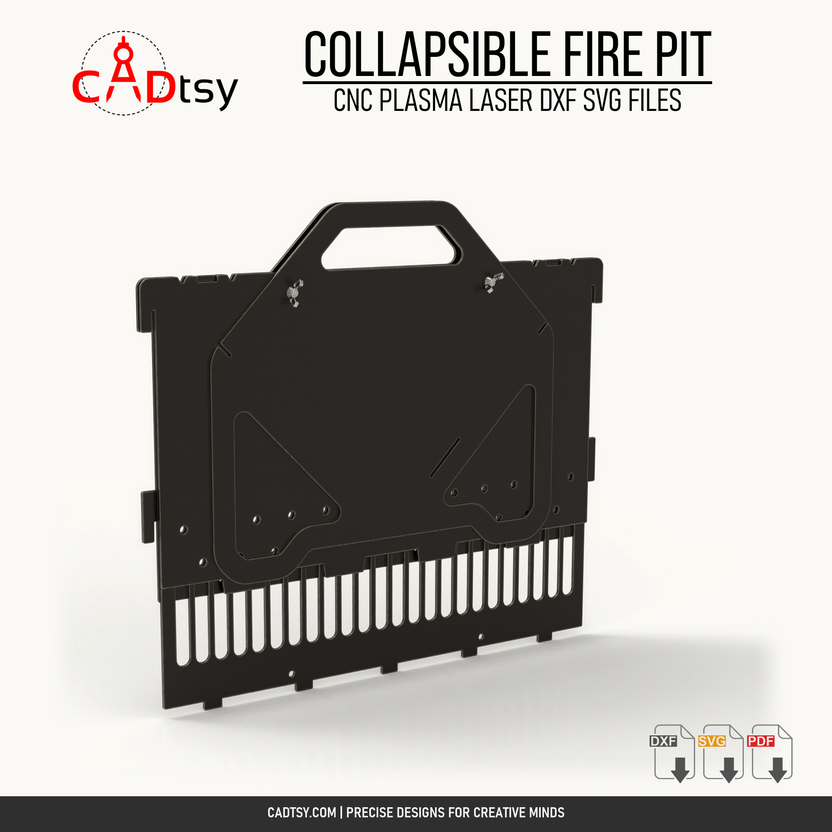

- Collapsible flatpack structure for outdoor, camping, patio, or backyard use.

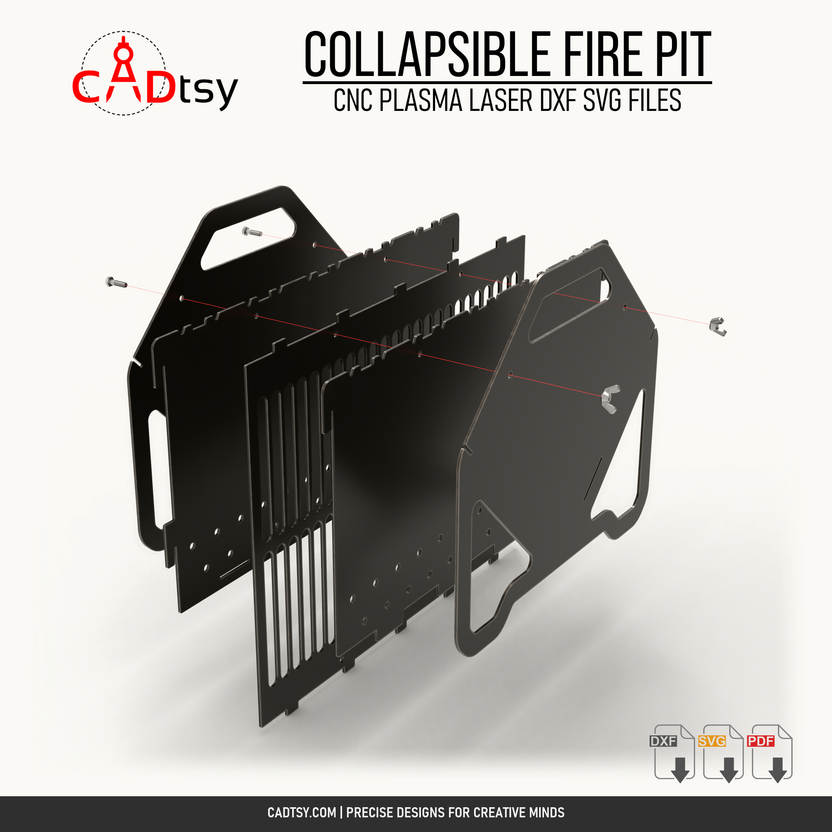

- An interlocking flat-pack structure designed to be CNC-cut from sheet metal and assembled without bending.
- Approximate assembled weight is 33 lb / 15 kg when cut from 11 gauge steel.

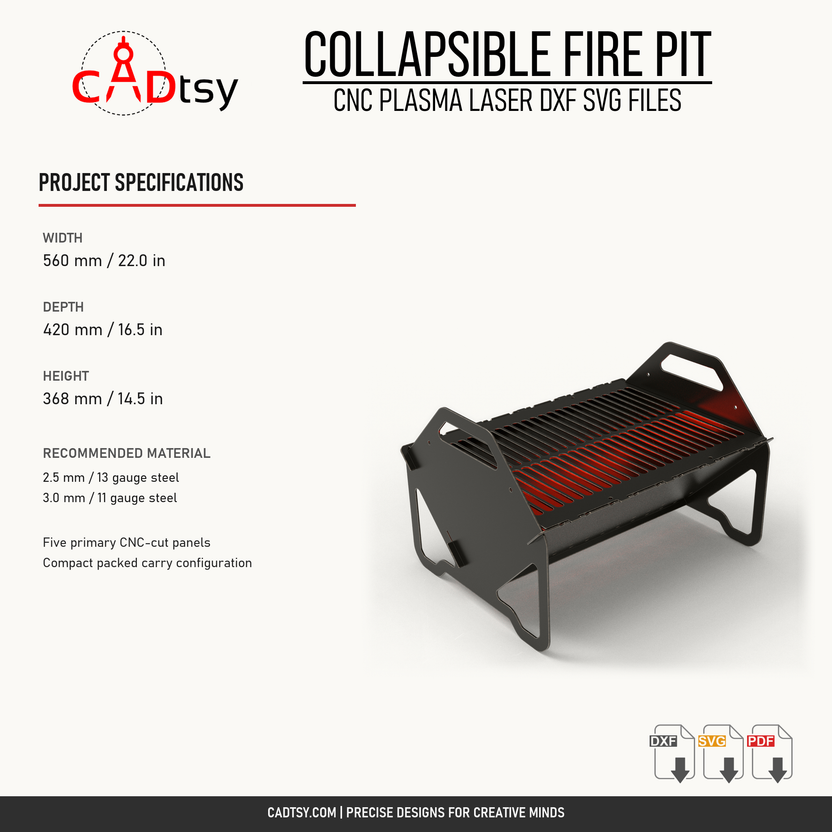

Finished Size
- Approximate assembled height: 14.5 in / 368 mm.
- Approximate assembled width: 22.0 in / 560 mm.
- Approximate assembled depth: 16.5 in / 420 mm.
Recommended Materials
- 11 gauge / 3.0 mm sheet metal.
- 13 gauge / 2.5 mm sheet metal.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending the DXF files to CAM software.
- Verify kerf, material thickness, machine settings, and toolpaths for your own CNC plasma, laser, or waterjet setup.
- Review material thickness, bend accuracy, heat exposure, edge finishing, and outdoor-use safety before using the finished fire pit.
