Cordless Power Tool Shelf DXF / SVG - CNC Router Cutting Files
$4.96 USD
Sale price
$4.96 USD
Regular price
$8.03 USD
Taxes included.
Shipping calculated at checkout.

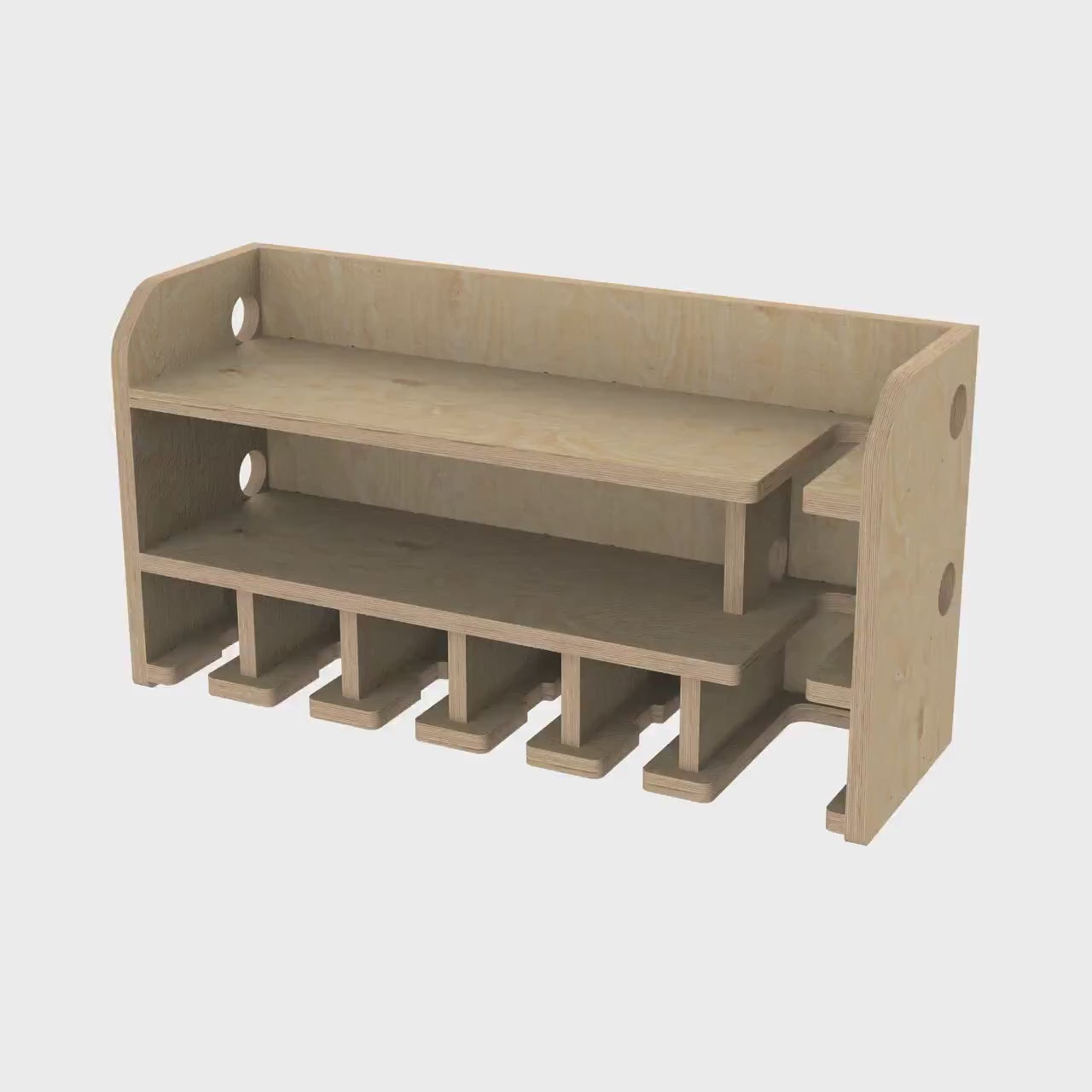

Cordless Power Tool Shelf DXF files is a downloadable CNC-ready file package for building a wall-mounted cordless drill shelf, battery charger station, and workshop power tool organizer from sheet goods. The assembled design is approximately 16.1 in high, 30.7 in wide, and 9.8 in deep.
What You Get
- DXF, SVG, and PDF files for the cordless power tool shelf design.
- CNC-ready files for router cutting workflows.
- PDF reference files for the power tool shelf project.
- No physical shelf, power tools, batteries, chargers, plywood, hardware, fasteners, or finished organizer is shipped.
Project Features
- Wall-mounted organizer layout with five cordless drill slots and one reciprocating saw slot.
- Dual upper shelves are included for battery chargers, batteries, and small workshop accessories.
- Inside corners are designed with dog-bone fillets for router-bit clearance up to 8 mm / 5/16 in.
Finished Size
- Approximate assembled height: 16.1 in / 410 mm.
- Approximate assembled width: 30.7 in / 780 mm.
- Approximate assembled depth: 9.8 in / 250 mm.
Recommended Materials
- 12.7 mm / 1/2 in plywood, MDF, or OSB.
- 18.0 mm / 23/32 in plywood, MDF, or OSB.
- 19.0 mm / 3/4 in plywood, MDF, or OSB.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending the DXF or SVG files to CAM software.
- Use the listed material thickness and tooling assumptions; adjust only if changing material thickness or using a larger router bit.
- Verify router bit diameter, kerf, mounting method, wall fasteners, material thickness, and machine settings before fabrication.
