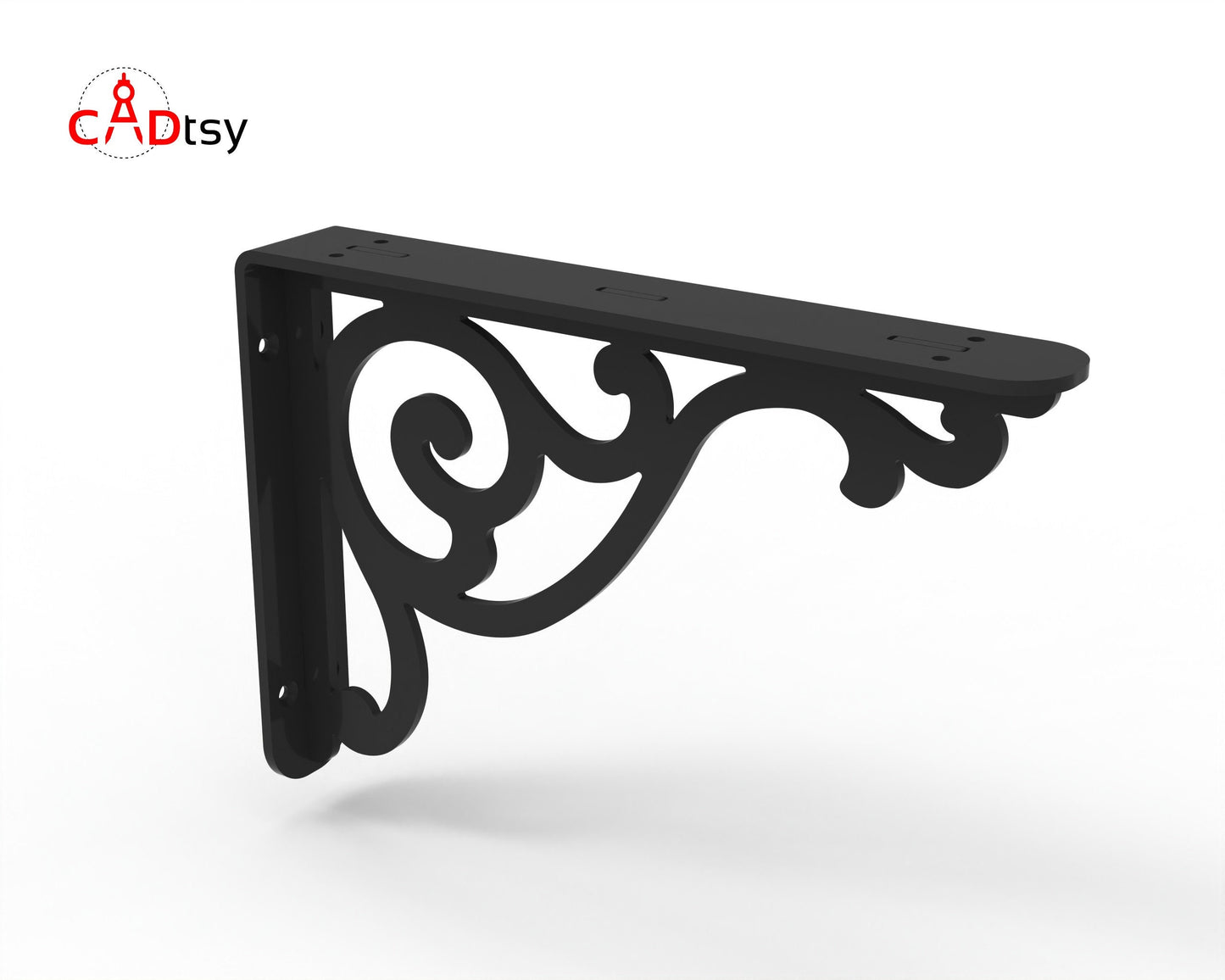

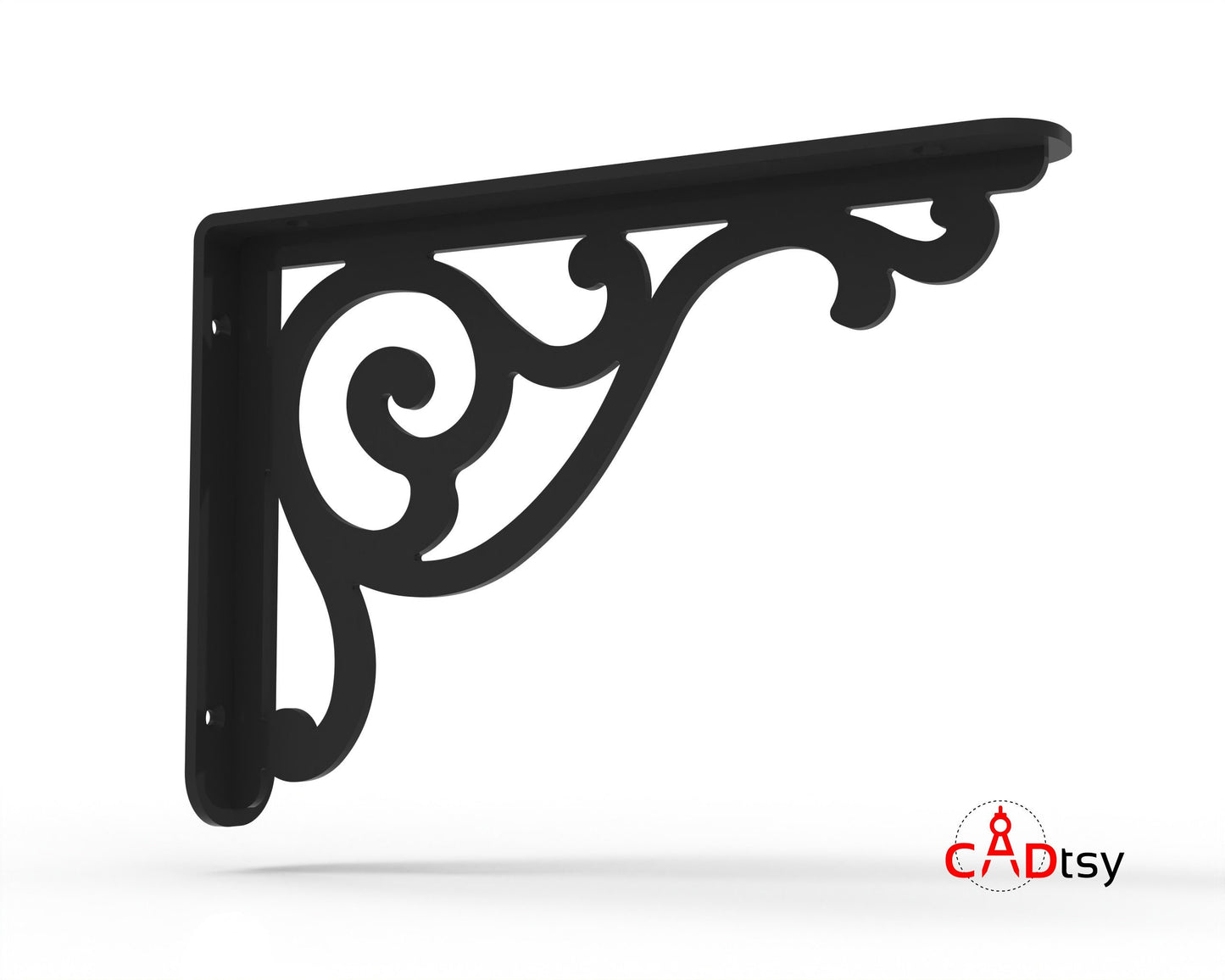

Decorative Shelf Bracket DXF files is a downloadable CNC-ready file package for building metal shelf brackets or supports for custom shelving projects. The assembled bracket is approximately 5.5 in high, 1.2 in wide, and 8.0 in deep.
What You Get
- DXF, SVG, and PDF files for the decorative shelf bracket design.
- CNC-ready files for plasma, laser, or waterjet cutting workflows.
- PDF reference file for the shelf bracket project.
- No physical shelf bracket, shelf board, steel, hardware, fasteners, or finished shelving is shipped.
Project Features

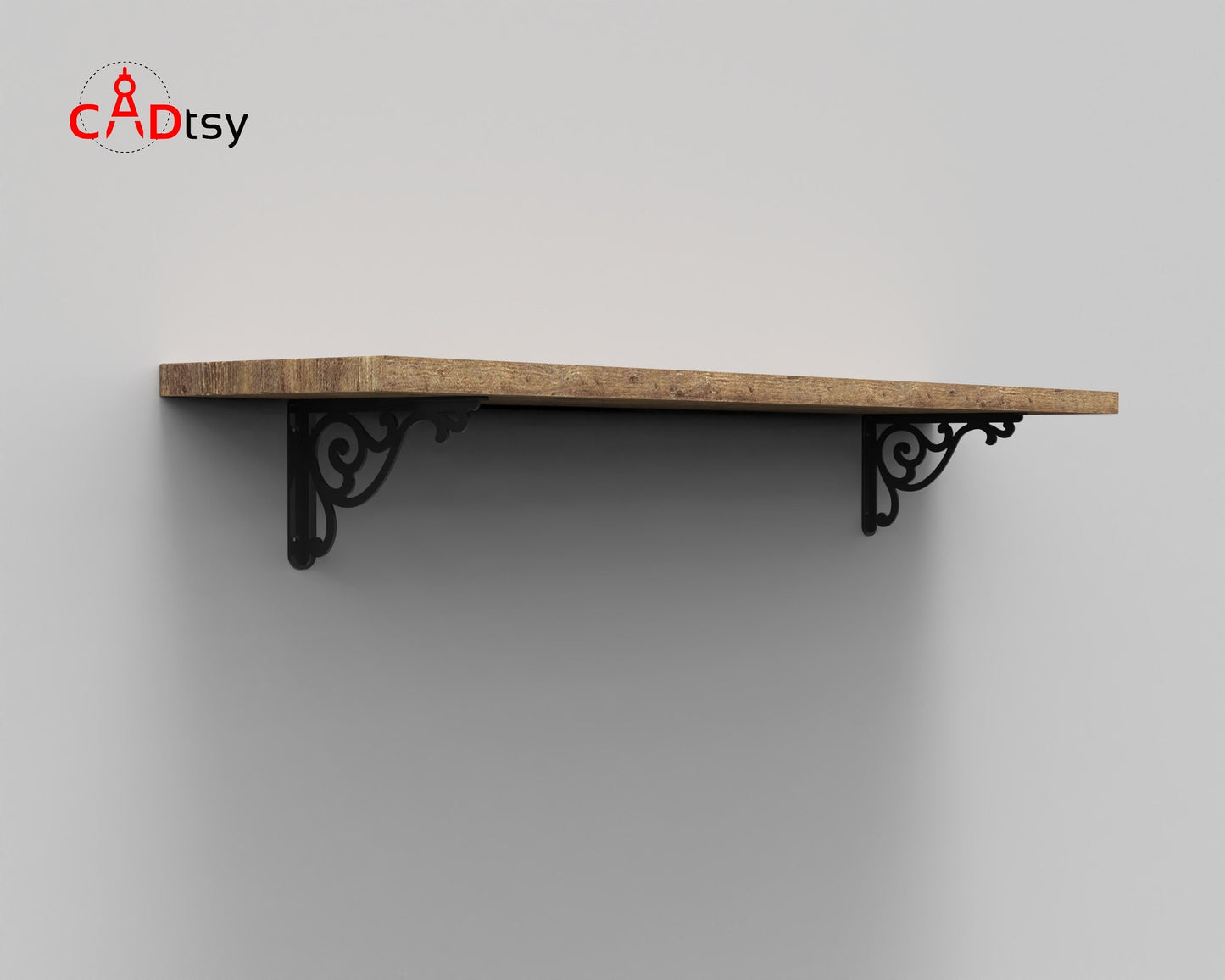

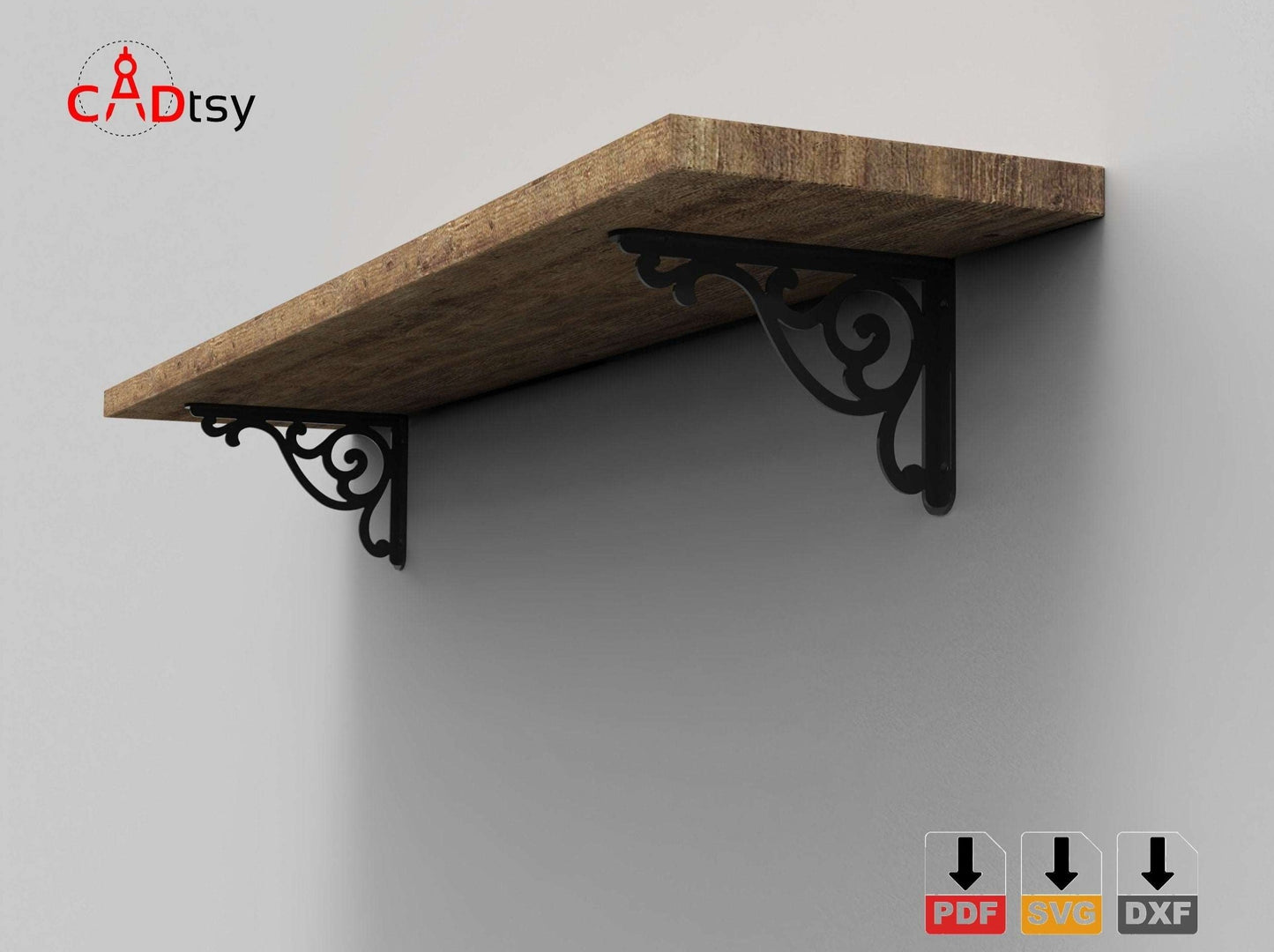

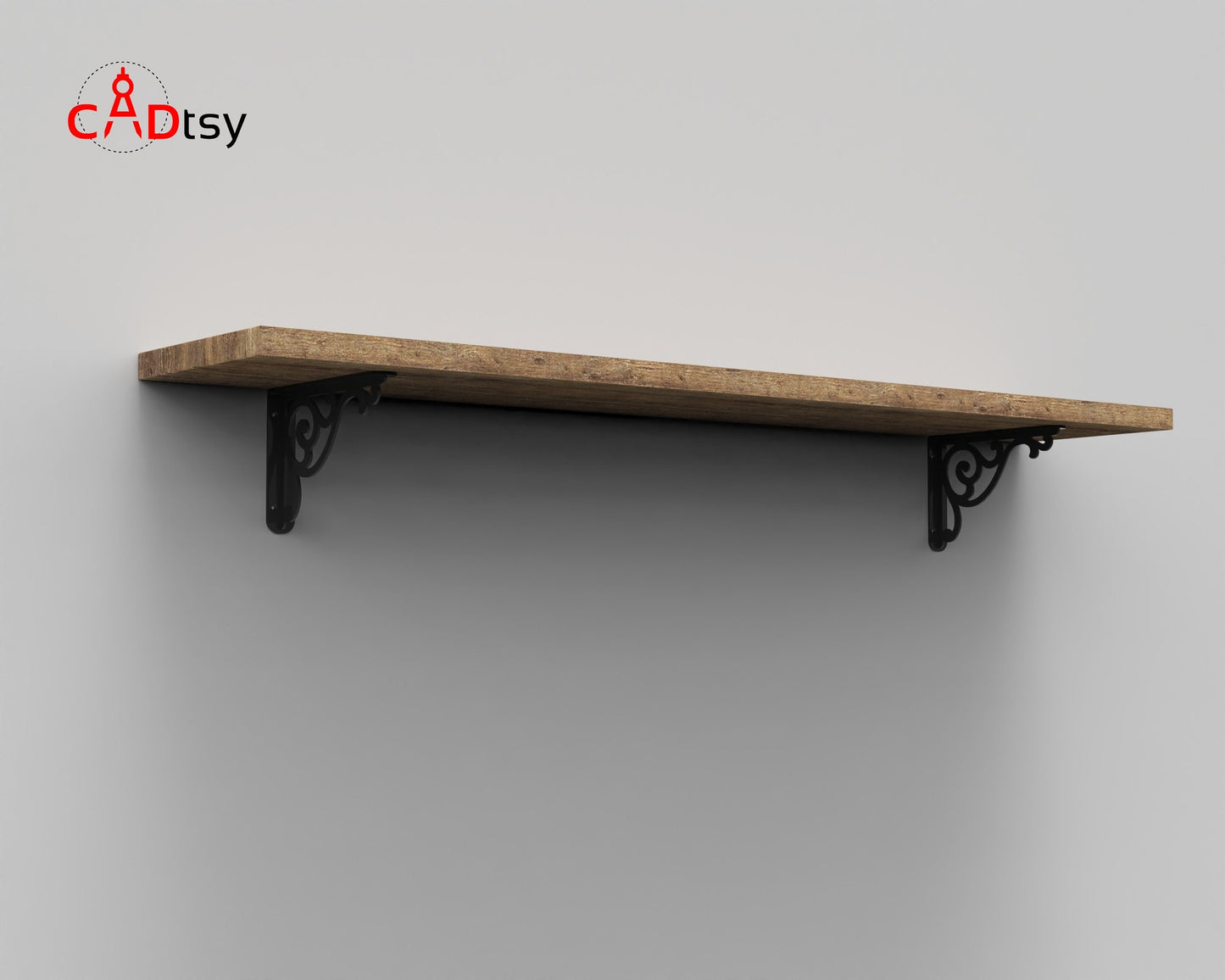

- Decorative metal shelf support layout for home, shop, and display shelving projects.

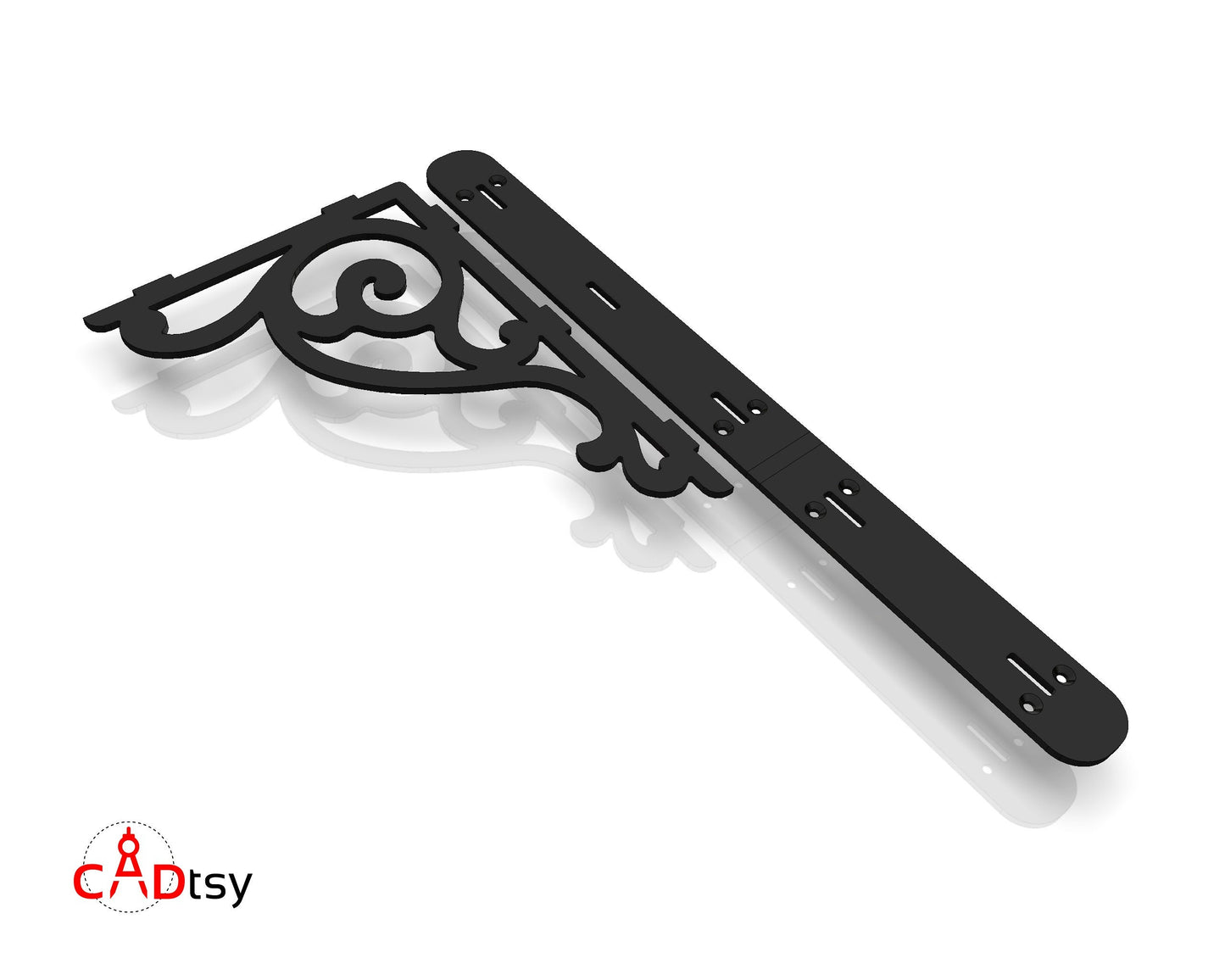

- Designed for CNC cutting, sheet metal bending, and welding.

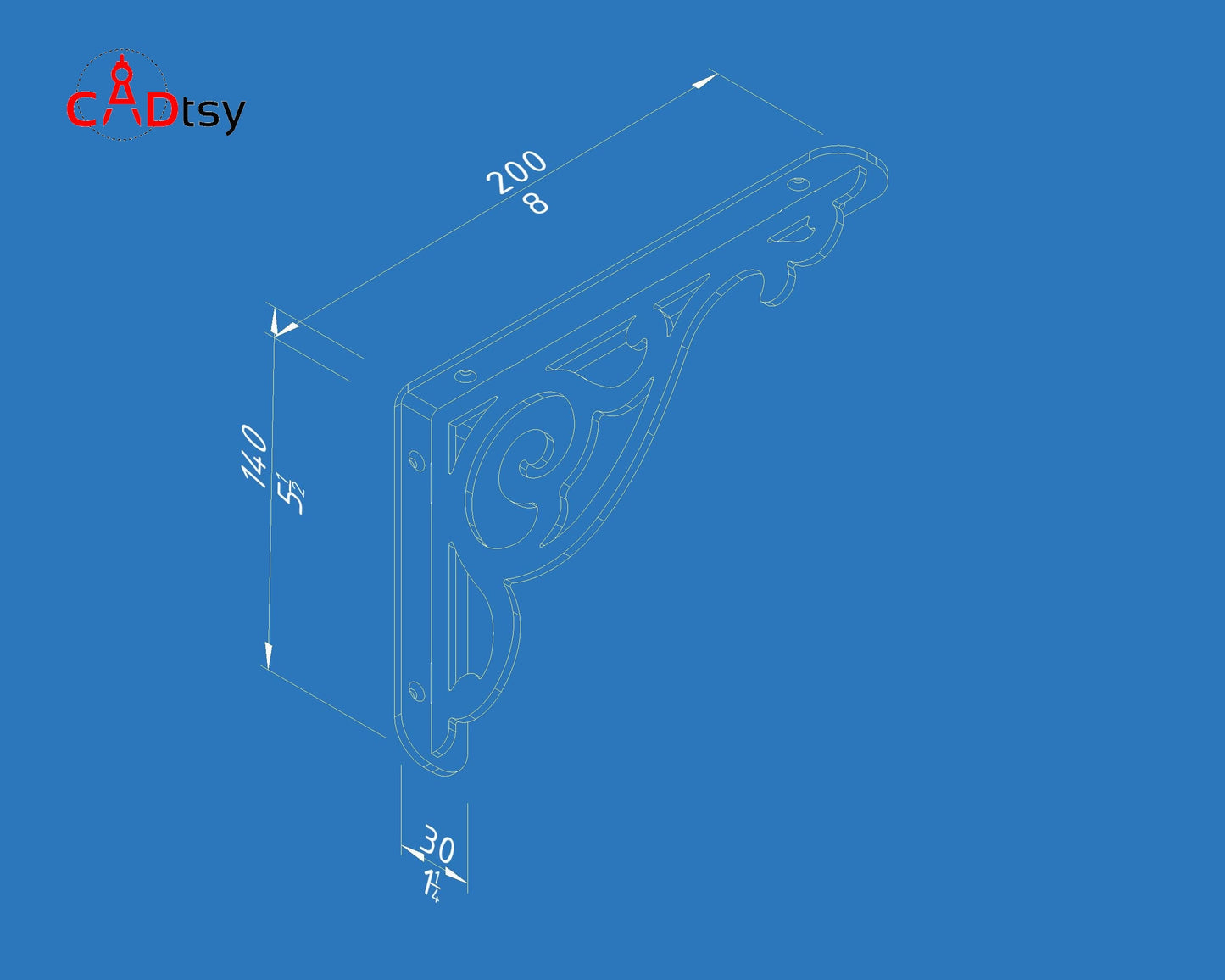

Finished Size
- Approximate assembled height: 5.5 in / 140 mm.
- Approximate assembled width: 1.2 in / 30 mm.
- Approximate assembled depth: 8.0 in / 200 mm.
Recommended Materials
- 11 gauge / 3.0 mm steel.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending the DXF or SVG files to CAM software.
- Verify kerf, bend approach, welding plan, shelf load, wall fasteners, material thickness, and machine settings before fabrication.
- Confirm installation surface, bracket spacing, edge finishing, and safe load capacity before use.
