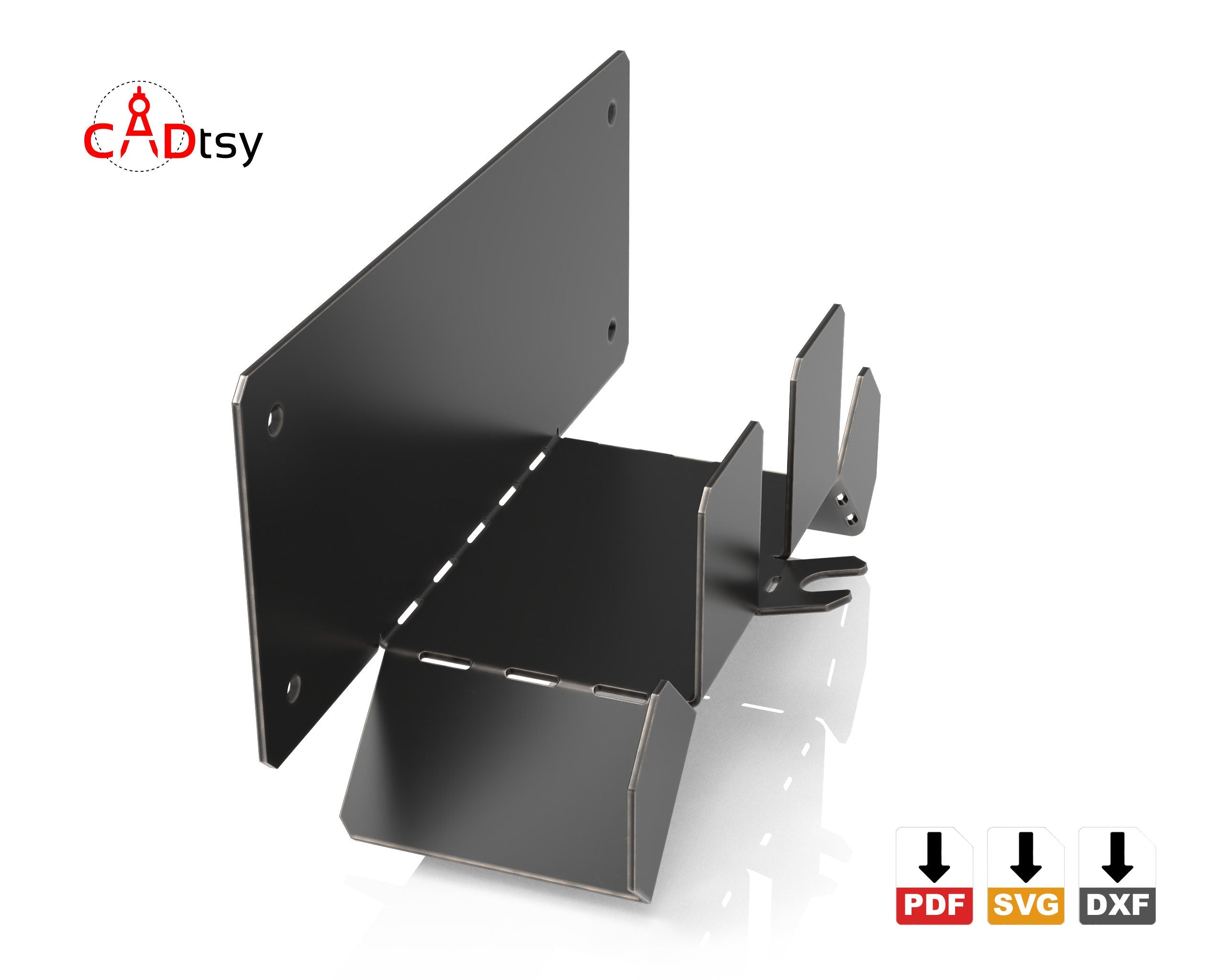

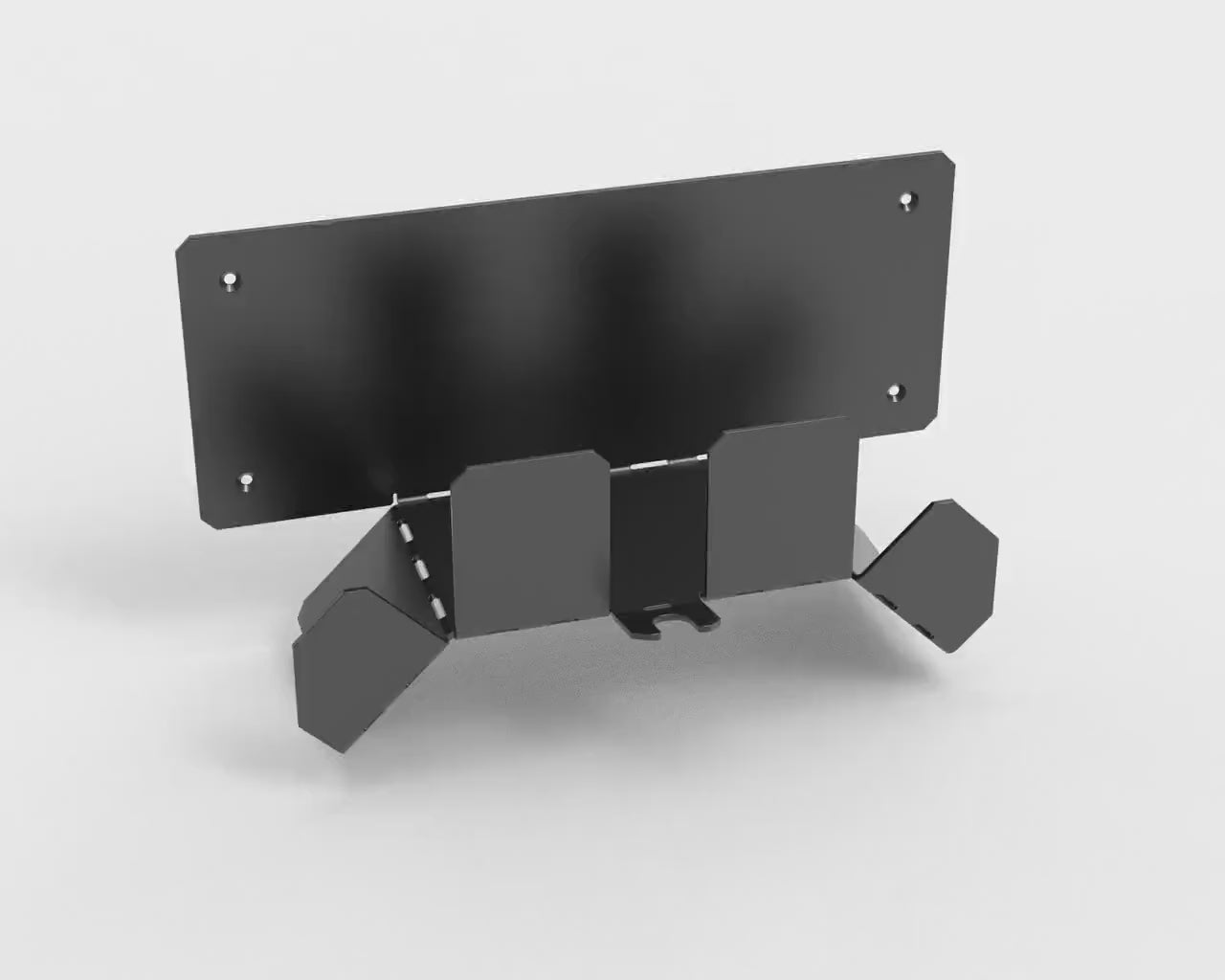

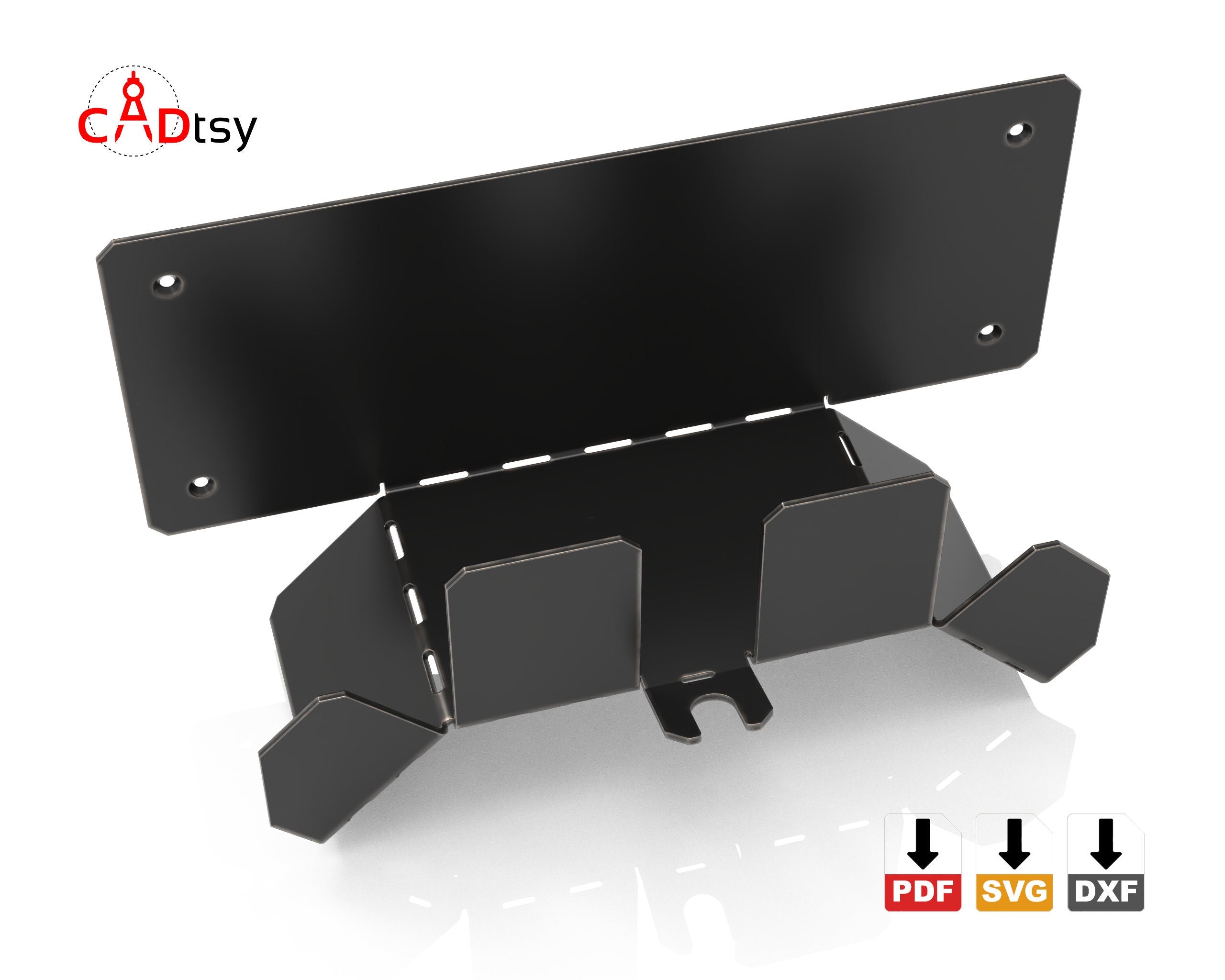

Air Hose and Cord Holder DXF files is a downloadable CNC-ready file package for building a wall-mounted air hose, extension cord, or cable holder for workshop and garage organization. The assembled holder is approximately 6.8 in high, 12.6 in wide, and 5.5 in deep.
What You Get
- DXF, SVG, and PDF files for the air hose and cord holder design.
- CNC-ready flat pattern files for plasma, laser, or waterjet cutting workflows.
- PDF drawings for sheet metal bending instructions.
- No physical organizer, steel, hardware, fasteners, tools, or finished shop item is shipped.
Project Features

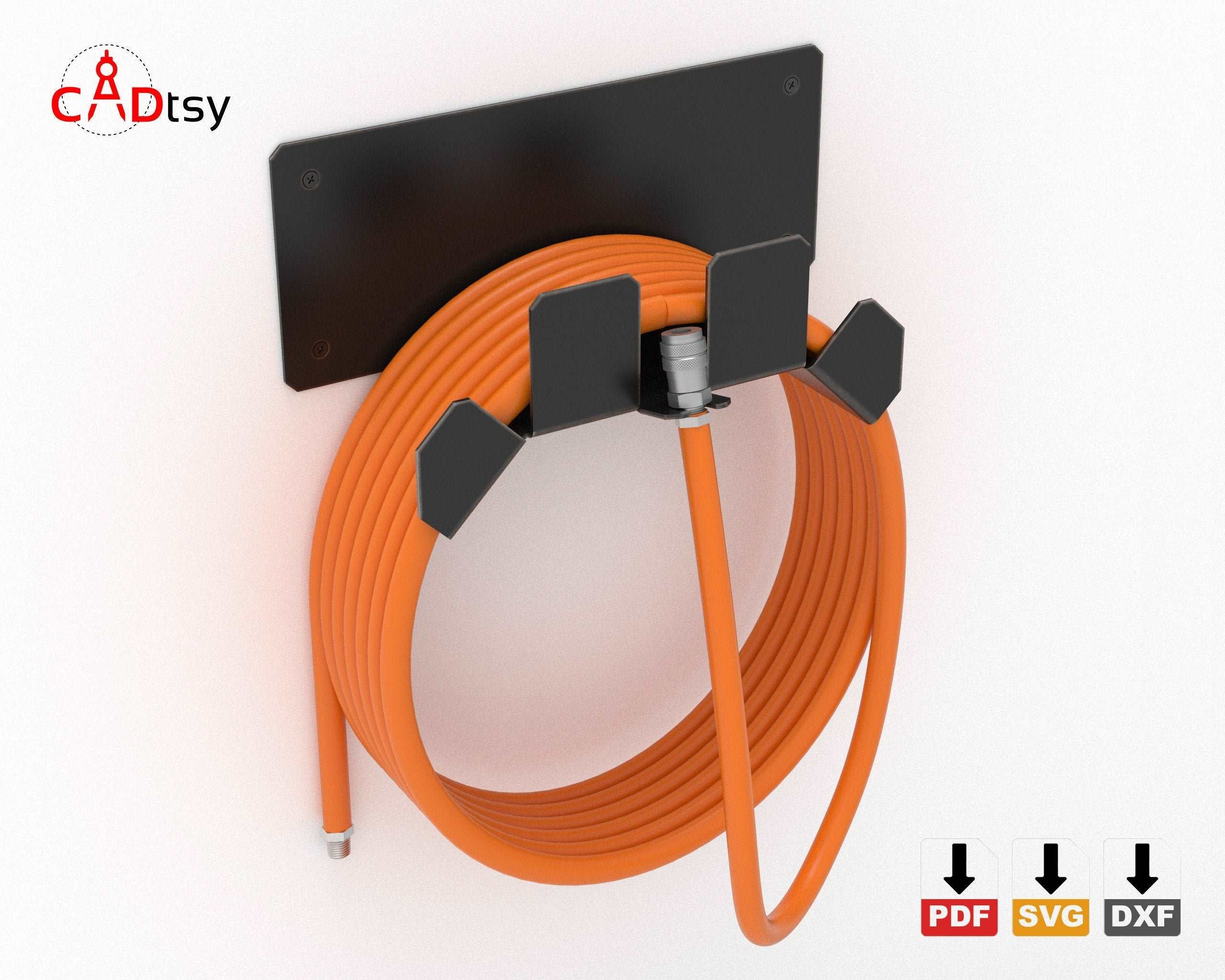

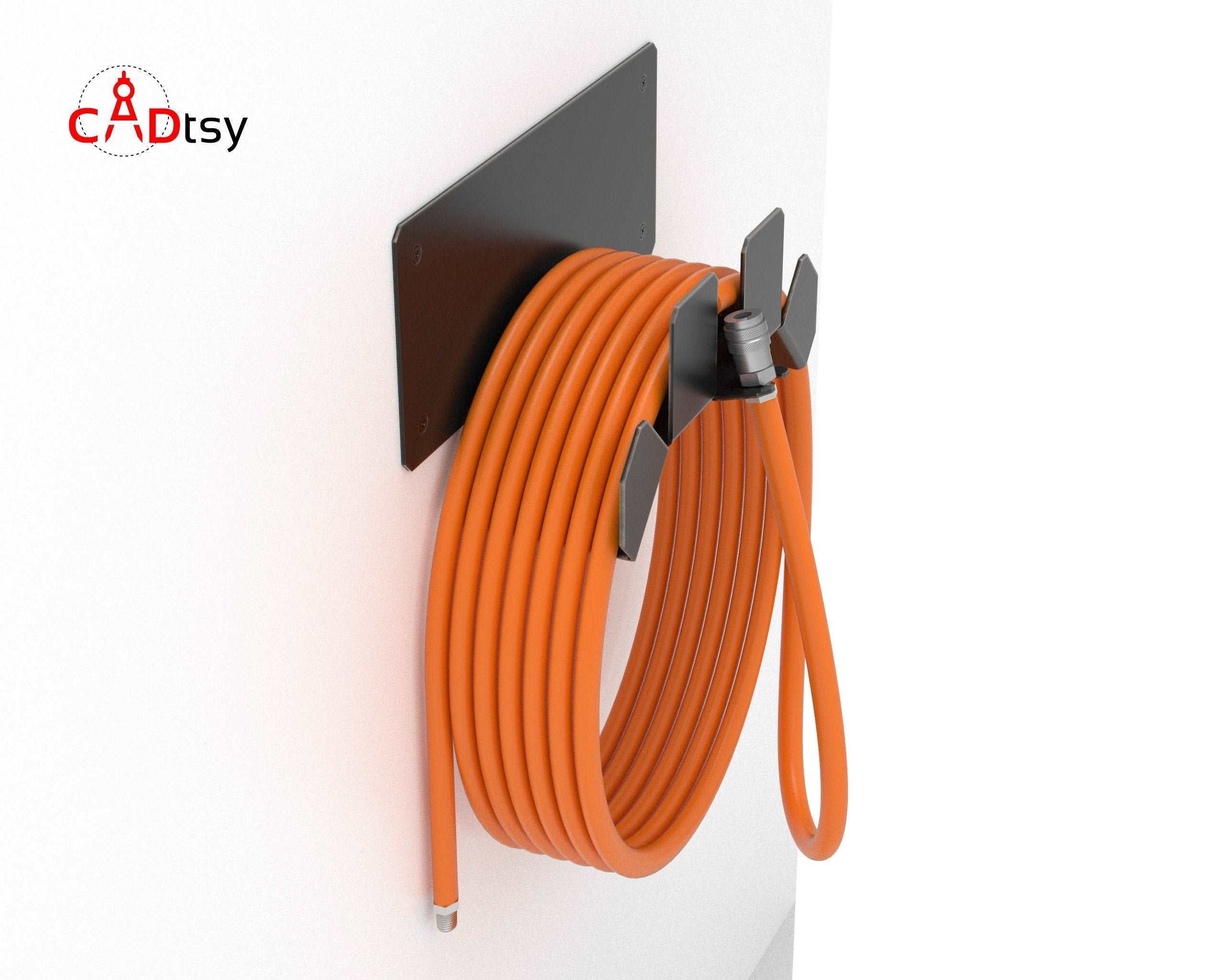

- Wall-mounted hanger layout for air hoses, extension cords, cables, and similar shop storage needs.
- Slot-cut bend features help guide sheet metal bending without requiring a dedicated brake press for suitable material thicknesses.
Finished Size
- Approximate assembled height: 6.8 in / 173.2 mm.
- Approximate assembled width: 12.6 in / 320 mm.
- Approximate assembled depth: 5.5 in / 140 mm.
Recommended Materials
- 13 gauge / 2.4-2.5 mm steel.
- 14 gauge / 2.0 mm steel.
- 16 gauge / 1.5 mm steel.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending the DXF files to CAM software.
- Verify kerf, hose or cord clearance, mounting hole fit, material thickness, bend approach, and machine settings before fabrication.
- Confirm wall fasteners, mounting surface, edge finishing, and safe load capacity before use.
