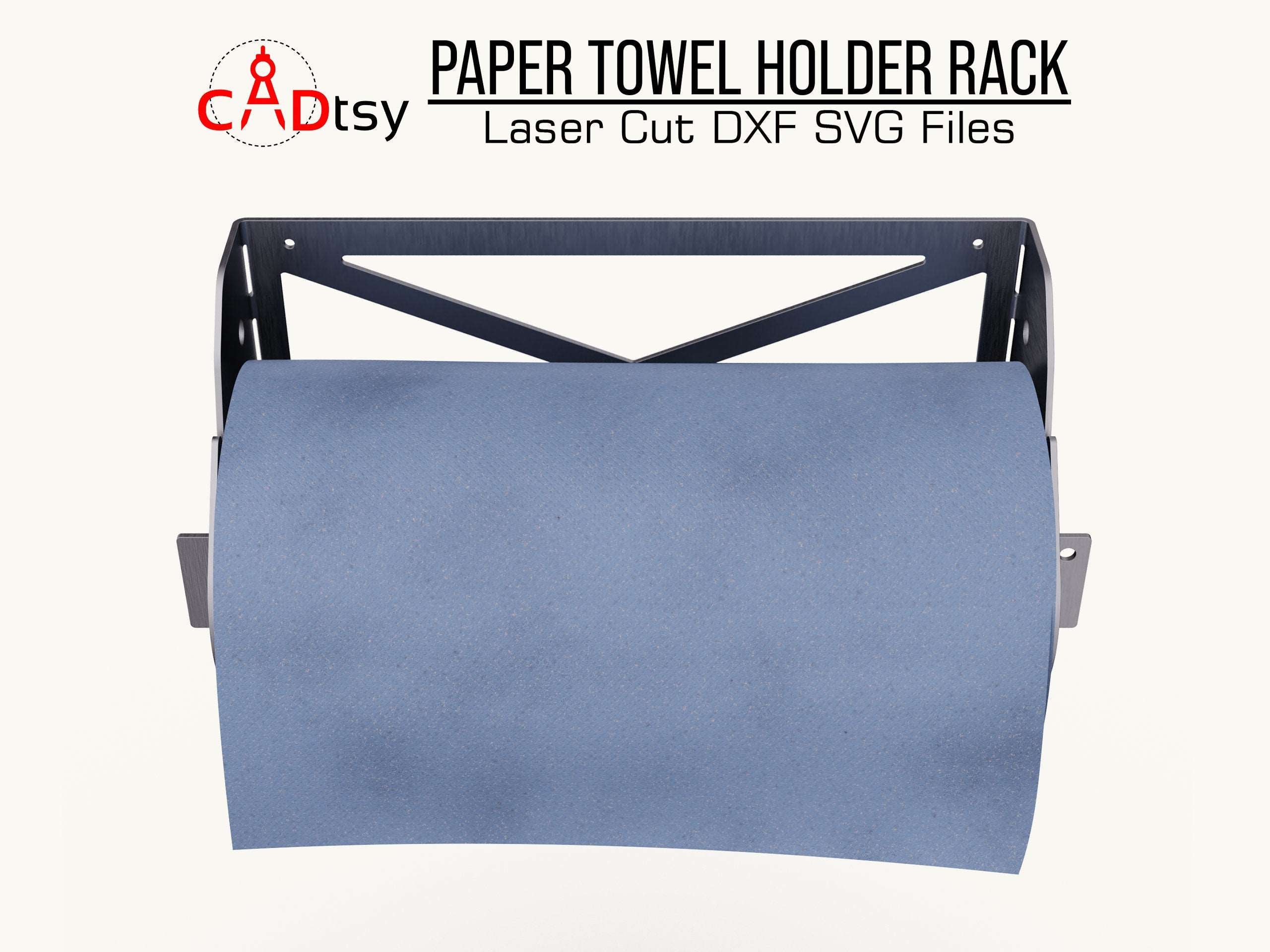

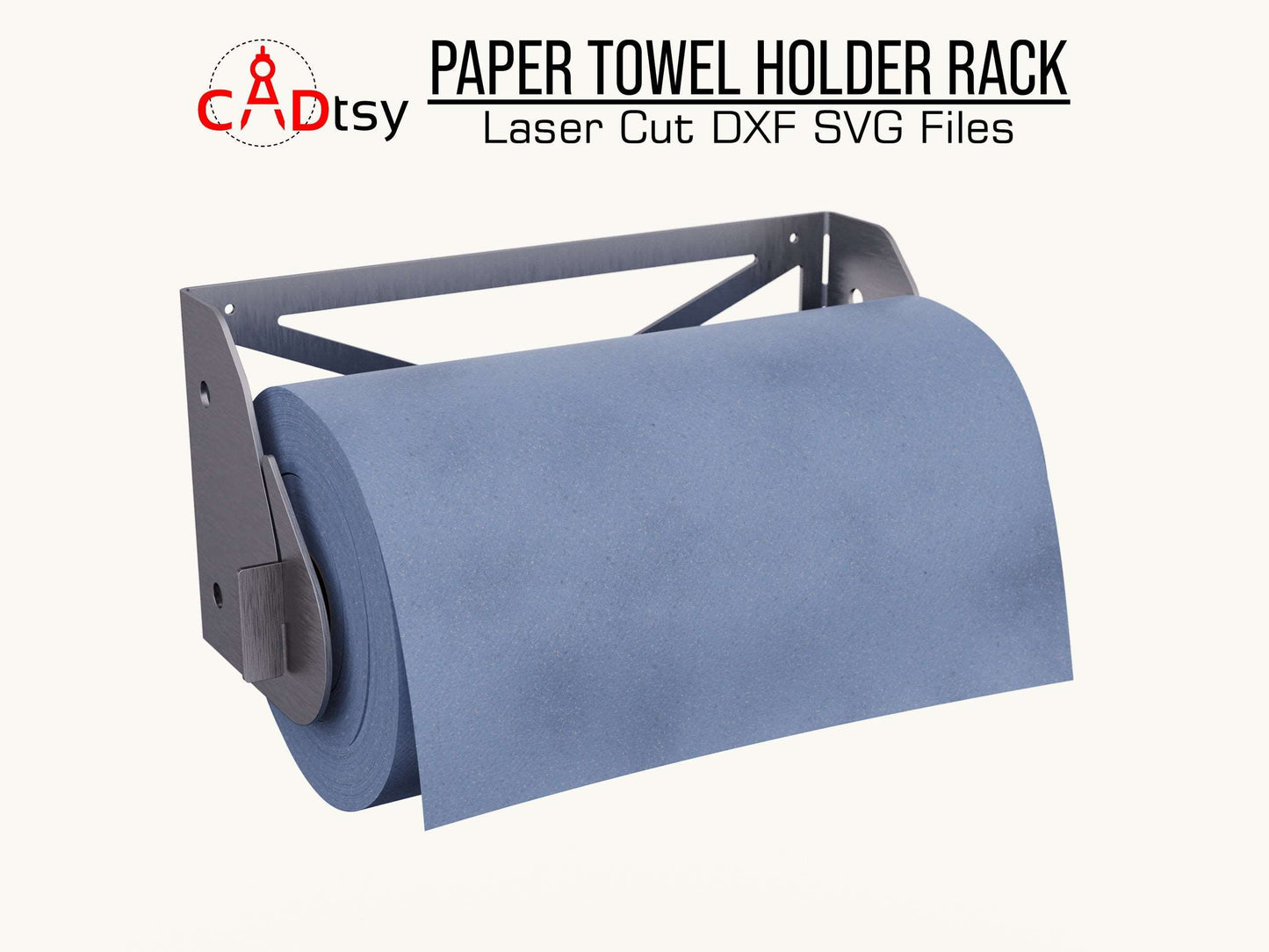

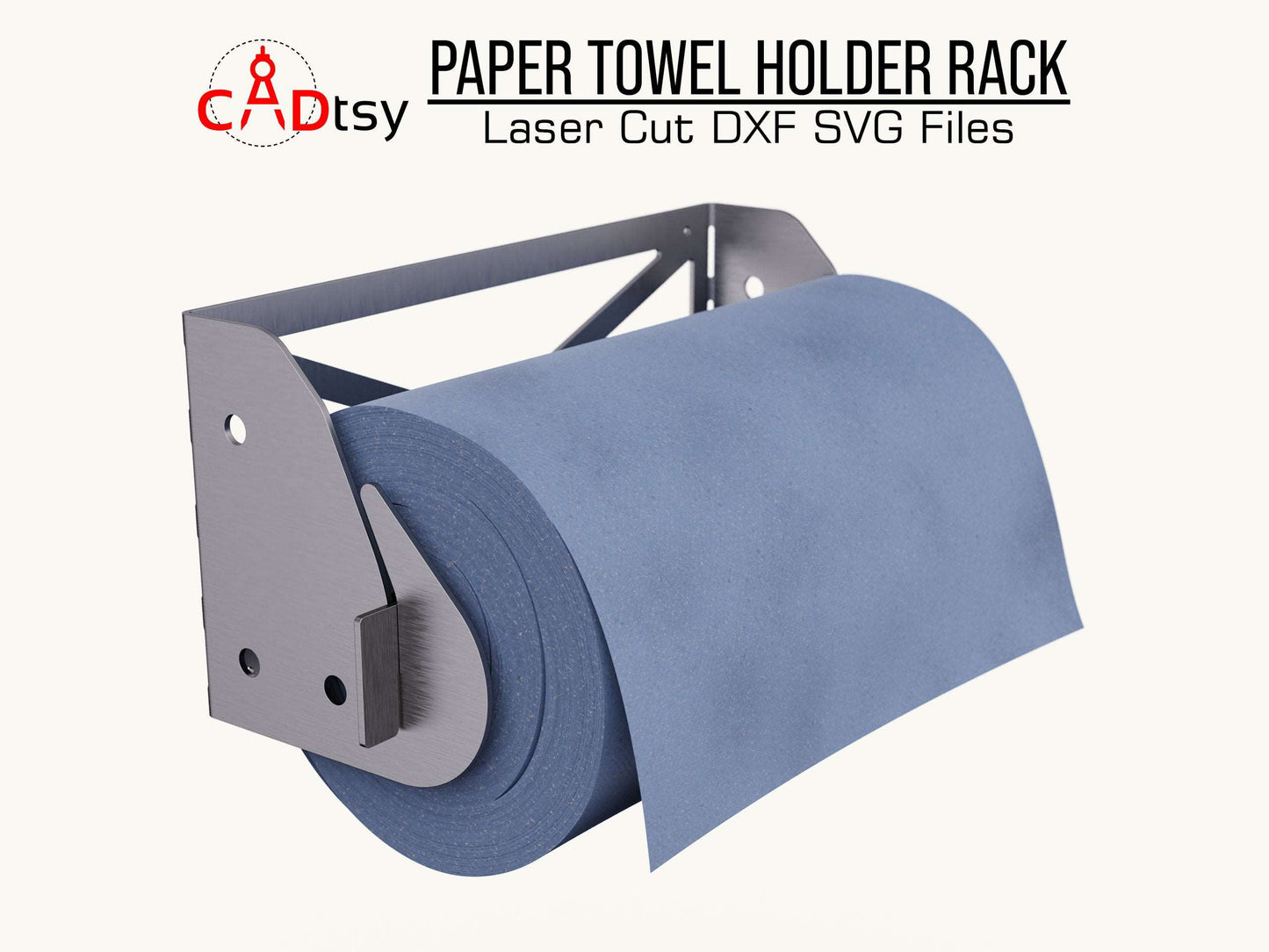

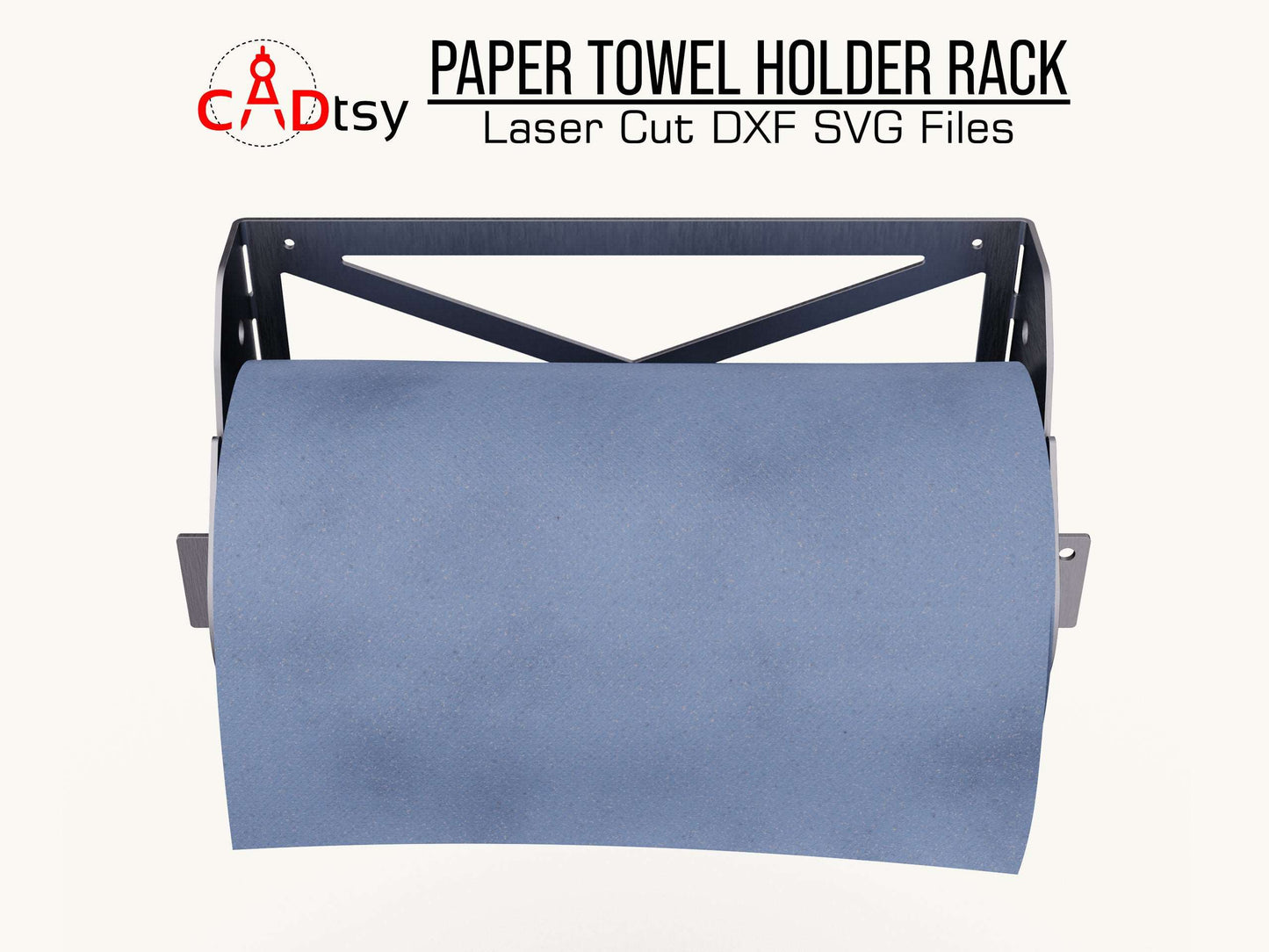

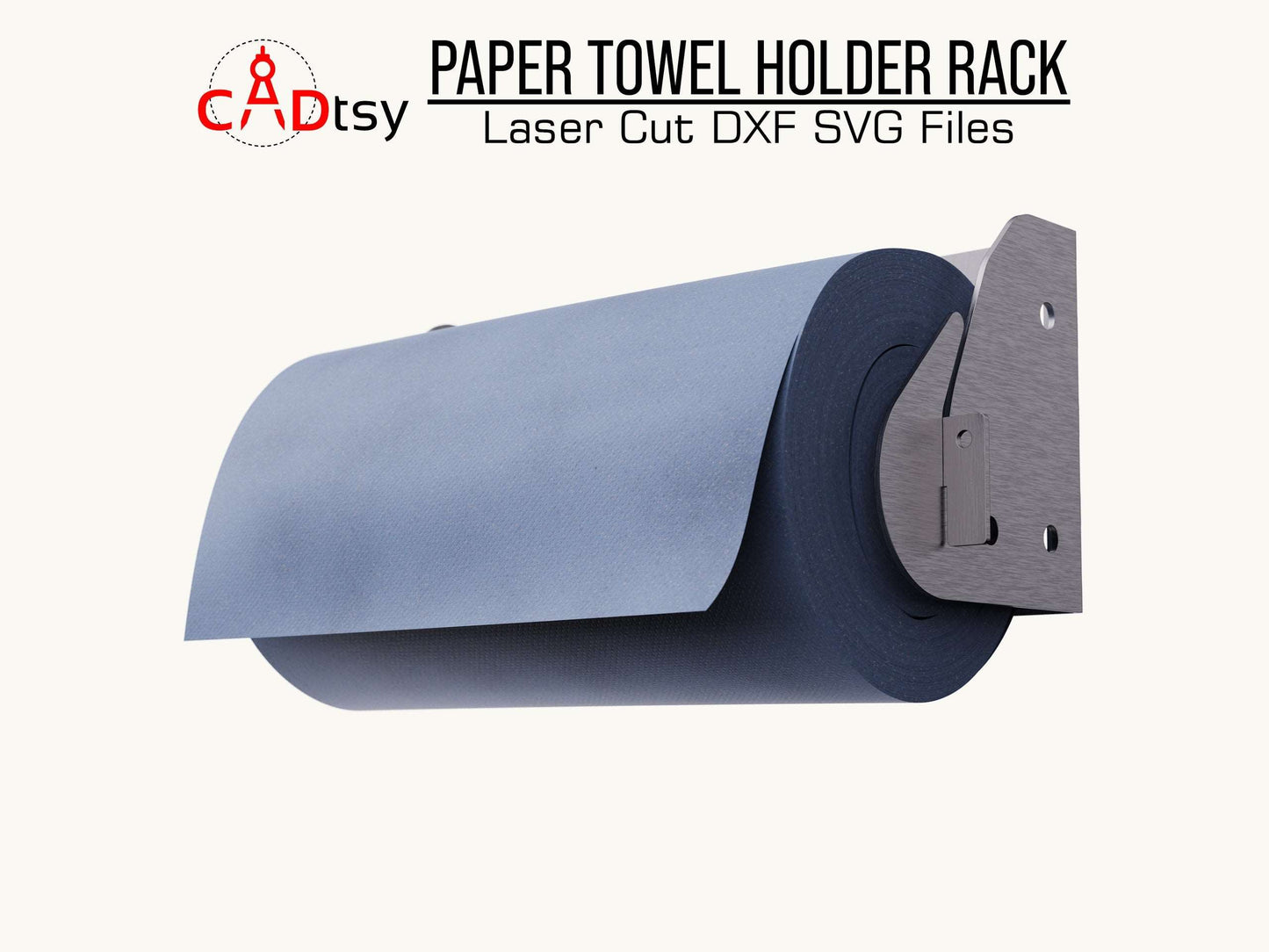

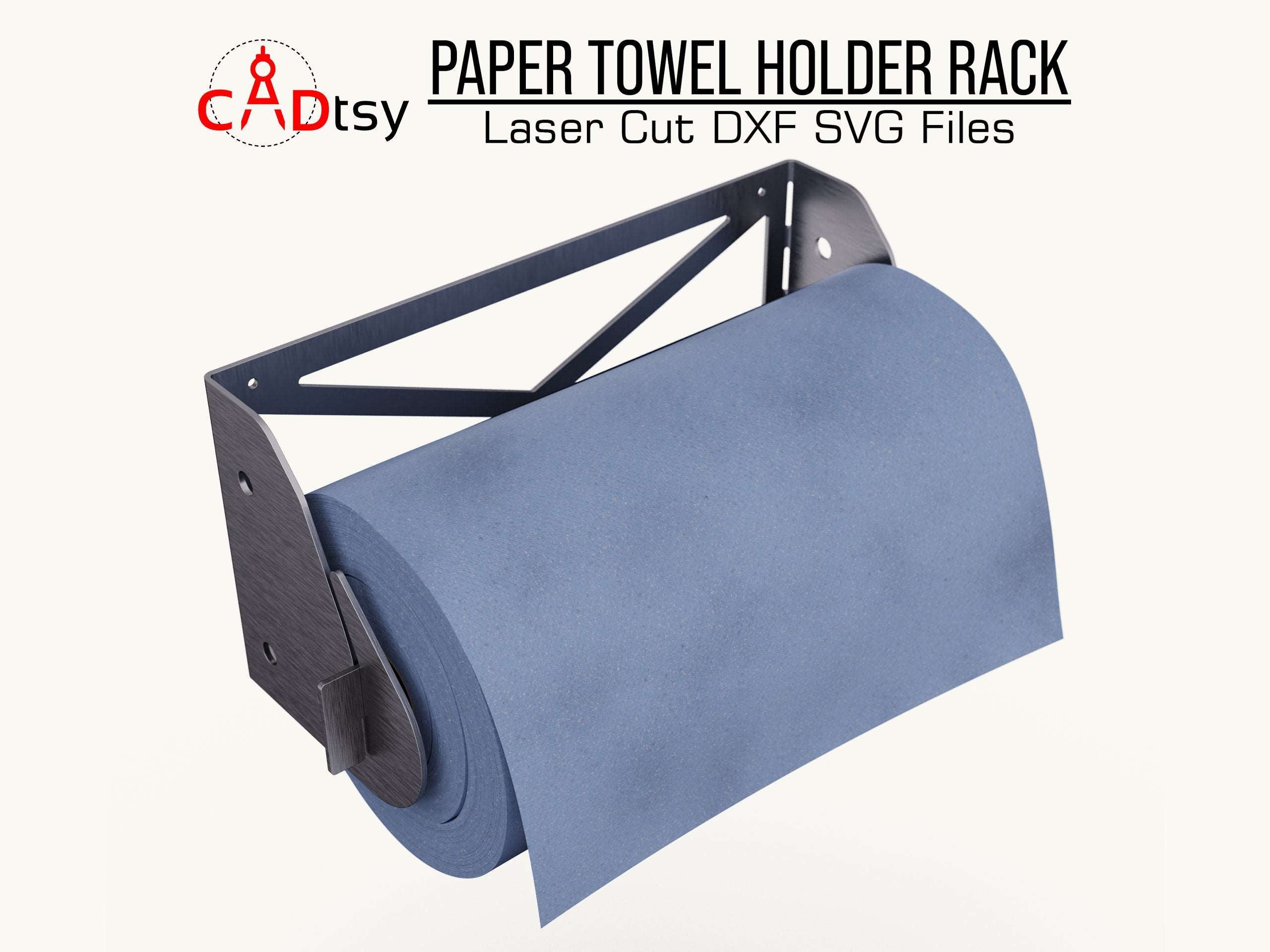

Workshop Paper Towel Rack DXF Files
Elevate your workshop's functionality with our paper towel rack DXF and SVG files. This digital plan allows you to create a sleek, modern, and incredibly durable wall hanger for standard paper towel rolls.
Cleanliness and efficiency are critical in any workspace. Spills happen, and you need a reliable dispenser that can withstand a tough environment. Therefore, this project is perfect for any workshop, garage, or even kitchen. It keeps paper towels accessible for quick cleanups. Consequently, you can maintain a safer and more organized area.
We designed this CNC paper towel dispenser for a simple build and a lifetime of use. Its robust, all-metal construction is far superior to flimsy plastic alternatives. In short, it’s a practical project that adds a professional touch to your space.
We have engineered every aspect of this paper towel rack DXF plan for a flawless result from your CNC machine.

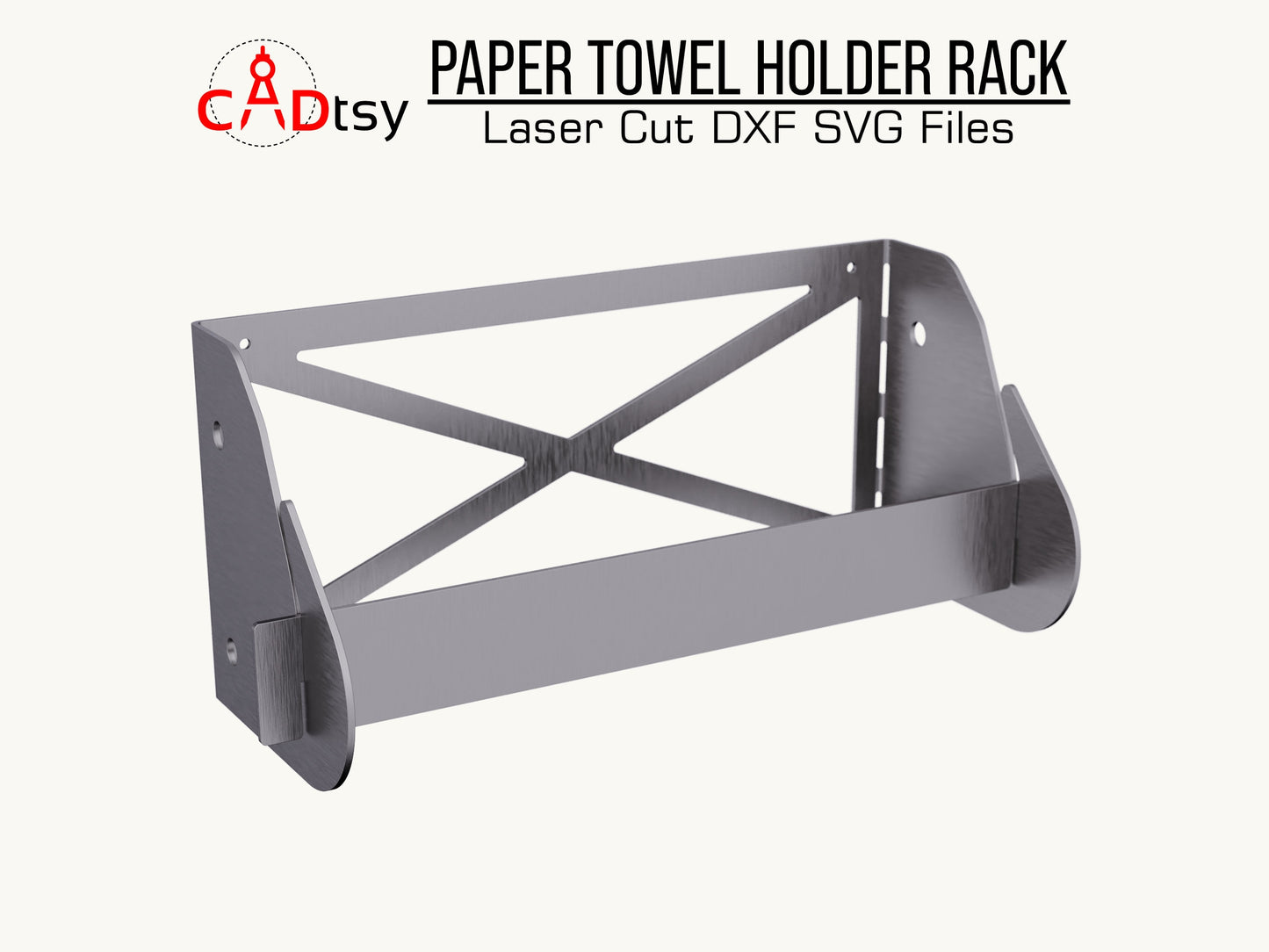

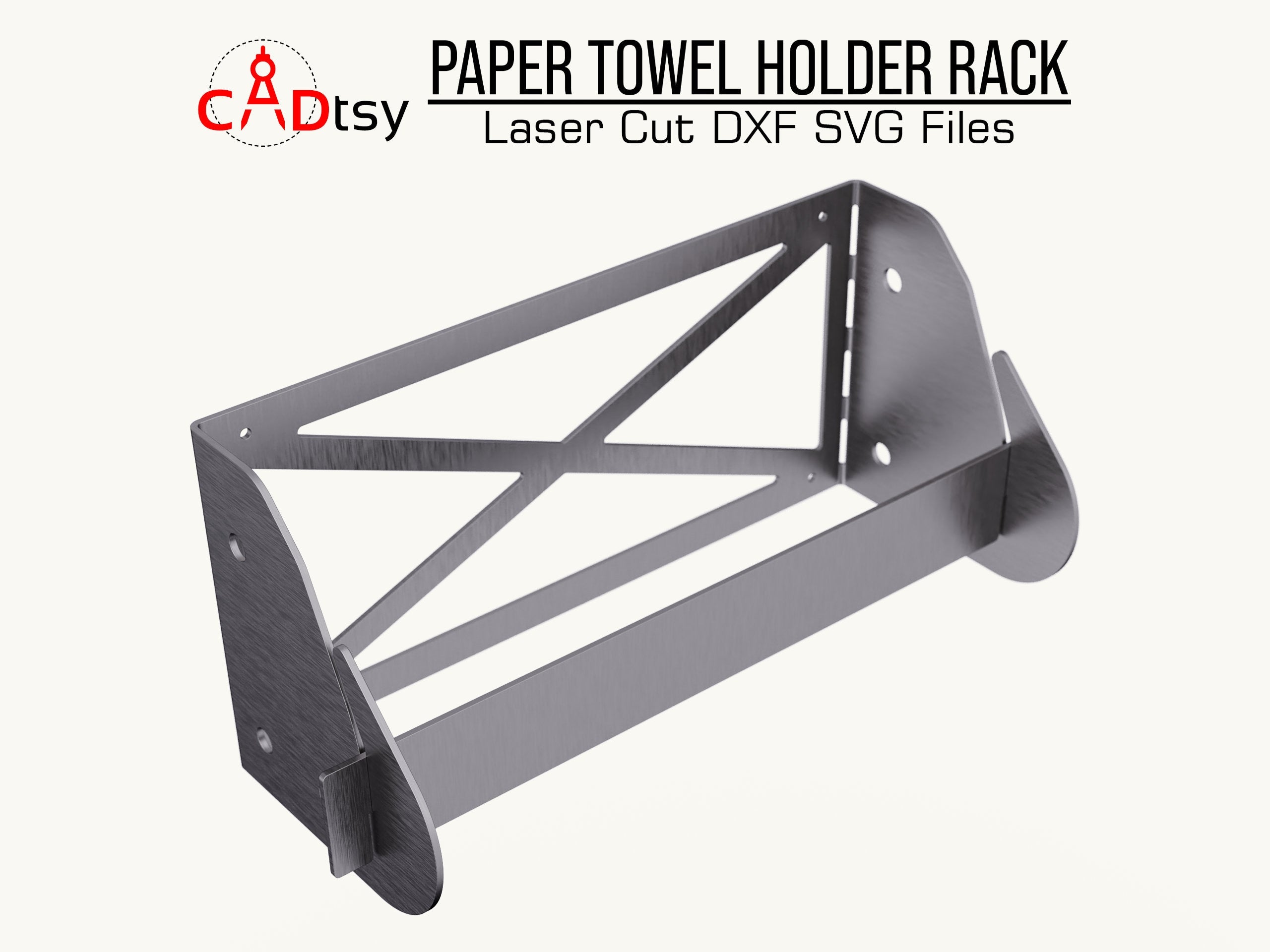

Final Assembled Dimensions: Height: 5.5" (140 mm), Width: 13.1" (332.5 mm), Depth: 5.1" (130 mm).
Recommended Materials: This project is ideal for 13 Gauge (2.5 mm) or 14 Gauge (2.0 mm) sheet metal.

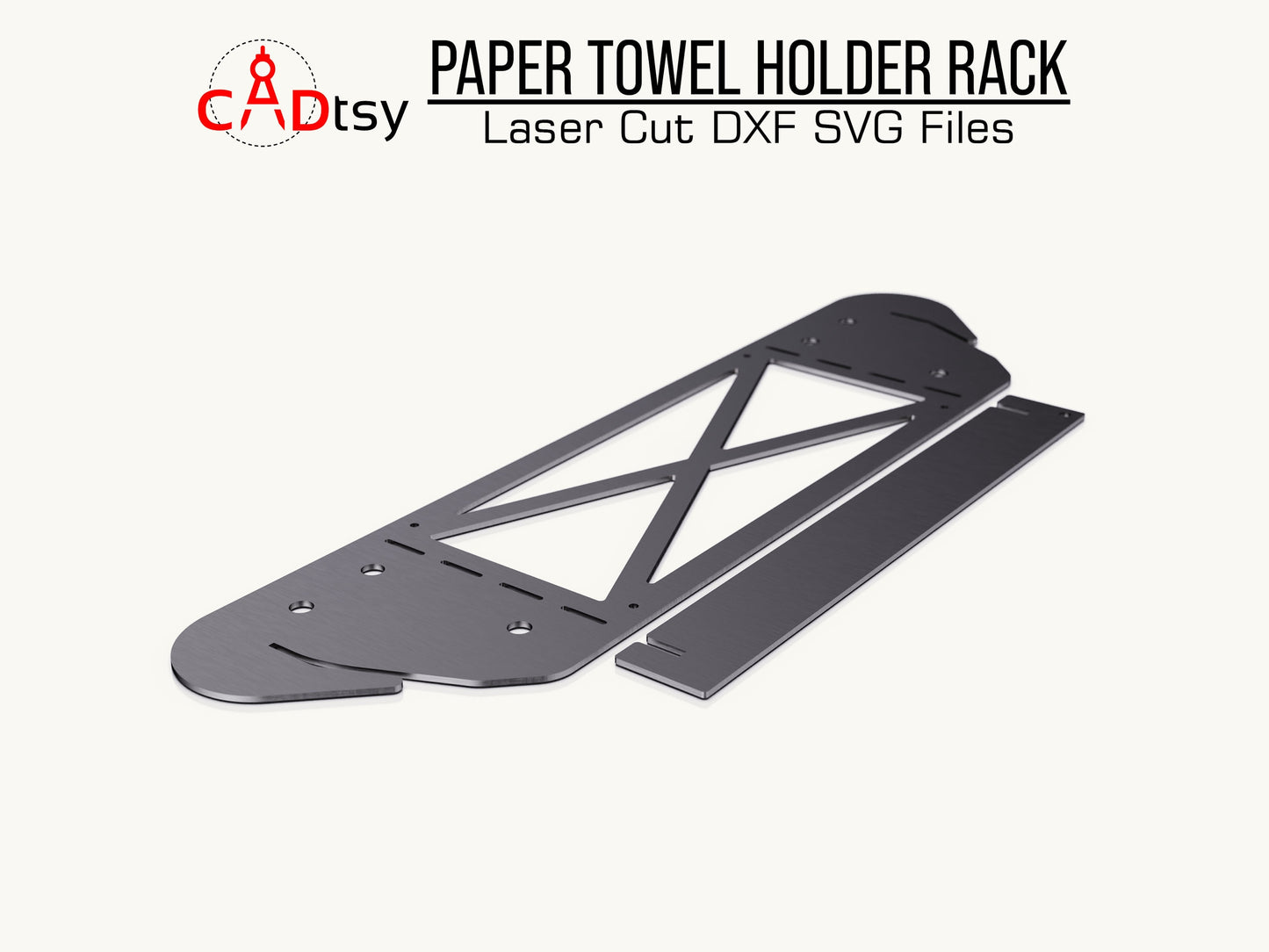

Required Operations: In addition, this project requires CNC cutting (Plasma or Laser) and simple sheet metal bending using the pre-cut slots.
Included File Formats: Finally, your download includes DXF, SVG, and PDF files for maximum software compatibility.
Download your paper towel rack DXF file today. Start creating a high-quality, essential fixture for your workspace with CADtsy.
• Digital Product: This is a digital CNC machine cutting file; no physical item will be shipped.
• Email Delivery: After checkout, you will receive an automated email containing your download links.
• File Formats: Each design includes DXF, SVG, and PDF formats—the industry standard for CNC plasma, laser, waterjet, and router cutting machines.
Commercial Use: These DXF plans are for personal projects or small business ventures (physical items only).
Intellectual Property: Modifying, reselling, or distributing the digital plasma dxf files is strictly prohibited. All media is protected by copyright. Unauthorized digital resale or redistribution is illegal and may result in legal action.
• Unit System: All designs are created in millimeters (mm).
• Import Issue: If your software is set to inches, the DXF plans may appear 25.4 times larger than intended.
• The Fix: Re-import the file and select millimeters as the unit in your software's import settings.
• Manual Scaling: If you cannot change import units, scale the design by 0.03937 (or 3.94%) to convert from mm to inches.
