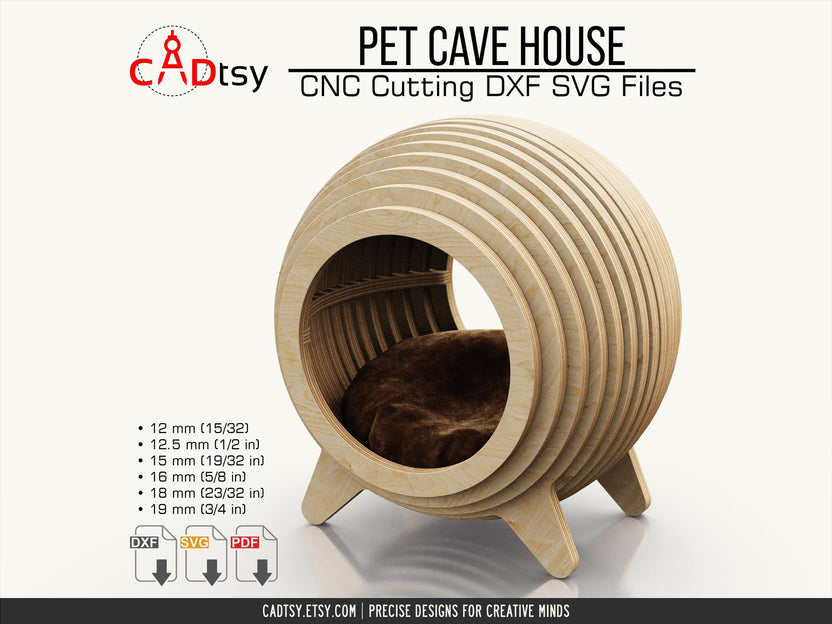

Wooden round cat cave house on angled legs

Cat House DXF SVG Files for CNC Router

$6.37 USD
$6.37 USD $10.32 USD
Skip to product information

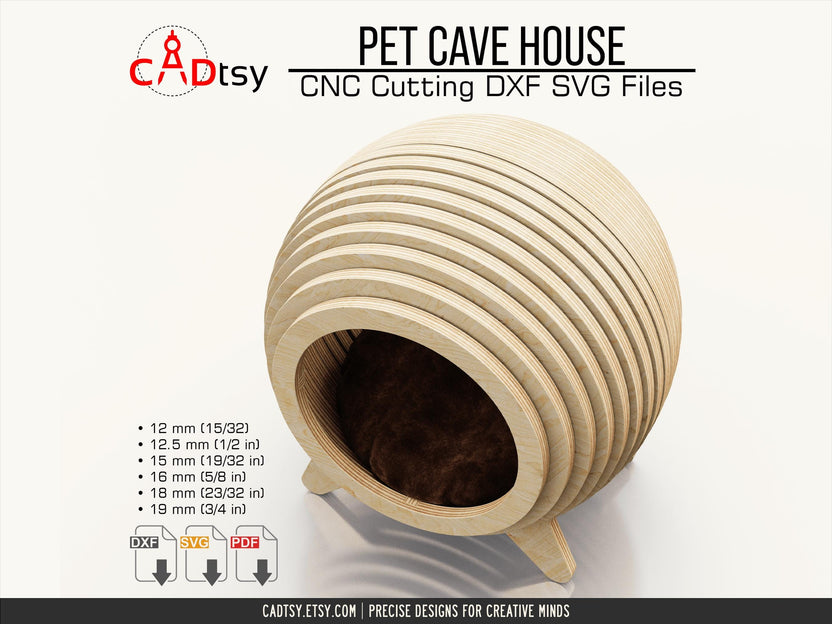

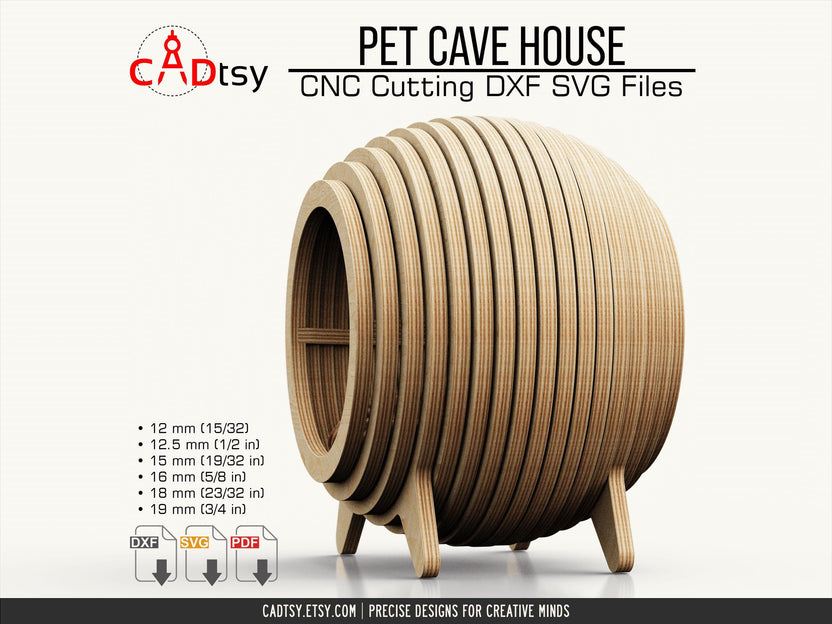

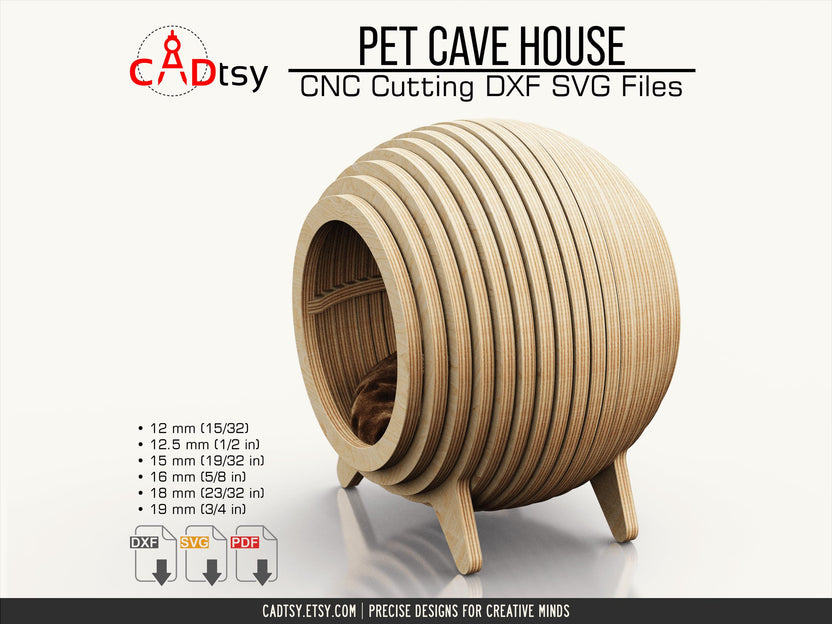

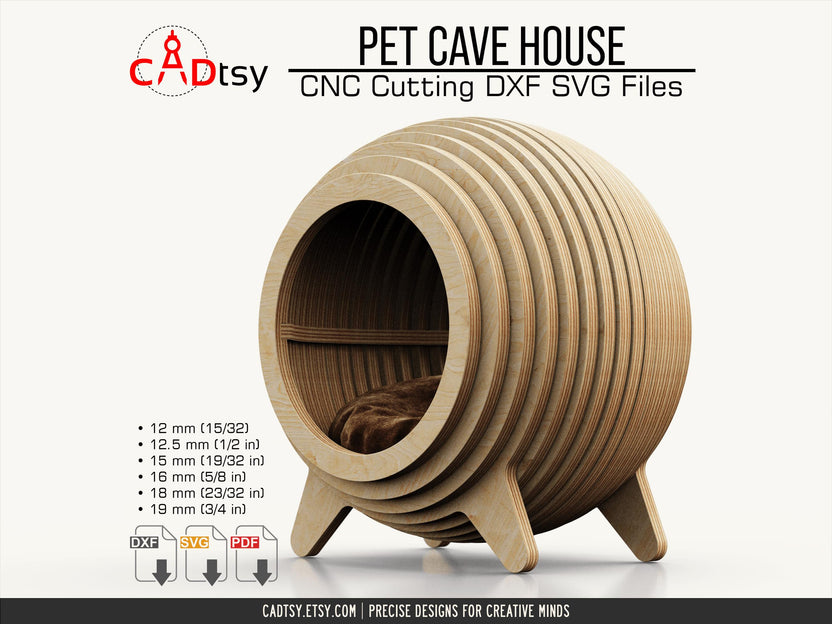

Wooden round cat cave house on angled legs
Cat House DXF SVG Files for CNC Router

Cat House DXF SVG Files for CNC Router

$6.37 USD
$6.37 USD $10.32 USD

Digital download. No physical item or shipping required. Check the product description for the exact included files.

Download links are sent by email after checkout. See What You Get below for any additional PDF drawings or instructions.

Purchase grants a limited license; digital files may not be shared, resold, or redistributed. Review the CADtsy license terms.

This downloadable cat house file package is for CNC router cutting a wooden pet-furniture project. It includes DXF, SVG, and PDF files in six material-thickness options for plywood or MDF. No physical cat house, wood, hardware, or finished pet furniture is shipped.

What You Get

  • DXF, SVG, and PDF files for the cat house project.
  • Six material-thickness file options.
  • One wooden pet-house project.

Finished Size

  • Approximate height: 20.8 in / 528 mm.
  • Approximate width: 20.0 in / 508 mm.
  • Approximate depth: 15.3 in / 388 mm.

Material Thickness Options

  • 12 mm, 12.5 mm, 15 mm, 16 mm, 18 mm, and 19 mm plywood or MDF file versions.

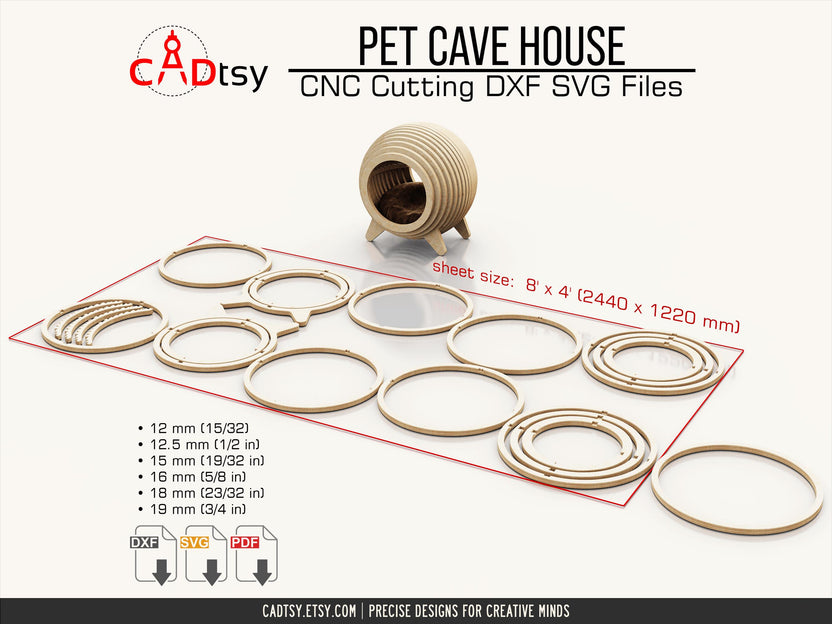

  • Material requirement listed for the project: approximately 1.25 sheets of 4 x 8 ft material.

Fabrication Notes

  • Designed for CNC router cutting and wood assembly.
  • Select the file version that matches your sheet-material thickness.

Before Cutting

  • CADtsy designs are created in millimeters; check file scale and units before sending files to your CNC software.
  • Verify kerf, material thickness, tooling, machine settings, and fit before producing the final project.

Related CADtsy Files

Browse pet furniture CNC files, explore CNC furniture plans, or review how CADtsy digital CNC files work before purchase.
⚠️ Important Information

• Digital product: This product is a downloadable CNC-ready design file package. No physical item is shipped.
• Delivery: After checkout, download links are sent by automated email and may also be available through your store order account.
• Included files: File formats vary by product and may include DXF, SVG, PDF, AI, project drawings, or instructions. Check the product description for the exact deliverables included with this design.
• Learn more: How CADtsy digital CNC files work.
⚠️ Legal Information

CADtsy digital designs, drawings, templates, and cutting files are protected by copyright and intellectual property laws. Purchasing a file grants a limited license to use the downloaded design according to the current CADtsy license terms; copyright ownership is not transferred.

Do not share, resell, rent, redistribute, or upload the digital files in any format. Commercial use, resale of finished items, and production rights must follow the current CADtsy license terms.

Read the current terms: CADtsy digital CNC file license terms. For licensing questions, contact CADtsy.
⚠️ Technical Support & Scaling

• Unit system: CADtsy designs are generally prepared in millimeters (mm). Check the product description for product-specific sizing details.
• Import scale: If your software is set to inches, a DXF or SVG file may import at the wrong scale. Re-import using millimeters where possible, or confirm the scale before cutting.
• DXF import help: If a DXF opens 25.4 times too large or too small, read why DXF files import at the wrong size before scaling or cutting.
• DXF or SVG: Read DXF vs SVG for CNC cutting before importing or creating toolpaths.
• Before cutting: Verify material thickness, kerf, bit or nozzle size, toolpaths, machine setup, and software compatibility before producing a final part.
• Support: If you are unsure about a file or license question, contact CADtsy.
