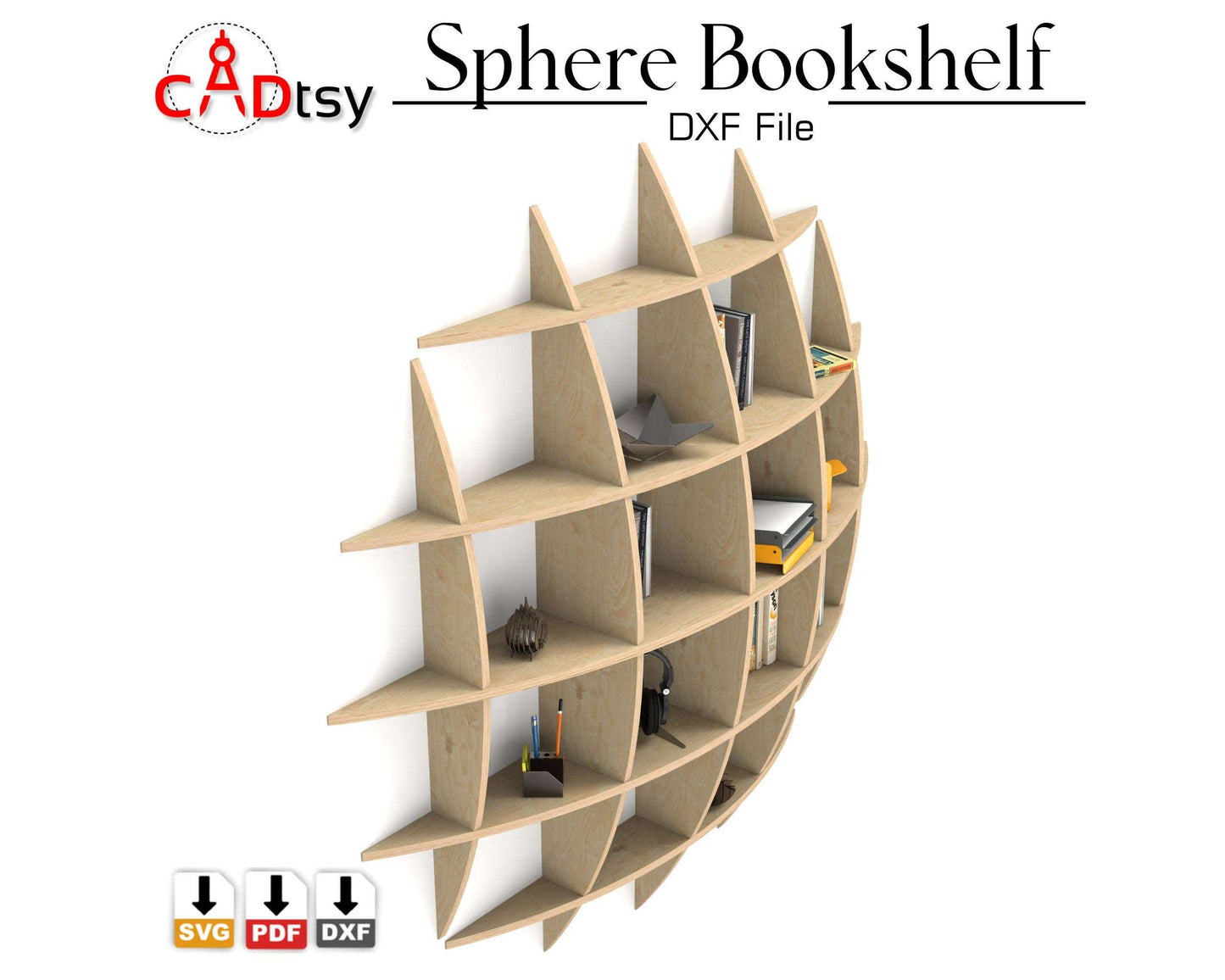

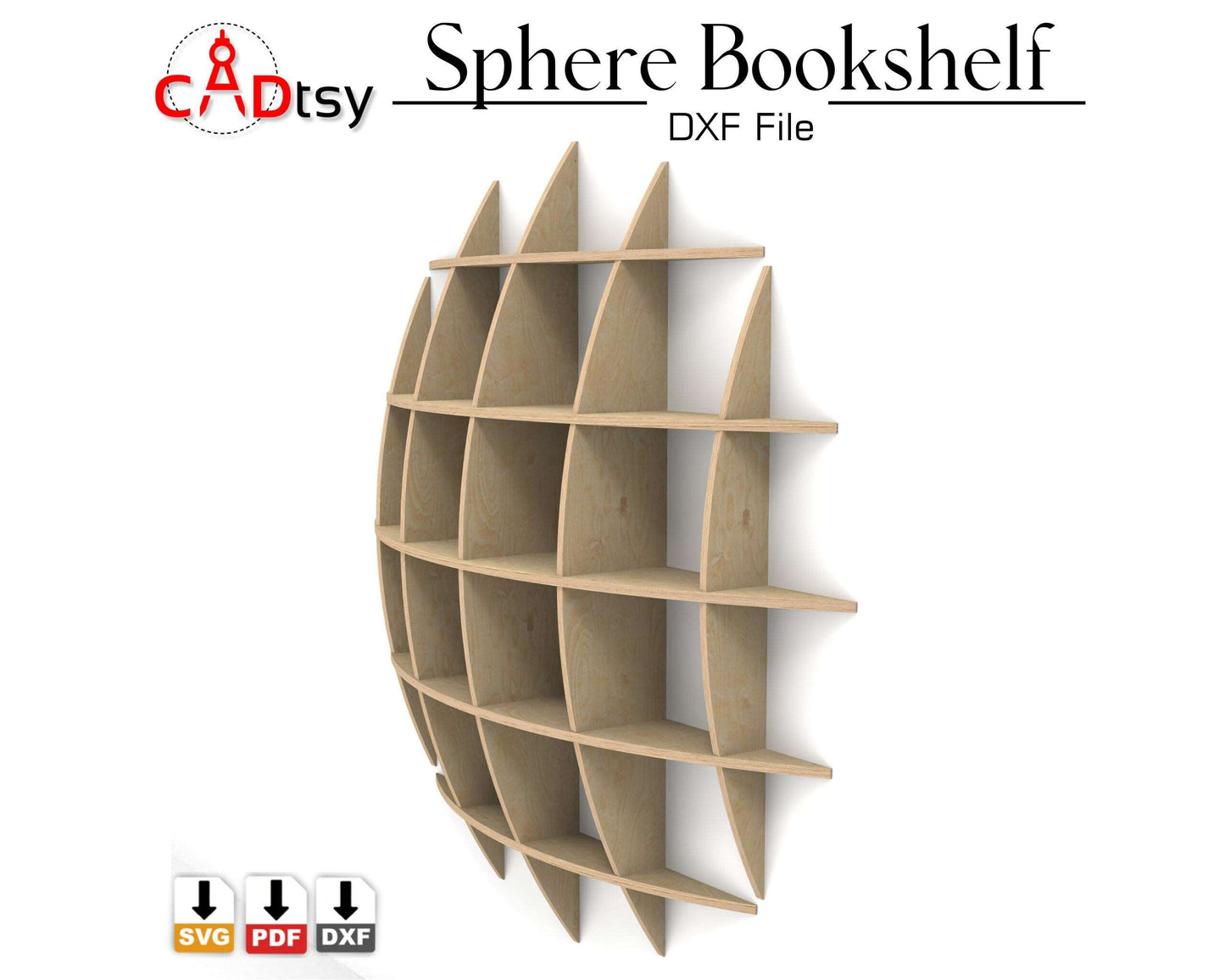

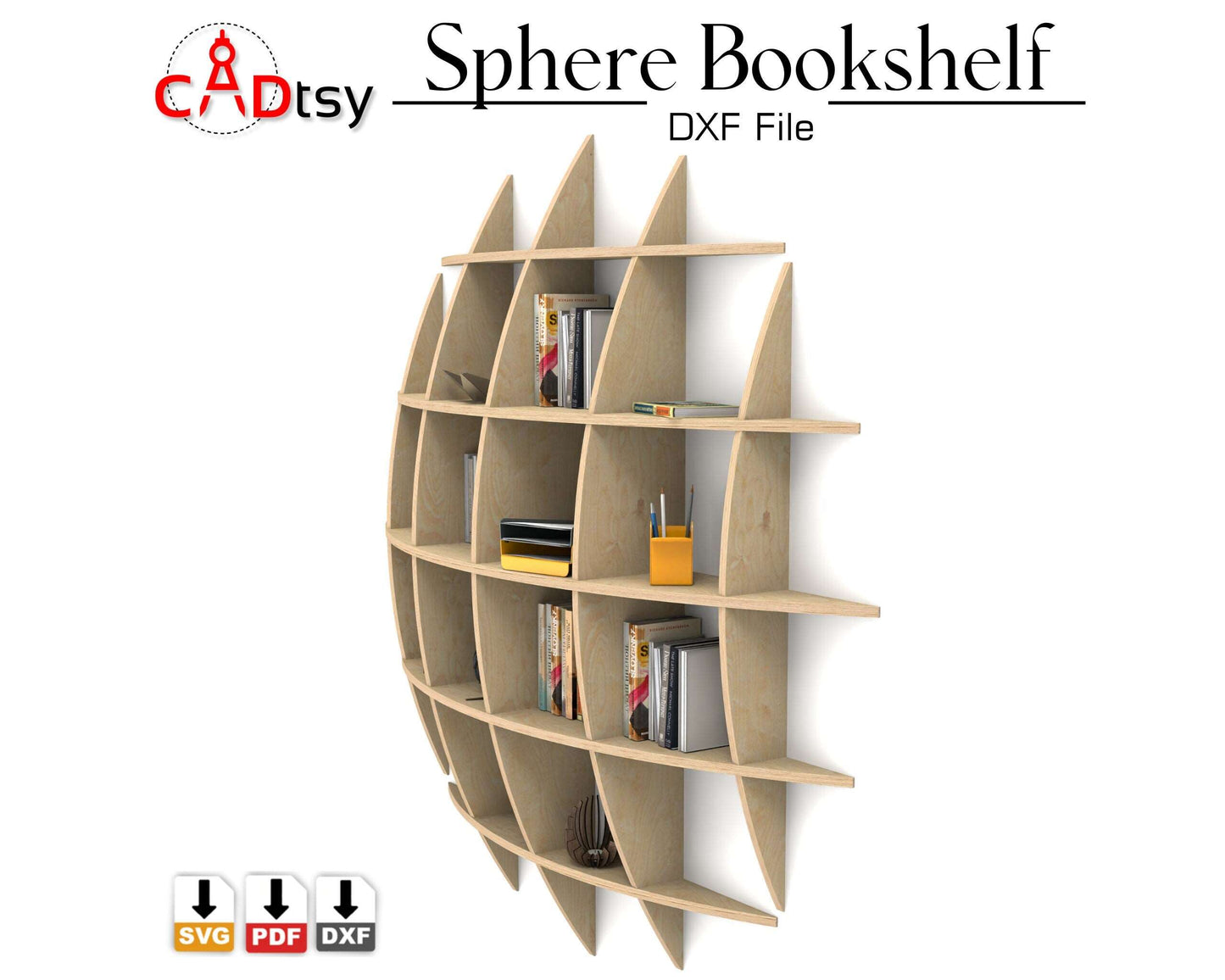

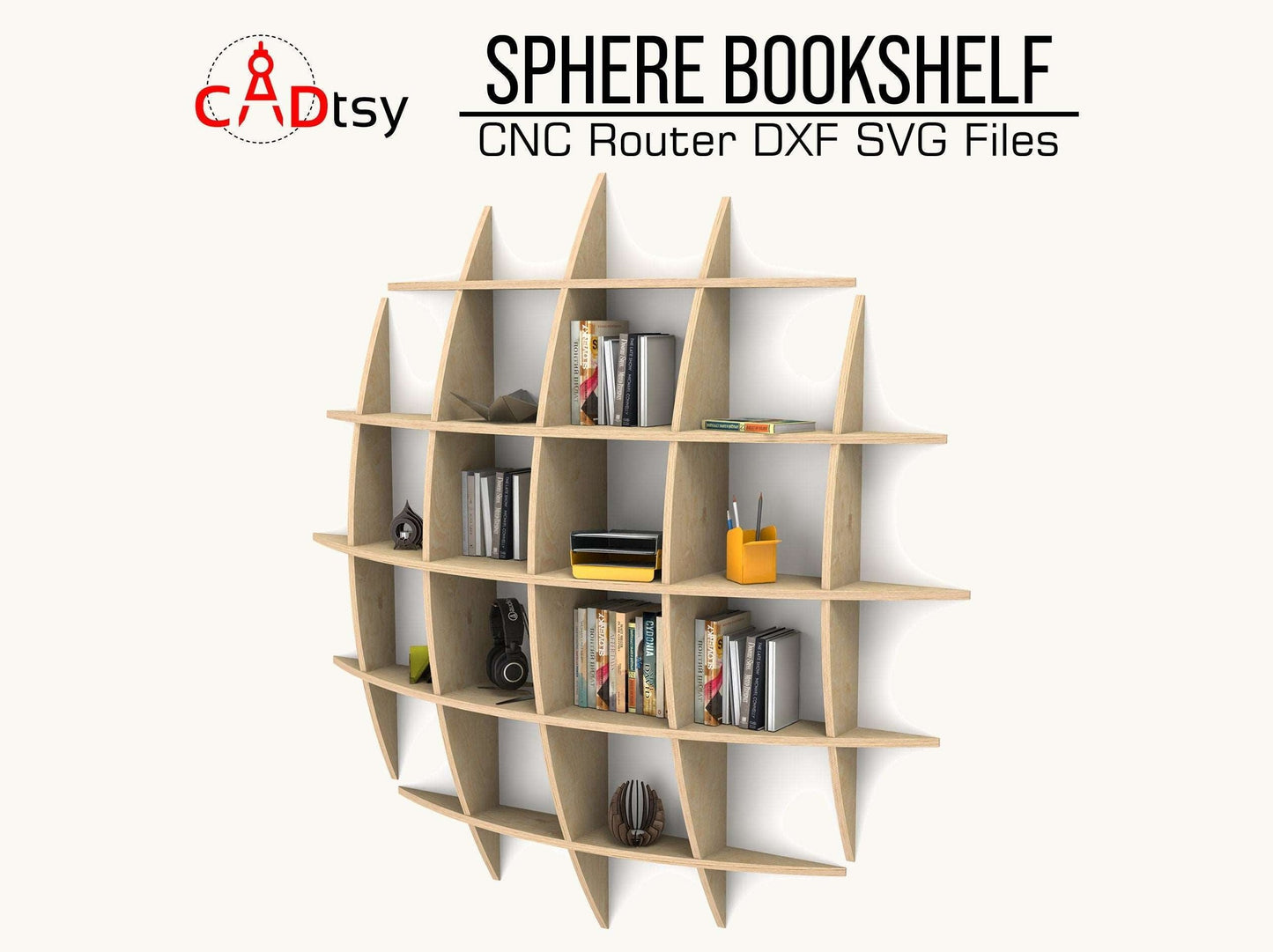

Sphere Waffle Bookshelf DXF files is a downloadable CNC-ready file package for building a large parametric plywood bookshelf, circular wall shelf, or geometric display bookcase from sheet goods. The assembled shelf is approximately 70.5 in high, 70.5 in wide, and 11.8 in deep.
What You Get
- DXF, SVG, and PDF files for the sphere waffle bookshelf design.
- CNC-ready files for router cutting workflows.
- PDF reference files for the sphere bookshelf project.
- No physical bookshelf, plywood, books, wall fasteners, hardware, or finished furniture is shipped.
Project Features

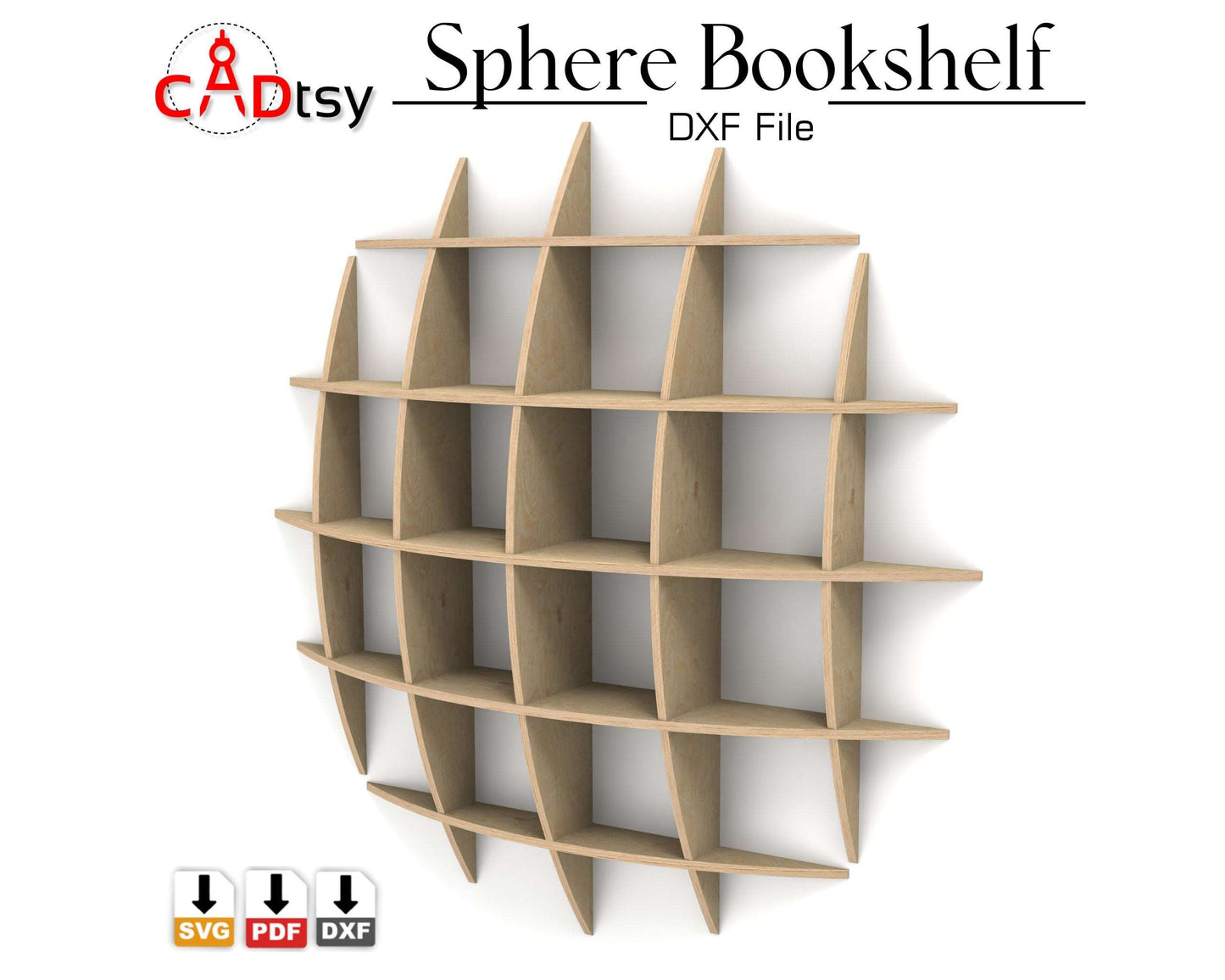

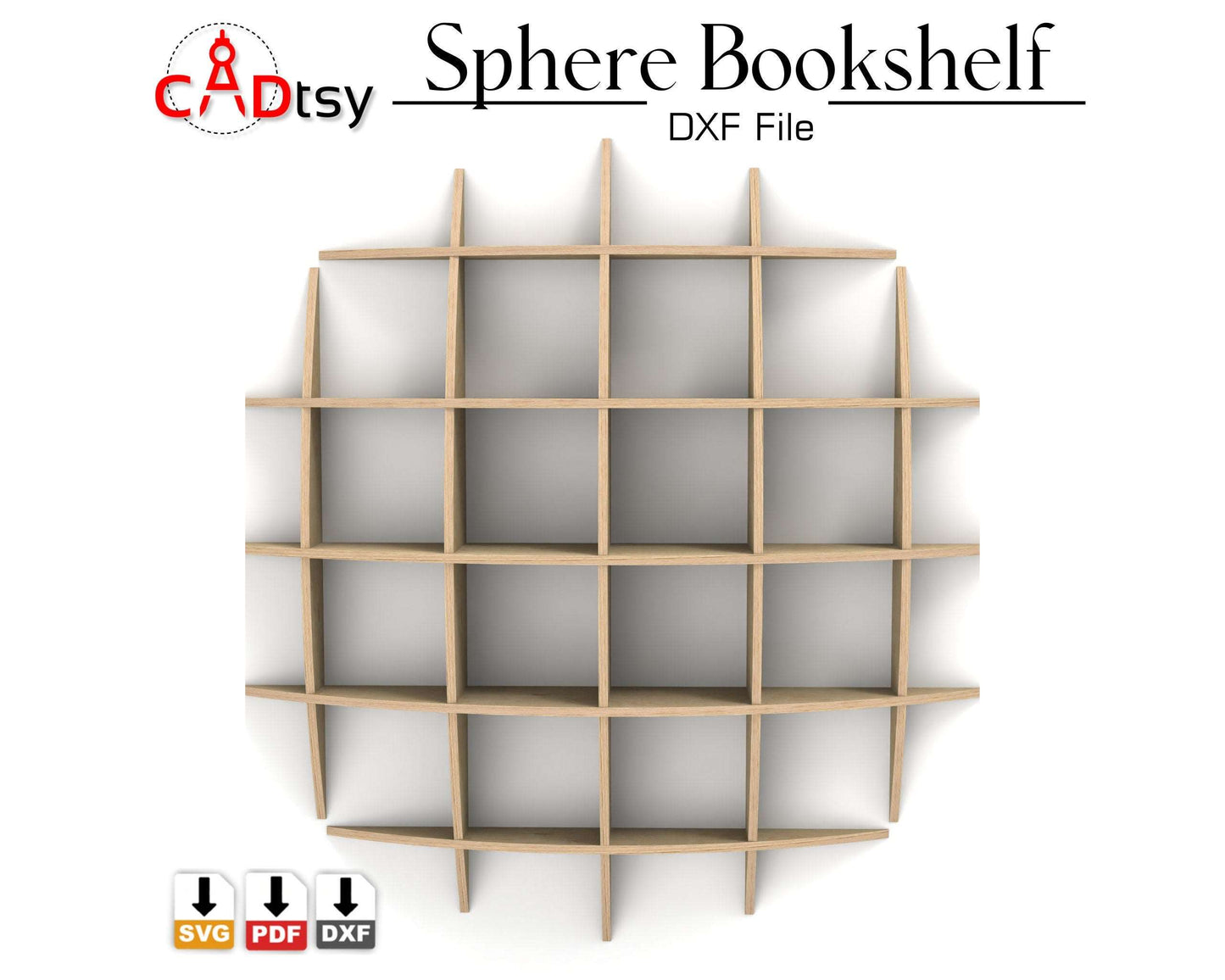

- Parametric waffle-style shelf layout for books, display storage, and geometric wall art furniture.

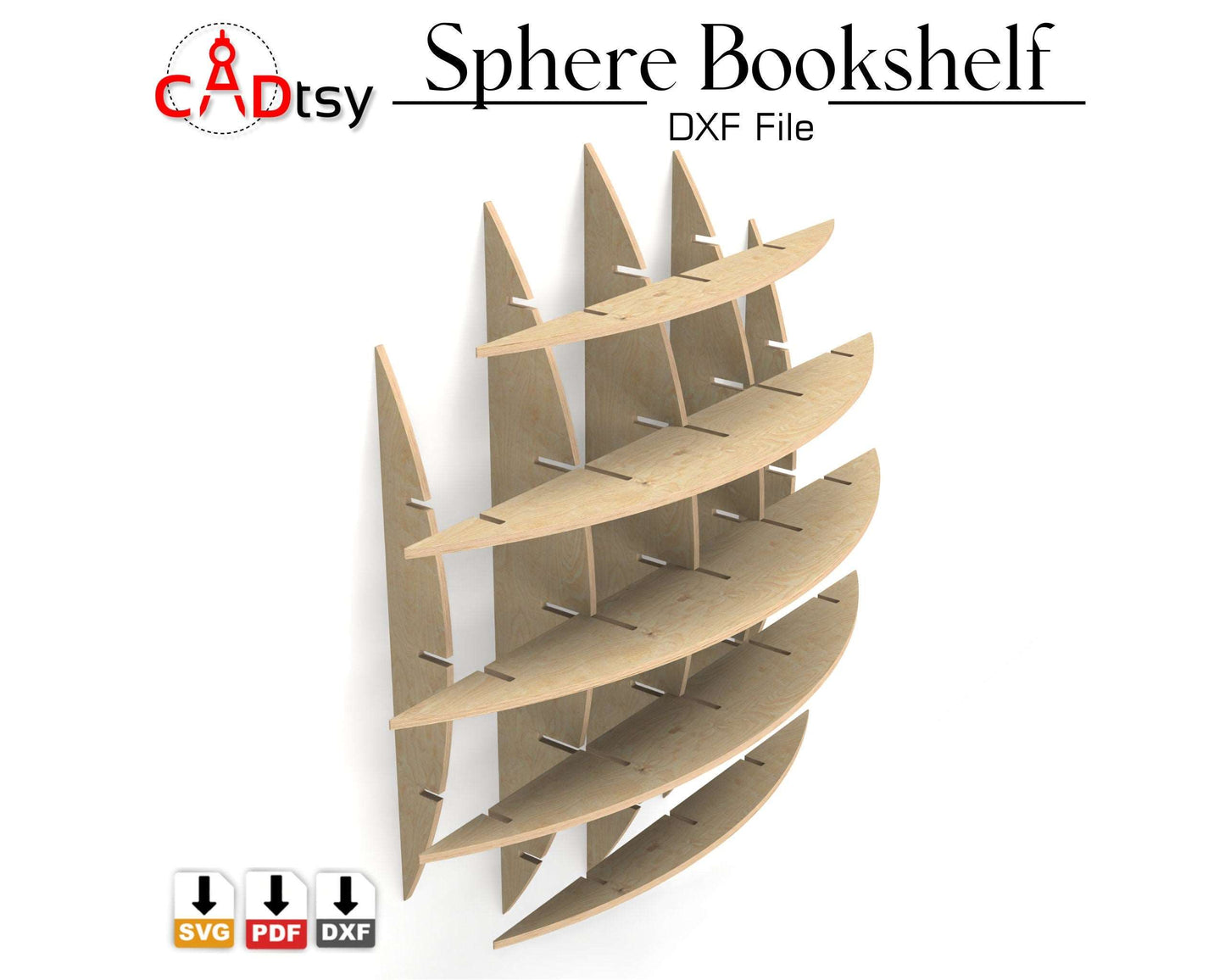

- Flat-pack furniture design intended for CNC router cutting and slot-fit assembly.

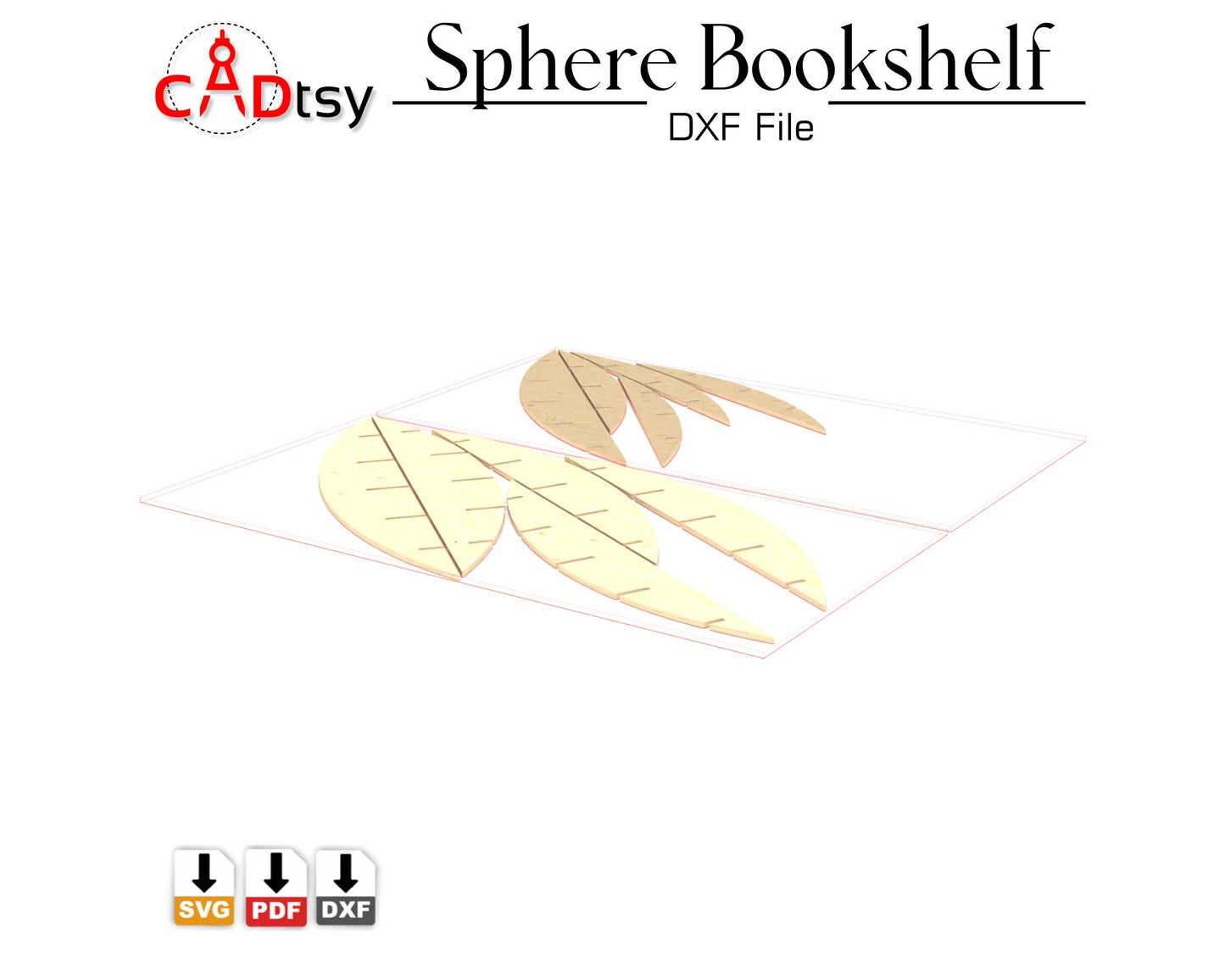

- This project requires two standard 8 ft x 4 ft boards.

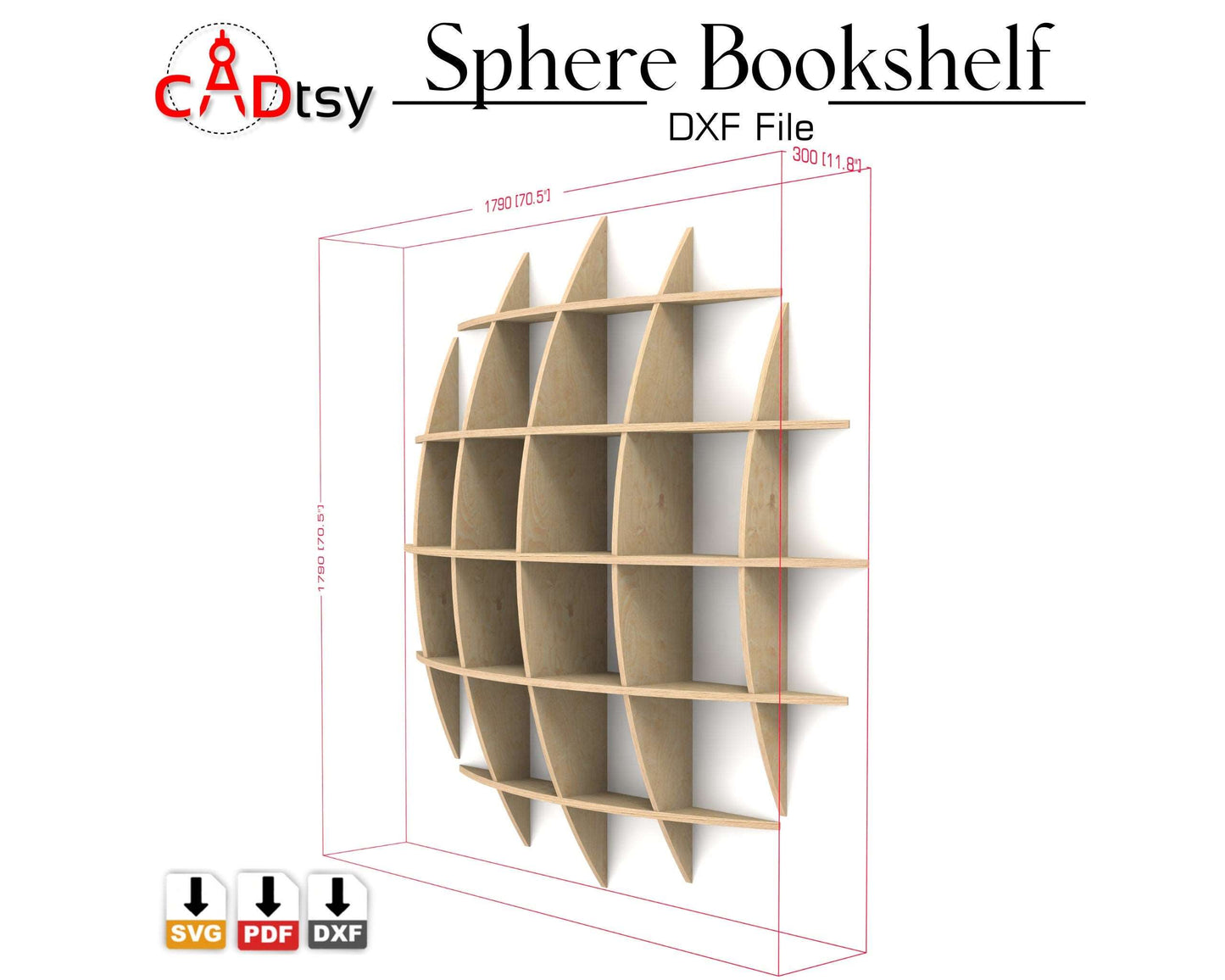

Finished Size
- Approximate assembled height: 70.5 in / 1790 mm.
- Approximate assembled width: 70.5 in / 1790 mm.
- Approximate assembled depth: 11.8 in / 300 mm.
Recommended Materials
- 18.0 mm / 23/32 in plywood or MDF.
- 19.0 mm / 3/4 in plywood or MDF.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending the DXF or SVG files to CAM software.
- Use the listed material thickness and tooling assumptions; adjust only if changing material thickness or using a larger router bit.
- Verify router bit diameter, kerf, material thickness, board layout, wall/floor placement, and machine settings before fabrication.
