Star Fire Pit | DXF Files for Plasma Cutting
$4.96 USD
Sale price
$4.96 USD
Regular price
$8.03 USD
Taxes included.
Shipping calculated at checkout.

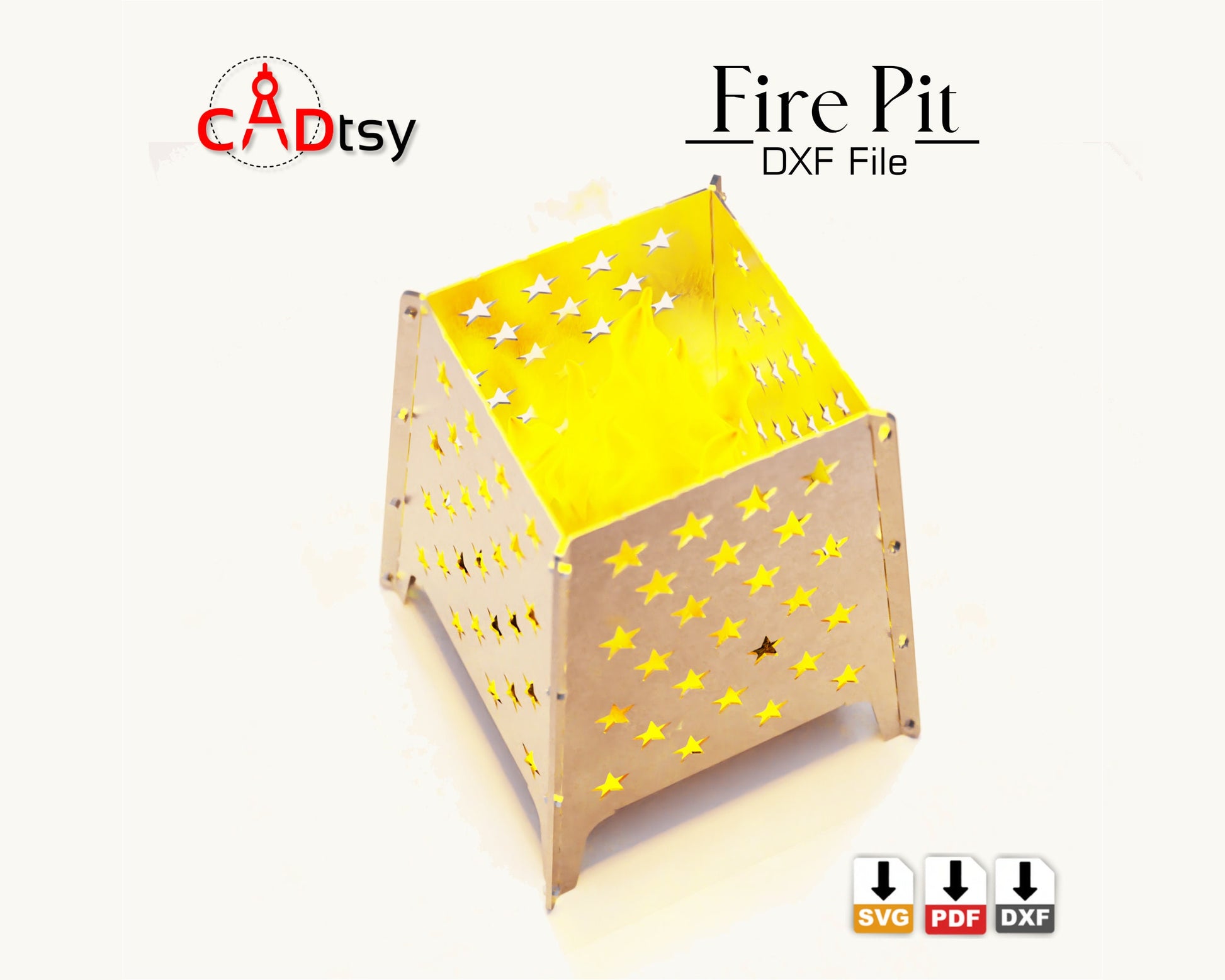

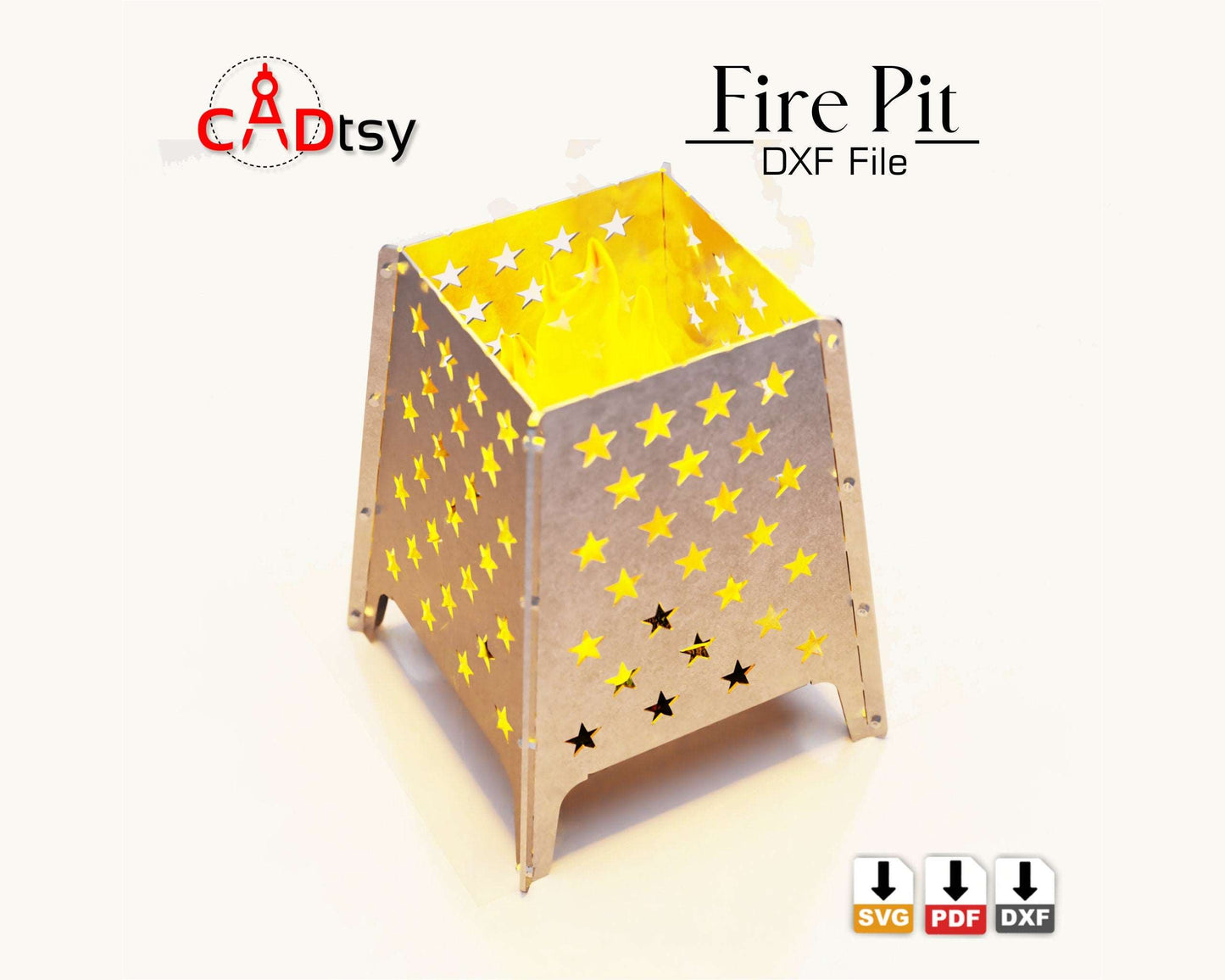

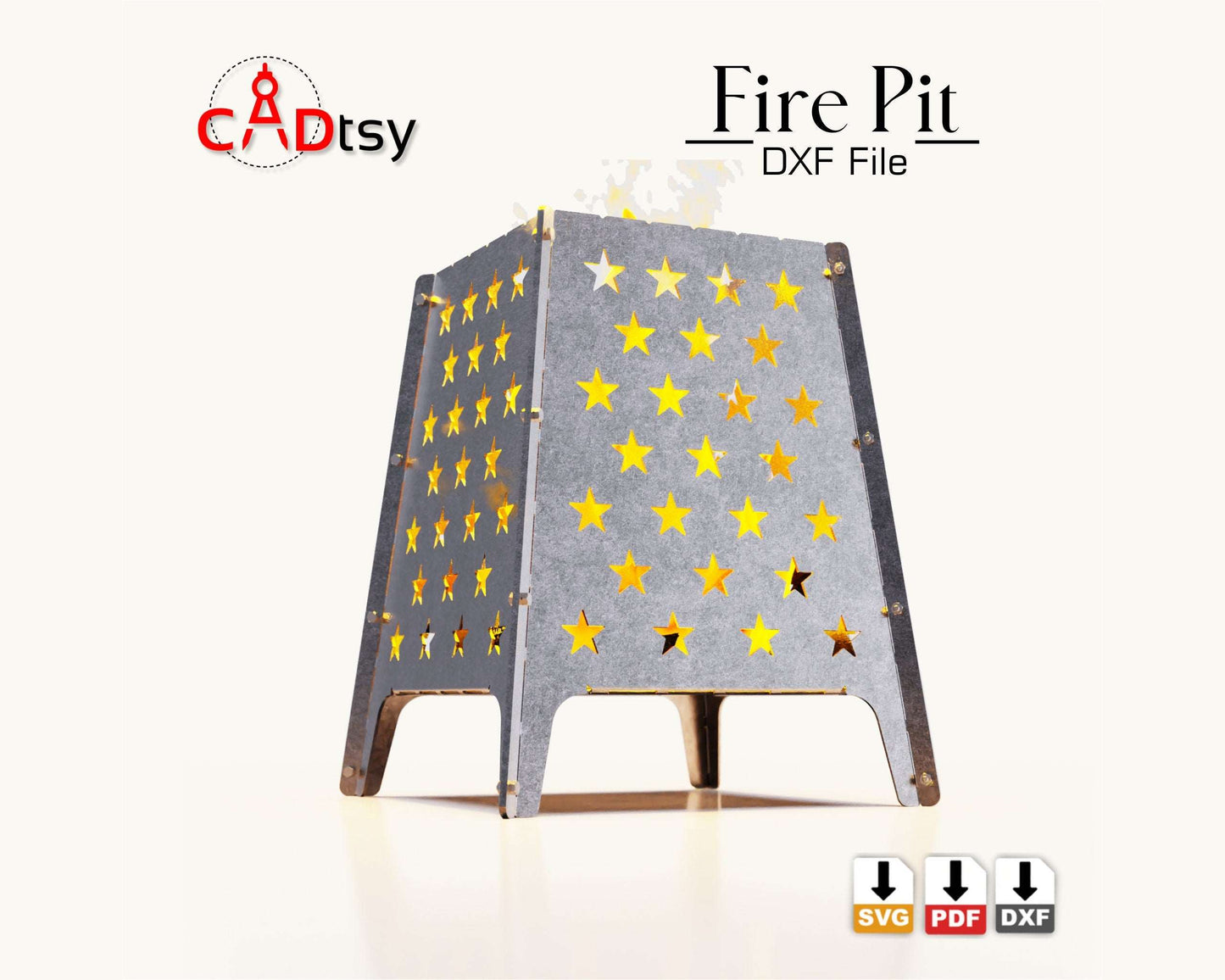

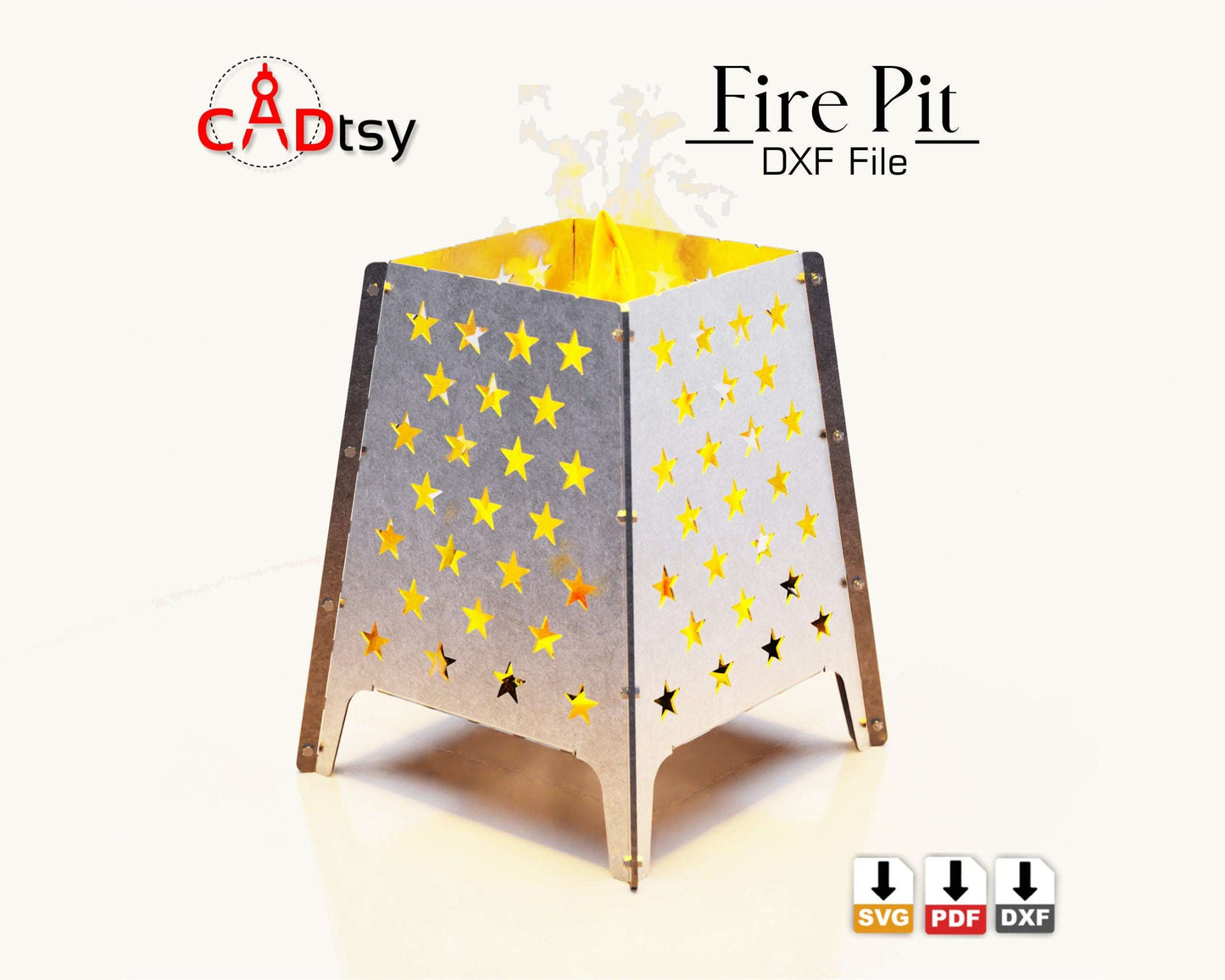

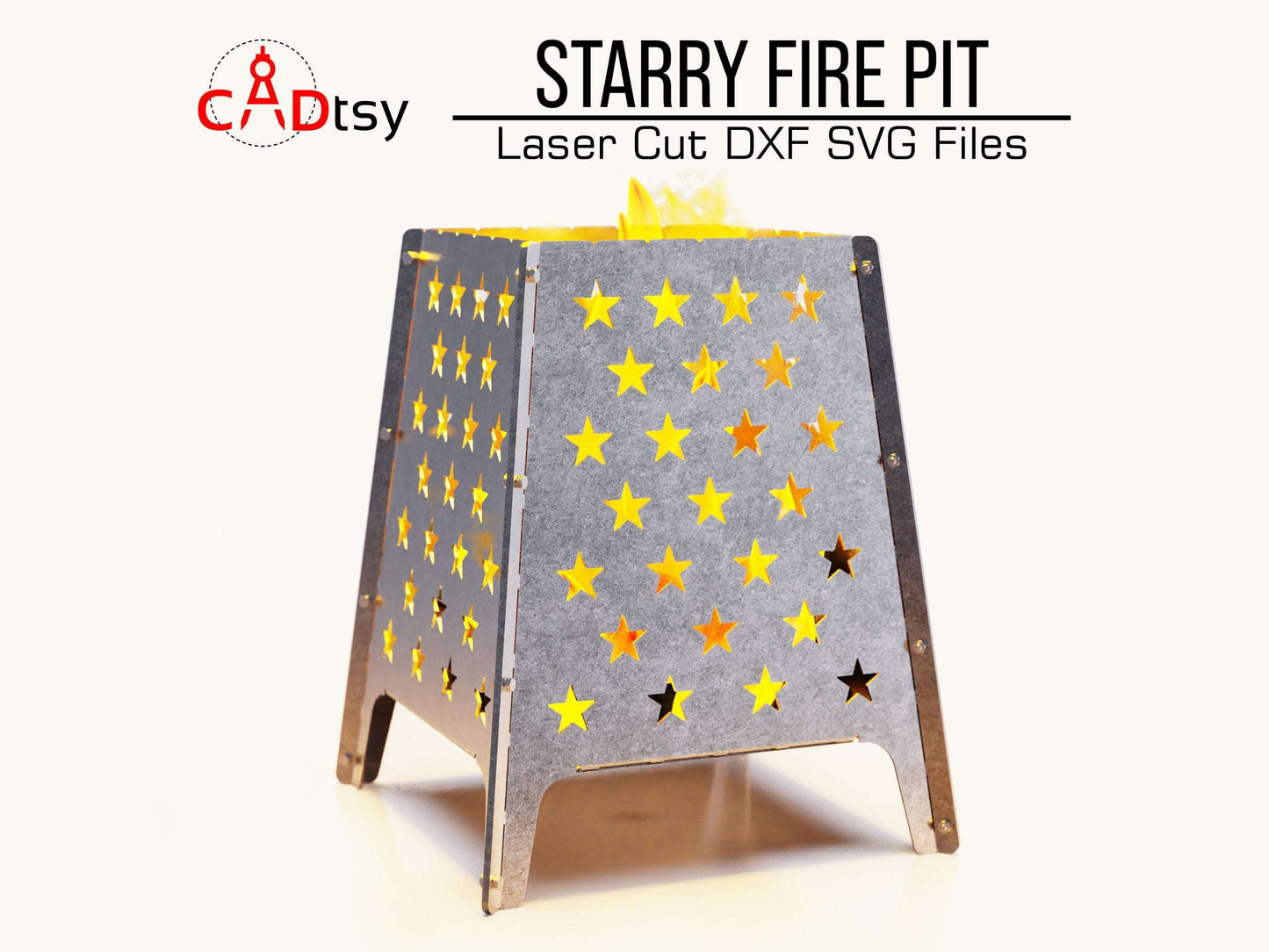

Star Fire Pit DXF files is a downloadable CNC-ready file package for building a portable flatpack fire pit with a star-pattern outdoor design. The assembled design is approximately 20.0 in high, 16.9 in wide, and 16.9 in deep.
What You Get
- DXF, SVG, and PDF files for the star fire pit design.

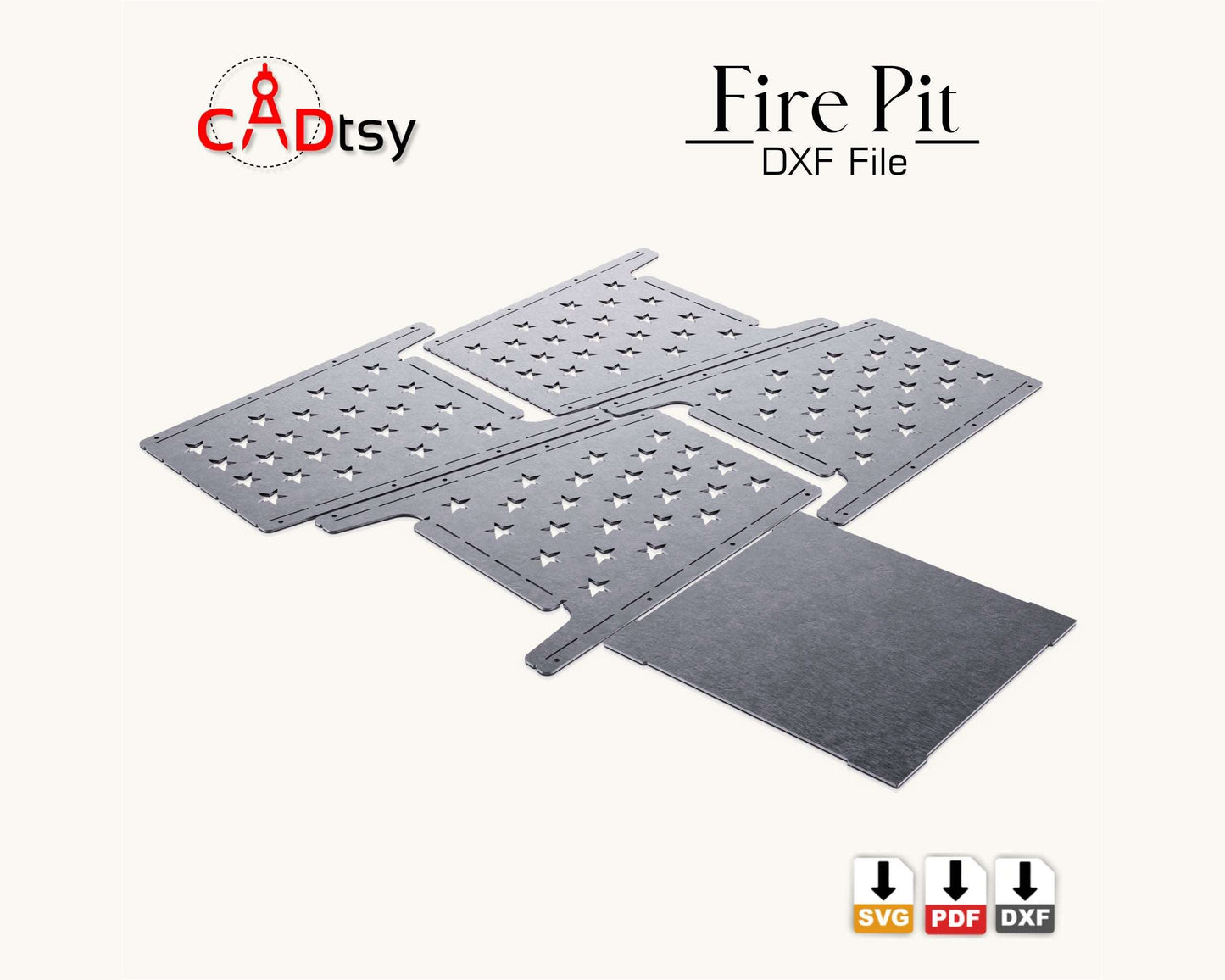

- CNC-ready flat pattern files for plasma or laser cutting workflows.
- PDF reference and drawing files for the sheet metal fire pit project.
- Bend-line marking geometry and slot-cut features intended to help form the sheet metal parts.
- No physical fire pit, steel, hardware, or finished outdoor item is shipped.
Project Features
- Portable flatpack fire pit layout for camping, backyard, or patio use.
- A star-pattern metal fire bowl structure designed to be CNC-cut from sheet metal, then formed into its final shape.
- Slot-cut bend features help guide bending lines and can reduce dependence on a dedicated brake press for suitable material thicknesses.
Finished Size
- Approximate assembled height: 20.0 in / 508 mm.
- Approximate assembled width: 16.9 in / 430 mm.
- Approximate assembled depth: 16.9 in / 430 mm.
Recommended Materials
- 11 gauge / 3.0 mm steel.
- 13 gauge / 2.5 mm steel.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending the DXF files to CAM software.
- Verify kerf, material thickness, bend approach, part alignment, and machine settings before cutting.
- Use the bend-assist geometry as a fabrication aid; final bending method still depends on your material thickness, tools, and shop setup.
- Confirm safe outdoor use, edge finishing, and heat exposure before using the finished fire pit.
