Eiffel Style Industrial Table Leg DXF/SVG - CNC Plasma/Laser Files, 28" Height
$10.00 USD
Sale price
$10.00 USD
Regular price
$15.38 USD
Skip to product information
Eiffel Style Industrial Table Leg DXF/SVG - CNC Plasma/Laser Files, 28" Height
$10.00 USD
Sale price
$10.00 USD
Regular price
$15.38 USD
Taxes included.
Shipping calculated at checkout.

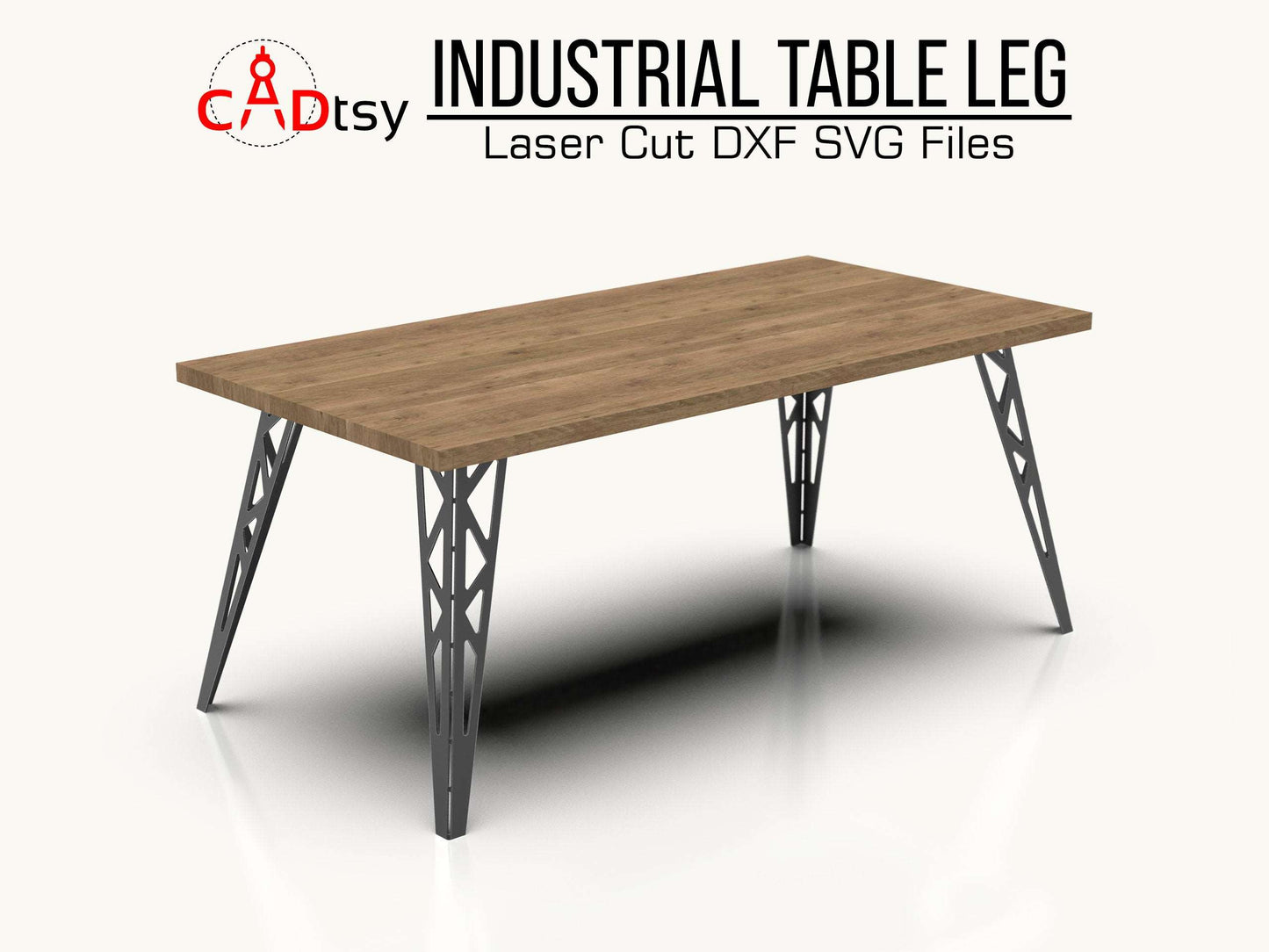

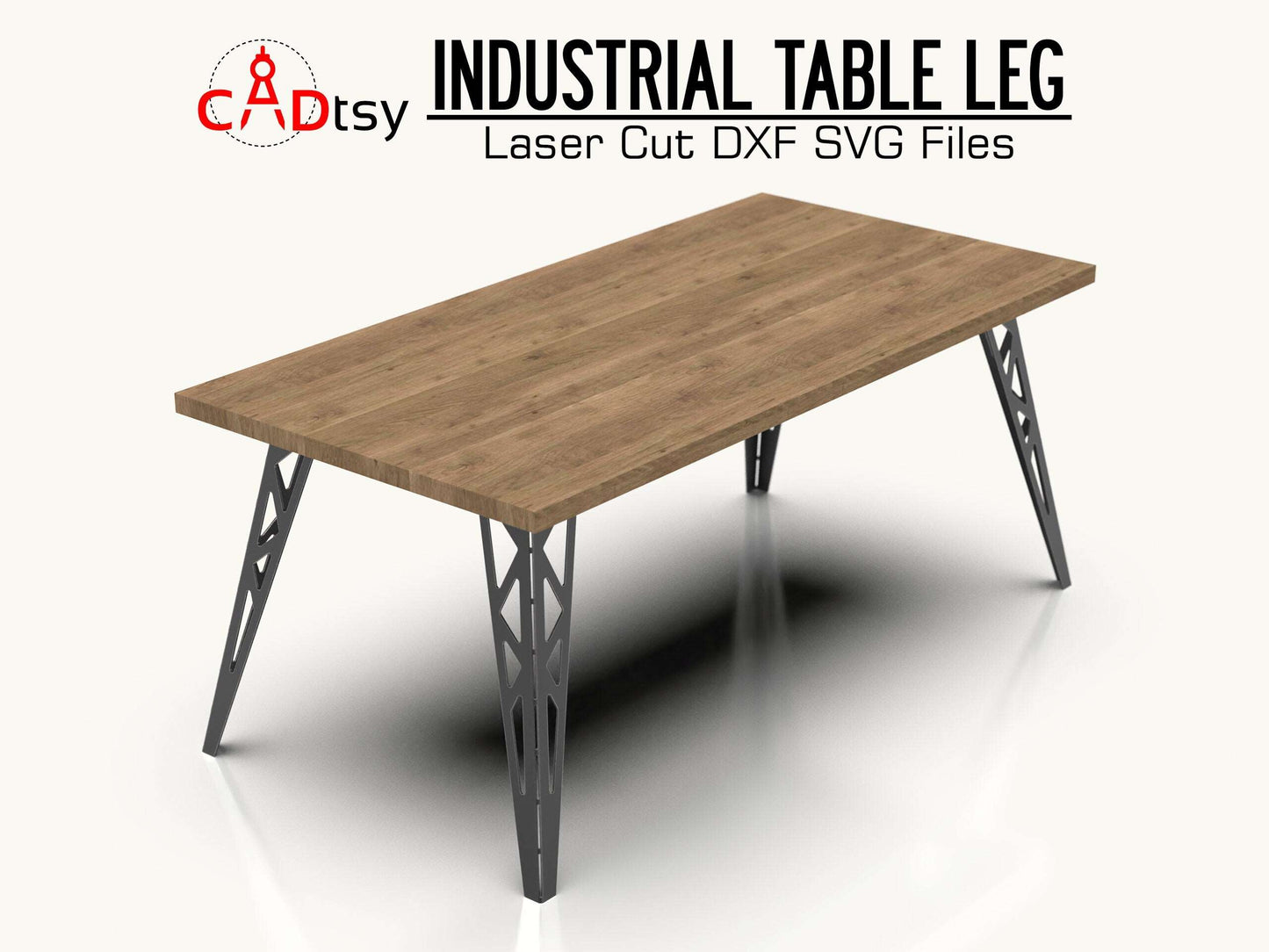

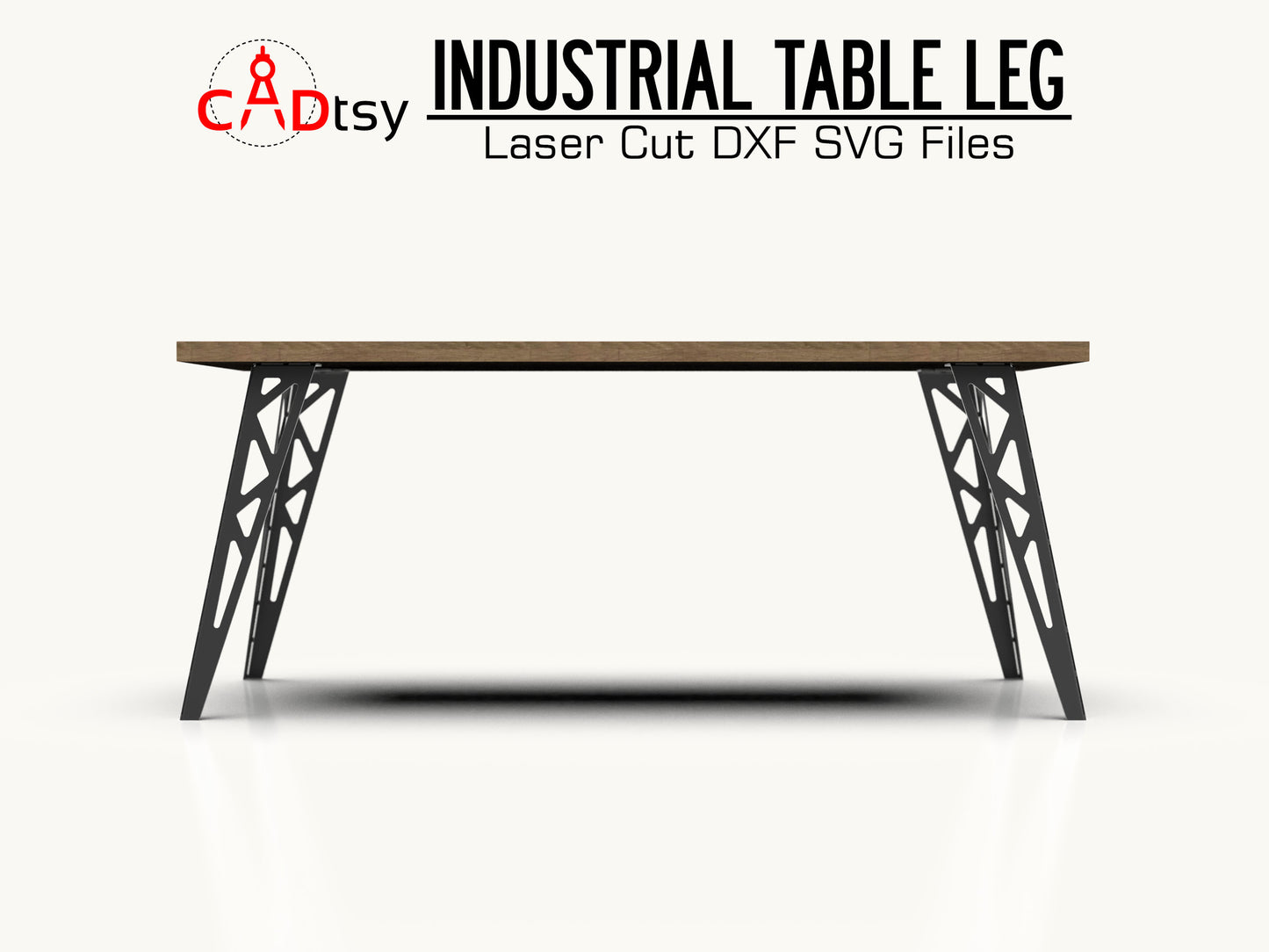

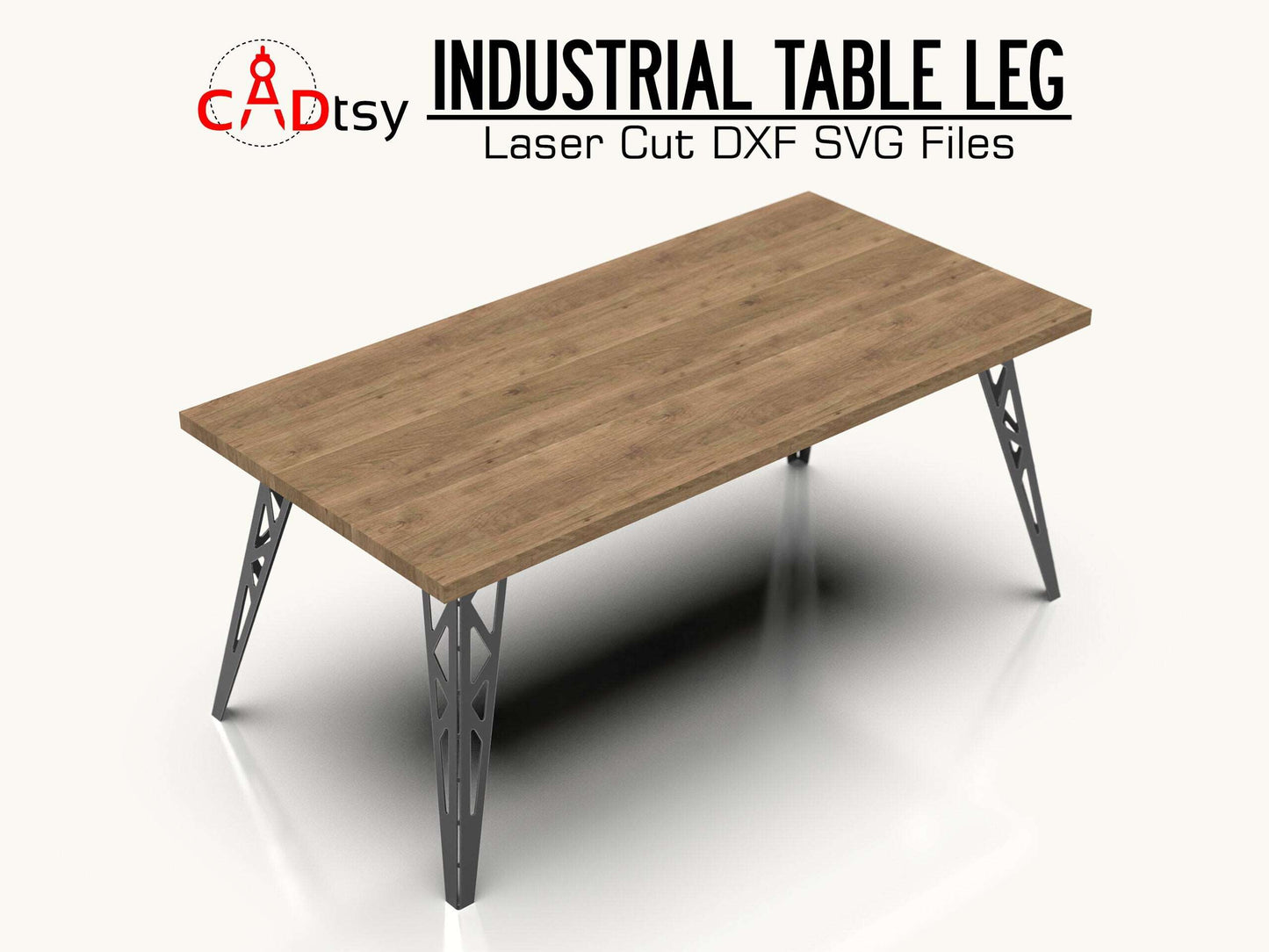

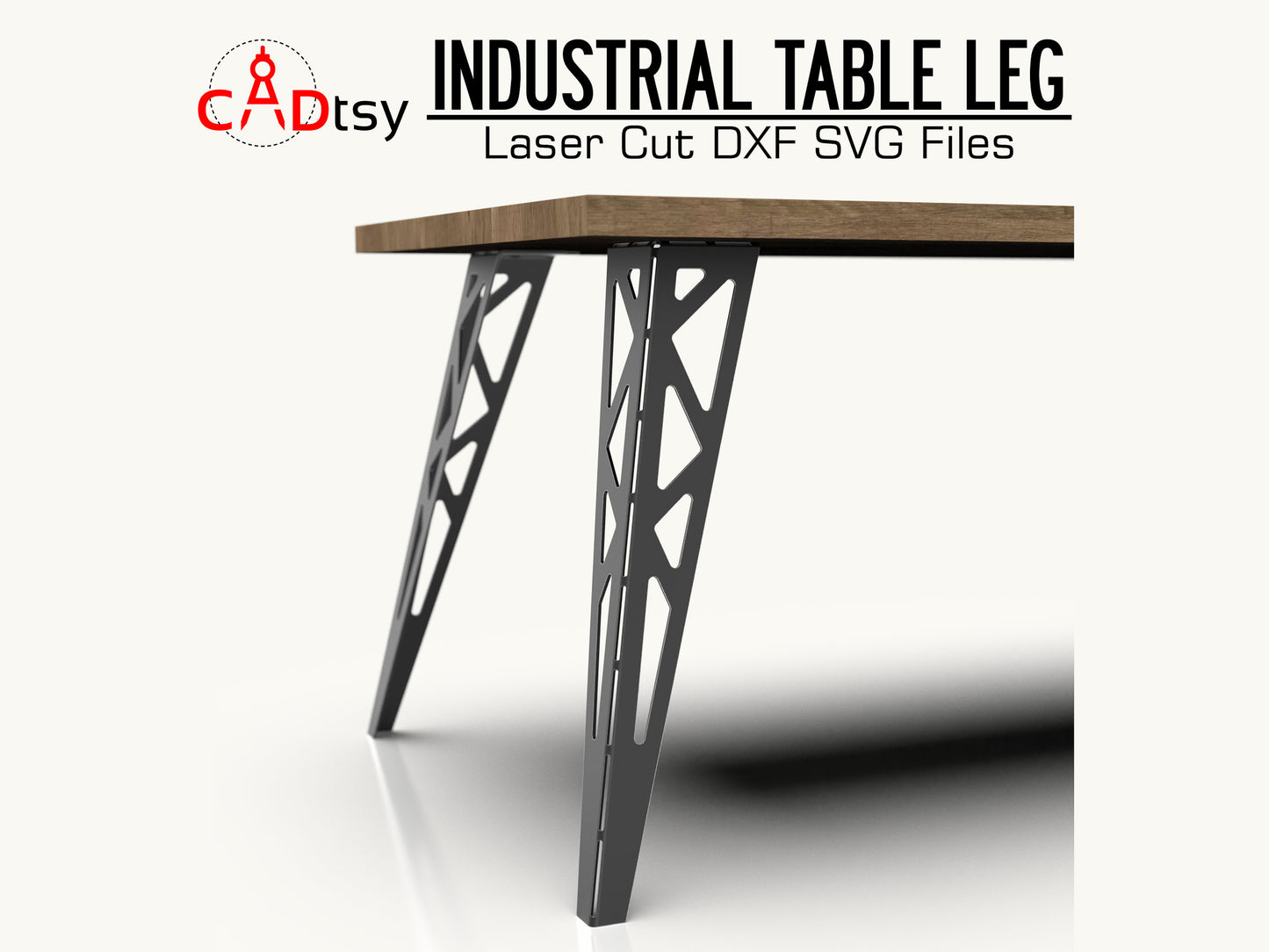

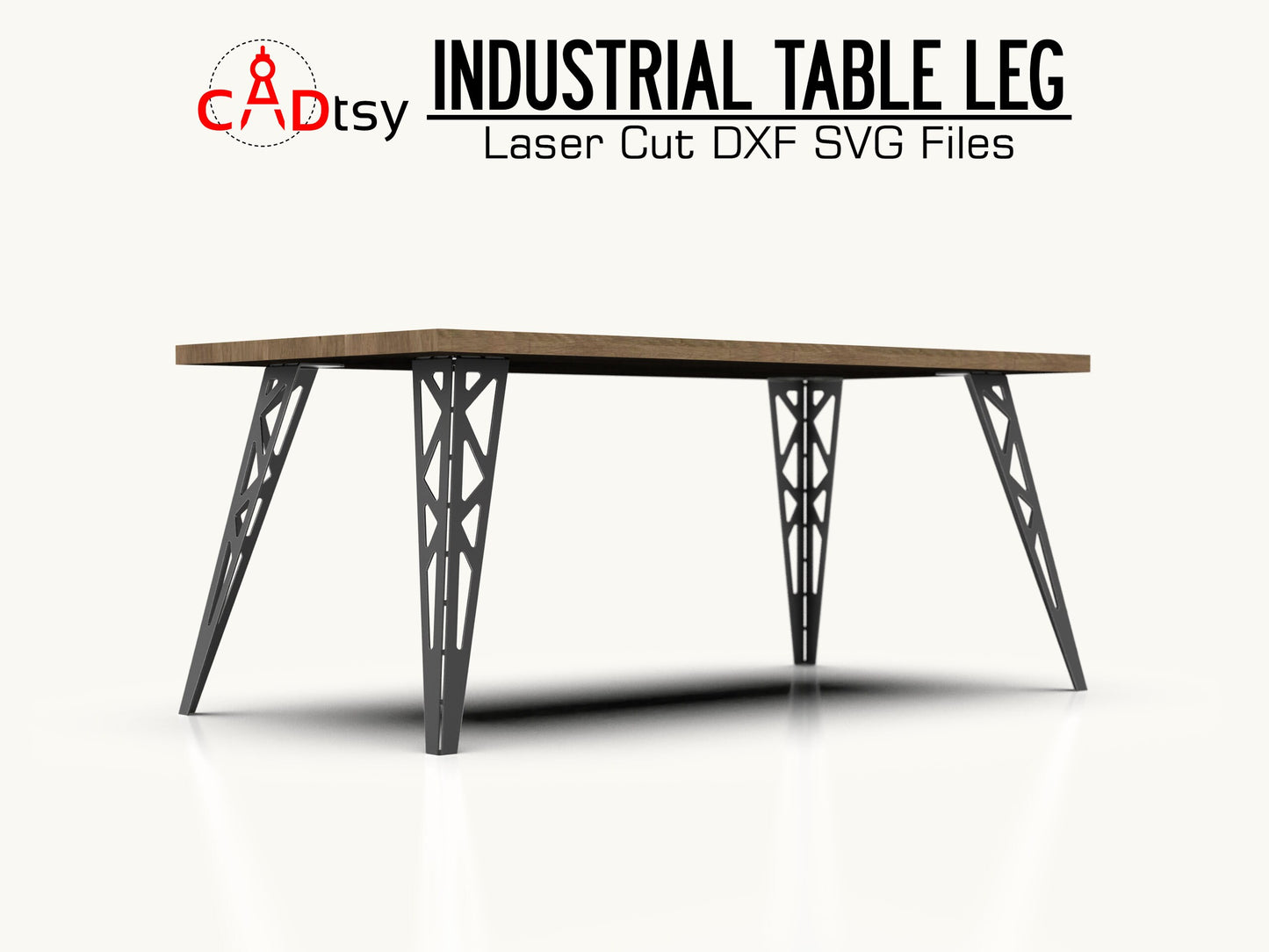

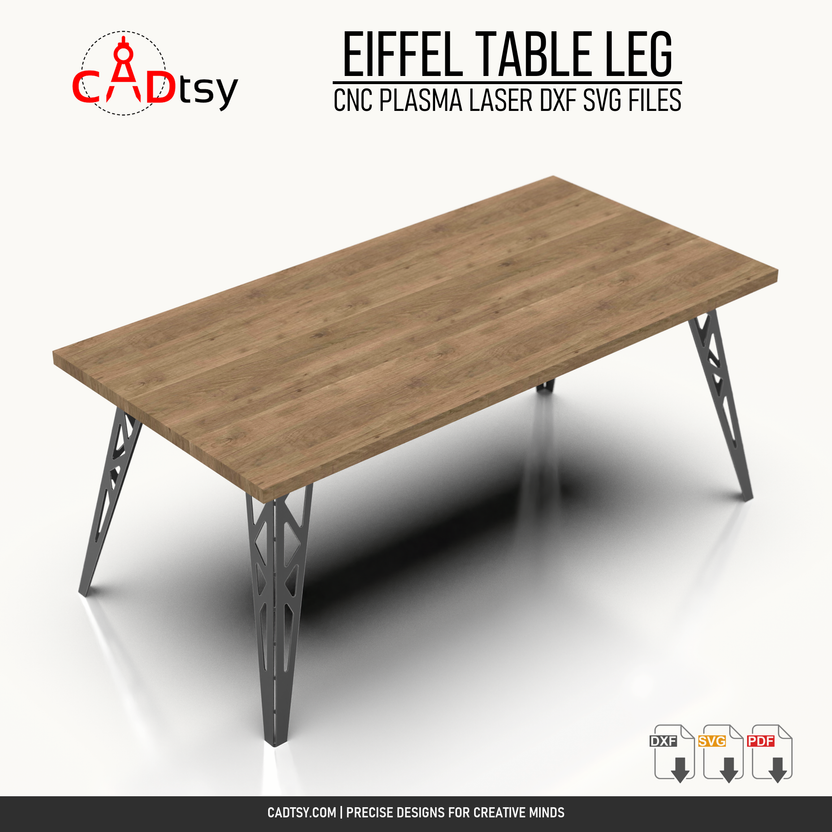

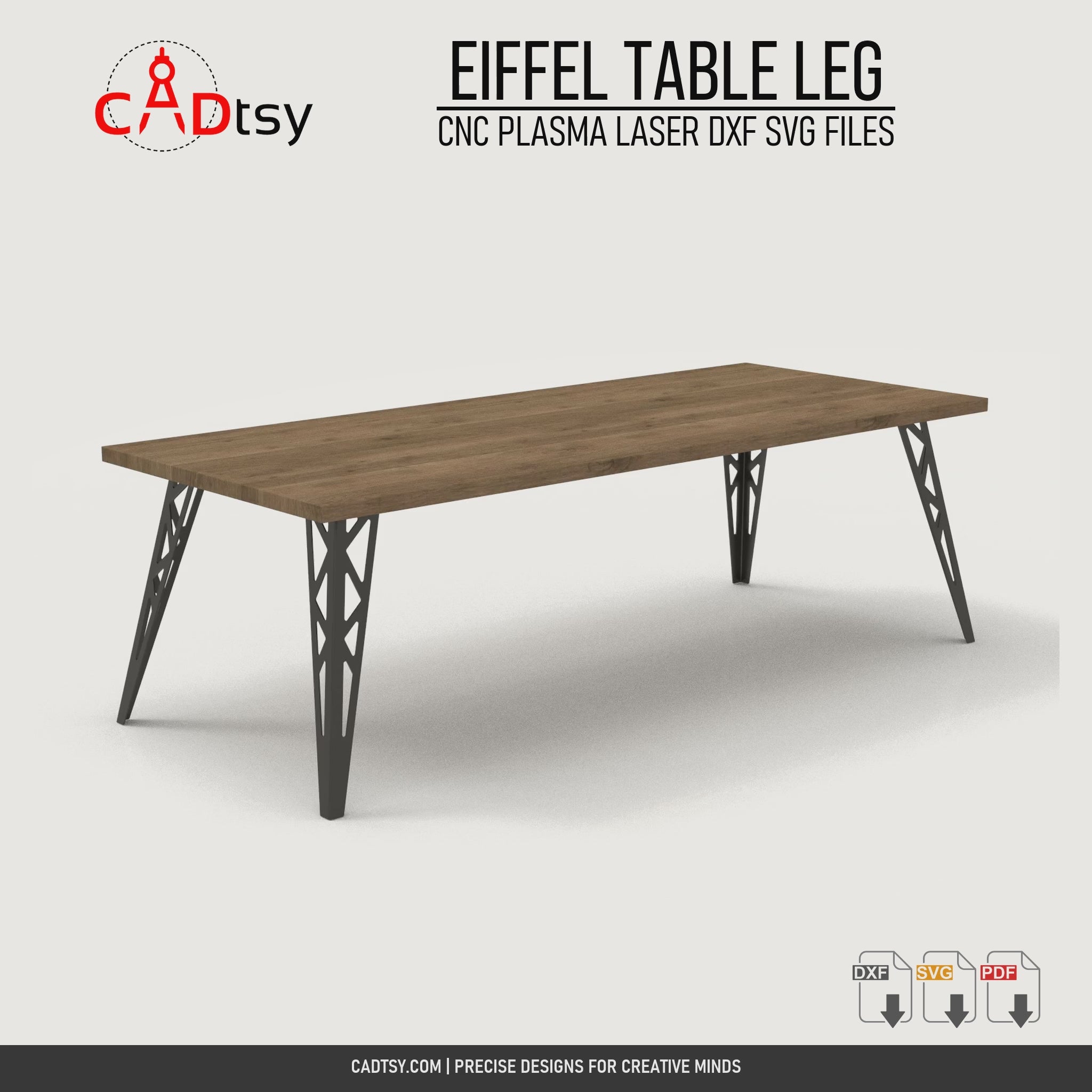

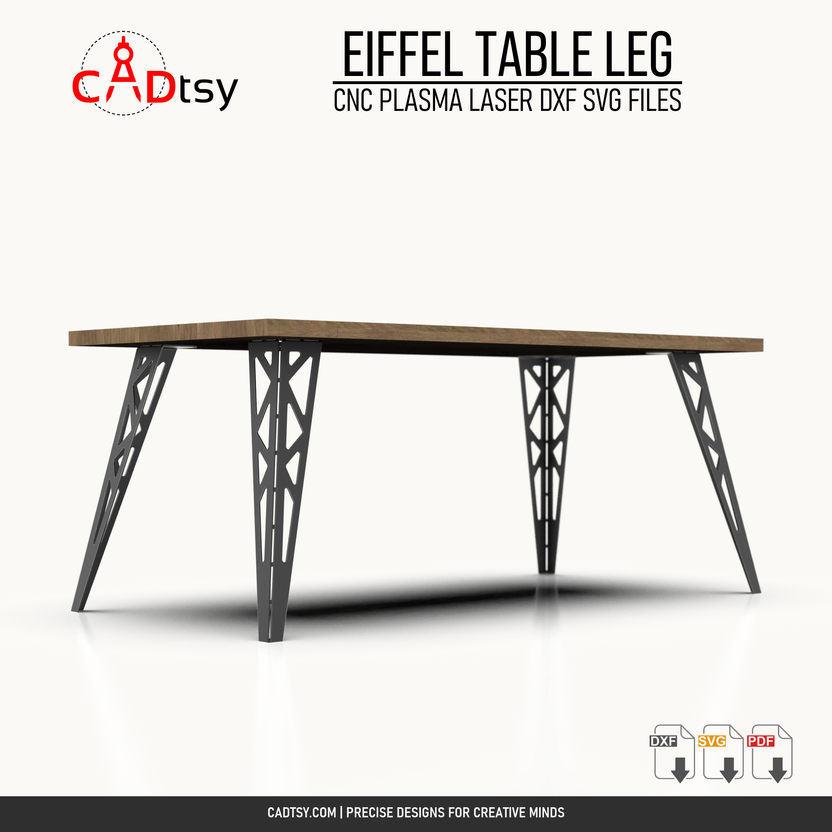

Eiffel Style Table Leg DXF files is a downloadable CNC-ready file package for building a set of industrial metal table legs for a desk, dining table, or custom furniture project. The finished leg design is approximately 28.0 in high, 10.0 in wide, and 10.0 in deep.
What You Get
- DXF, SVG, and PDF files for the Eiffel-style metal table leg design.

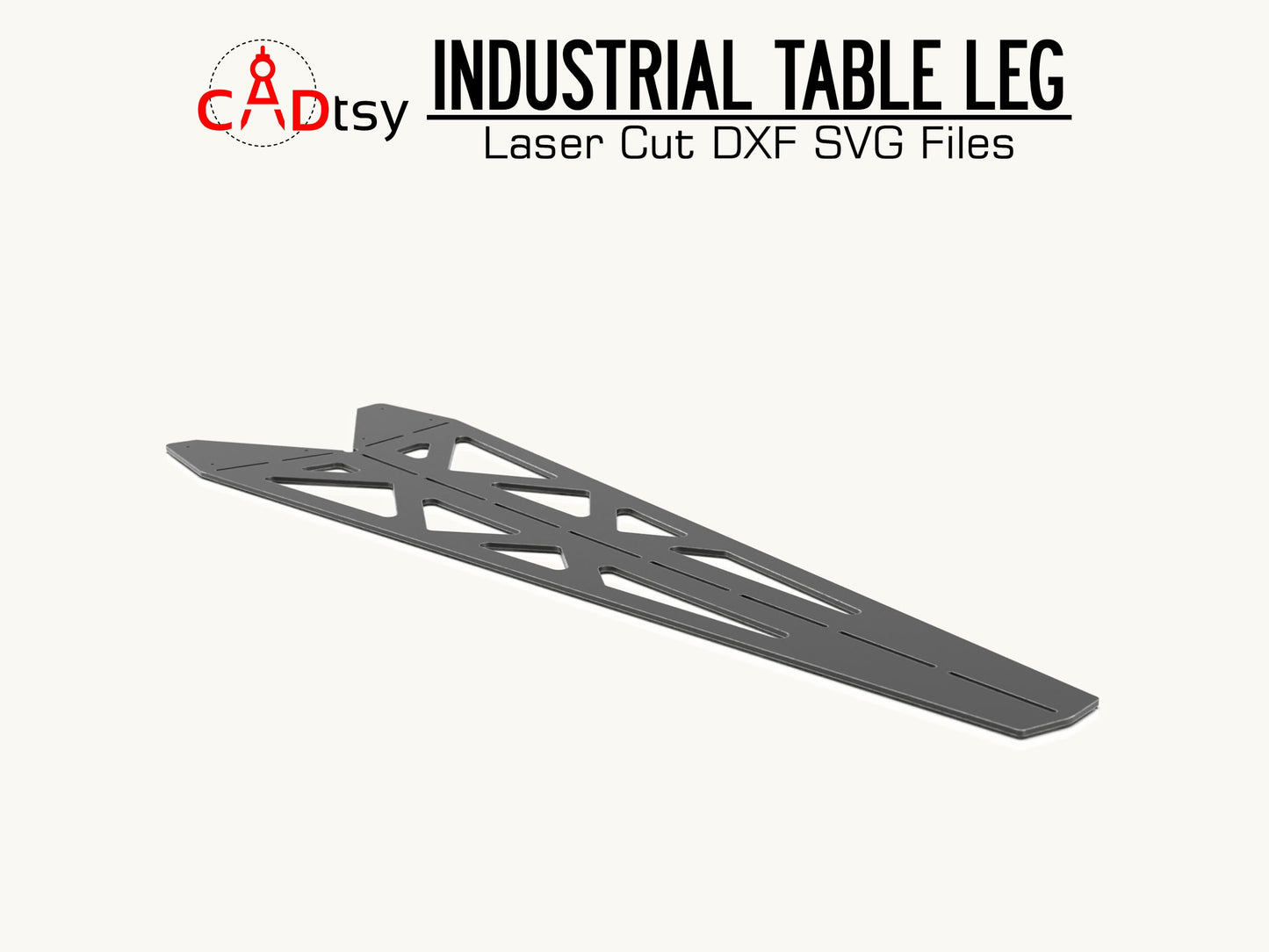

- CNC-ready flat pattern files for plasma or laser cutting workflows.

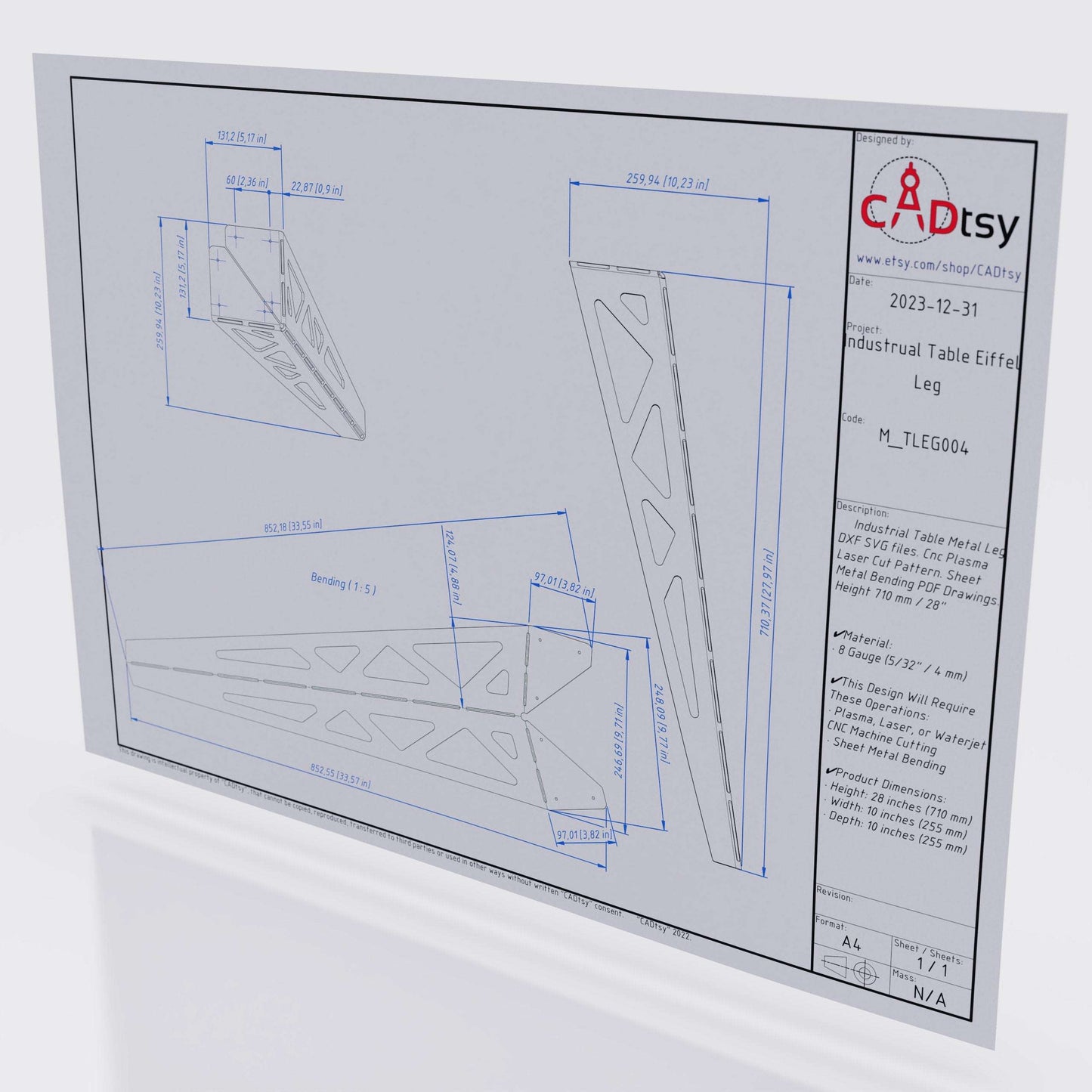

- PDF drawings for sheet metal bending instructions.
- Slot-cut bend features intended to help form the sheet metal parts.
- No physical table leg, tabletop, steel, hardware, or finished furniture item is shipped.
Project Features
- Eiffel-style industrial table leg shape for desks, dining tables, work tables, or custom furniture builds.
- Designed as a sheet metal cutting and bending project with welding required for final assembly.
- Slot-cut bend features help guide bending lines and can reduce dependence on a dedicated brake press for suitable material thicknesses.

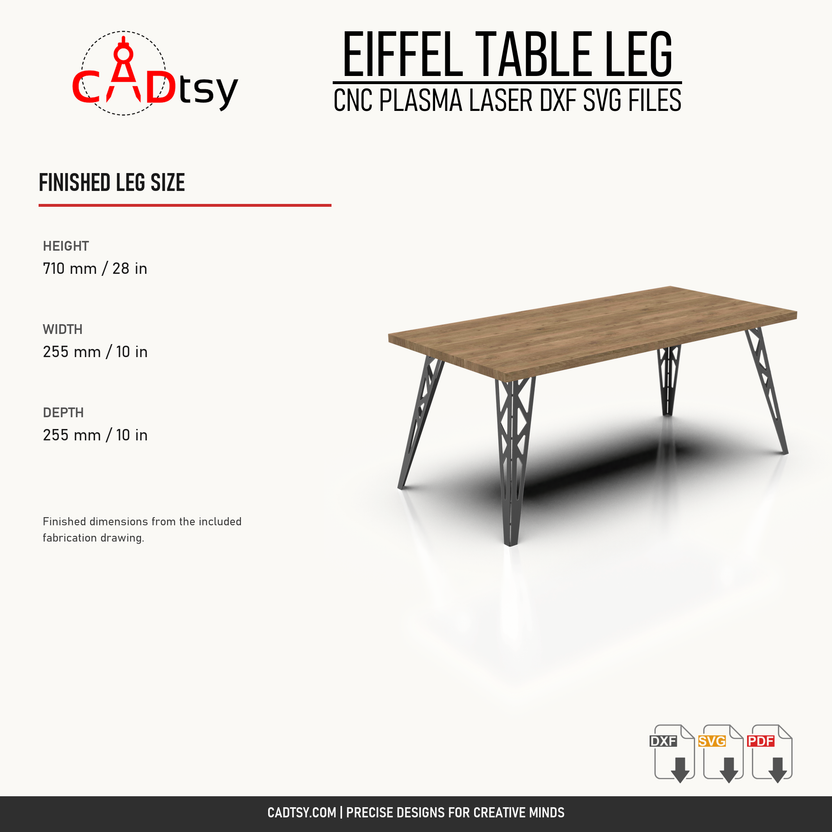

Finished Size
- Approximate assembled height: 28.0 in / 710 mm.
- Approximate assembled width: 10.0 in / 255 mm.
- Approximate assembled depth: 10.0 in / 255 mm.

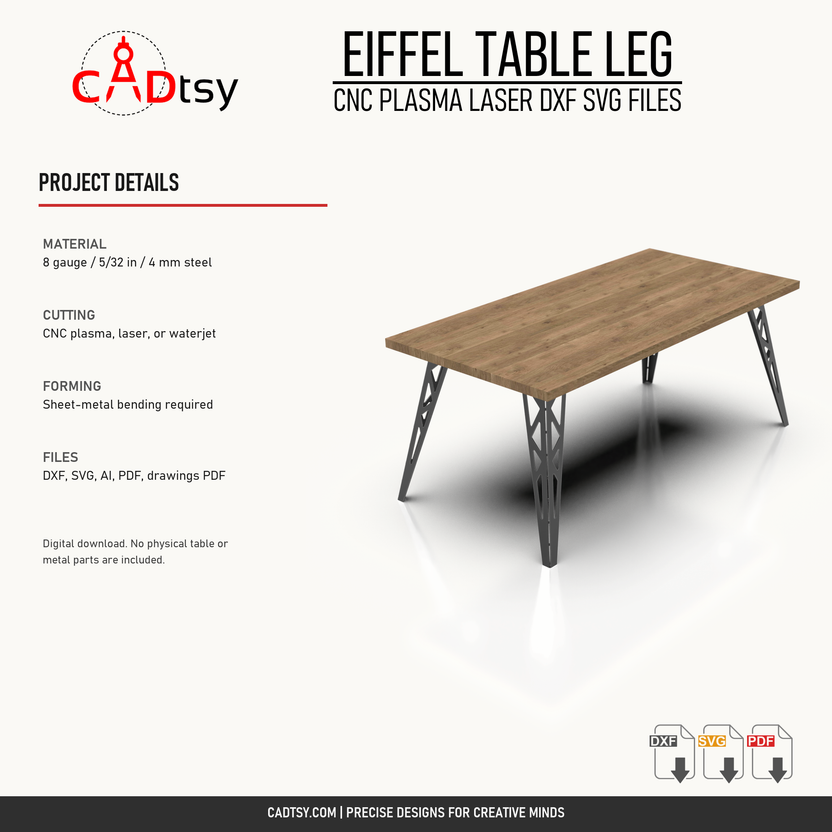

Recommended Materials
- 8 gauge / 4.0 mm steel.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending the DXF files to CAM software.
- Verify kerf, material thickness, bend approach, slot-cut behavior, welding plan, tabletop mounting approach, and machine settings before fabrication.
- Use the bend-assist geometry as a fabrication aid; final bending method still depends on your material thickness, tools, and shop setup.
- Confirm the finished table structure, load path, fasteners, welds, and surface finishing are suitable for your intended use.
