Modern Wooden Table/Desk DXF/SVG - 1700 mm CNC Router Files

$9.21 USD

$9.21 USD $14.91 USD

Modern Wooden Table/Desk DXF/SVG - 1700 mm CNC Router Files

Name: Modern Wooden Table/Desk DXF/SVG - 1700 mm CNC Router Files
Brand: CADtsy
SKU: WD-FUR-TBL-MOD-002
Price: 9.21 USD
Availability: InStock

$9.21 USD

$9.21 USD $14.91 USD

Digital download. Quantity is limited to 1 license per design per order.

Multi-file savings: 8% off 3+ items, 16% off 5+, or 24% off 7+. Applied automatically in cart.

Digital download. No physical item or shipping required. Check the product description for the exact included files.

Download links are sent by email after checkout. See What You Get below for any additional PDF drawings or instructions.

Purchase grants a limited license; digital files may not be shared, resold, or redistributed. Review the CADtsy license terms.

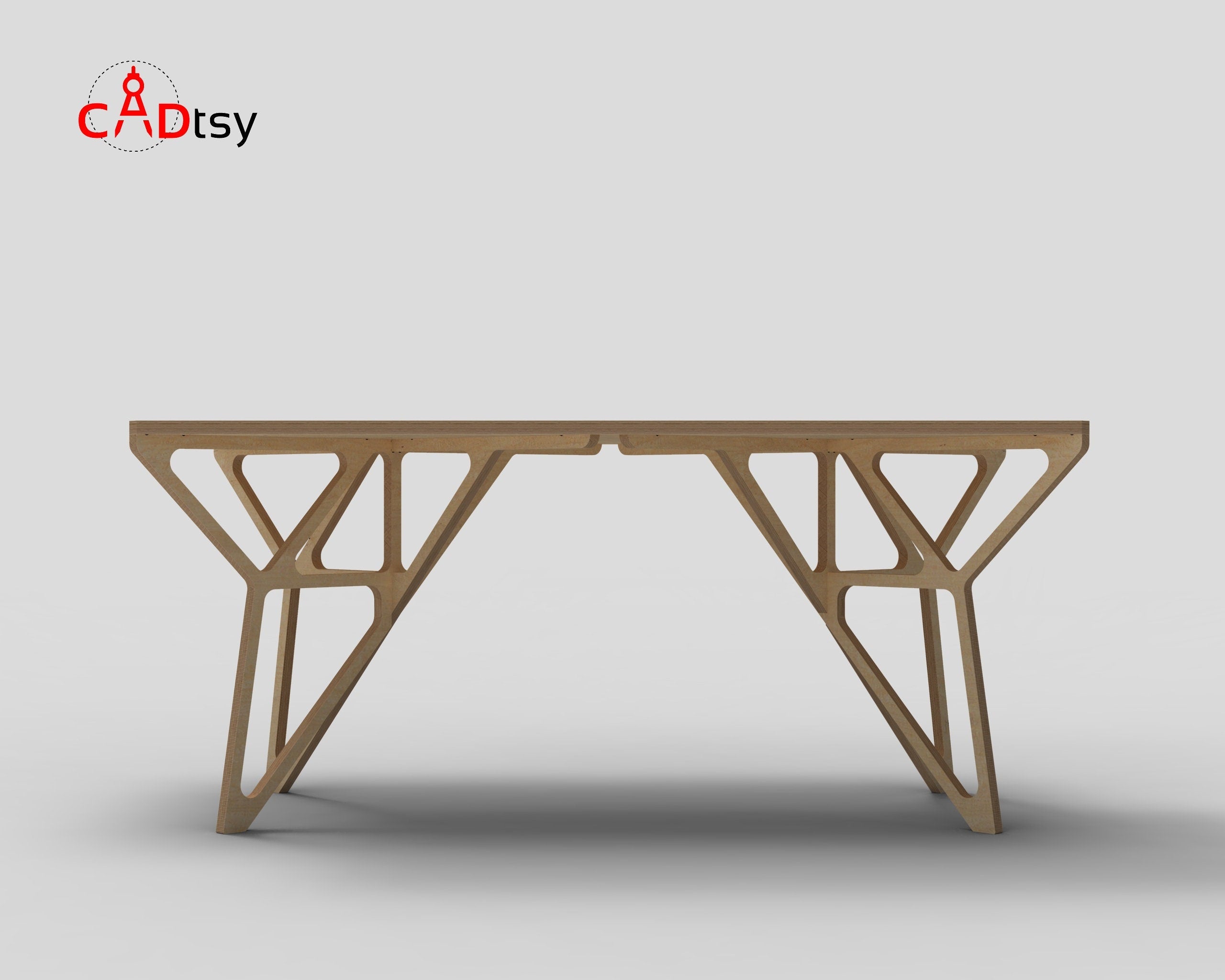

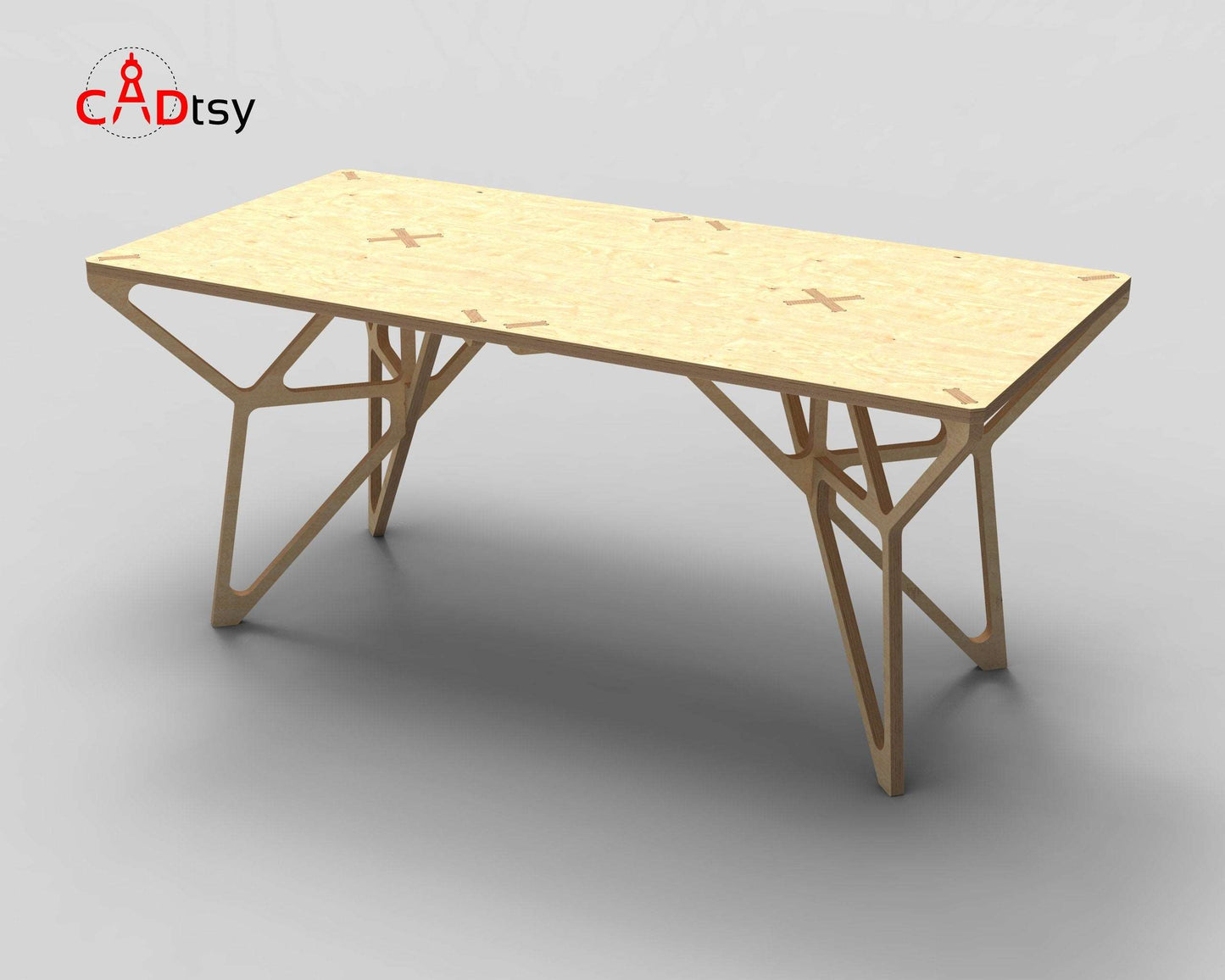

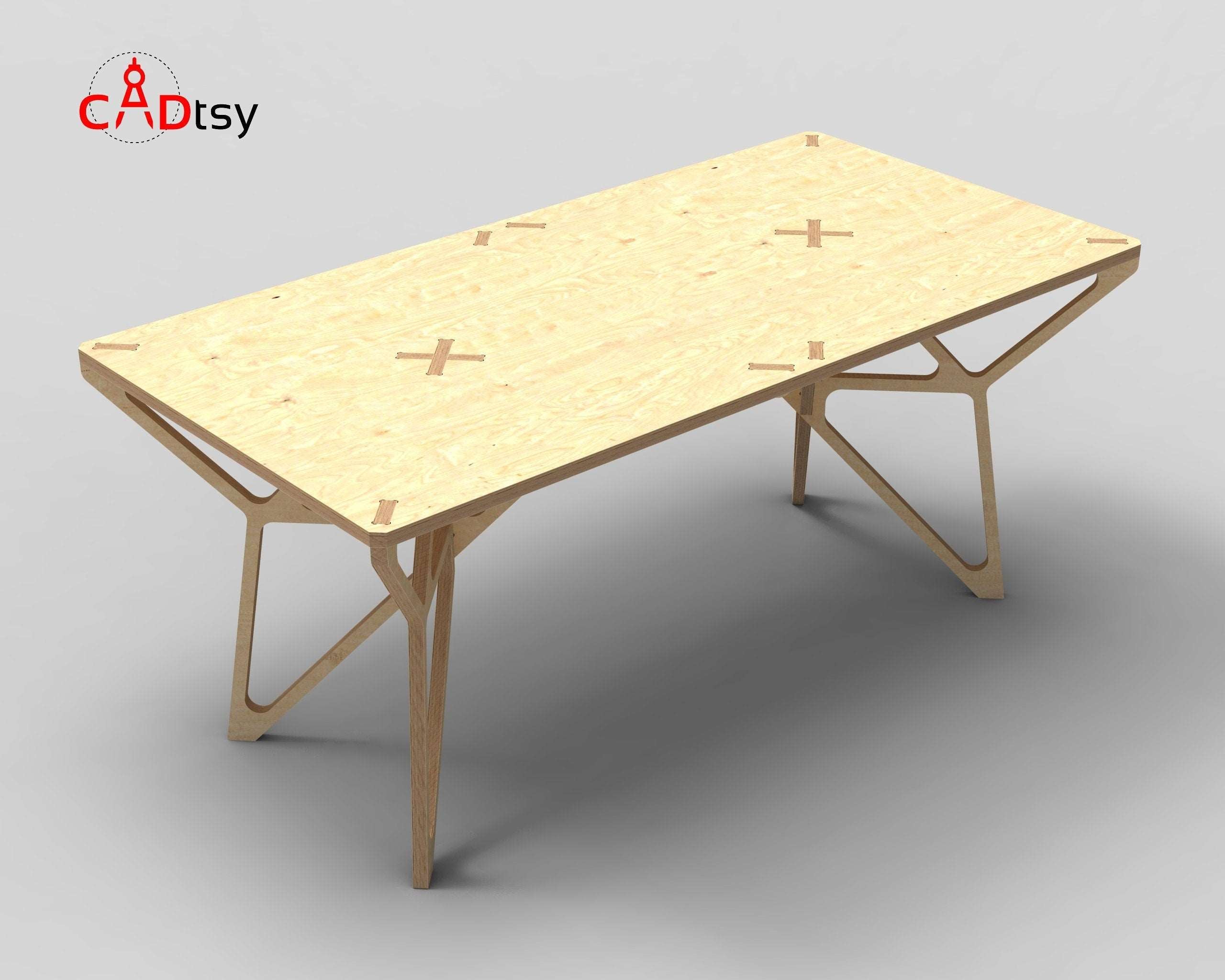

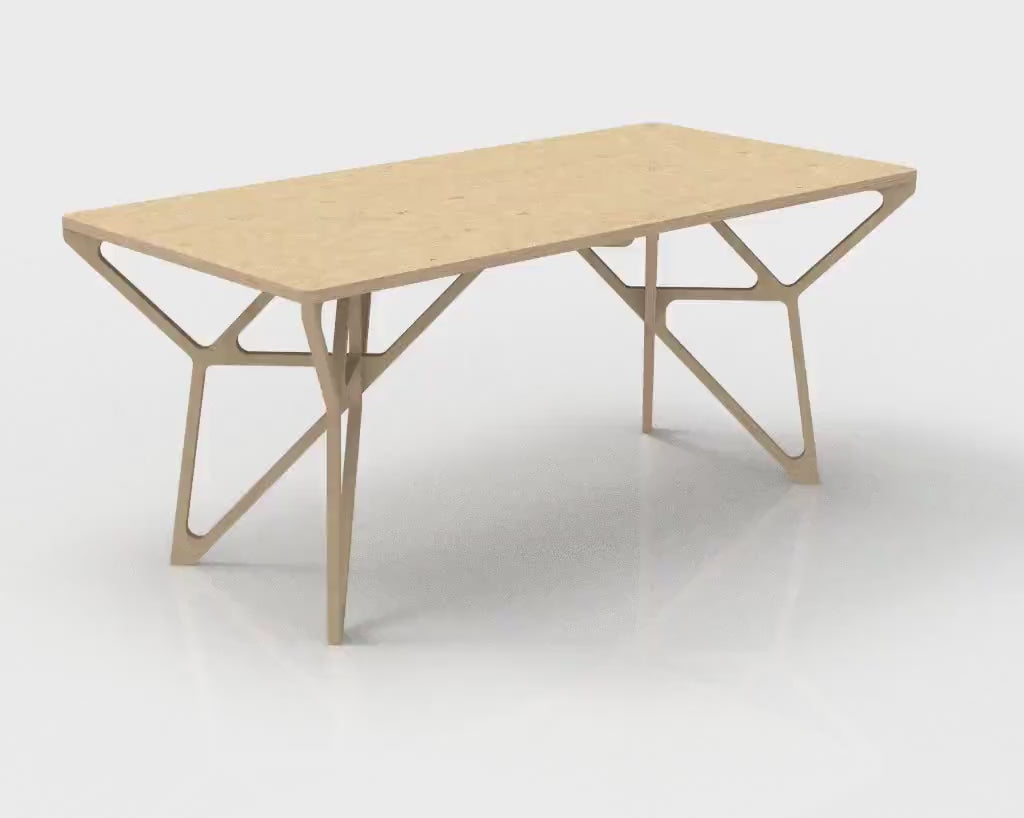

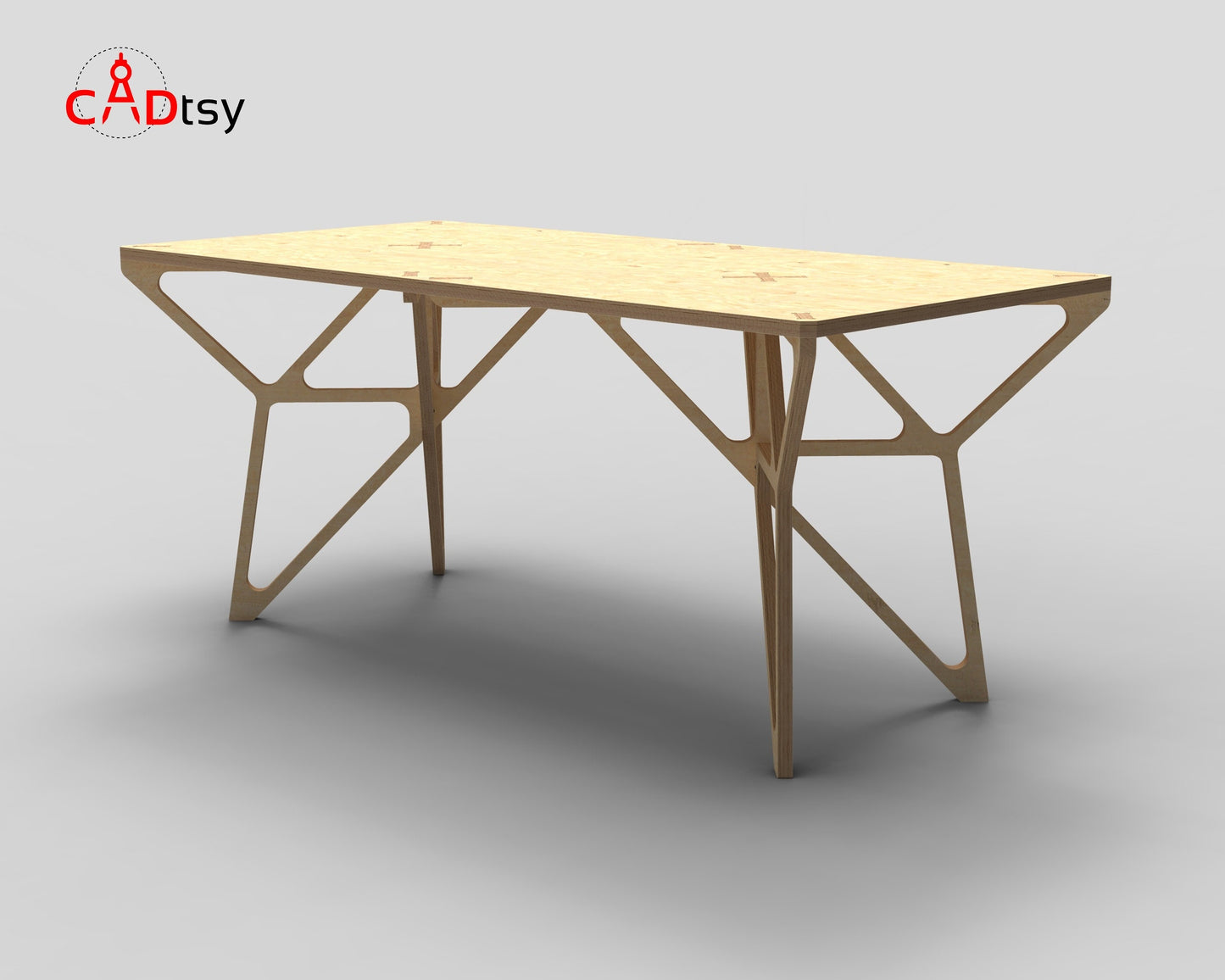

Modern Wooden Table/Desk DXF files is a downloadable CNC-ready file package for building a geometric plywood table, dining table, or office desk with a CNC router. The assembled design is approximately 67.0 in long, 33.5 in wide, and 29.5 in high.

What You Get

DXF, SVG, and PDF files for the modern wooden table and desk design.
CNC-ready vector files for CNC router cutting workflows.
No physical table, plywood, hardware, or finished furniture is shipped.

Project Features

Geometric plywood frame suitable for a dining table, worktable, or office desk.
Interlocking CNC-cut structure designed for assembly from sheet material.
Corners are designed with dog-bone fillets for router-bit clearance with tools up to 8 mm / 5/16 in diameter.

Finished Size

Approximate assembled length: 67.0 in / 1700 mm.
Approximate assembled width: 33.5 in / 850 mm.
Approximate assembled height: 29.5 in / 750 mm.

Recommended Materials

24.0 mm / approximately 15/16 in plywood.

Before Cutting

CADtsy designs are created in millimeters; check file scale and units before sending the DXF or SVG files to CAM software.
Use the correct design geometry for the selected material thickness.
Use a router bit no larger than 8 mm / 5/16 in for the included dog-bone corner clearance.
Confirm spoilboard setup, workholding, cutting depth, edge finishing, assembly method, and table stability before fabrication and use.
