Stackable Spray Can Rack DXF Files

Name: Stackable Spray Can Rack DXF Files
Brand: CADtsy
SKU: MT-ORG-RCK-CAN-002
Price: 7.08 USD
Availability: InStock

$7.08 USD

$7.08 USD $11.47 USD

Digital download. Quantity is limited to 1 license per design per order.

Multi-file savings: 8% off 3+ items, 16% off 5+, or 24% off 7+. Applied automatically in cart.

Digital download. No physical item or shipping required. Check the product description for the exact included files.

Download links are sent by email after checkout. See What You Get below for any additional PDF drawings or instructions.

Purchase grants a limited license; digital files may not be shared, resold, or redistributed. Review the CADtsy license terms.

This downloadable stackable spray can rack file package is for making an 18-can metal wall organizer for spray paint and aerosol cans. Three six-can levels keep cans visible and accessible. The project uses CNC cutting and sheet-metal bending; welding is optional when stacking units. No physical rack, cans, material, mounting hardware, or finished organizer is shipped.

What You Get

DXF, SVG, and PDF files for the spray can rack project.
One stackable metal spray can organizer project.

Project Features

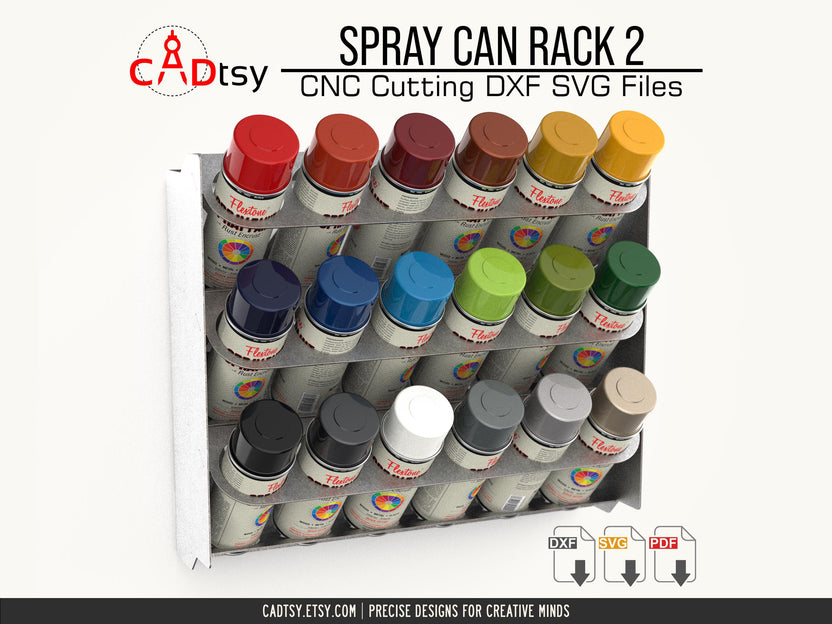

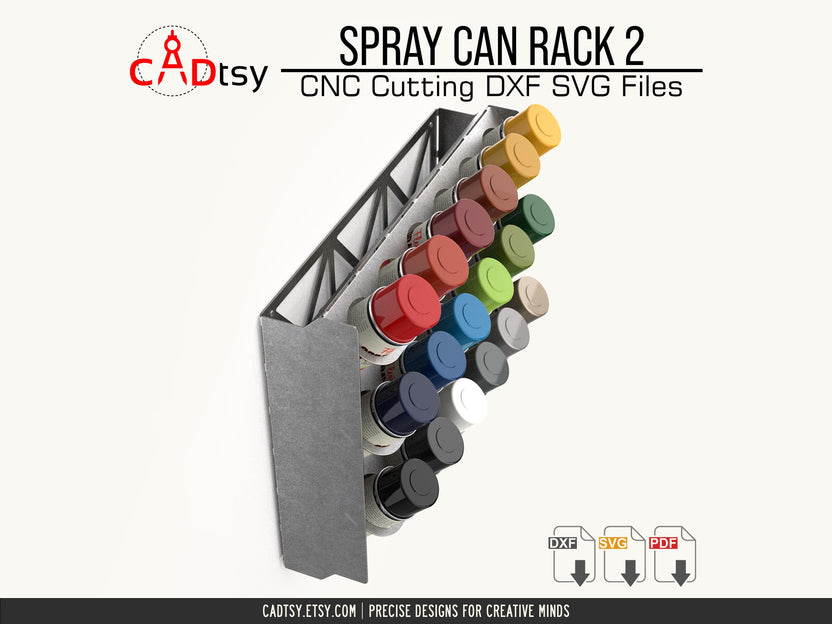

Three six-can levels provide a designed capacity of 18 standard aerosol cans.
CNC plasma, laser, or waterjet cutting.
Sheet-metal bending.
Optional welding for stacking units securely.

Finished Size

Approximate height: 16.7 in / 425 mm.
Approximate width: 19.7 in / 500 mm.
Approximate depth: 4.7 in / 120 mm.

Recommended Materials

1.5 mm / 16 gauge steel.
2.0 mm / 14 gauge steel.
2.4 mm / 13 gauge steel.

Before Cutting

CADtsy designs are created in millimeters; check file scale and units before sending files to your CNC software.
Verify kerf, material thickness, tooling, machine settings, and fit before producing the final project.
