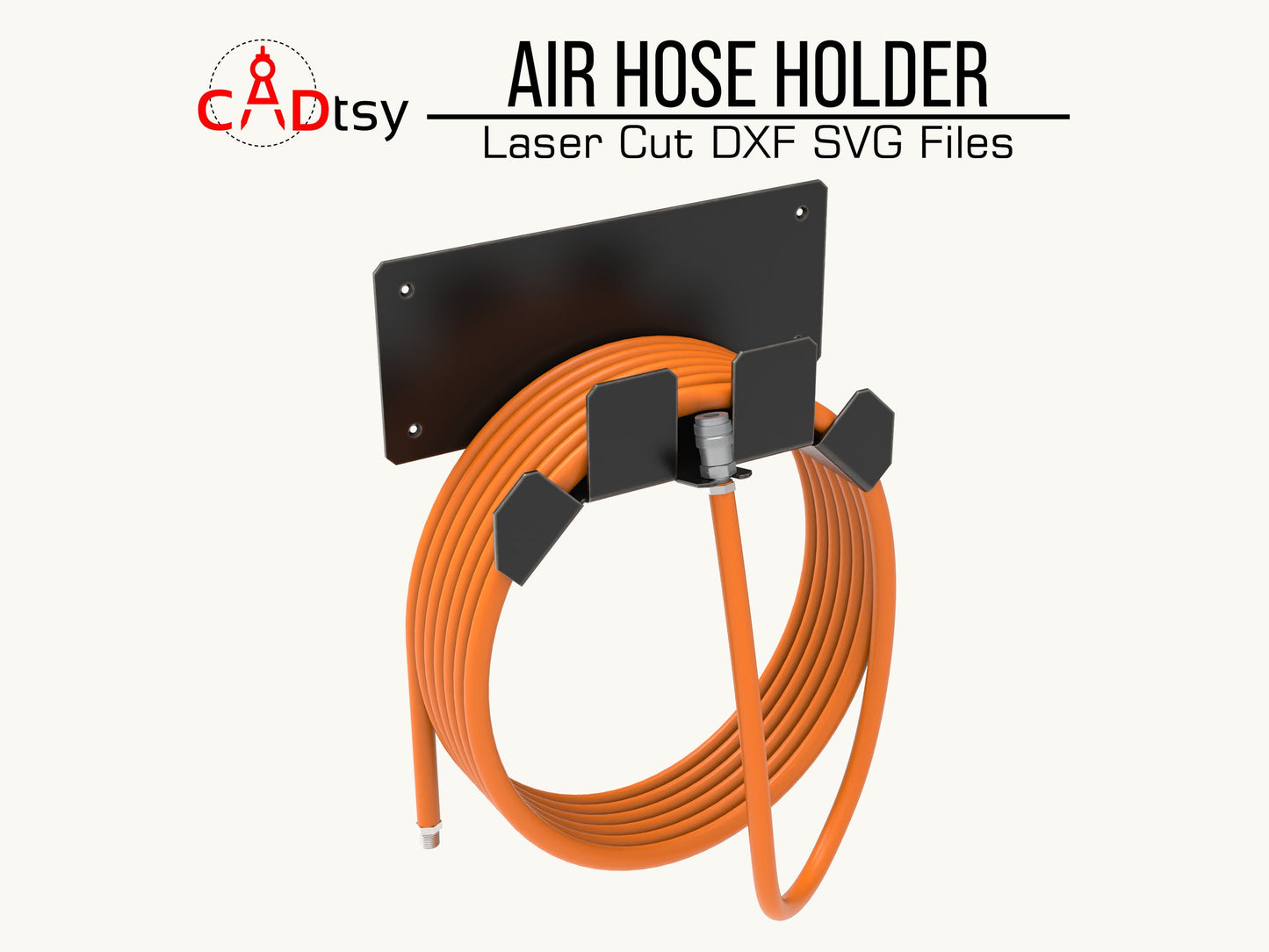

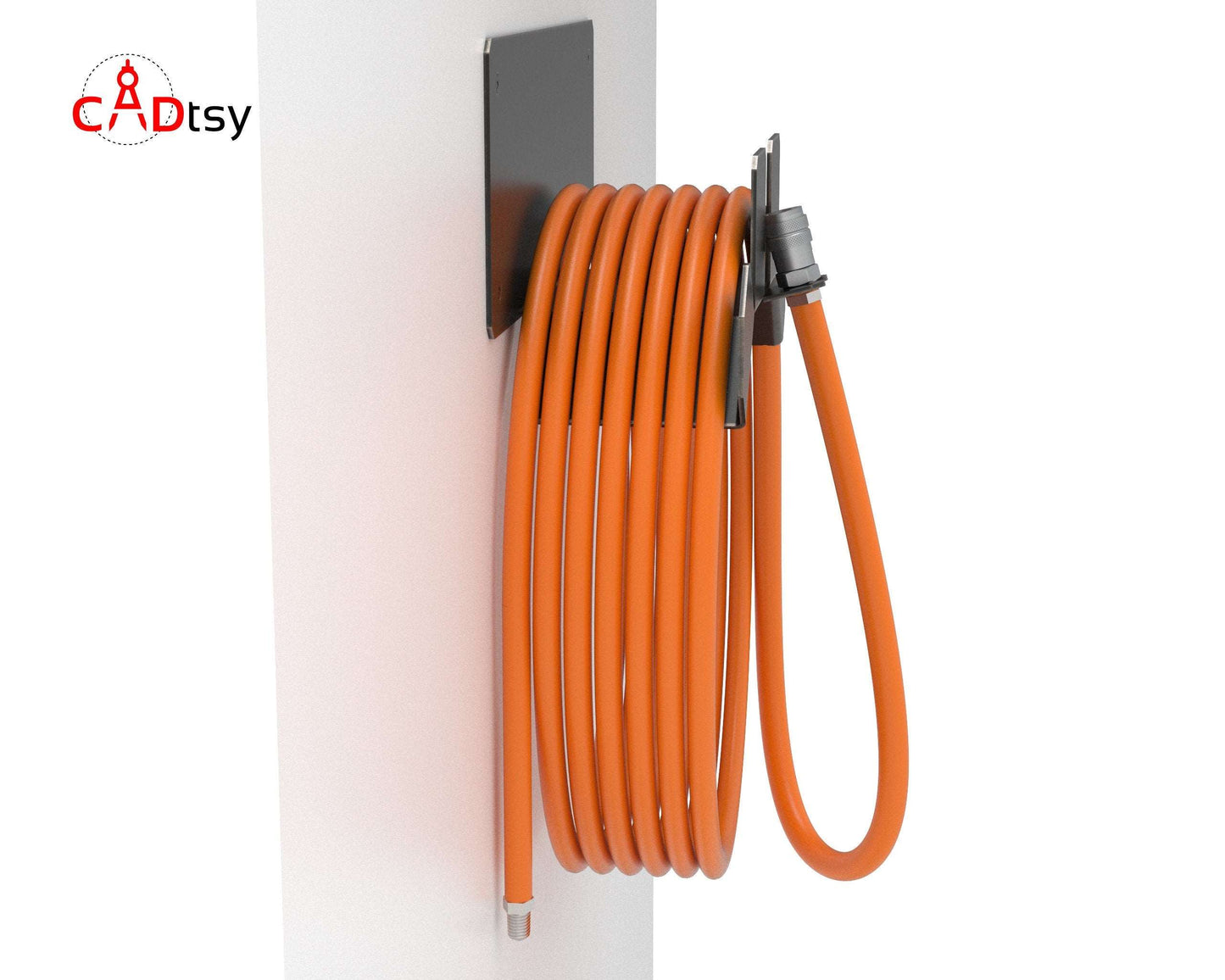

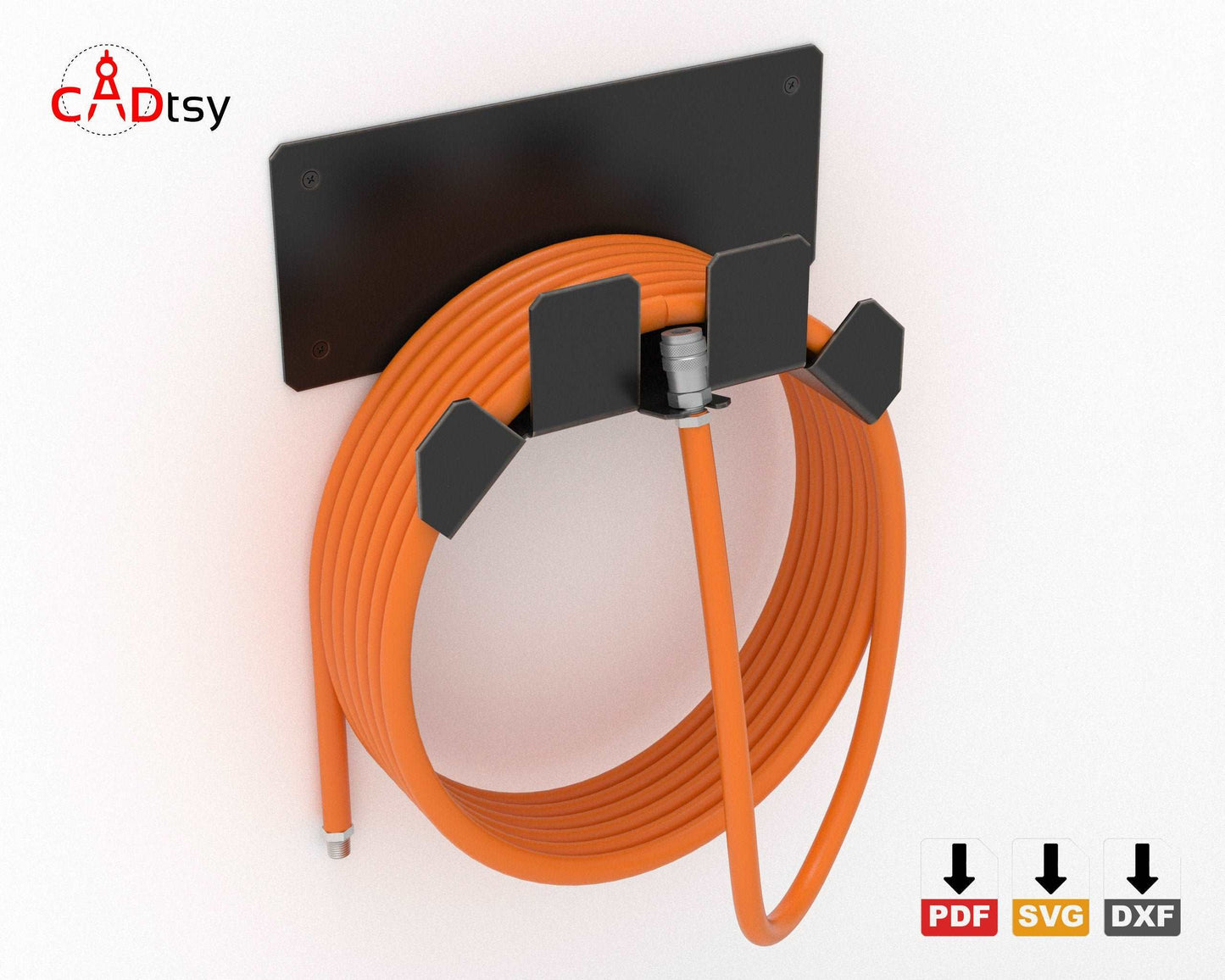

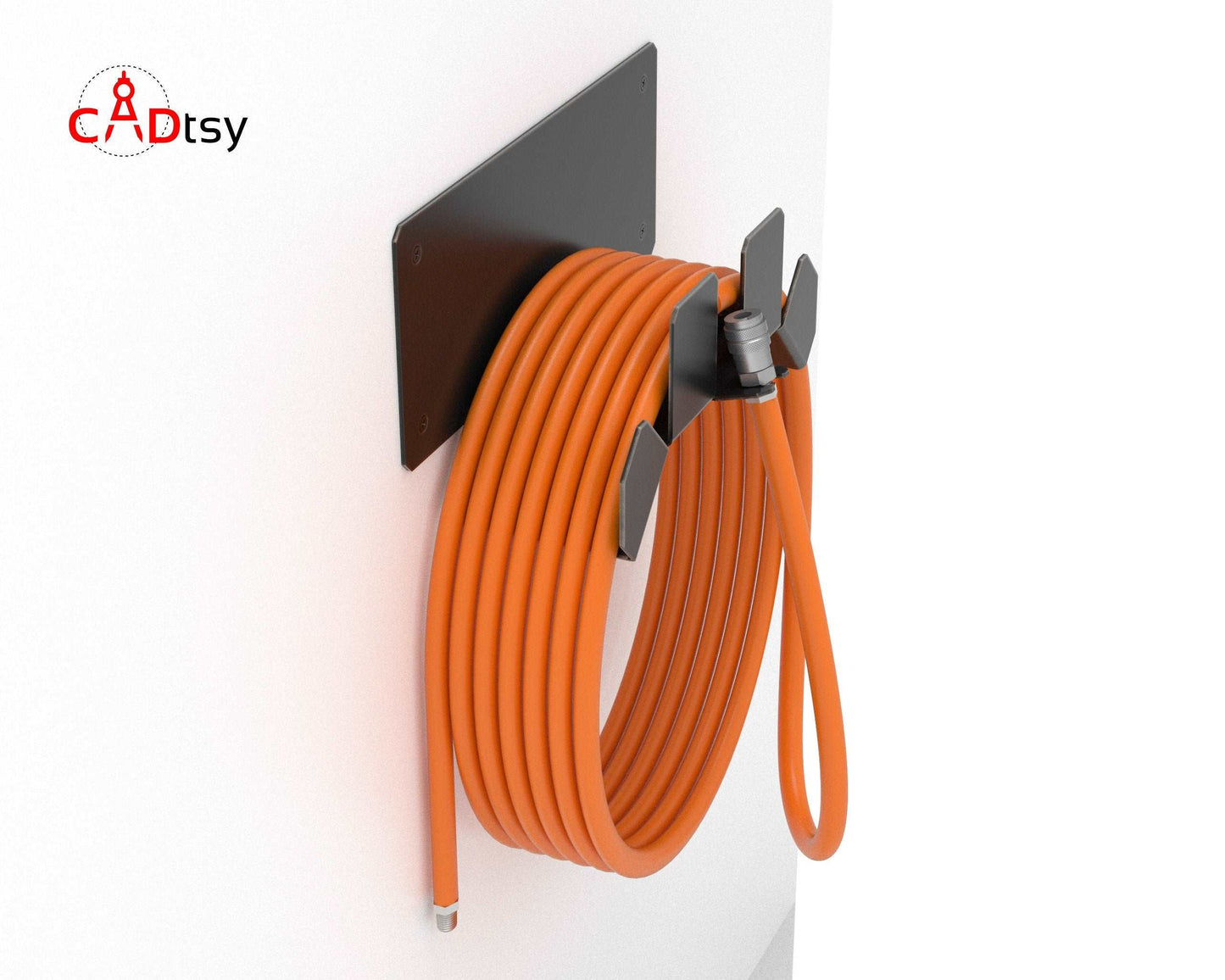

Upgrade your workshop and eliminate clutter with this downloadable plan. You'll receive the hose and cord holder DXF and SVG files needed to create a heavy-duty, wall-mounted organizer. This design is perfect for neatly storing both air hoses and extension cords. Consequently, you will maximize your workspace efficiency.
We have specifically engineered these plans for CNC laser, plasma, or waterjet cutting. Therefore, you can turn a single piece of sheet metal into a functional and durable organizer. The design features pre-cut slots for effortless bending and quick assembly. It's the ideal project for any fabricator or DIY enthusiast.
Your Hose and Cord Holder DXF Plan Details
We have optimized every aspect of this plan for a professional finish. In other words, you get a design that is both robust and simple to create.
First, we optimize this plan for common steel thicknesses, for example, 13, 14, or 16 Gauge (1.5 - 2.5 mm).

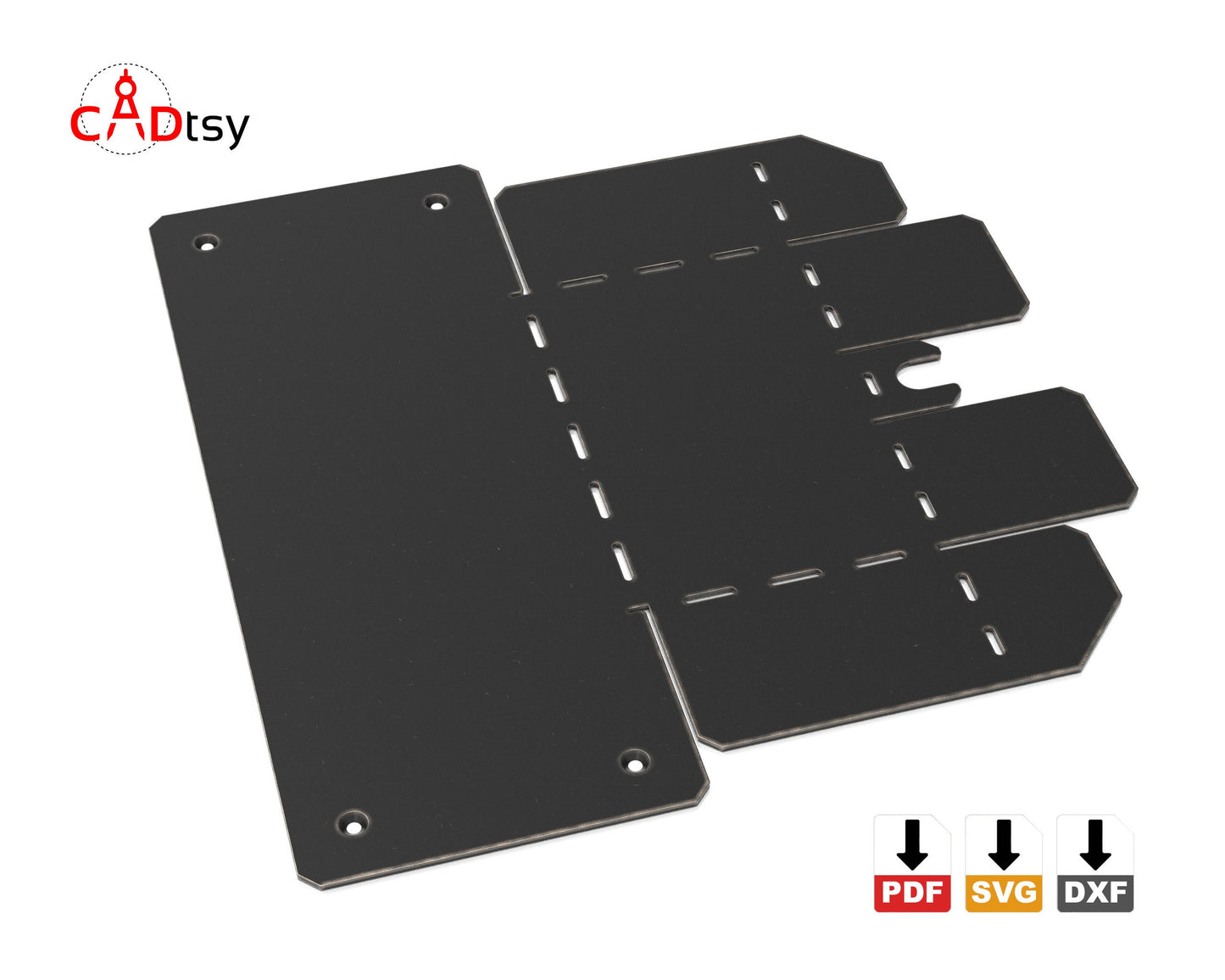

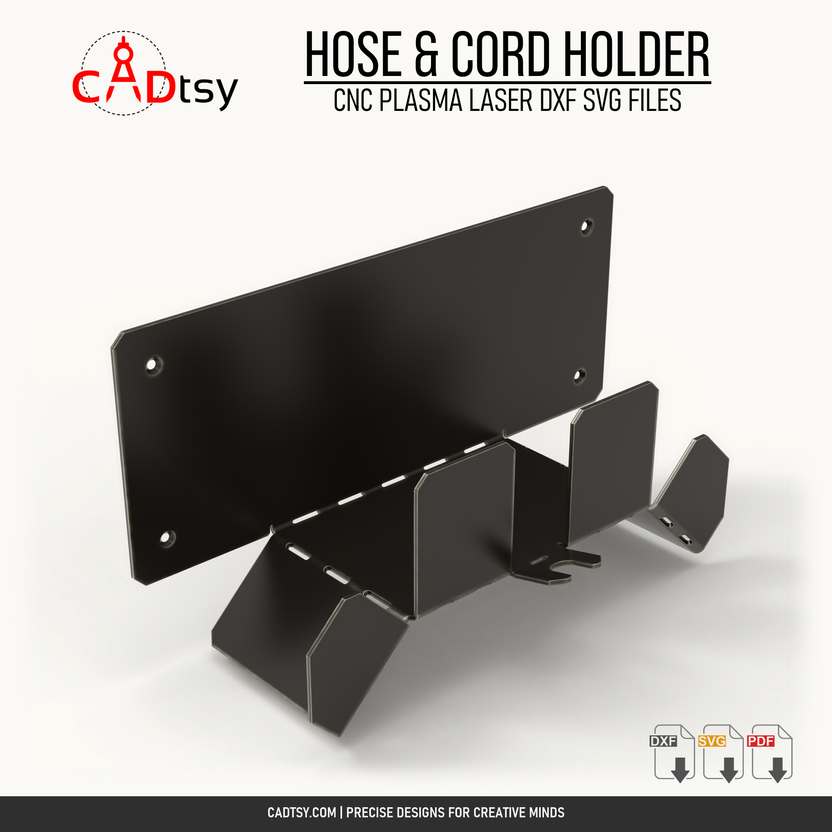

In addition, this air hose rack SVG and DXF file includes pre-cut slots for fast and easy sheet metal bending right after cutting.

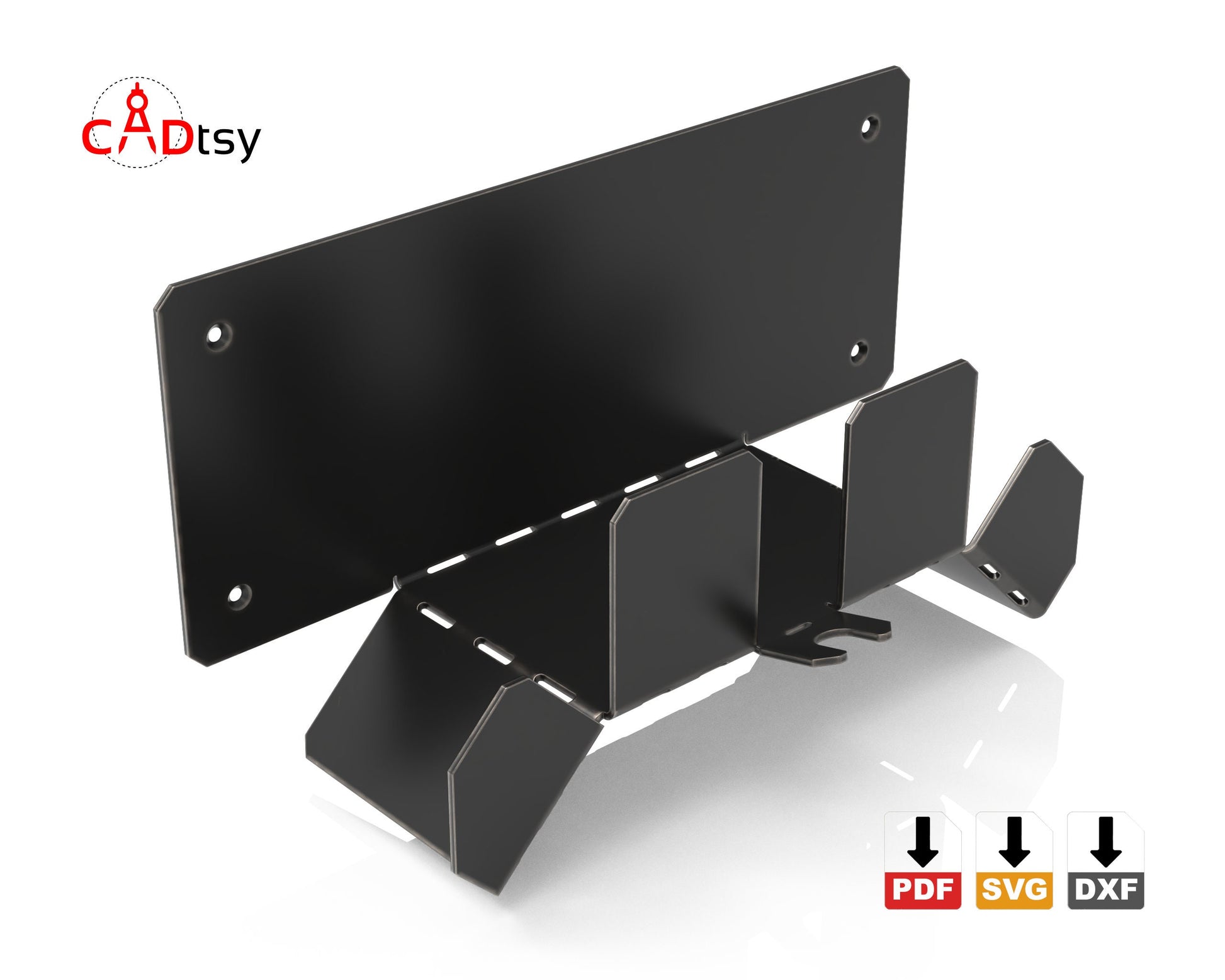

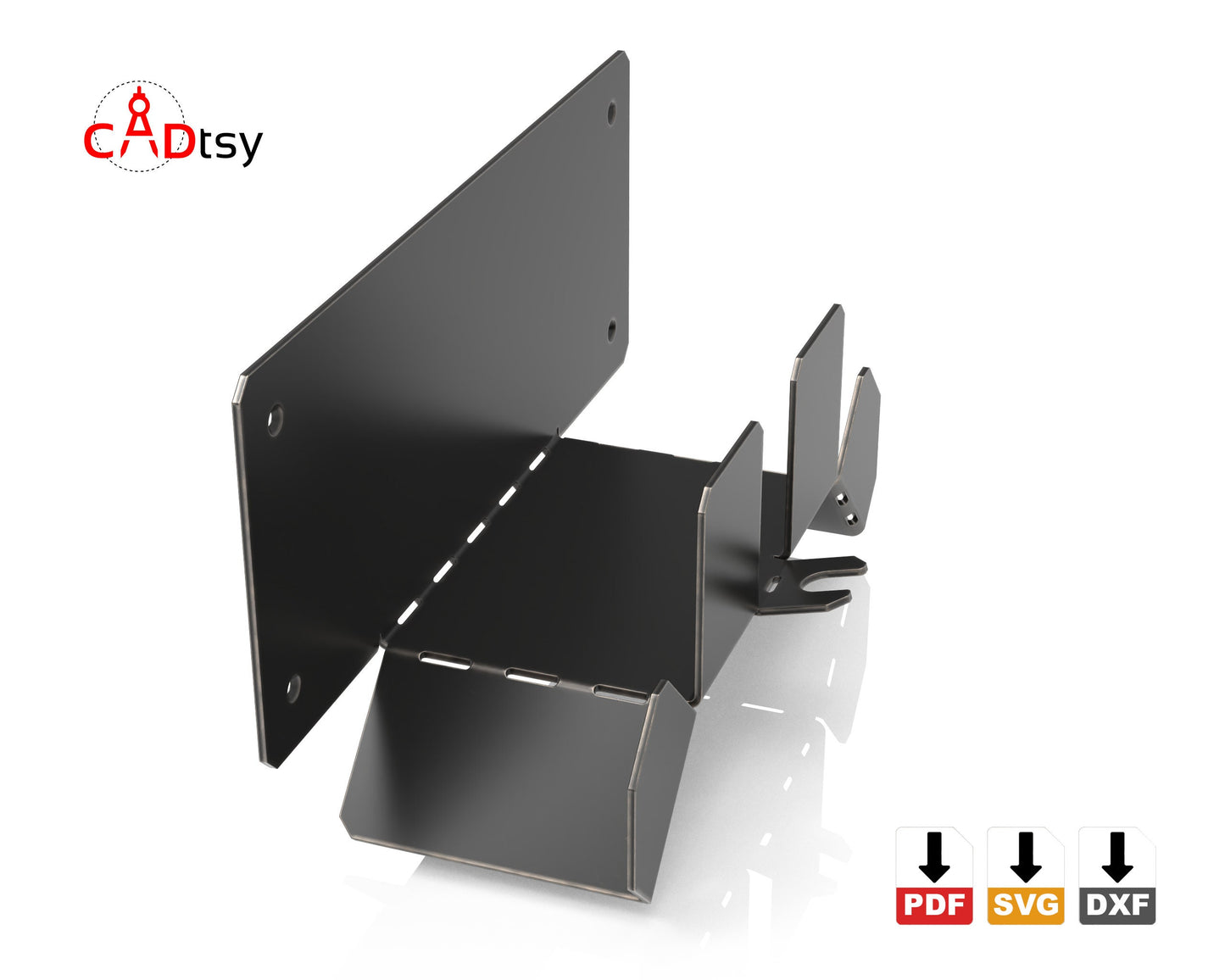

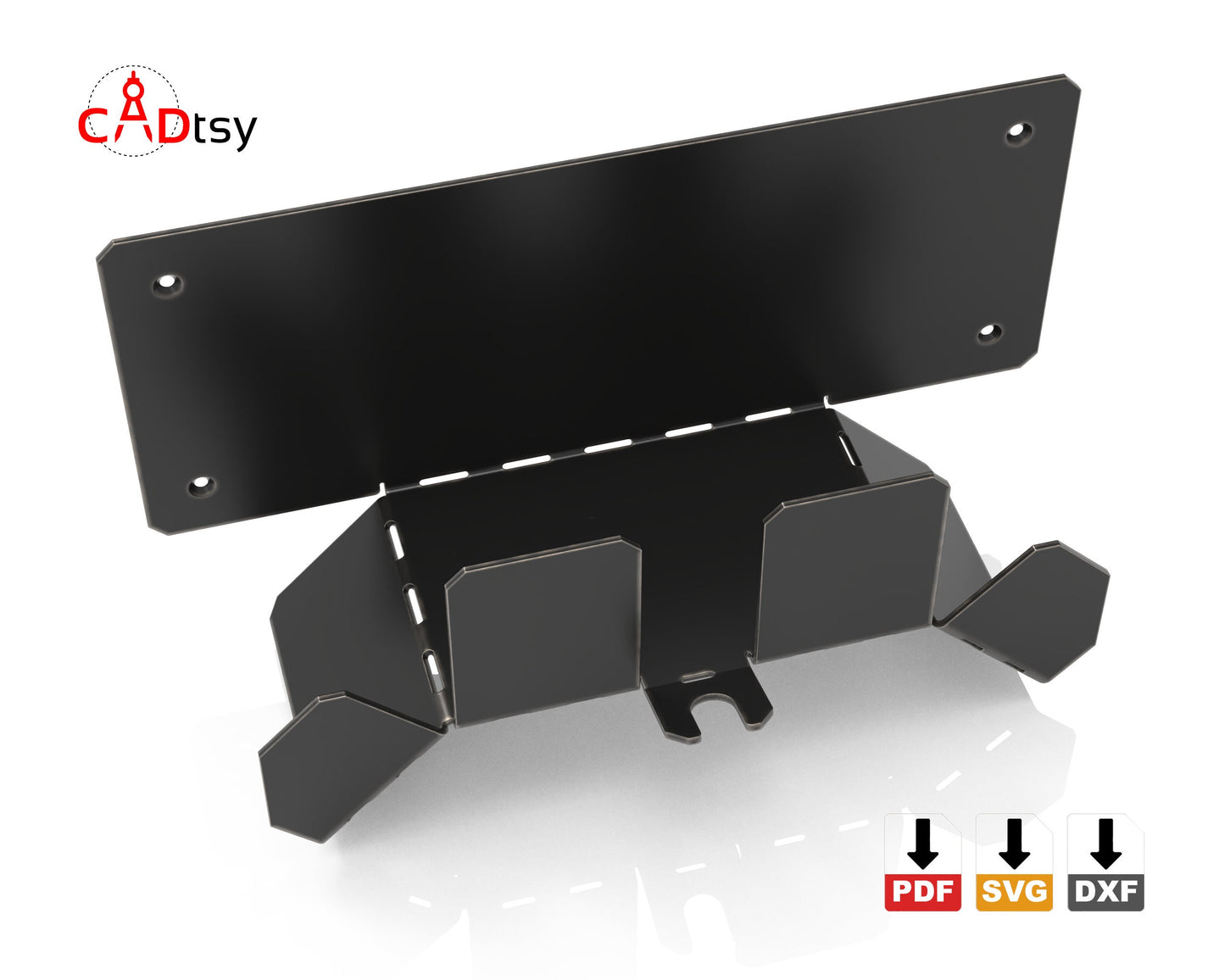

Furthermore, the final assembled holder has a generous size: 12.6" wide, 6.8" high, and 5.5" deep (320 x 173 x 140 mm).
Finally, your download includes DXF, SVG, and PDF files, so that you have maximum compatibility with your software.
