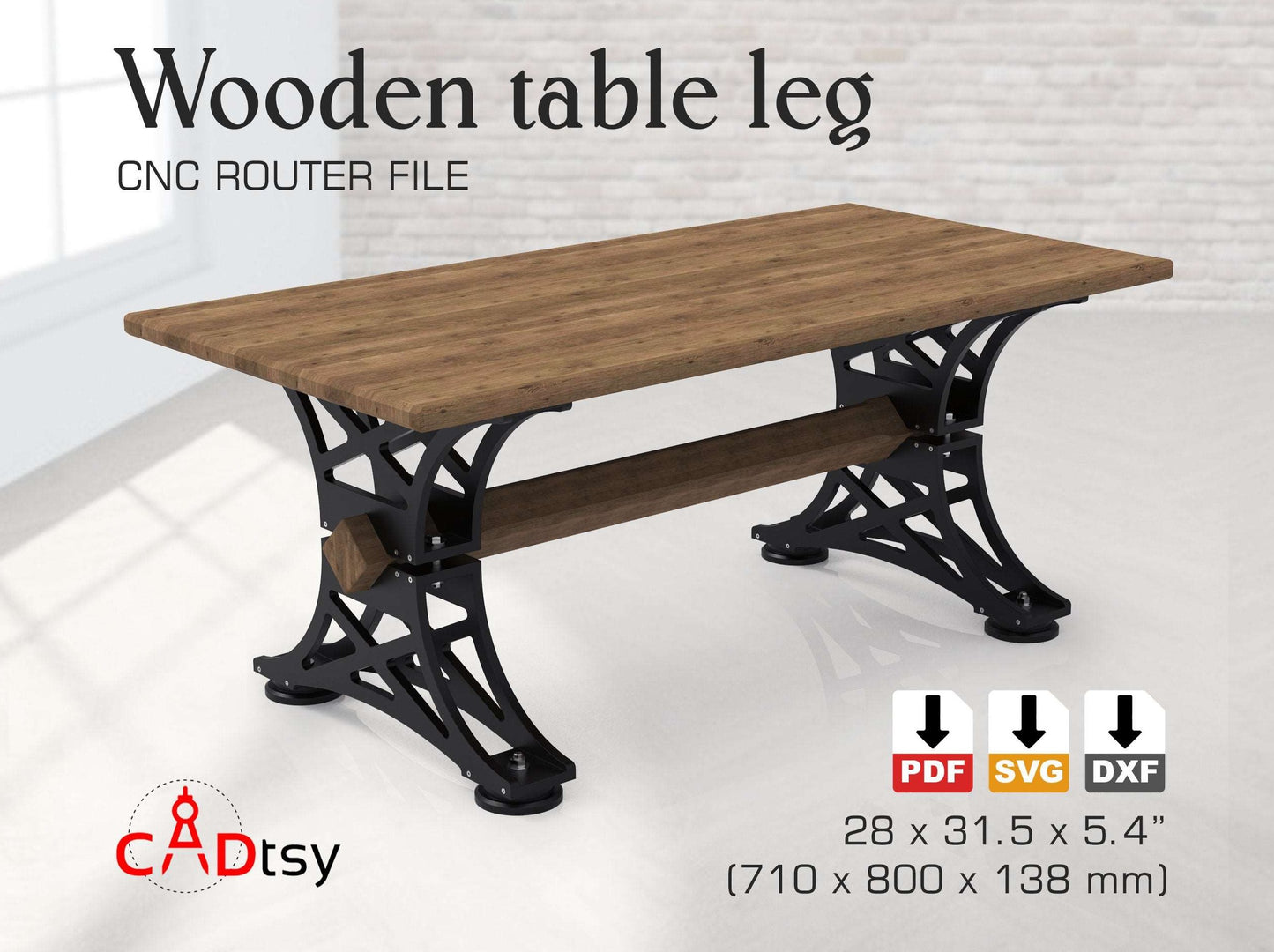

Double-Panel Industrial Wooden Table Base DXF/SVG - CNC Router Files, 710mm Height
$7.79 USD
Sale price
$7.79 USD
Regular price
$12.61 USD
Taxes included.
Shipping calculated at checkout.

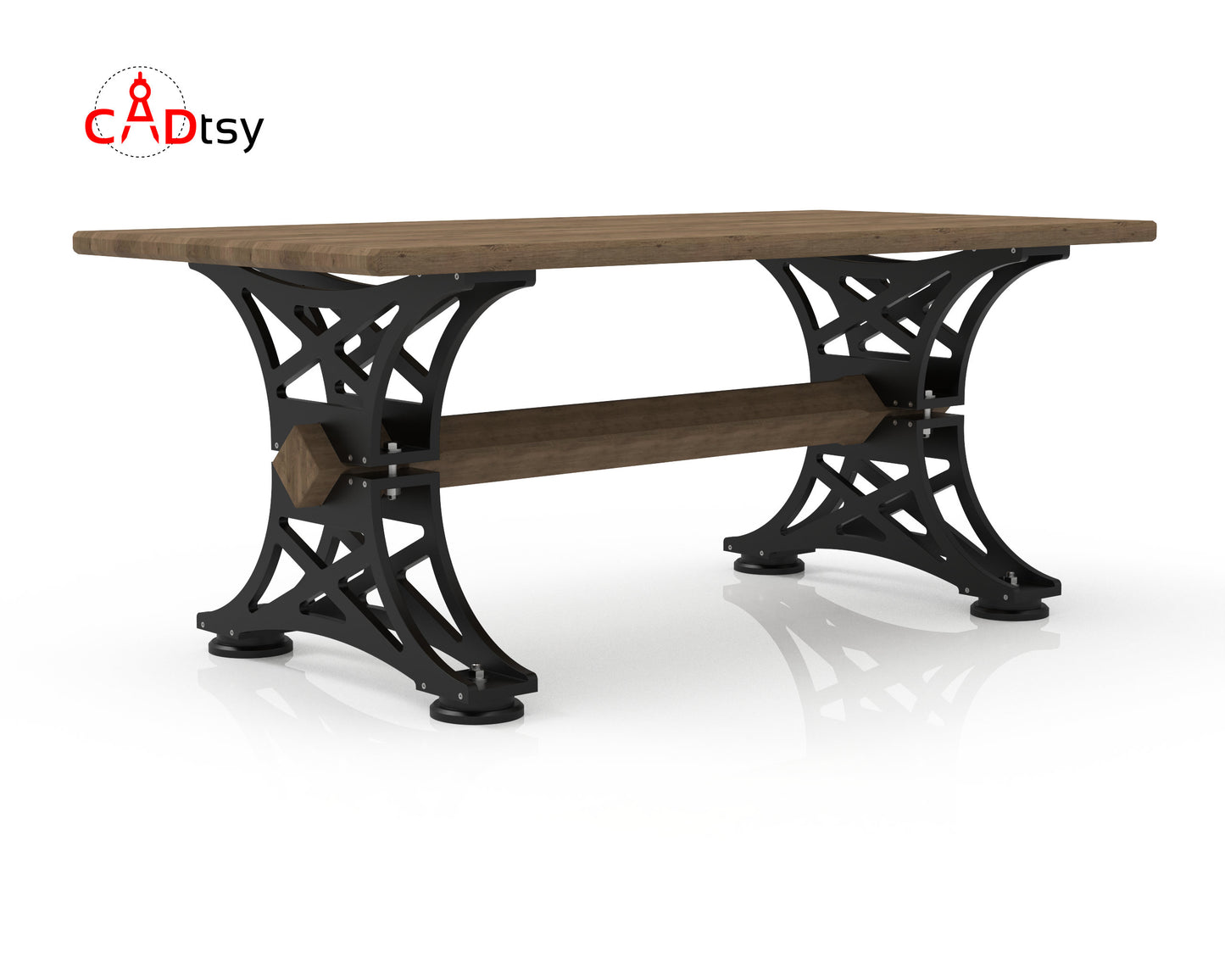

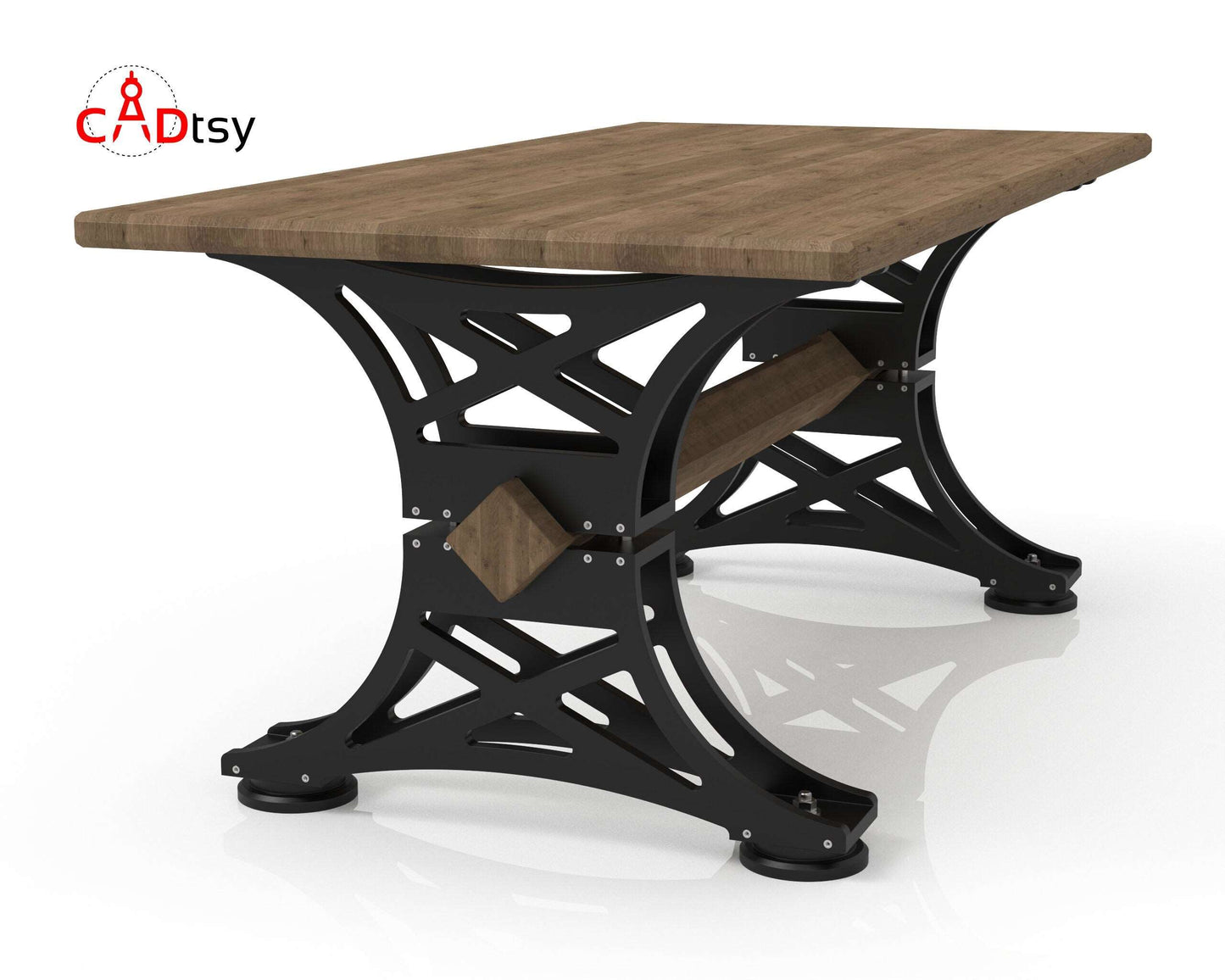

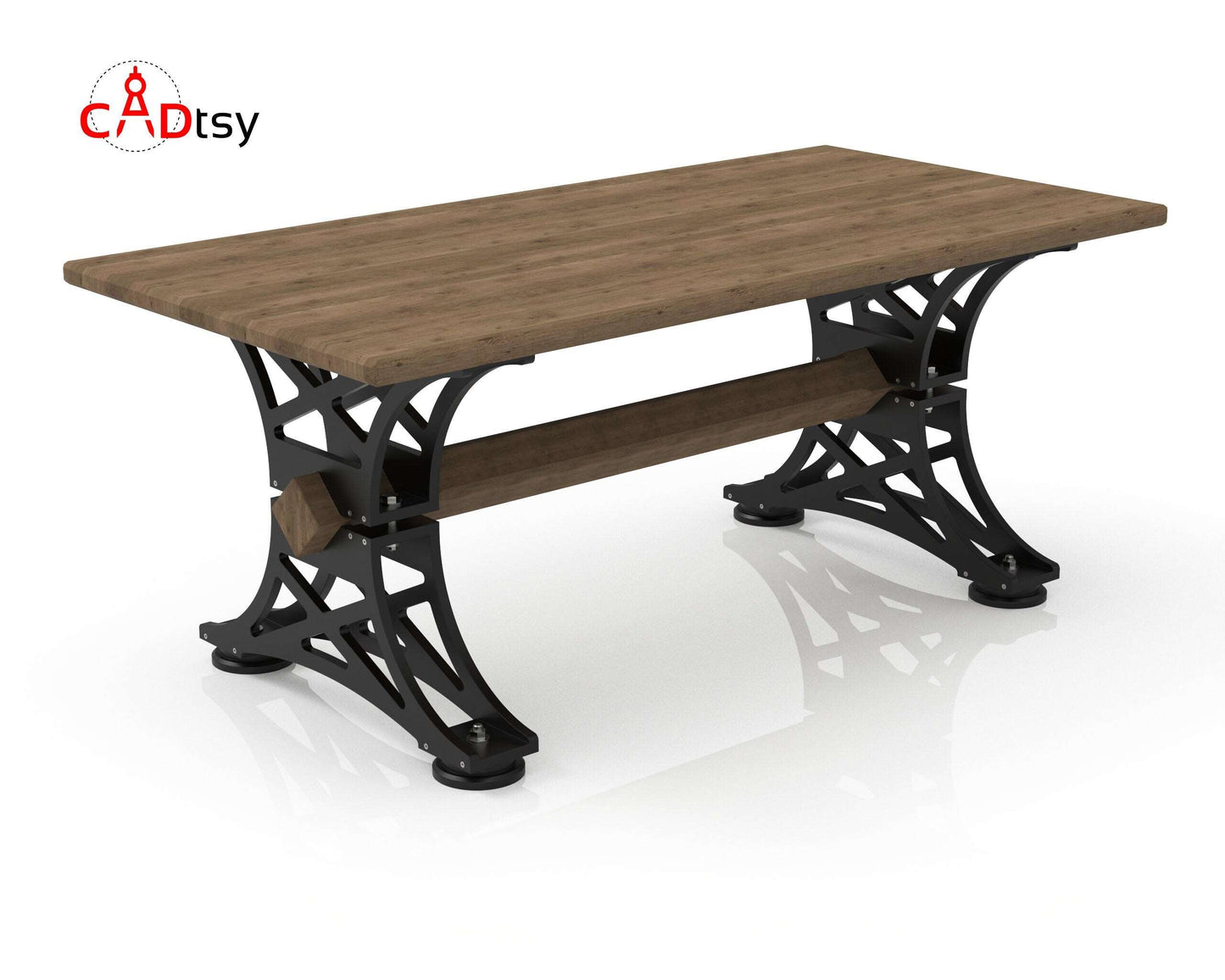

Industrial Plywood Table Base DXF files is a downloadable CNC-ready file package for building a flat-pack plywood table base or desk base for CNC router woodworking projects. The assembled table base project is approximately 29.5 in high, 59.0 in wide, and 27.5 in deep.
What You Get
- DXF, SVG, and PDF files for the industrial plywood table base design.
- CNC-ready files for CNC router cutting workflows.
- PDF drawings for the plywood table base project.
- No physical furniture, plywood, tabletop, hardware, fasteners, or finished table is shipped.
Project Features

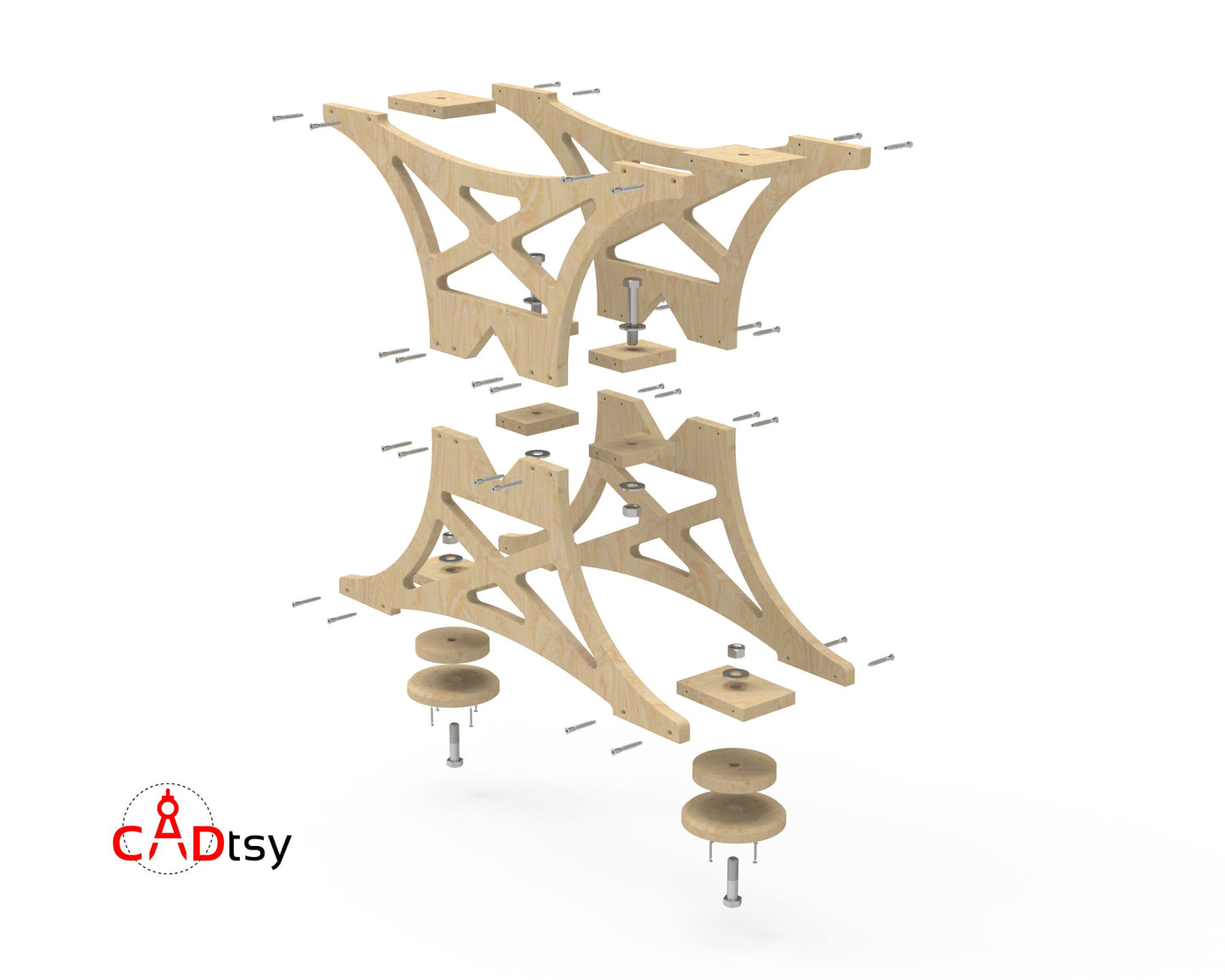

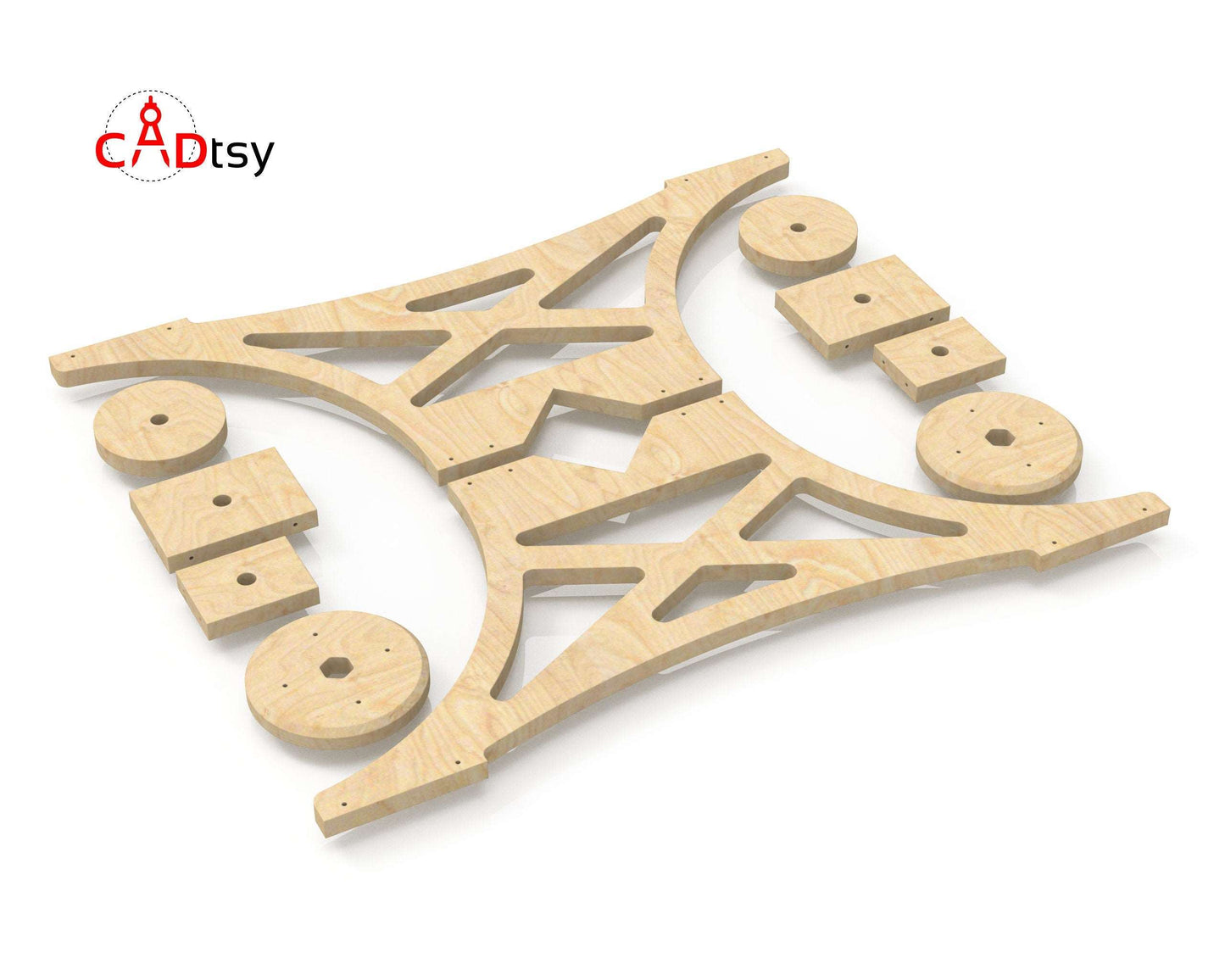

- Flat-pack plywood table or desk base layout with friction-fit slot assembly.
- Corners are designed with dog-bone fillets for router-bit clearance.
Finished Size
- Approximate assembled height: 29.5 in / 750 mm.
- Approximate assembled width: 59.0 in / 1500 mm.
- Approximate assembled depth: 27.5 in / 700 mm.
Recommended Materials
- 18.0 mm / 11/16 in plywood.
- 19.0 mm / 3/4 in plywood.
- 24.0 mm / 1 in plywood.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending the DXF or SVG files to CAM software.
- Verify kerf, router bit diameter, material thickness, and machine settings before cutting.
- Confirm tabletop compatibility, glue or fastening plan, edge finishing, and structural stability before use.
Related CADtsy Files
Browse related CADtsy project files, explore similar CNC designs, CADtsy CNC cut files, or review how CADtsy digital CNC files work before purchase.
⚠️ Important Information
• Digital product: This product is a downloadable CNC-ready design file package. No physical item is shipped.
• Delivery: After checkout, download links are sent by automated email and may also be available through your store order account.
• Included files: File formats vary by product and may include DXF, SVG, PDF, AI, project drawings, or instructions. Check the product description for the exact deliverables included with this design.
• Learn more: How CADtsy digital CNC files work.
⚠️ Legal Information
CADtsy digital designs, drawings, templates, and cutting files are protected by copyright and intellectual property laws. Purchasing a file grants a limited license to use the downloaded design according to the current CADtsy license terms; copyright ownership is not transferred.
Do not share, resell, rent, redistribute, or upload the digital files in any format. Commercial use, resale of finished items, and production rights must follow the current CADtsy license terms.
Read the current terms: CADtsy digital CNC file license terms. For licensing questions, contact CADtsy.
⚠️ Technical Support & Scaling
• Unit system: CADtsy designs are generally prepared in millimeters (mm). Check the product description for product-specific sizing details.
• Import scale: If your software is set to inches, a DXF or SVG file may import at the wrong scale. Re-import using millimeters where possible, or confirm the scale before cutting.
• DXF import help: If a DXF opens 25.4 times too large or too small, read why DXF files import at the wrong size before scaling or cutting.
• DXF or SVG: Read DXF vs SVG for CNC cutting before importing or creating toolpaths.
• Before cutting: Verify material thickness, kerf, bit or nozzle size, toolpaths, machine setup, and software compatibility before producing a final part.
• Support: If you are unsure about a file or license question, contact CADtsy.
