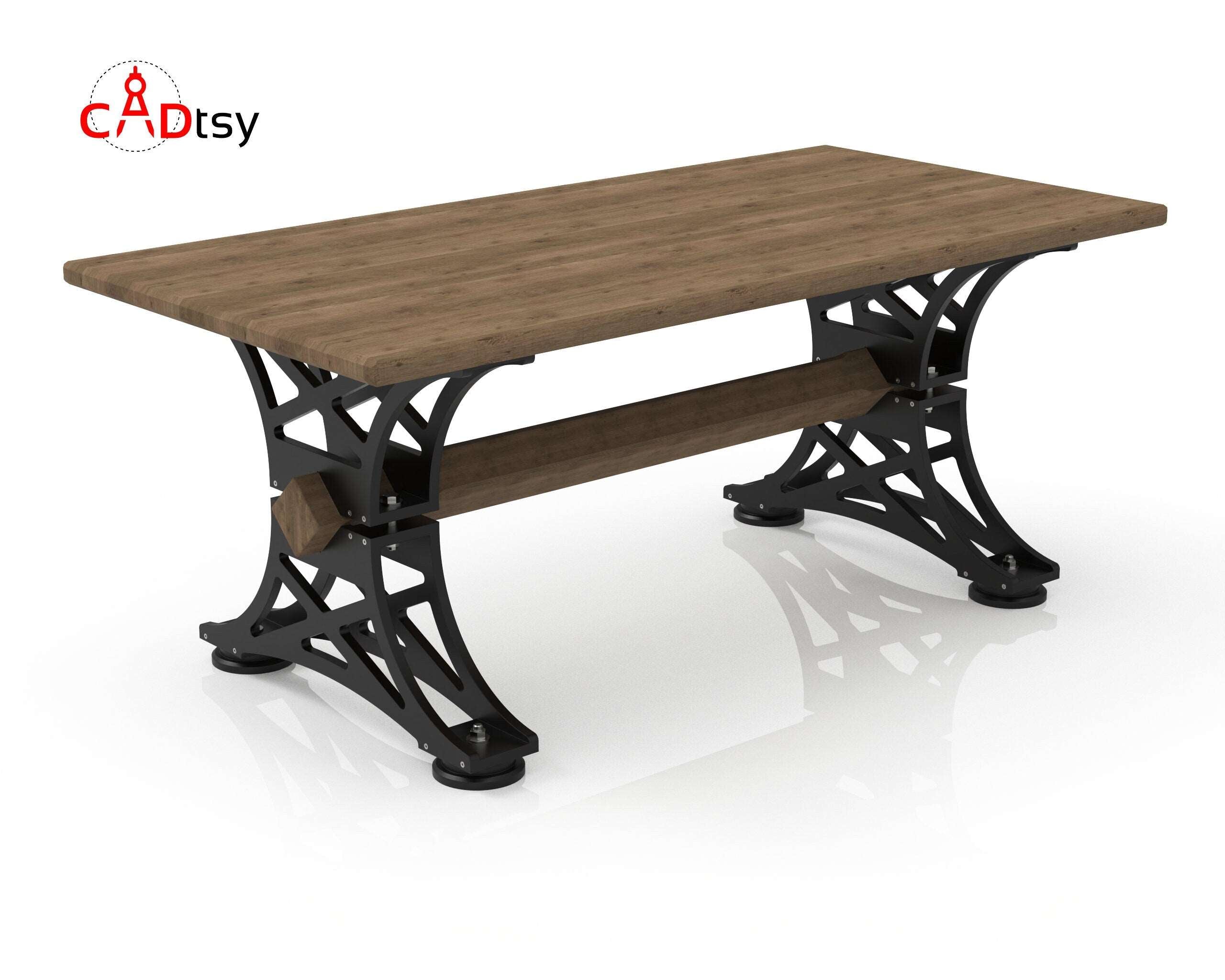

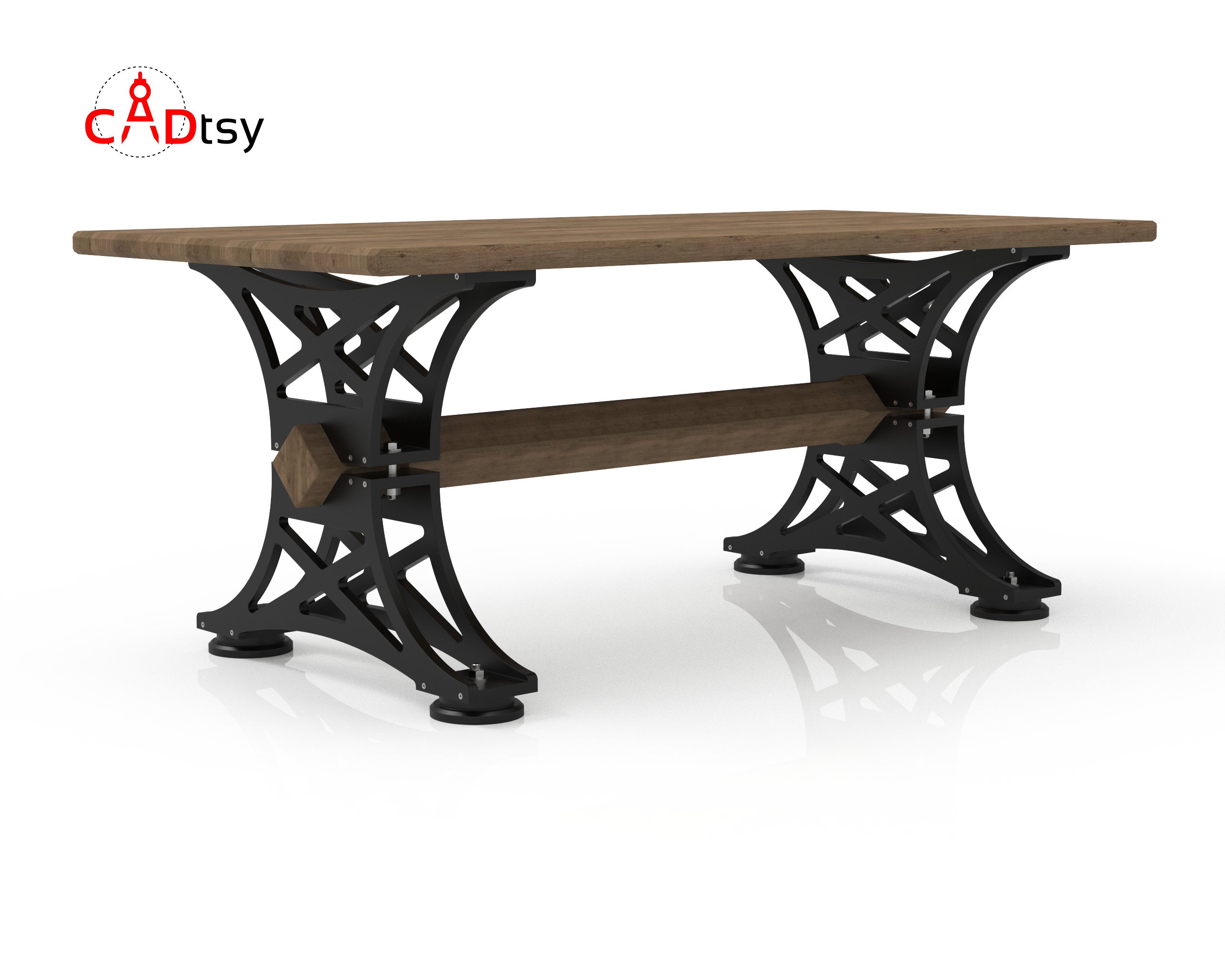

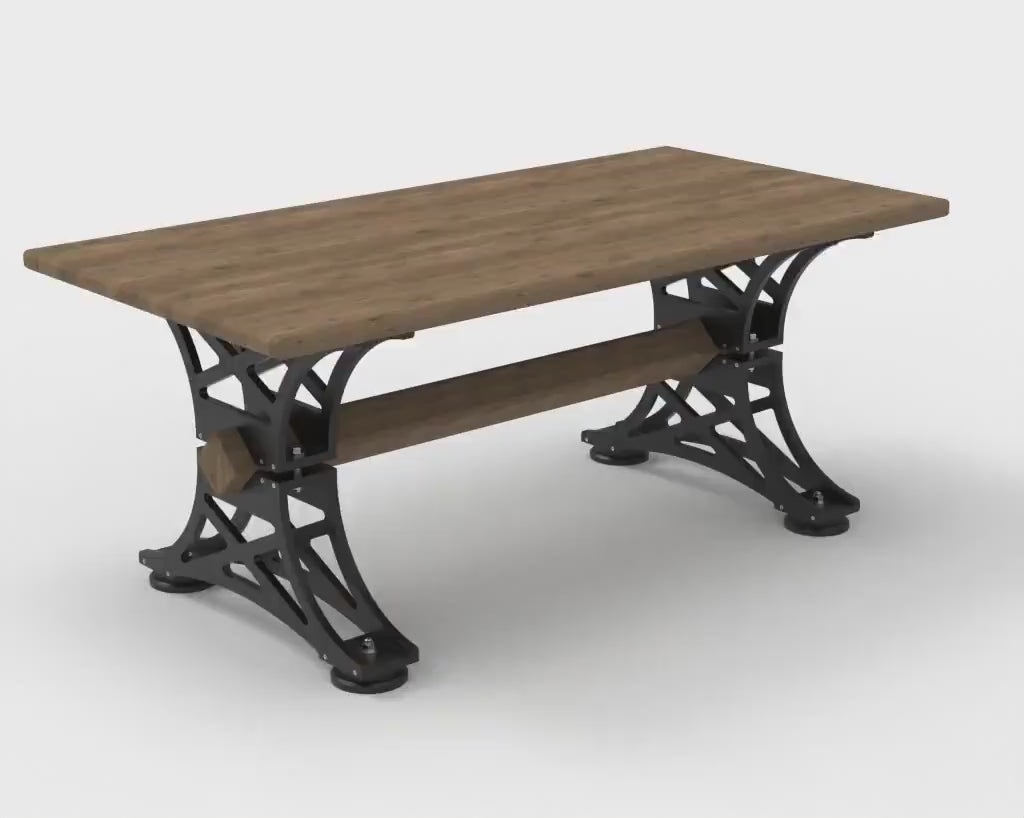

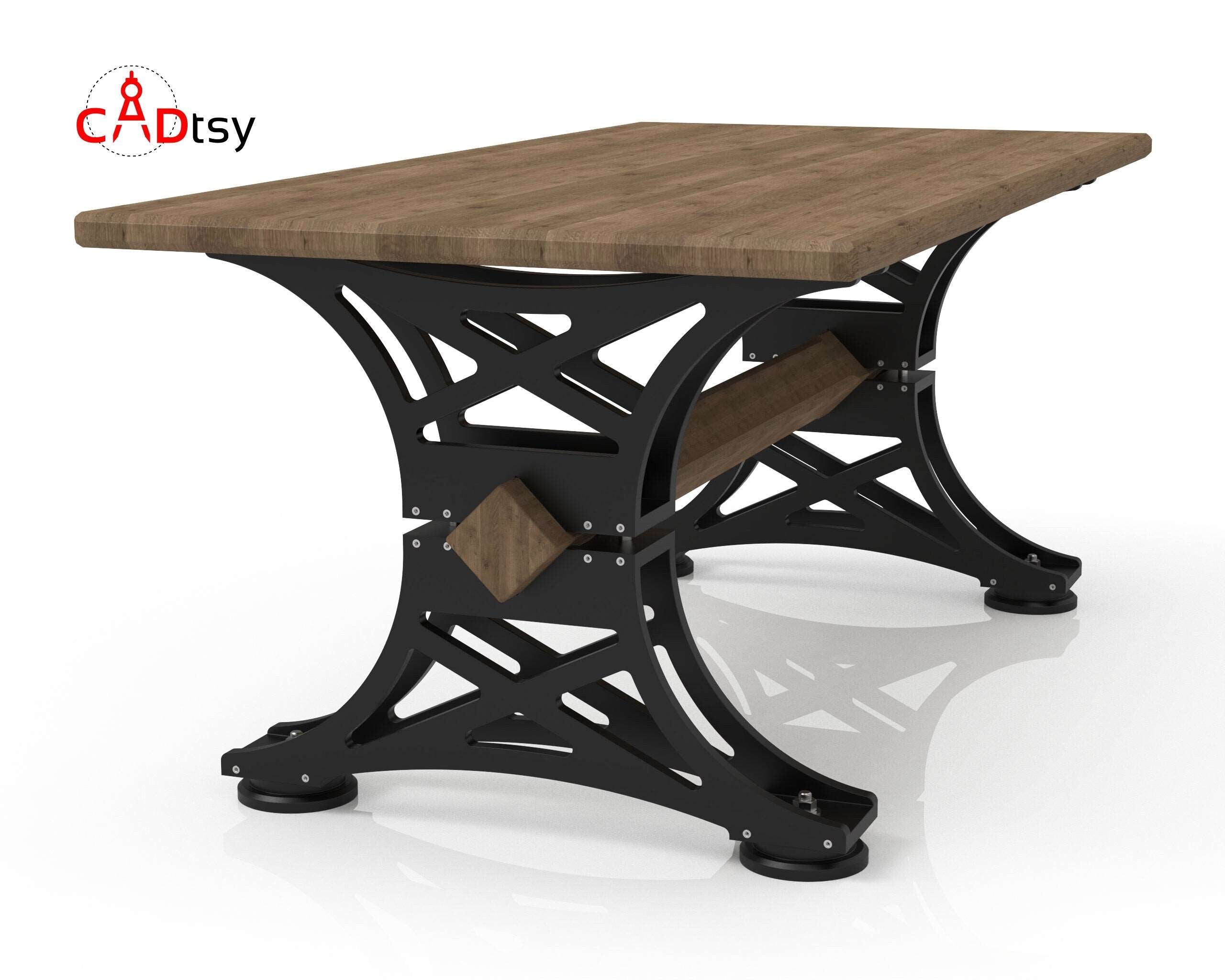

Dining table shown with a double-panel plywood table base and central stretcher

Double-Panel Wooden Table Base DXF/SVG - CNC Router Files

$7.79 USD

$7.79 USD $12.61 USD

Double-Panel Wooden Table Base DXF/SVG - CNC Router Files

Name: Double-Panel Wooden Table Base DXF/SVG - CNC Router Files
Brand: CADtsy
SKU: WD-FUR-TBL-BAS-001
Price: 7.79 USD
Availability: InStock

$7.79 USD

$7.79 USD $12.61 USD

Digital download. Quantity is limited to 1 license per design per order.

Multi-file savings: 8% off 3+ items, 16% off 5+, or 24% off 7+. Applied automatically in cart.

Digital download. No physical item or shipping required. Check the product description for the exact included files.

Download links are sent by email after checkout. See What You Get below for any additional PDF drawings or instructions.

Purchase grants a limited license; digital files may not be shared, resold, or redistributed. Review the CADtsy license terms.

Industrial Plywood Table Base DXF files is a downloadable CNC-ready file package for building a flat-pack plywood table base or desk base for CNC router woodworking projects. Each assembled end frame is approximately 28.0 in high, 31.5 in wide, and 5.4 in deep. The overall table length and depth depend on the customer-supplied stretcher and tabletop configuration.

What You Get

DXF, SVG, and PDF files for the industrial plywood table base design.
CNC-ready files for CNC router cutting workflows.
PDF drawings for the plywood table base project.
No physical furniture, plywood, tabletop, hardware, fasteners, or finished table is shipped.

Project Features

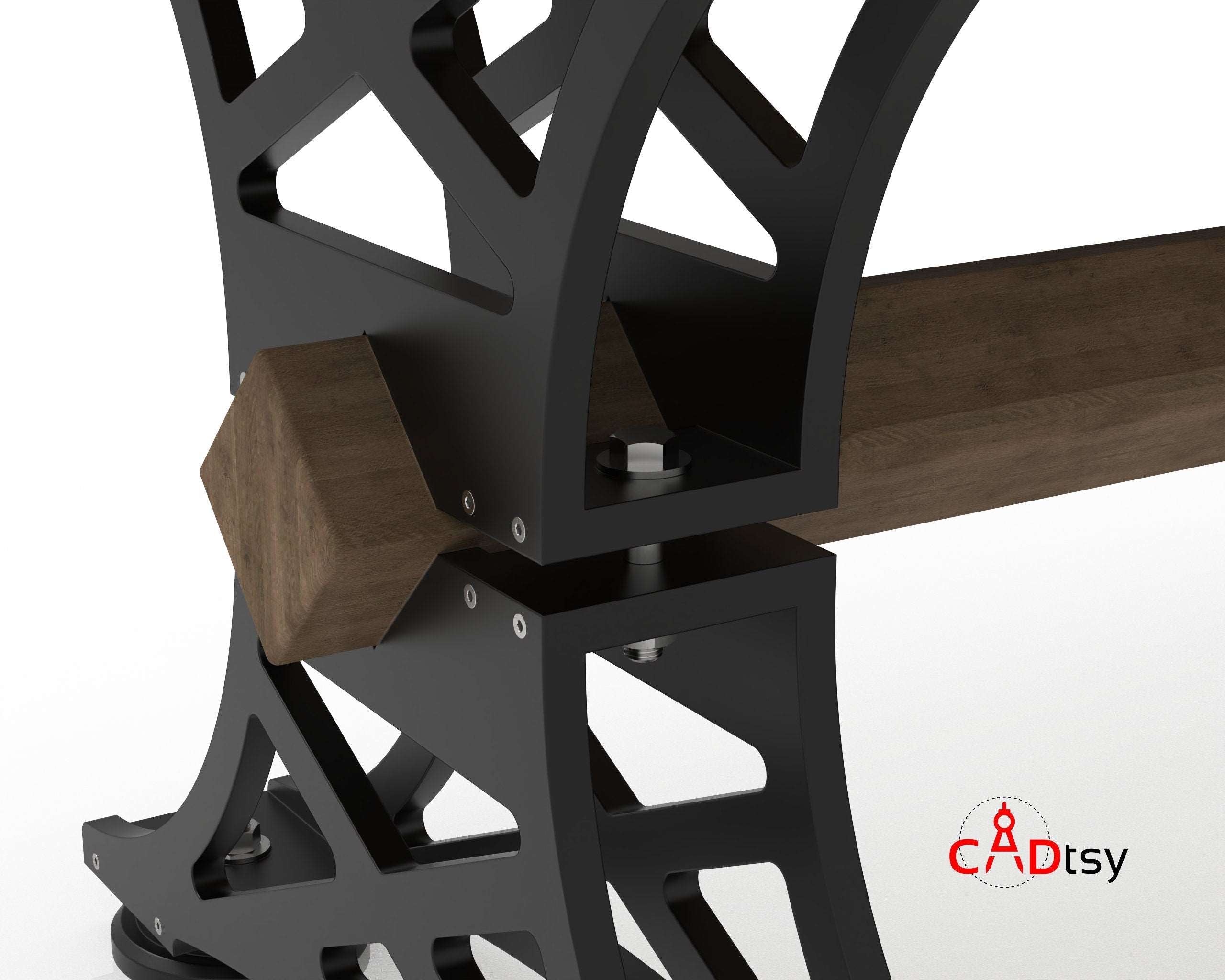

Double-panel plywood table or desk base with two curved end frames and a central wooden stretcher.

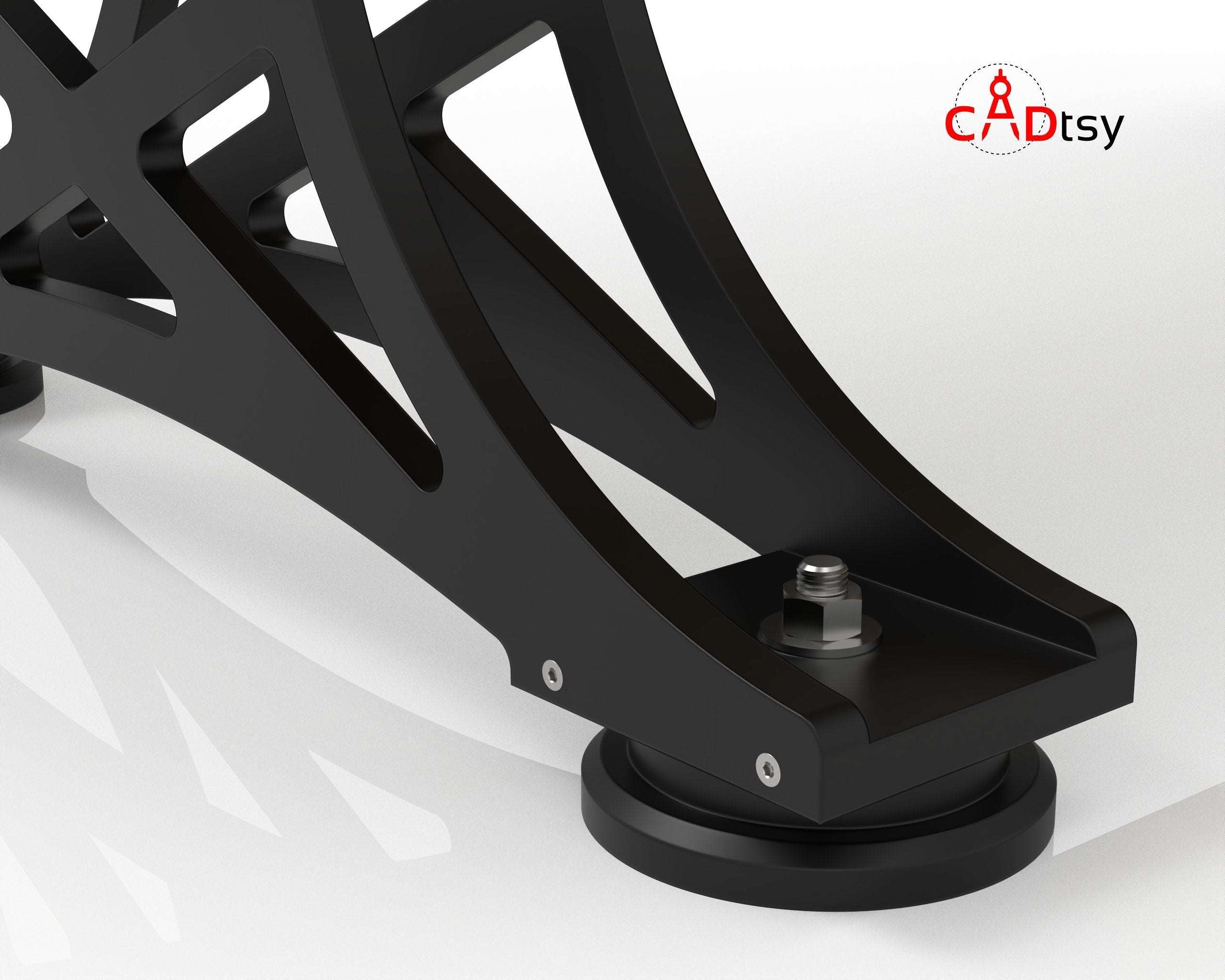

The included drawing documents the plywood components, mechanical fasteners, feet, and stretcher assembly.

Base Frame Size

Approximate end-frame height: 28.0 in / 710 mm.
Approximate end-frame width: 31.5 in / 800 mm.
Approximate end-frame depth: 5.4 in / 138 mm.

Recommended Materials

19.0 mm / 3/4 in plywood.

Before Cutting

CADtsy designs are created in millimeters; check file scale and units before sending the DXF or SVG files to CAM software.
Verify kerf, router bit diameter, material thickness, and machine settings before cutting.
Confirm tabletop compatibility, glue or fastening plan, edge finishing, and structural stability before use.

Related CADtsy Files

Browse related CADtsy project files, explore similar CNC designs, CADtsy CNC cut files, or review how CADtsy digital CNC files work before purchase.

• Digital product: This product is a downloadable CNC-ready design file package. No physical item is shipped.
• Delivery: After checkout, download links are sent by automated email and may also be available through your store order account.
• Included files: File formats vary by product and may include DXF, SVG, PDF, AI, project drawings, or instructions. Check the product description for the exact deliverables included with this design.
• Learn more: How CADtsy digital CNC files work.

CADtsy digital designs, drawings, templates, and cutting files are protected by copyright and intellectual property laws. Purchasing a file grants a limited license to use the downloaded design according to the current CADtsy license terms; copyright ownership is not transferred.

Do not share, resell, rent, redistribute, or upload the digital files in any format. Commercial use, resale of finished items, and production rights must follow the current CADtsy license terms.

Read the current terms: CADtsy digital CNC file license terms. For licensing questions, contact CADtsy.

• Unit system: CADtsy designs are generally prepared in millimeters (mm). Check the product description for product-specific sizing details.
• Import scale: If your software is set to inches, a DXF or SVG file may import at the wrong scale. Re-import using millimeters where possible, or confirm the scale before cutting.
• DXF import help: If a DXF opens 25.4 times too large or too small, read why DXF files import at the wrong size before scaling or cutting.
• DXF or SVG: Read DXF vs SVG for CNC cutting before importing or creating toolpaths.
• Before cutting: Verify material thickness, kerf, bit or nozzle size, toolpaths, machine setup, and software compatibility before producing a final part.
• Support: If you are unsure about a file or license question, contact CADtsy.
