Metal Bench with Backrest DXF/SVG - CNC Plasma/Laser Files, 1200mm Length
$6.37 USD
Sale price
$6.37 USD
Regular price
$10.32 USD
Taxes included.
Shipping calculated at checkout.

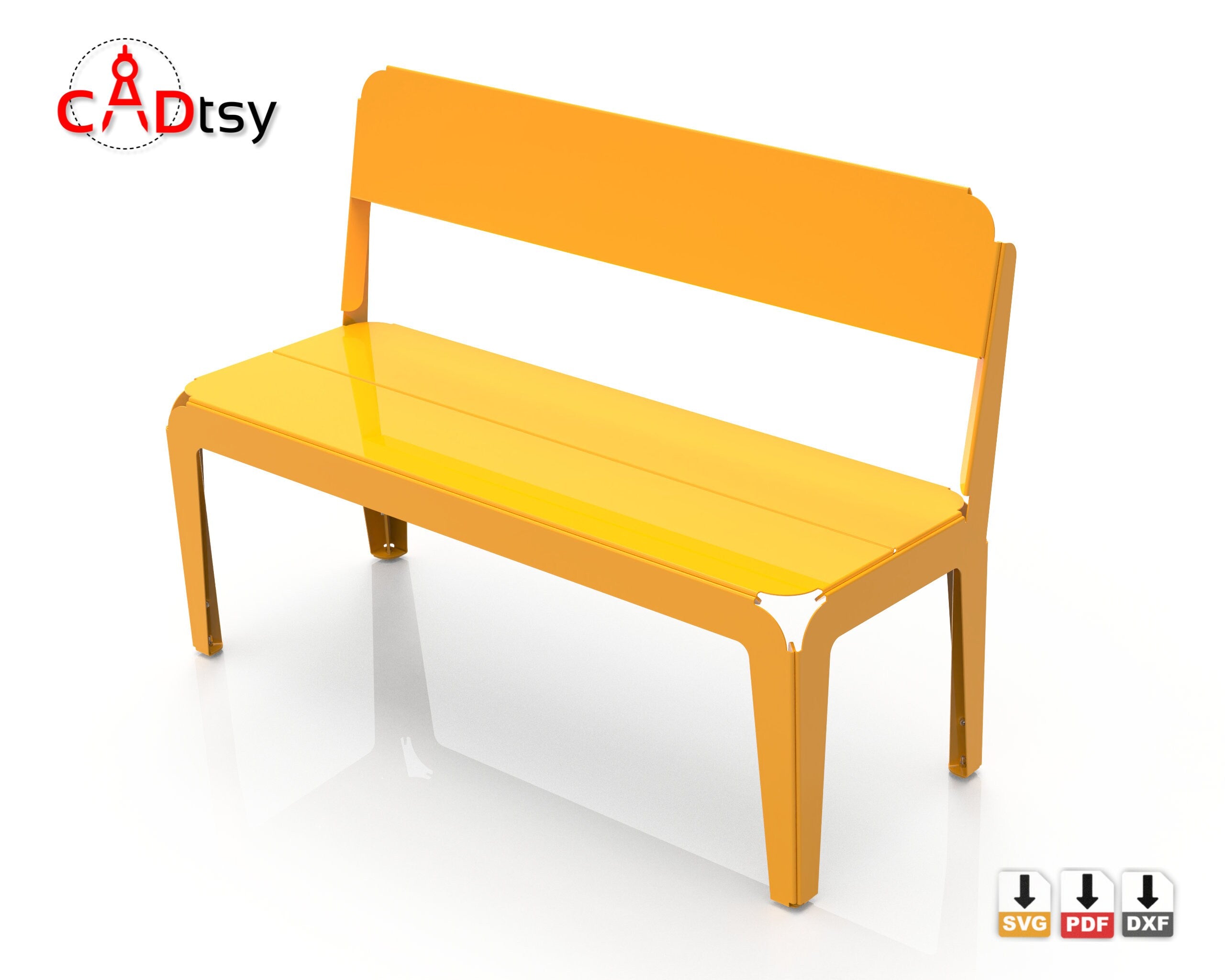

Metal Backrest Bench DXF files is a downloadable CNC-ready file package for building a 1200 mm no-weld sheet metal bench with backrest for patio, garden, or commercial outdoor seating projects. The finished bench is approximately 33.4 in high, 47.2 in long, and 19.4 in wide.
What You Get
- DXF, SVG, and PDF files for the metal backrest bench design.
- CNC-ready flat pattern files for plasma, laser, or waterjet cutting workflows.
- PDF drawings for sheet metal bending instructions.
- No physical furniture, steel, hardware, fasteners, seat material, or finished item is shipped.
Project Features
- Interlocking tab-and-slot backrest bench layout for outdoor seating projects.
- Designed for CNC cutting, sheet metal bending, and bolted assembly without welding.
Finished Size
- Approximate assembled height: 33.4 in / 850 mm.
- Approximate assembled length: 47.2 in / 1200 mm.
- Approximate assembled width: 19.4 in / 492 mm.
Recommended Materials
- 14 gauge / 2.0 mm steel.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending the DXF files to CAM software.
- Verify kerf, material thickness, bend approach, bolt selection, and machine settings before fabrication.
- Use the listed material thickness and assembly method so the tab-and-slot structure assembles as designed.
- Confirm seating rigidity, edge finishing, surface treatment, outdoor exposure, and seating safety before use.
