Industrial Metal Bar Stool DXF files is a downloadable CNC-ready file package for building a sheet metal bar stool for kitchens, home bars, cafes, workshops, or custom furniture projects. The finished stool is approximately 29.5 in high, 15.0 in wide, and 15.0 in deep.

What You Get

DXF, SVG, and PDF files for the industrial metal bar stool design.

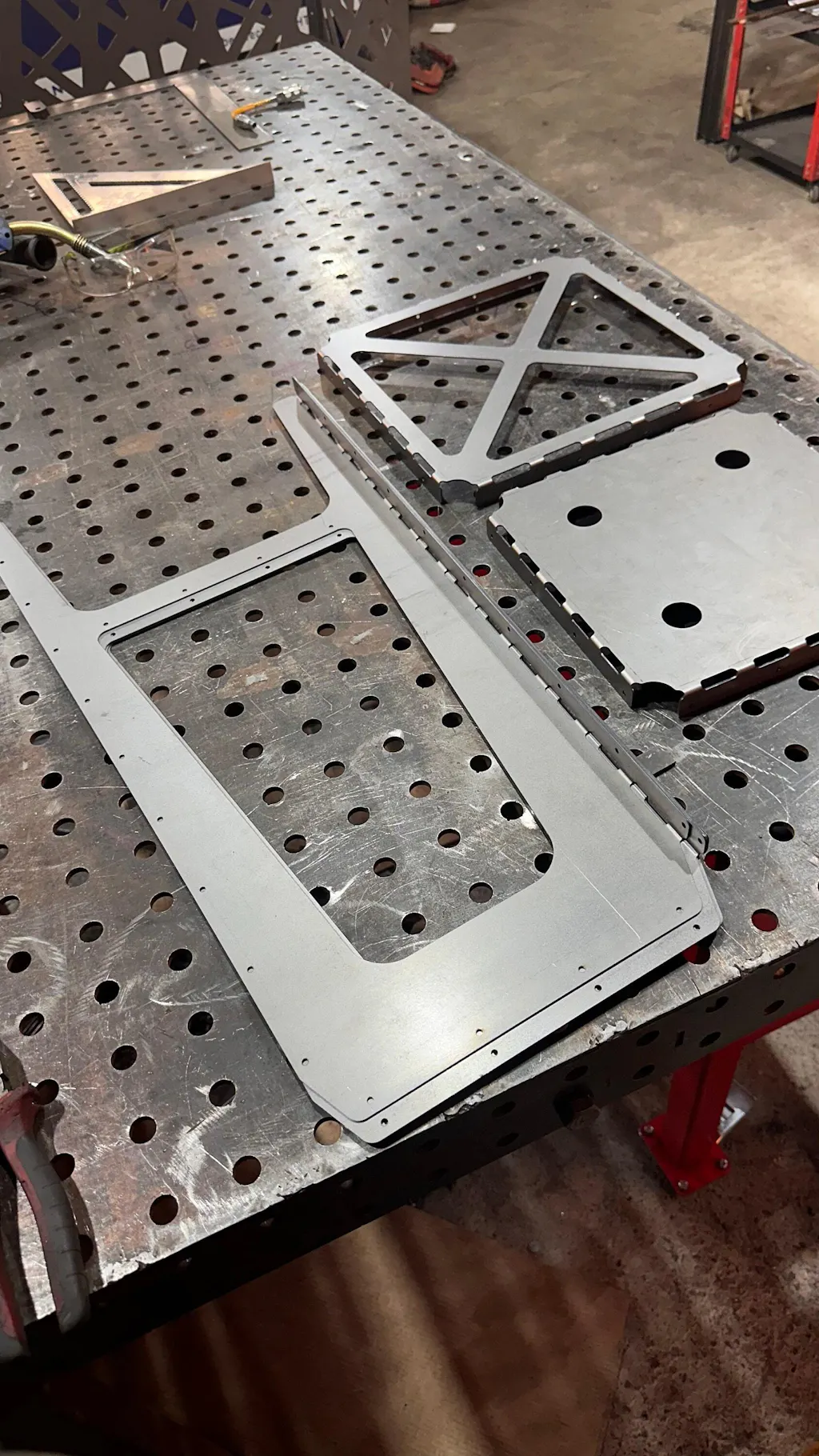

CNC-ready flat pattern files for plasma, laser, or waterjet cutting workflows.
PDF drawing files for the sheet metal bar stool project.
Precut slot-relief bend features intended to help form the sheet metal parts.
No physical bar stool, steel, rivets, bolts, hardware, or finished furniture item is shipped.

Project Features

Industrial bar stool layout for home bar, cafe, kitchen, workshop, or custom metal furniture builds.
Designed for CNC cutting, sheet metal bending, and assembly with rivets, bolts, or welding.
Slot-relief bend features help guide bending lines and can reduce dependence on a dedicated brake press for suitable material thicknesses.

Finished Size

Approximate assembled height: 29.5 in / 750 mm.
Approximate assembled width: 15.0 in / 382 mm.
Approximate assembled depth: 15.0 in / 382 mm.

Recommended Materials

13 gauge / 2.4-2.5 mm steel.
14 gauge / 2.0 mm steel.
16 gauge / 1.5 mm steel.

Before Cutting

CADtsy designs are created in millimeters; check file scale and units before sending the DXF files to CAM software.
Verify kerf, material thickness, bend approach, slot-relief behavior, rivet or bolt sizing, welding plan, and machine settings before fabrication.
Use the bend-assist geometry as a fabrication aid; final bending method still depends on your material thickness, tools, and shop setup.
Confirm the finished bar stool structure, edge finishing, floor contact, and seating safety before use.
