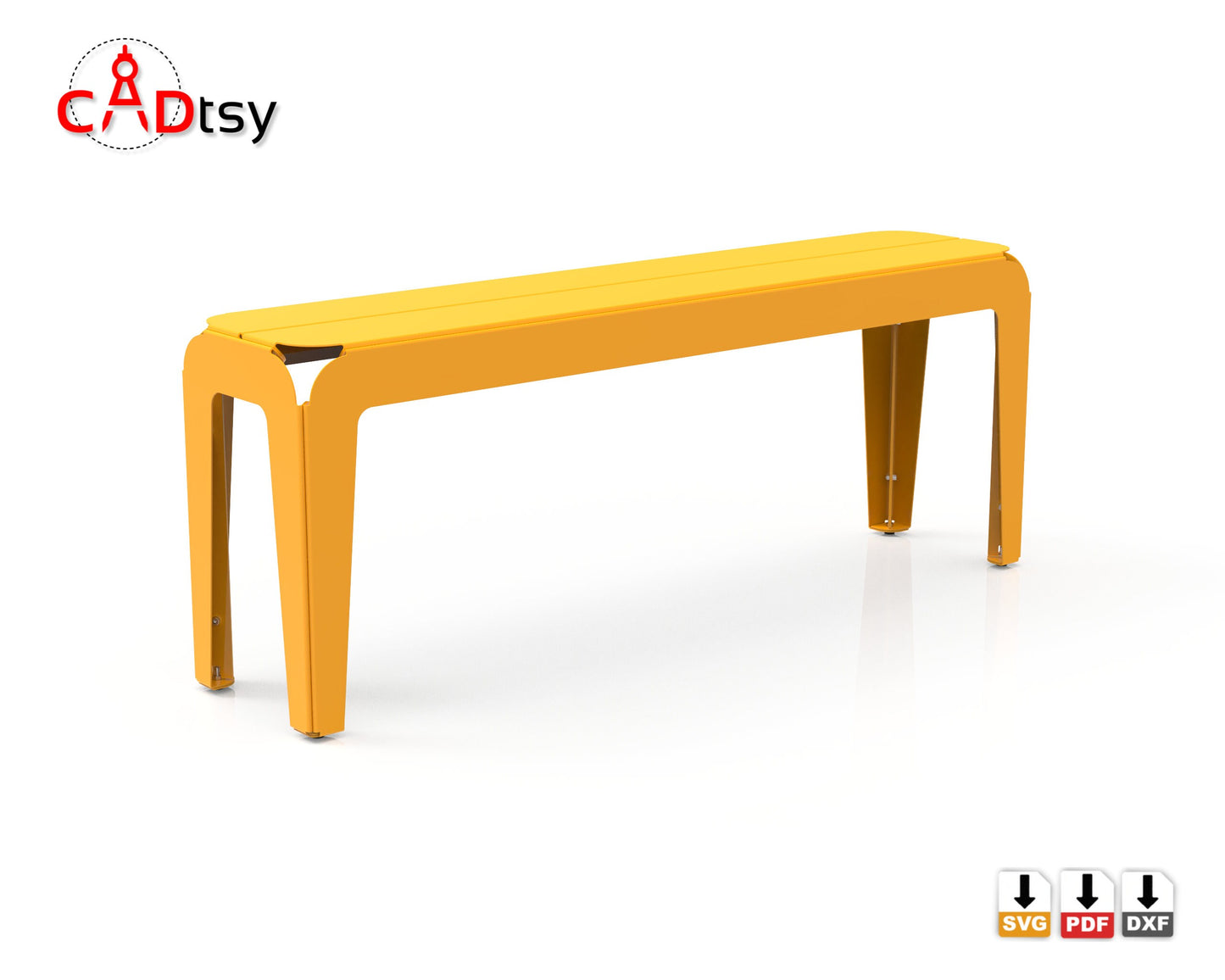

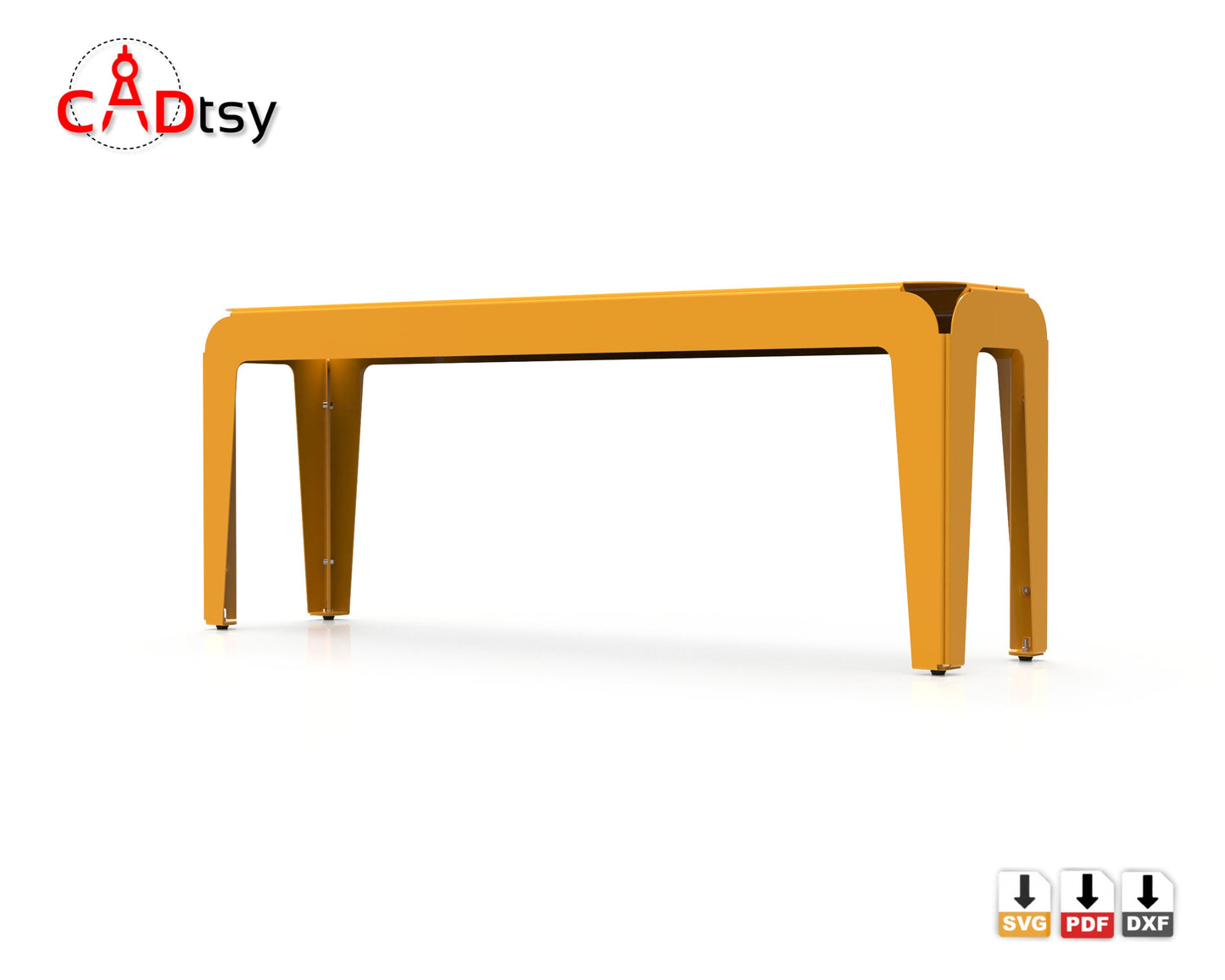

Narrow Metal Bench DXF files is a downloadable CNC-ready file package for building a perforated 1200 mm narrow sheet metal bench for patio, garden, outdoor dining, or compact seating projects. The finished bench is approximately 17.7 in high, 47.2 in long, and 10.6 in wide.
What You Get
- DXF, SVG, and PDF files for the narrow metal bench design.
- CNC-ready flat pattern files for plasma, laser, or waterjet cutting workflows.

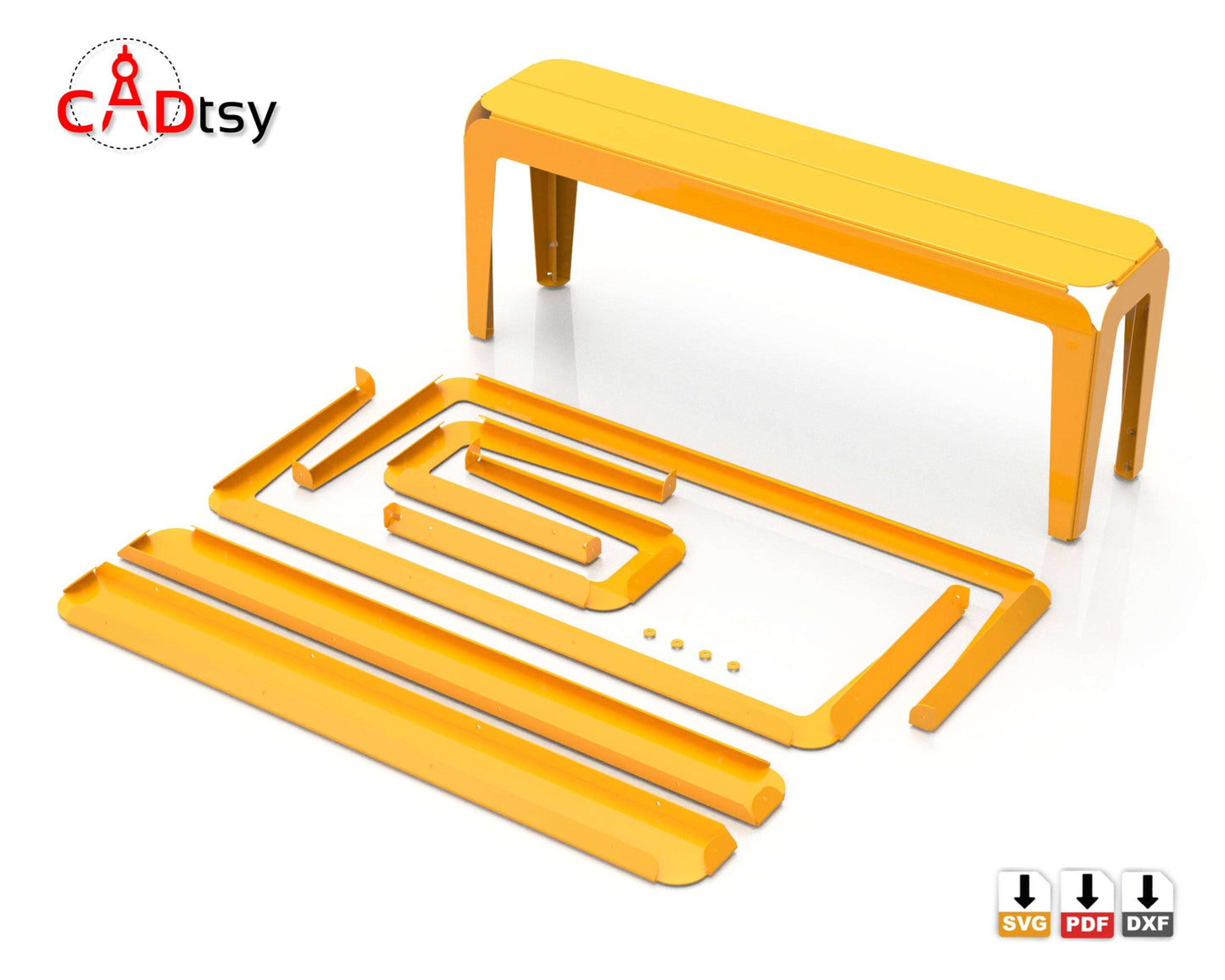

- PDF bending plans for the sheet metal bench project.
- No physical bench, steel, hardware, or finished outdoor seating item is shipped.
Project Features
- Narrow perforated bench layout for patio, garden, outdoor dining, or compact seating projects.
- Designed for CNC cutting and sheet metal bending from 2.0 mm steel.
Finished Size
- Approximate assembled height: 17.7 in / 450 mm.
- Approximate assembled length: 47.2 in / 1200 mm.
- Approximate assembled width: 10.6 in / 270 mm.
Recommended Materials
- 14 gauge / 2.0 mm steel.
Before Cutting
- CADtsy designs are created in millimeters; check file scale and units before sending the DXF files to CAM software.
- Verify kerf, material thickness, bend approach, seating rigidity, and machine settings before fabrication.
- Confirm edge finishing, surface treatment, outdoor exposure, and seating safety before use.
