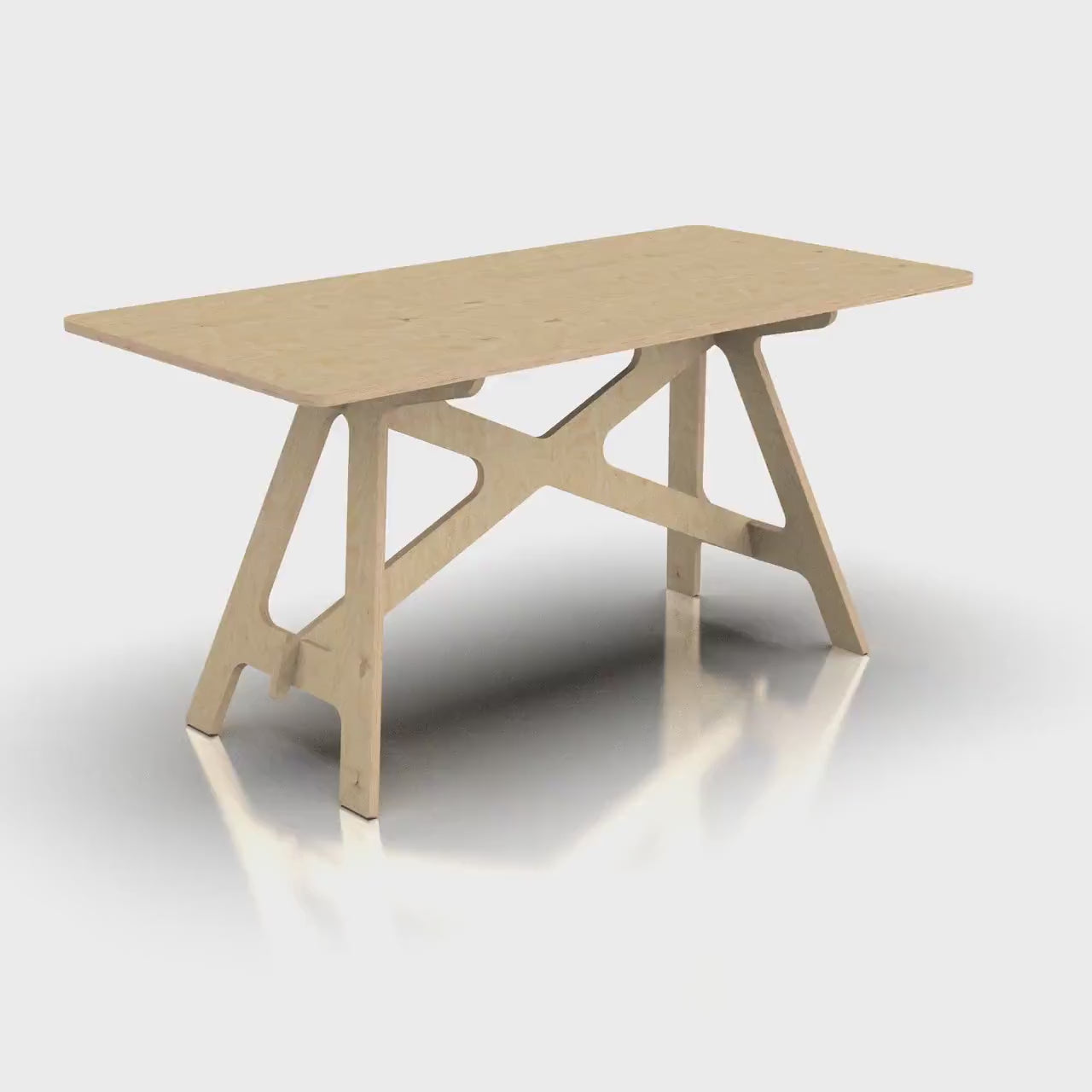

Modern interlocking plywood trestle table for CNC router cutting

Modern Plywood Table DXF/SVG - CNC Router Files

$9.21 USD

$9.21 USD $14.91 USD

Modern Plywood Table DXF/SVG - CNC Router Files

Name: Modern Plywood Table DXF/SVG - CNC Router Files
Brand: CADtsy
SKU: WD-FUR-TBL-MOD-003
Price: 9.21 USD
Availability: InStock

$9.21 USD

$9.21 USD $14.91 USD

Digital download. Quantity is limited to 1 license per design per order.

Multi-file savings: 8% off 3+ items, 16% off 5+, or 24% off 7+. Applied automatically in cart.

Digital download. No physical item or shipping required. Check the product description for the exact included files.

Download links are sent by email after checkout. See What You Get below for any additional PDF drawings or instructions.

Purchase grants a limited license; digital files may not be shared, resold, or redistributed. Review the CADtsy license terms.

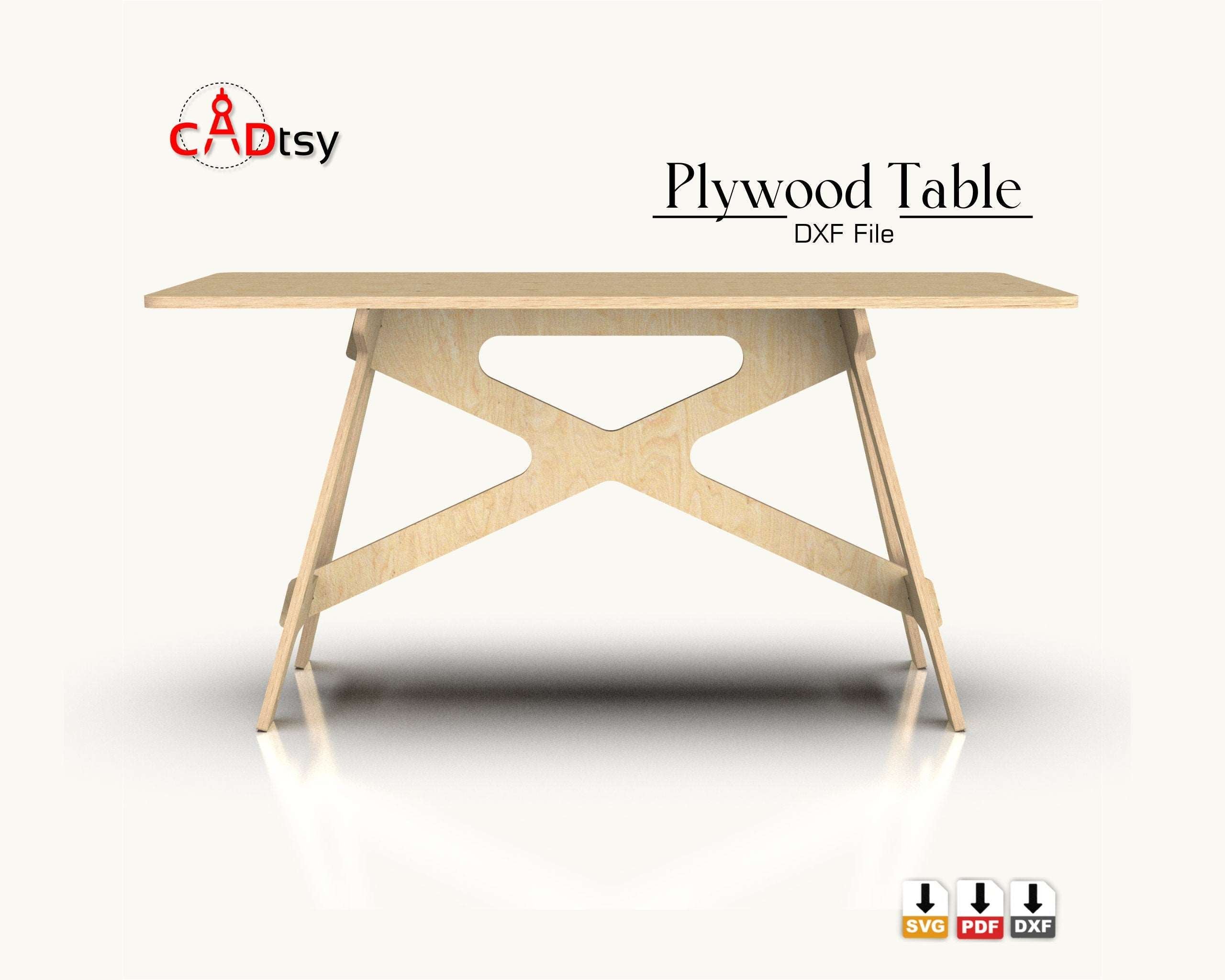

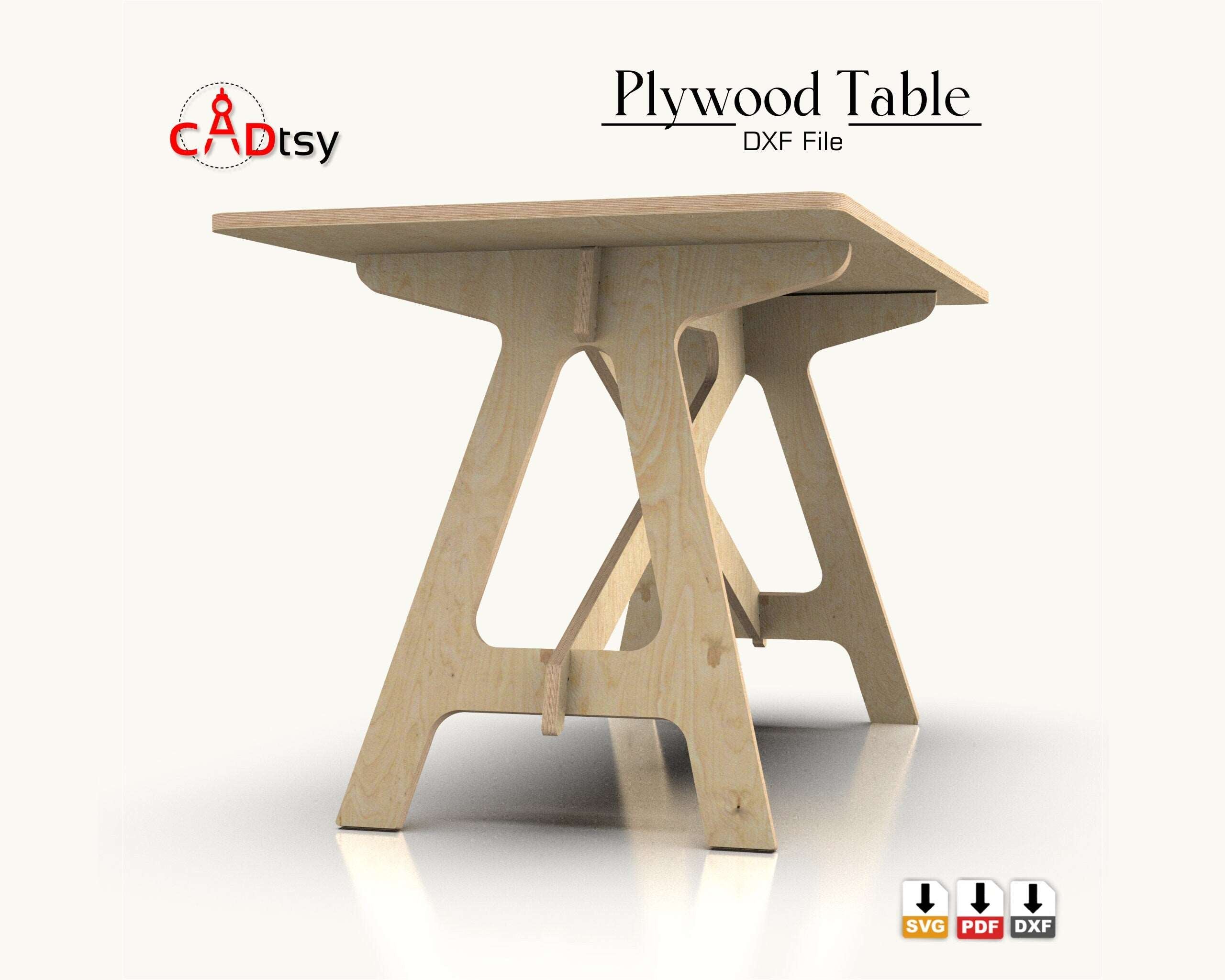

Modern Plywood Table DXF files is a downloadable CNC-ready file package for building a flat-pack interlocking plywood table, desk, dining table, or conference table. The assembled table is approximately 29.5 in high, 59.8 in long, and 30.0 in wide.

What You Get

DXF, SVG, and PDF files for the modern plywood table design.
CNC-ready files for CNC router cutting workflows.
PDF reference file for the modern plywood table project.
No physical furniture, plywood, tabletop, hardware, fasteners, or finished table is shipped.

Project Features

Flat-pack trestle table layout for plywood, MDF, or OSB furniture projects.
Internal corners are designed with dog-bone fillets for router-bit clearance, with tooling prepared for bits up to 8 mm / 5/16 in.

Finished Size

Approximate assembled height: 29.5 in / 750 mm.
Approximate assembled length: 59.8 in / 1520 mm.
Approximate assembled width: 30.0 in / 760 mm.

Recommended Materials

18.0 mm / 23/32 in plywood, MDF, or OSB.
19.0 mm / 3/4 in plywood, MDF, or OSB.

Before Cutting

CADtsy designs are created in millimeters; check file scale and units before sending the DXF or SVG files to CAM software.
Verify kerf, router bit diameter, material thickness, and machine settings before cutting.
Use the listed material thickness and tooling assumptions; adjust only if changing material thickness or using a larger router bit.
Confirm tabletop use, edge finishing, assembly rigidity, and safe furniture use before installation.

Related CADtsy Files

Browse related CADtsy project files, explore similar CNC designs, CADtsy CNC cut files, or review how CADtsy digital CNC files work before purchase.

• Digital product: This product is a downloadable CNC-ready design file package. No physical item is shipped.
• Delivery: After checkout, download links are sent by automated email and may also be available through your store order account.
• Included files: File formats vary by product and may include DXF, SVG, PDF, AI, project drawings, or instructions. Check the product description for the exact deliverables included with this design.
• Learn more: How CADtsy digital CNC files work.

CADtsy digital designs, drawings, templates, and cutting files are protected by copyright and intellectual property laws. Purchasing a file grants a limited license to use the downloaded design according to the current CADtsy license terms; copyright ownership is not transferred.

Do not share, resell, rent, redistribute, or upload the digital files in any format. Commercial use, resale of finished items, and production rights must follow the current CADtsy license terms.

Read the current terms: CADtsy digital CNC file license terms. For licensing questions, contact CADtsy.

• Unit system: CADtsy designs are generally prepared in millimeters (mm). Check the product description for product-specific sizing details.
• Import scale: If your software is set to inches, a DXF or SVG file may import at the wrong scale. Re-import using millimeters where possible, or confirm the scale before cutting.
• DXF import help: If a DXF opens 25.4 times too large or too small, read why DXF files import at the wrong size before scaling or cutting.
• DXF or SVG: Read DXF vs SVG for CNC cutting before importing or creating toolpaths.
• Before cutting: Verify material thickness, kerf, bit or nozzle size, toolpaths, machine setup, and software compatibility before producing a final part.
• Support: If you are unsure about a file or license question, contact CADtsy.

Related products

5 stars: 8 (89%)
4 stars: 1 (11%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

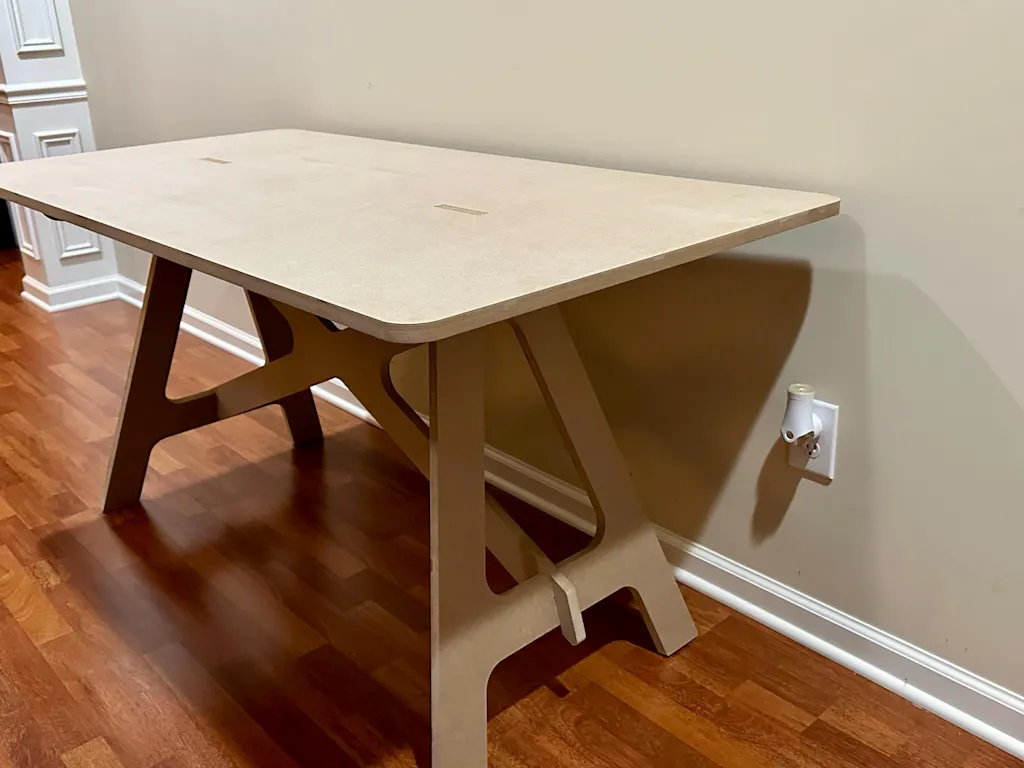

good thx. I started drawing in aspire and then an hour deep I was close but decided to skip and download, resized parabolic to .73 mic Trupan viola

Came out amazing! A great plan and design thank you for!

thank you
continue success .

excelente mesa , los planos son perfectos, no se necesita pegamento ni pijas Muy buen roducto

Ottimo incastri perfetti disegnato bene

Nicely designed plain work table thank you

Perfect file, not issues at all. I would recommend and I will probably purchase more cut files from this seller.

Buen articulo facil de elaboración

Used 18mm BB making a few adjustments for the size of my machine, but it works great and wife loves it. Using two of them in an L-shape for an at-home desk. GREAT PATTERN AND VERY CLASSIC.
