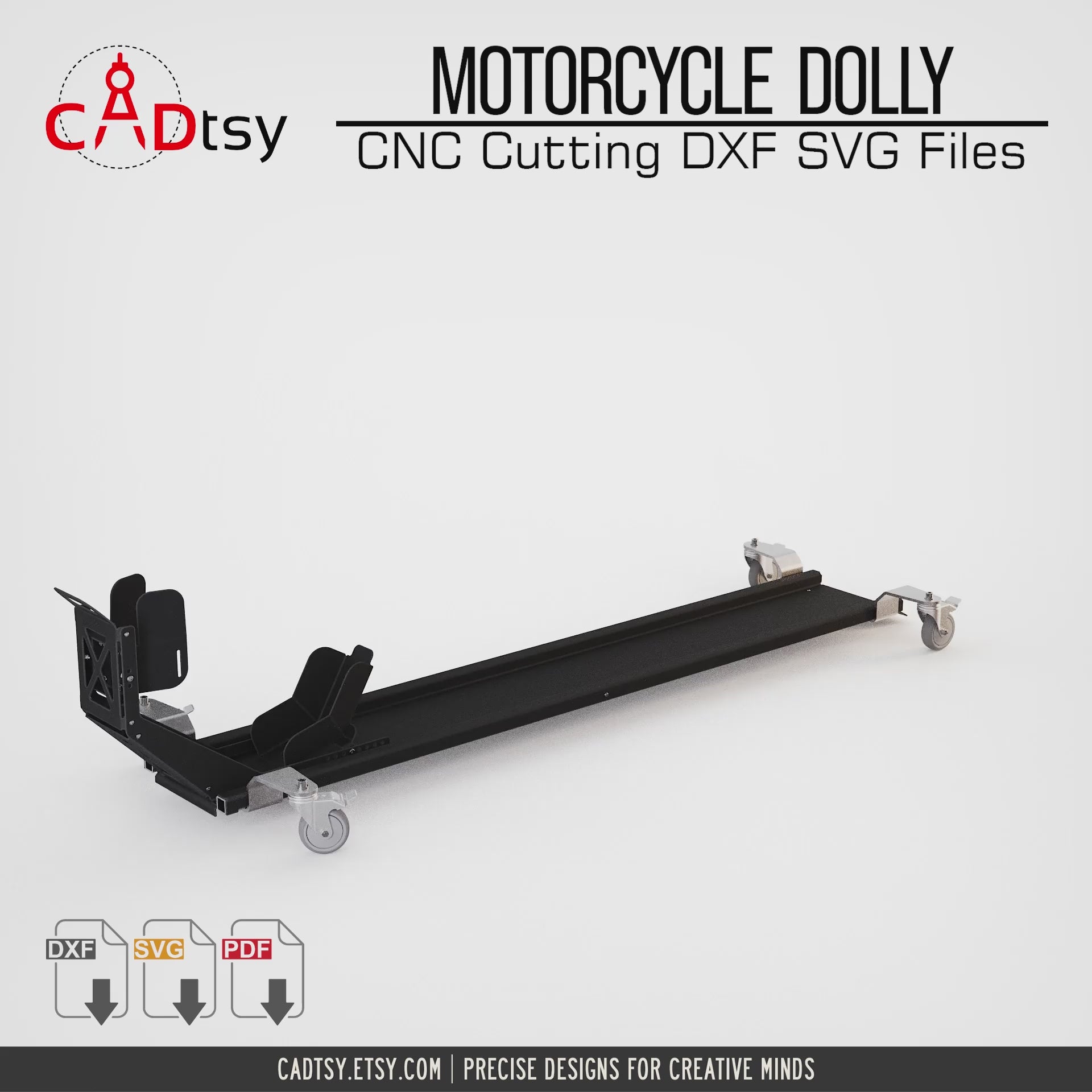

Motorcycle Dolly DXF plans is a downloadable CNC-ready file package for building a heavy-duty motorcycle mover, garage parking dolly, or rolling motorbike stand. The project combines CNC-cut sheet/plate parts with standard 30 x 30 mm structural tube.

What You Get

DXF, SVG, and PDF files for the motorcycle dolly dxf plans design.
CNC-ready files for plasma, laser, or waterjet cutting workflows.
PDF build guide/reference files for the motorcycle dolly project.
No physical motorcycle dolly, steel, square tube, casters, hardware, motorcycle, or finished garage tool is shipped.

Project Features

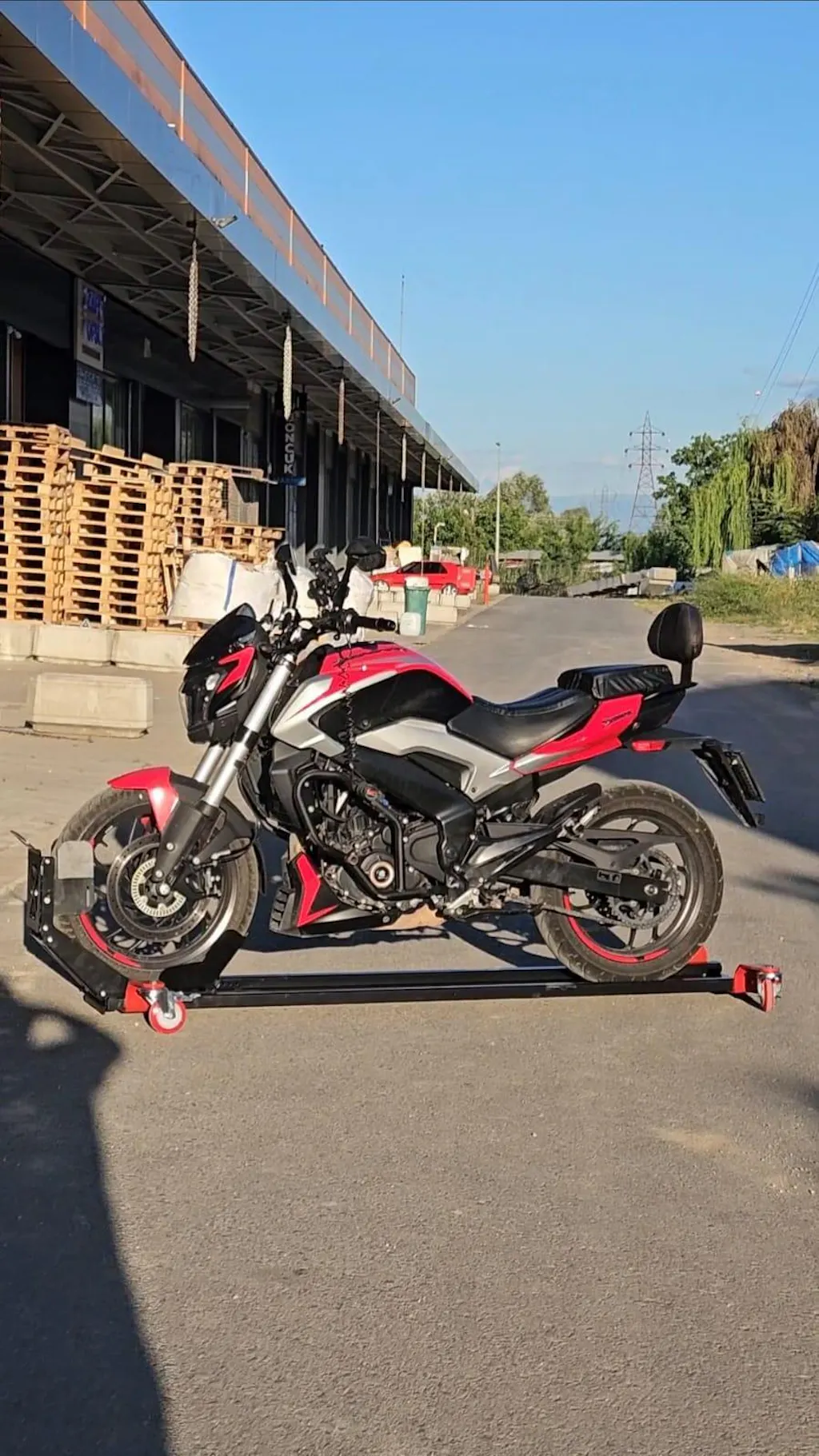

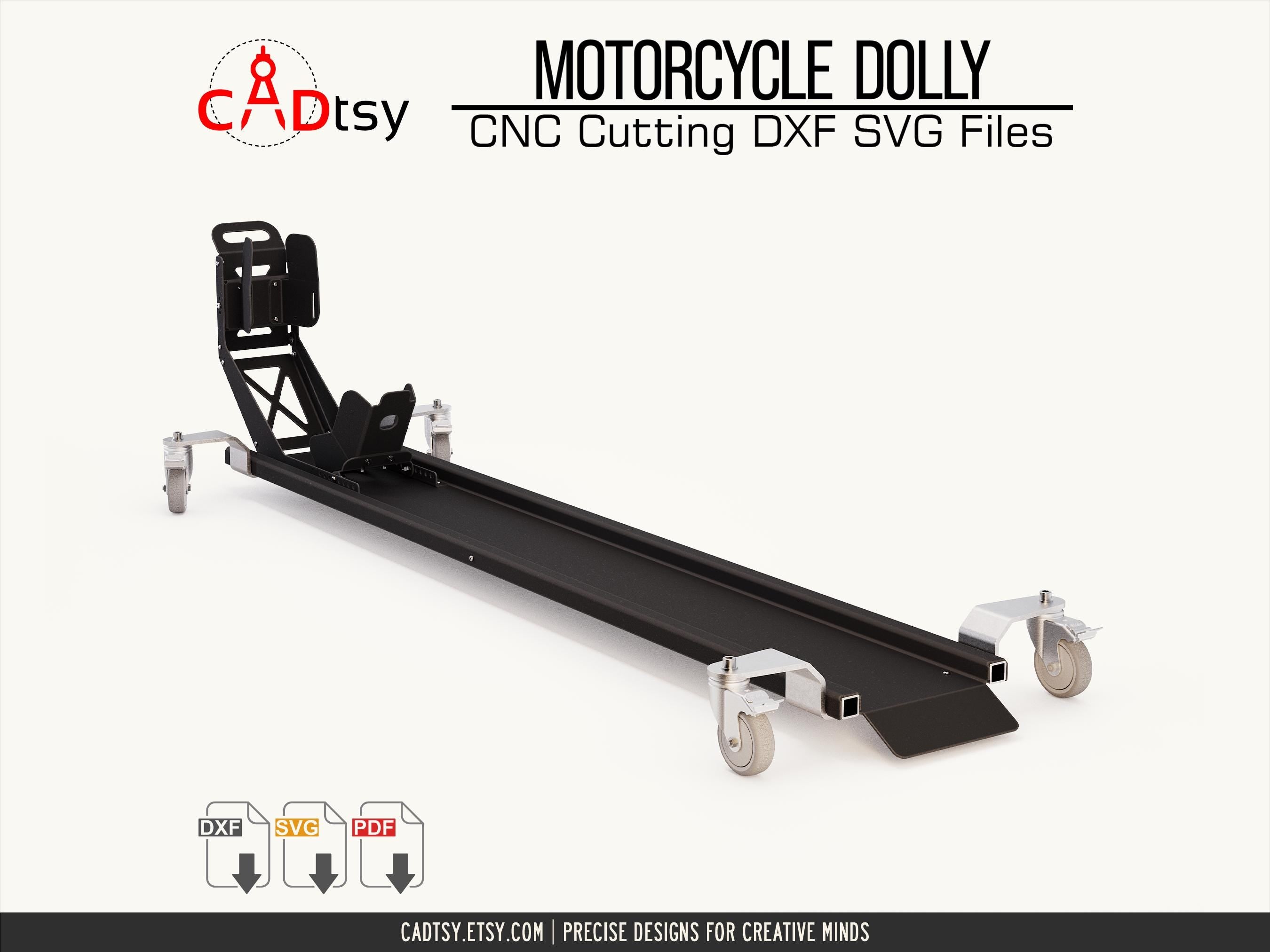

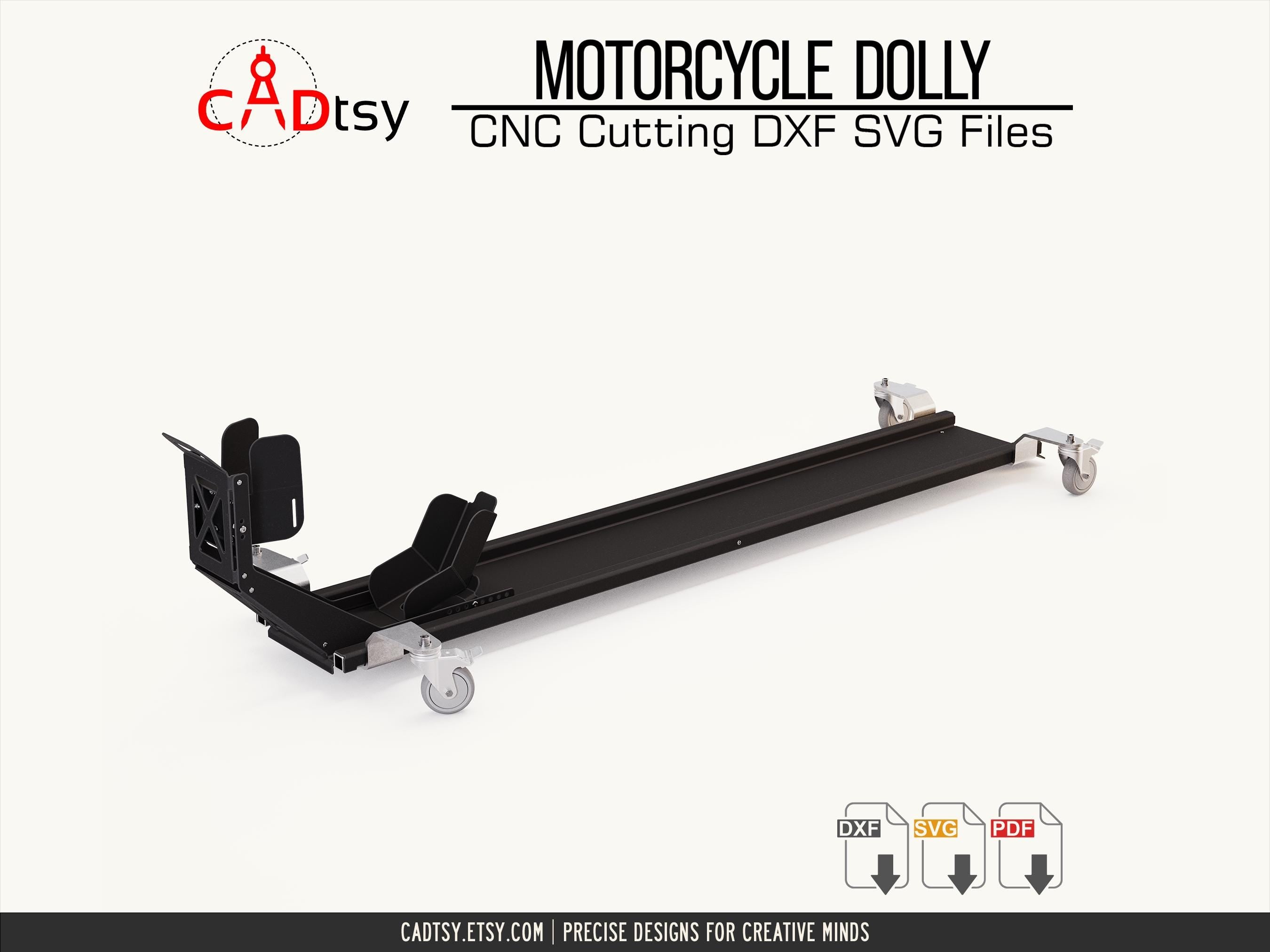

Adjustable front wheel chock and structural turntable platform for moving a motorcycle in tight garage or shop spaces.
Designed for CNC-cut steel parts, square structural tube, bending, welding, and hardware assembly.
Slot cuts are included on bending lines to support accurate bending without requiring a brake press.

Finished Size

Project uses 30 x 30 mm square structural tube for frame components.
Use the included PDF reference files for exact part dimensions and assembly layout.

Recommended Materials

11 gauge / 3.0 mm sheet steel.
5/16 in / 8.0 mm steel plate.
30 x 30 mm square structural tube.
Heavy-duty casters and assembly hardware.

Before Cutting

CADtsy designs are created in millimeters; check file scale and units before sending the DXF or SVG files to CAM software.
Verify kerf, bend approach, tube cuts, welding plan, caster/hardware rating, load requirements, material thickness, and machine settings before fabrication.
Confirm finished dolly strength, stability, rolling clearance, and motorcycle fit before use.
