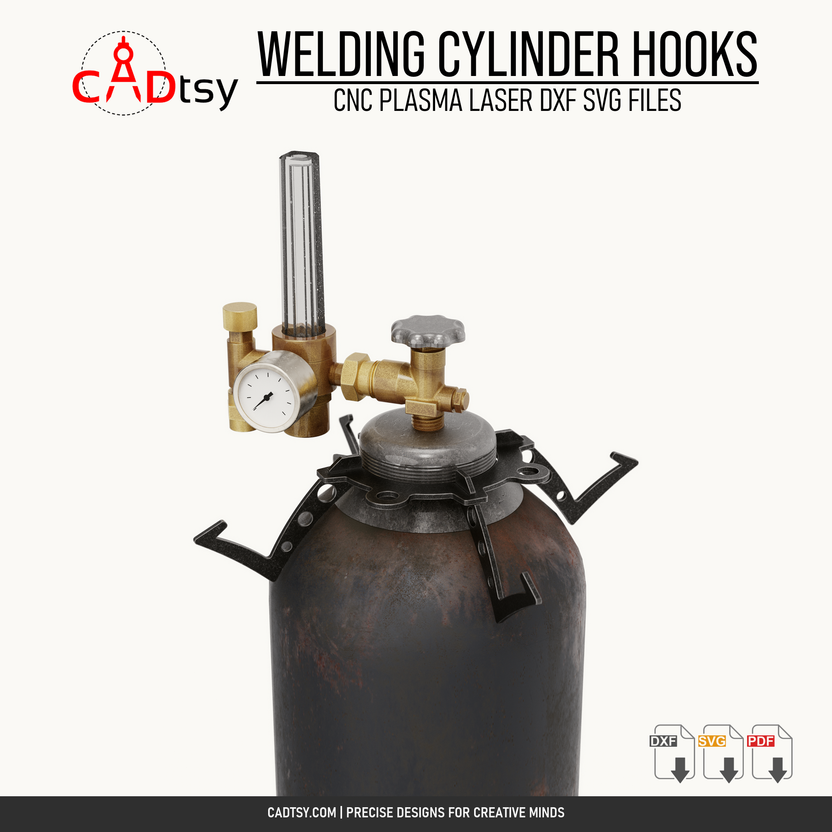

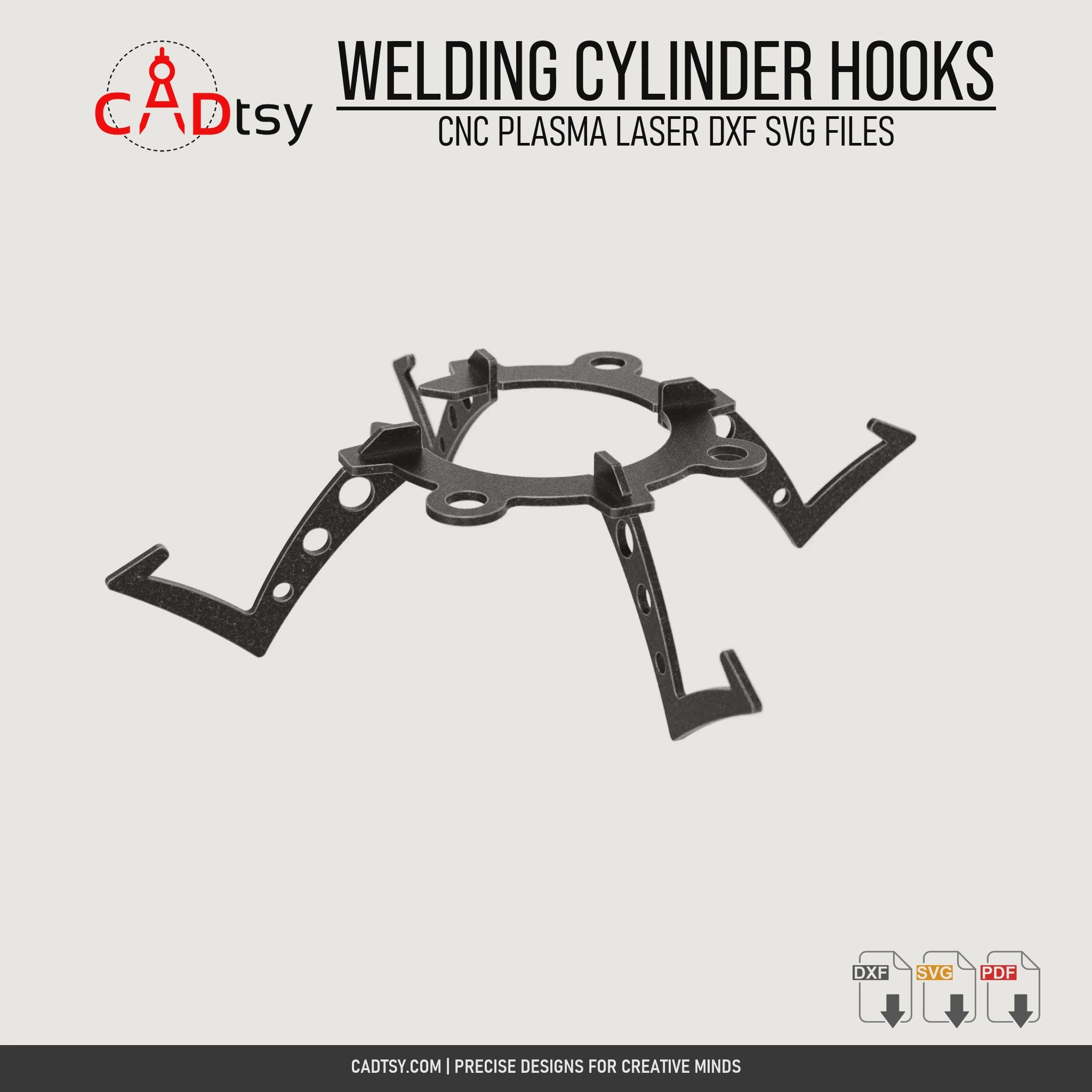

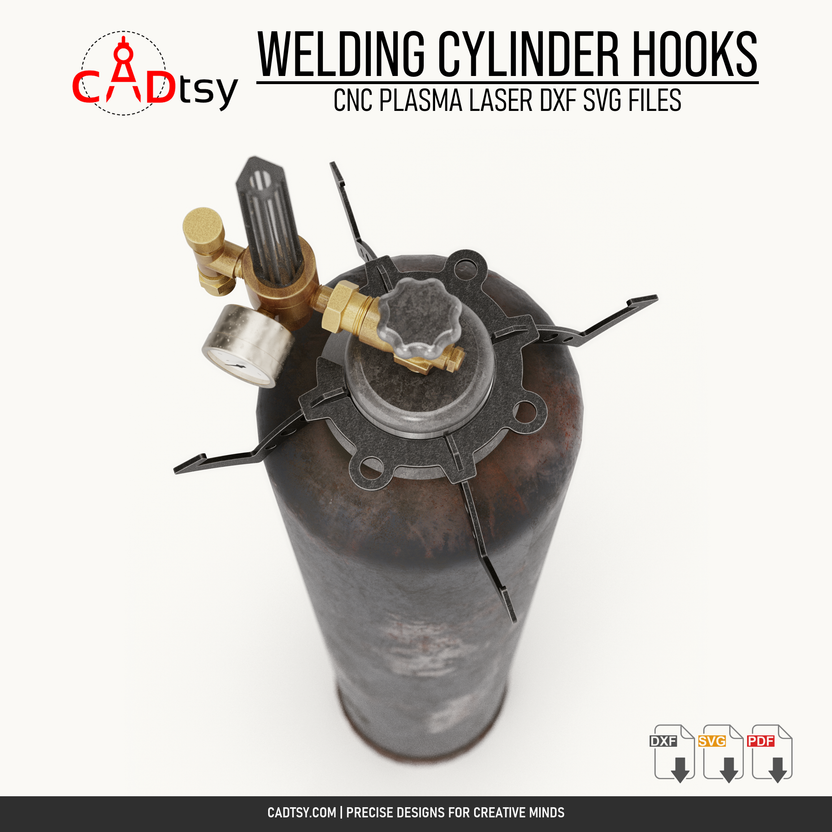

Welding gas cylinder fitted with dual accessory hooks

Welding Gas Cylinder Hooks DXF SVG Files for CNC Plasma Cutting

$7.08 USD

$7.08 USD $11.47 USD

Welding Gas Cylinder Hooks DXF SVG Files for CNC Plasma Cutting

Name: Welding Gas Cylinder Hooks DXF SVG Files for CNC Plasma Cutting
Brand: CADtsy
SKU: MT-ORG-WLD-CHK-001
Price: 7.08 USD
Availability: InStock

$7.08 USD

$7.08 USD $11.47 USD

Digital download. Quantity is limited to 1 license per design per order.

Multi-file savings: 8% off 3+ items, 16% off 5+, or 24% off 7+. Applied automatically in cart.

Digital download. No physical item or shipping required. Check the product description for the exact included files.

Download links are sent by email after checkout. See What You Get below for any additional PDF drawings or instructions.

Purchase grants a limited license; digital files may not be shared, resold, or redistributed. Review the CADtsy license terms.

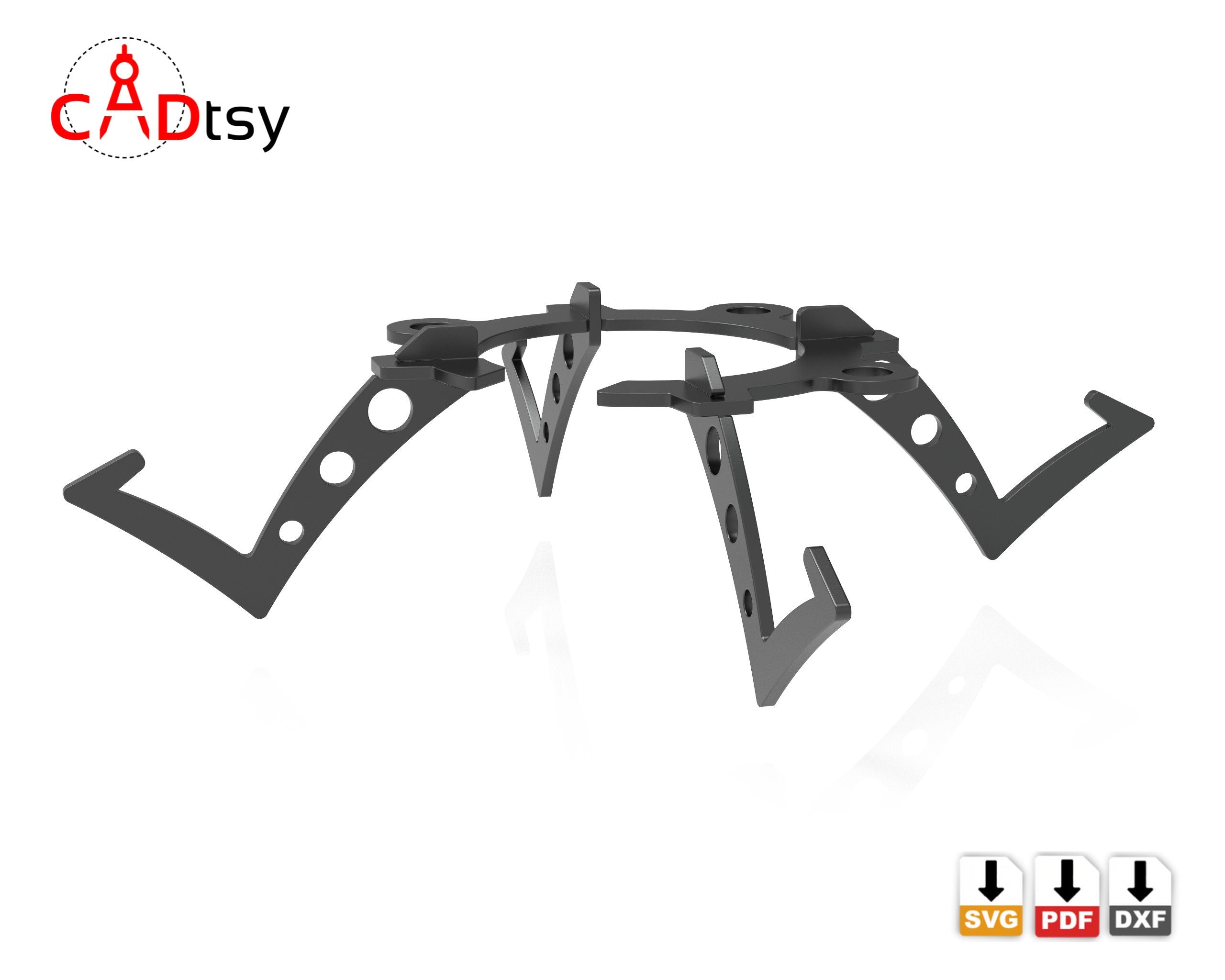

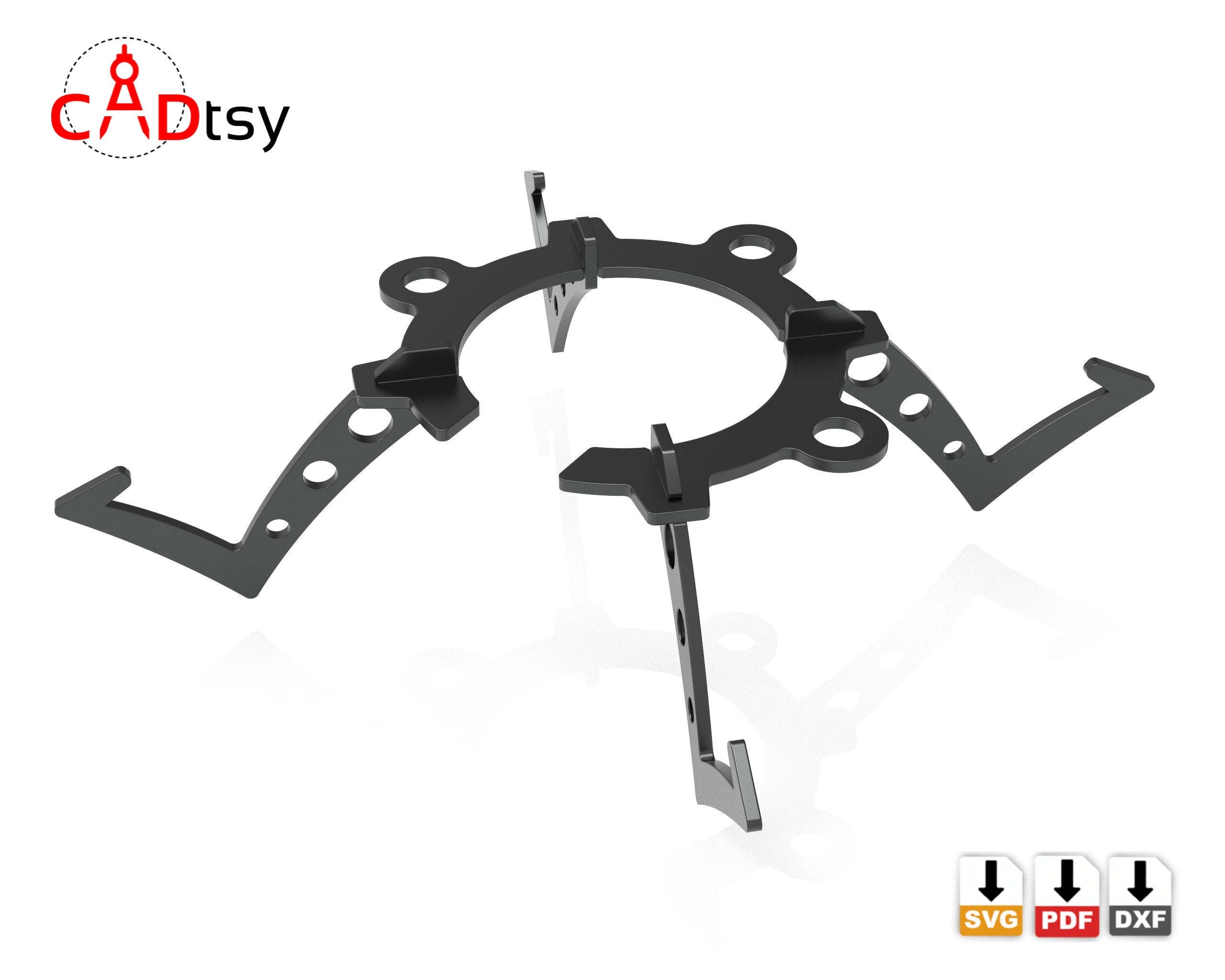

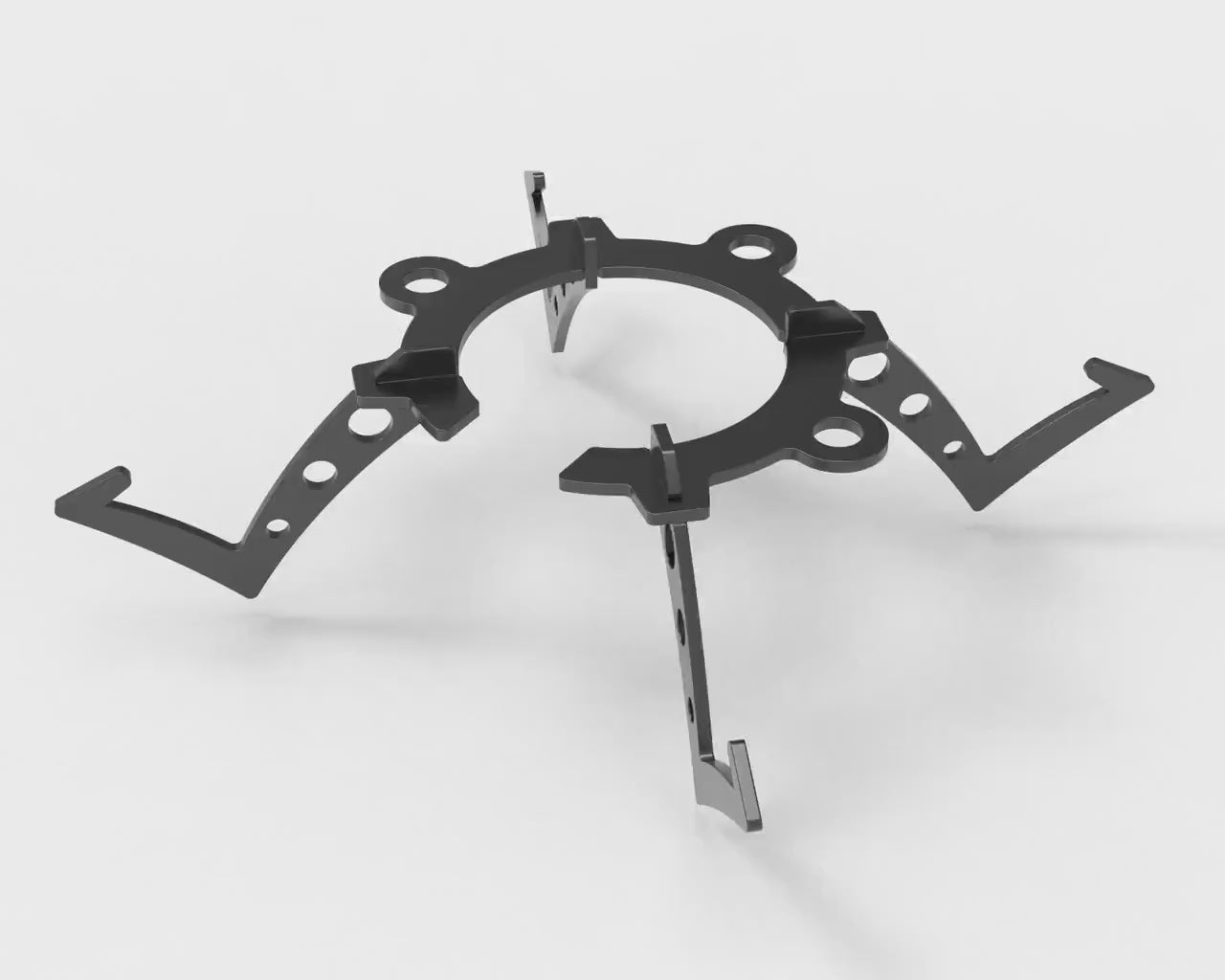

Build dual-hook welding gas cylinder organizers from downloadable DXF, SVG, and PDF files for CNC plasma, laser, or waterjet cutting. Separate 81 mm and 91 mm neck-opening variants are included. No physical hooks, cylinder, steel, torch, leads, or accessories are shipped.

What You Get

DXF, SVG, and PDF files.

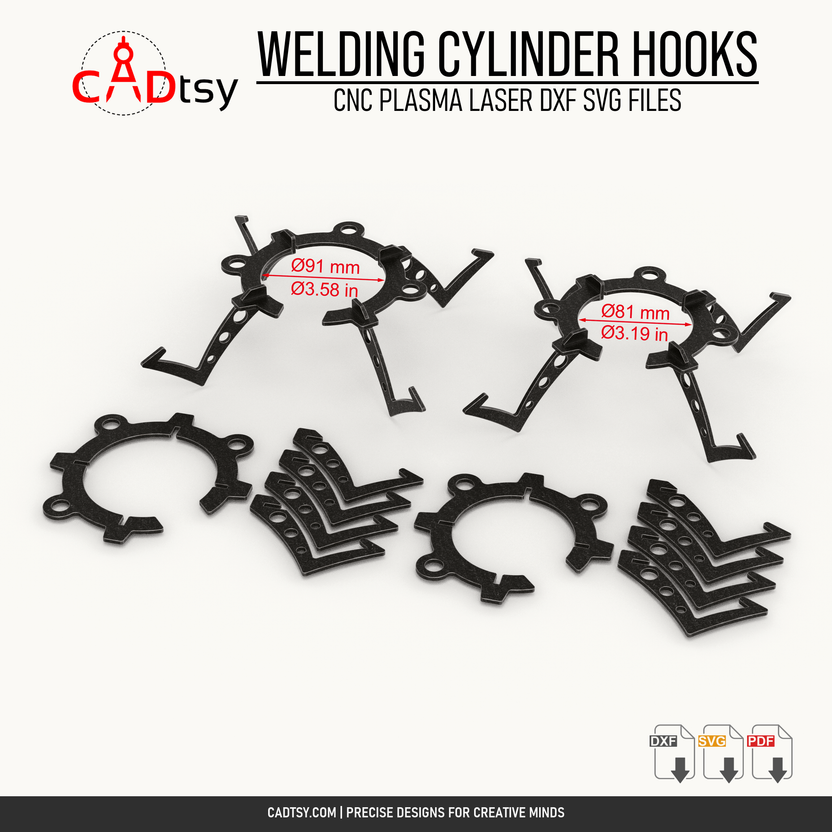

81 mm / 3.19 in and 91 mm / 3.58 in neck-opening variants.

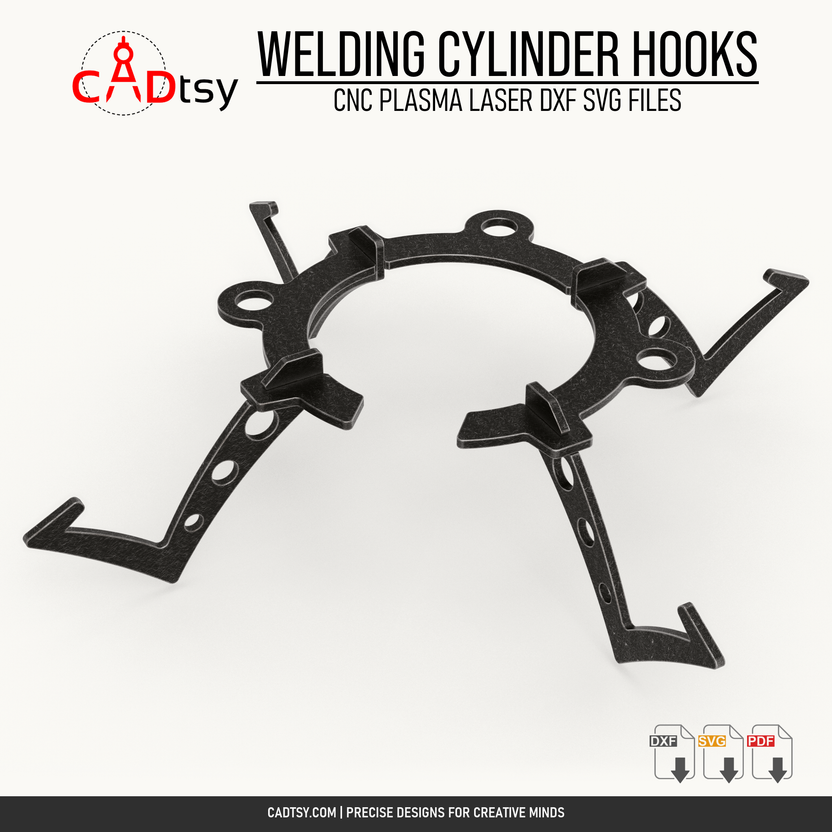

Each variant contains one collar and four matching double-ended hook parts.

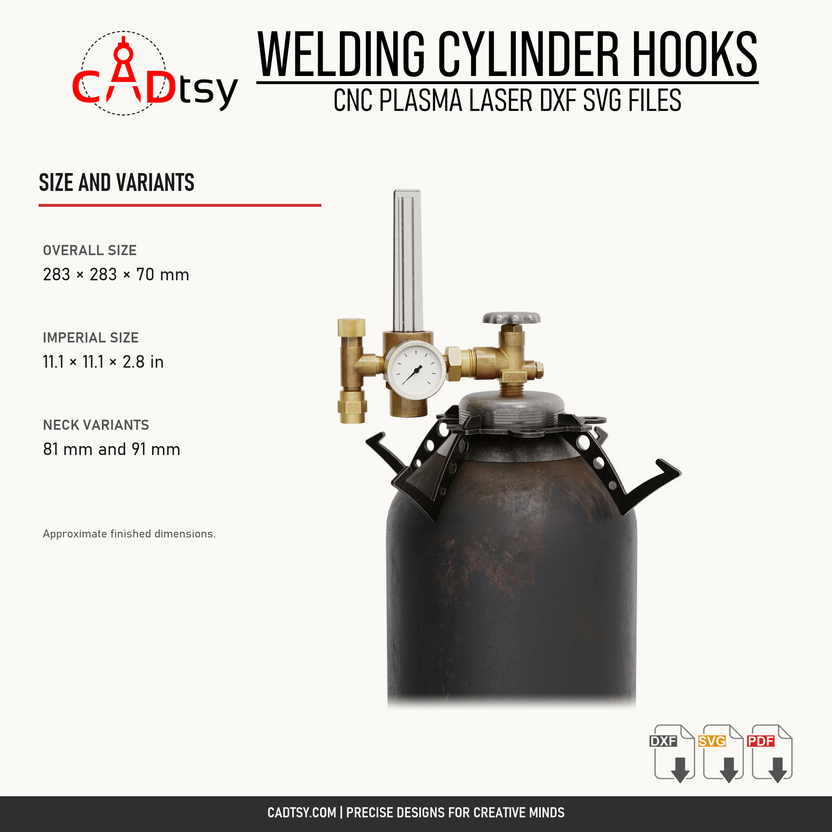

Approximate Finished Envelopes

81 mm version: 283 x 283 x 70 mm.
91 mm version: 293 x 293 x 70 mm.

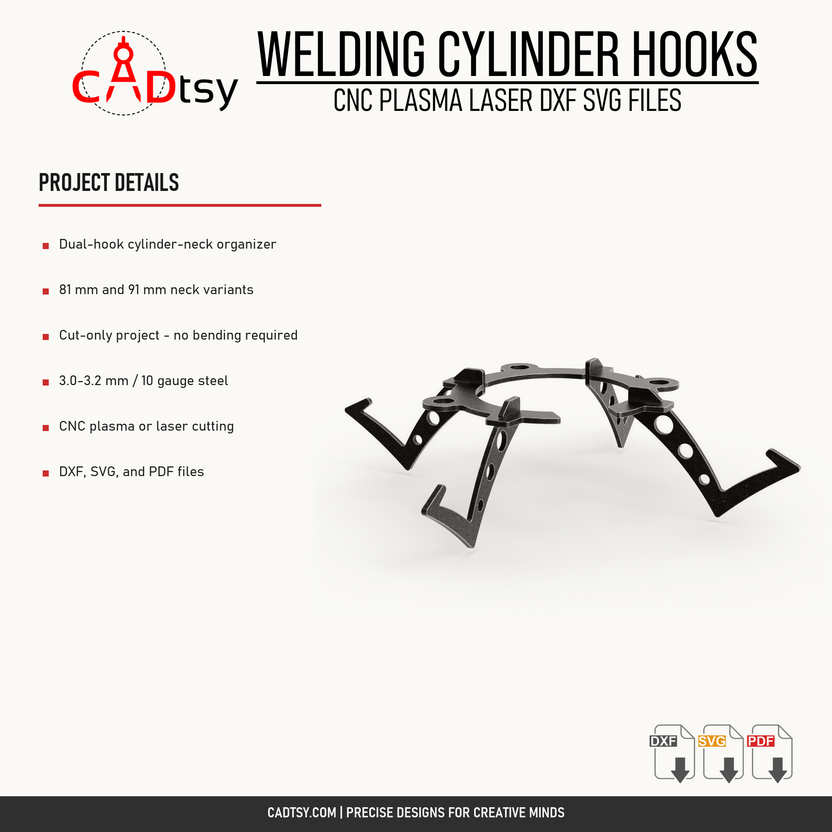

Fabrication Notes

Recommended material: 3.0-3.2 mm steel.
Cut-only tab-and-slot assembly; no bending or purchased hardware is required by the design.
Measure the actual cylinder neck, verify kerf and slot fit, and keep the organizer clear of the valve, regulator, gauges, hoses, labels, and safety devices.
No quantitative load rating is claimed.

Related CADtsy Files

Browse workshop organizer DXF files or review how CADtsy digital CNC files work.

• Digital product: This product is a downloadable CNC-ready design file package. No physical item is shipped.
• Delivery: After checkout, download links are sent by automated email and may also be available through your store order account.
• Included files: File formats vary by product and may include DXF, SVG, PDF, AI, project drawings, or instructions. Check the product description for the exact deliverables included with this design.
• Learn more: How CADtsy digital CNC files work.

CADtsy digital designs, drawings, templates, and cutting files are protected by copyright and intellectual property laws. Purchasing a file grants a limited license to use the downloaded design according to the current CADtsy license terms; copyright ownership is not transferred.

Do not share, resell, rent, redistribute, or upload the digital files in any format. Commercial use, resale of finished items, and production rights must follow the current CADtsy license terms.

Read the current terms: CADtsy digital CNC file license terms. For licensing questions, contact CADtsy.

• Unit system: CADtsy designs are generally prepared in millimeters (mm). Check the product description for product-specific sizing details.
• Import scale: If your software is set to inches, a DXF or SVG file may import at the wrong scale. Re-import using millimeters where possible, or confirm the scale before cutting.
• DXF import help: If a DXF opens 25.4 times too large or too small, read why DXF files import at the wrong size before scaling or cutting.
• DXF or SVG: Read DXF vs SVG for CNC cutting before importing or creating toolpaths.
• Before cutting: Verify material thickness, kerf, bit or nozzle size, toolpaths, machine setup, and software compatibility before producing a final part.
• Support: If you are unsure about a file or license question, contact CADtsy.

Related products

5 stars: 11 (85%)
4 stars: 1 (8%)
3 stars: 1 (8%)
2 stars: 0 (0%)
1 star: 0 (0%)

Good stuff excellent customer service

Muy pequeño no acorde con las
medidas estandar

Excellent had no troubles making this project

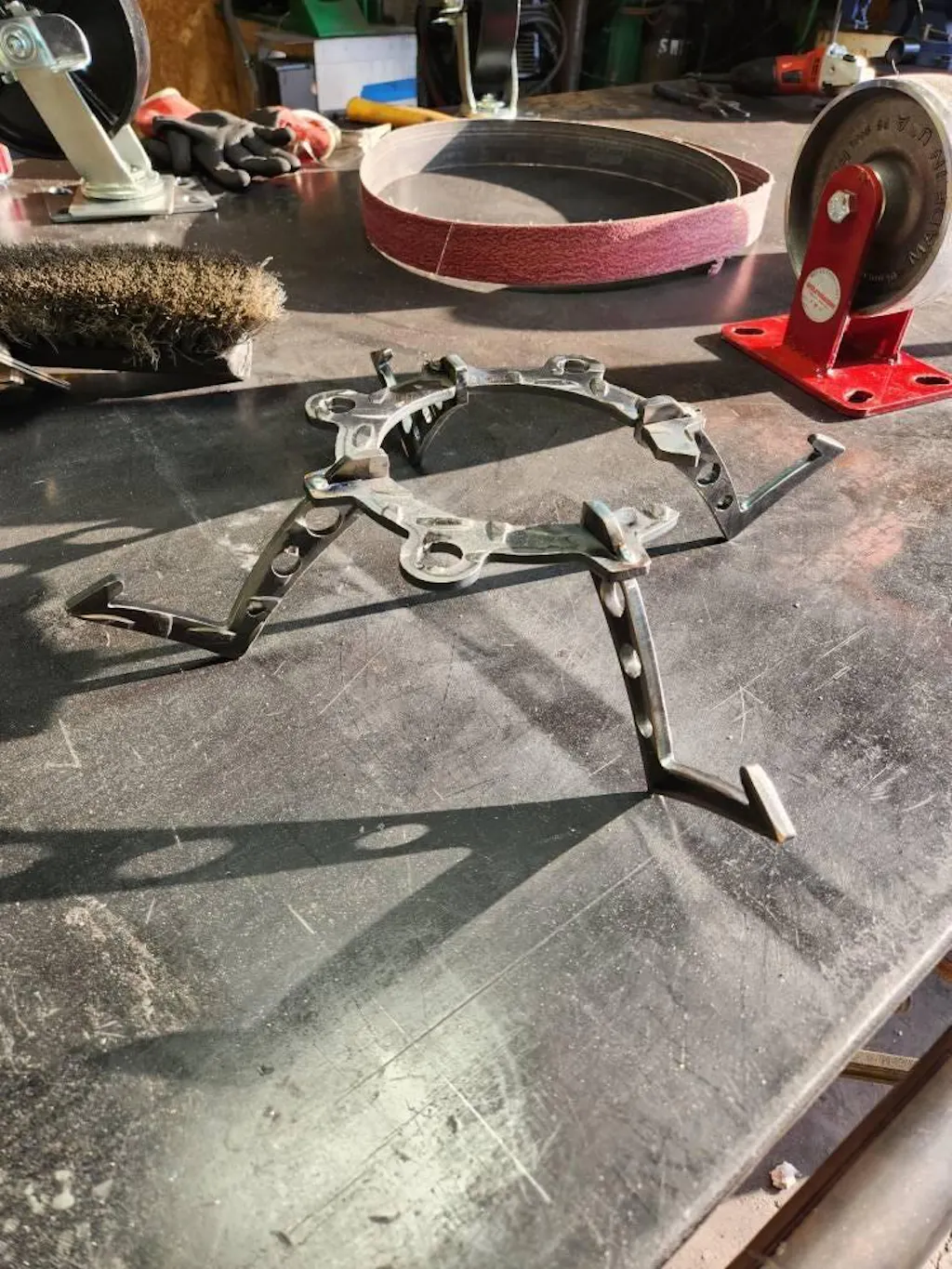

Good plans. A little tight fitting when I cut them in 11ga steel. May have been my plasma settings or maybe I didn't read the prints well enough. I made some as customer appreciation gifts. They love them and keep asking for more.
