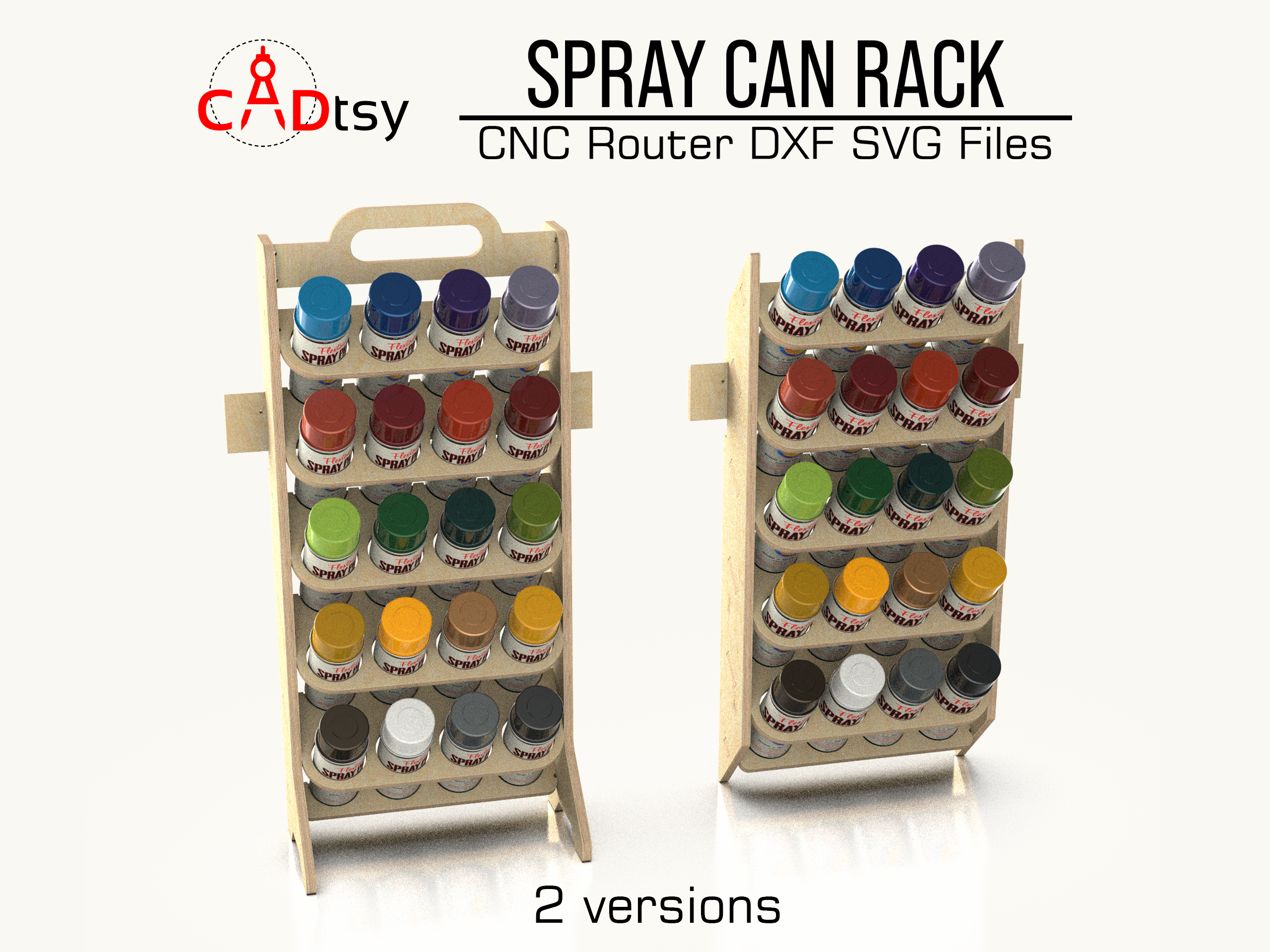

Wooden spray can rack with loaded and empty versions side by side

Wooden Spray Can Rack DXF/SVG - CNC Router Files, Holds 20 Cans

$7.08 USD

$7.08 USD $11.47 USD

Wooden Spray Can Rack DXF/SVG - CNC Router Files, Holds 20 Cans

Name: Wooden Spray Can Rack DXF/SVG - CNC Router Files, Holds 20 Cans
Brand: CADtsy
SKU: WD-ORG-RCK-CAN-001
Price: 7.08 USD
Availability: InStock

$7.08 USD

$7.08 USD $11.47 USD

Taxes included. Shipping calculated at checkout.

Wooden Spray Can Rack DXF files is a downloadable CNC-ready file package for building a plywood spray can rack, aerosol can organizer, or workshop paint storage holder from sheet goods. The design includes wall-mount and mobile rack versions for 20 rattle cans.

What You Get

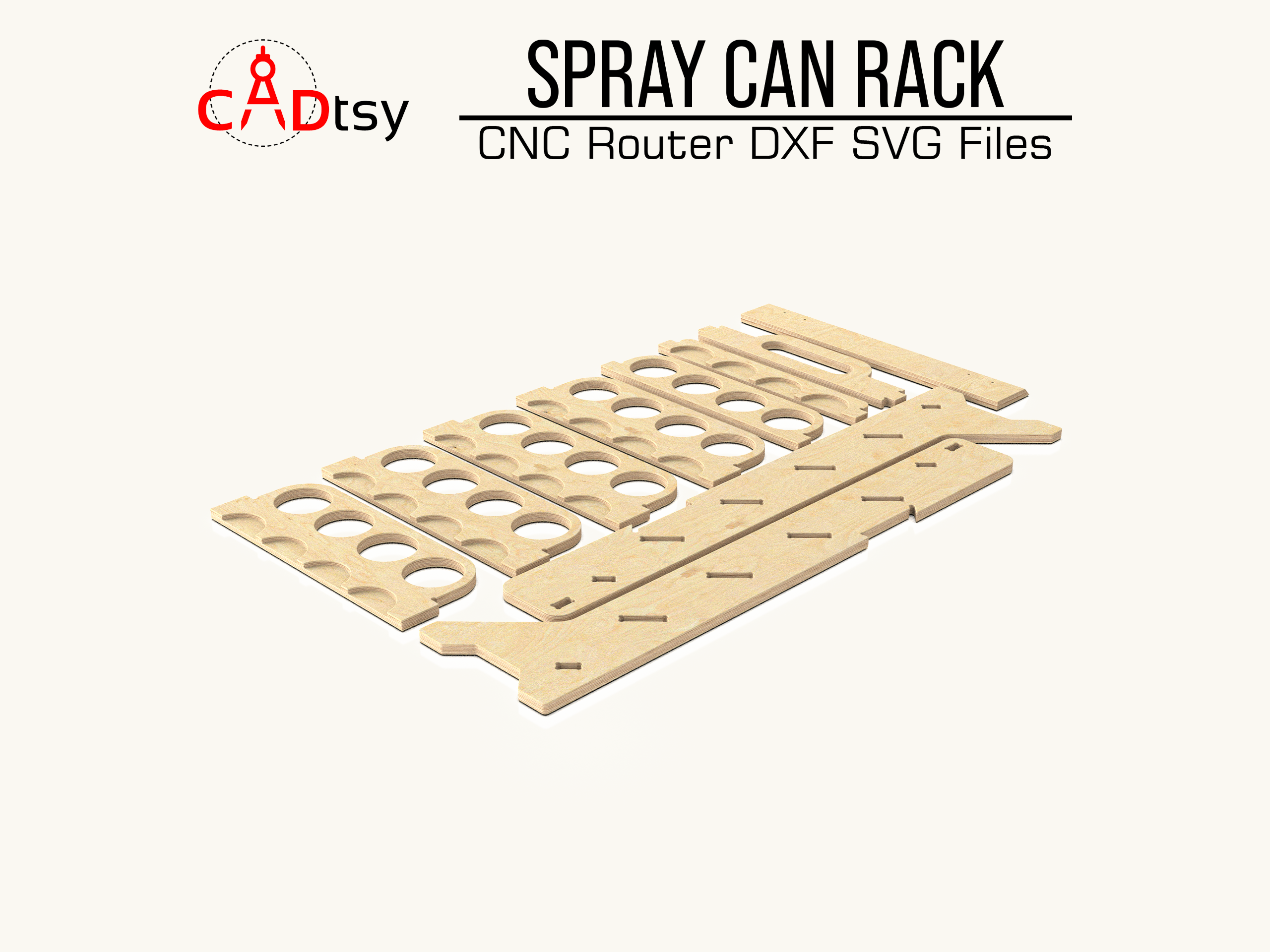

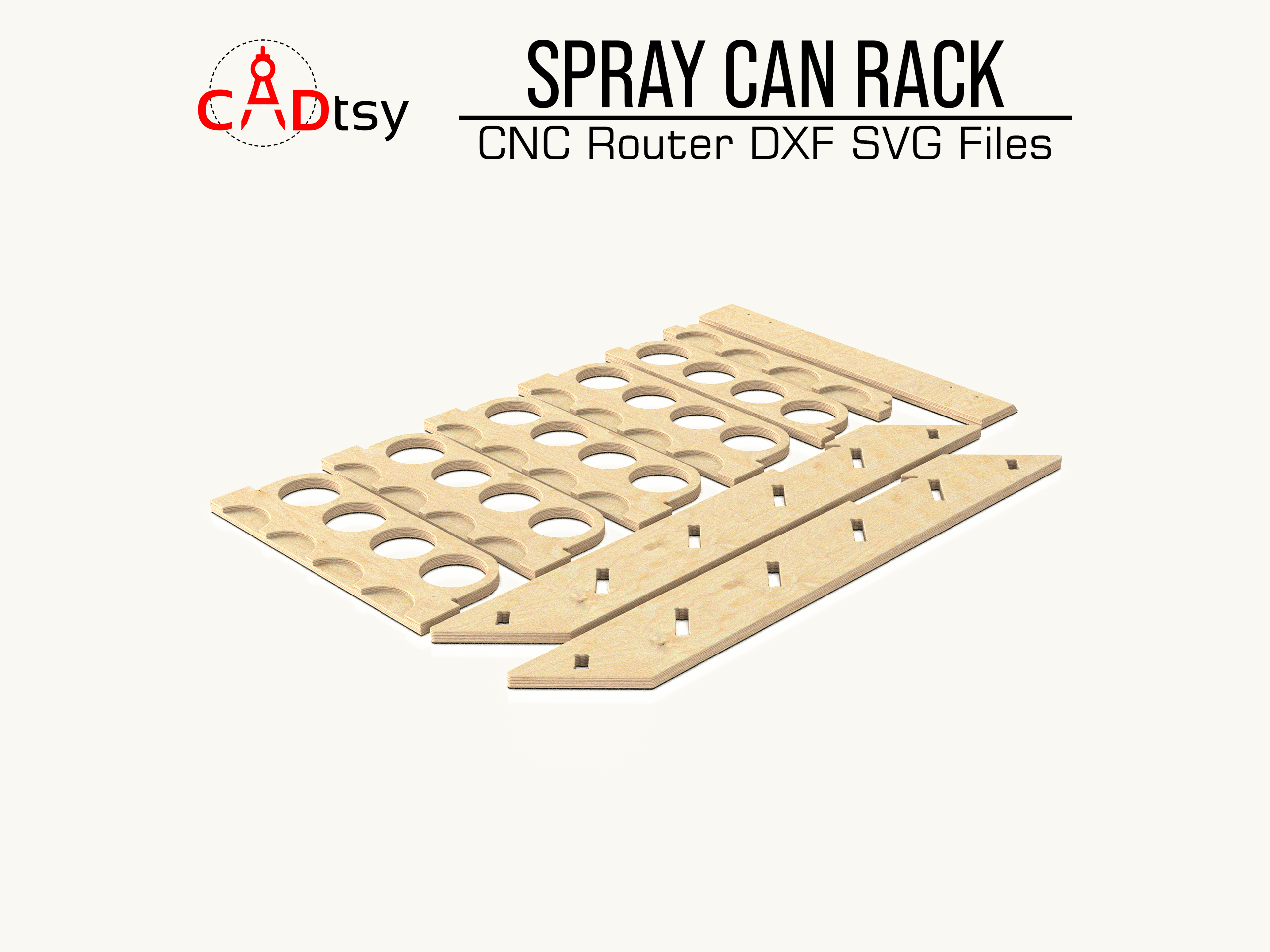

DXF, SVG, and PDF files for the wooden spray can rack design.
CNC-ready files for router cutting workflows.
PDF reference files for the spray can rack project.
No physical spray can rack, plywood, spray cans, mounting hardware, fasteners, or finished organizer is shipped.

Project Features

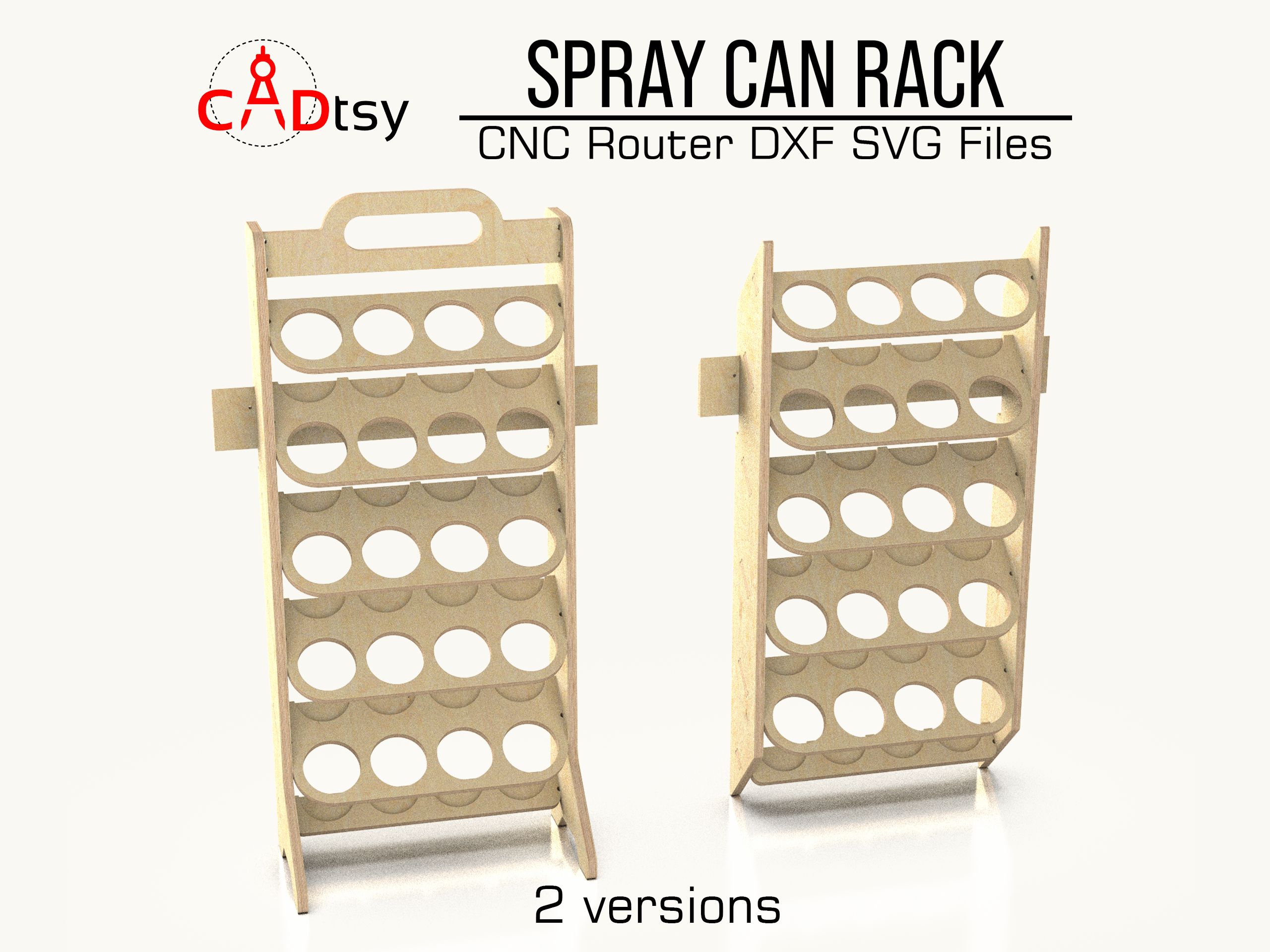

Two rack versions are included: a wall-mount French cleat version and a mobile version with handle and feet.
Designed to hold 20 spray cans for workshop, garage, paint booth, or maker-space storage.
Inside corners are designed with router-bit clearance for tools up to 6 mm / 1/4 in.

Finished Size

Stackable version size: 30.0 in H x 14.5 in W x 5.3 in D / 762 x 368 x 136 mm.
Mobile version size: 32.9 in H x 14.5 in W x 7.9 in D / 837 x 368 x 200 mm.

Recommended Materials

12.7 mm / 1/2 in plywood, MDF, particle board, or OSB.

Before Cutting

CADtsy designs are created in millimeters; check file scale and units before sending the DXF or SVG files to CAM software.
Use the listed material thickness and tooling assumptions; adjust only if changing material thickness or using a larger router bit.
Verify router bit diameter, kerf, material thickness, wall-mounting method, can size, and machine settings before fabrication.

Related CADtsy Files

Browse related CADtsy project files, explore similar CNC designs, CADtsy CNC cut files, or review how CADtsy digital CNC files work before purchase.

• Digital product: This product is a downloadable CNC-ready design file package. No physical item is shipped.
• Delivery: After checkout, download links are sent by automated email and may also be available through your store order account.
• Included files: File formats vary by product and may include DXF, SVG, PDF, AI, project drawings, or instructions. Check the product description for the exact deliverables included with this design.
• Learn more: How CADtsy digital CNC files work.

CADtsy digital designs, drawings, templates, and cutting files are protected by copyright and intellectual property laws. Purchasing a file grants a limited license to use the downloaded design according to the current CADtsy license terms; copyright ownership is not transferred.

Do not share, resell, rent, redistribute, or upload the digital files in any format. Commercial use, resale of finished items, and production rights must follow the current CADtsy license terms.

Read the current terms: CADtsy digital CNC file license terms. For licensing questions, contact CADtsy.

• Unit system: CADtsy designs are generally prepared in millimeters (mm). Check the product description for product-specific sizing details.
• Import scale: If your software is set to inches, a DXF or SVG file may import at the wrong scale. Re-import using millimeters where possible, or confirm the scale before cutting.
• DXF import help: If a DXF opens 25.4 times too large or too small, read why DXF files import at the wrong size before scaling or cutting.
• DXF or SVG: Read DXF vs SVG for CNC cutting before importing or creating toolpaths.
• Before cutting: Verify material thickness, kerf, bit or nozzle size, toolpaths, machine setup, and software compatibility before producing a final part.
• Support: If you are unsure about a file or license question, contact CADtsy.
